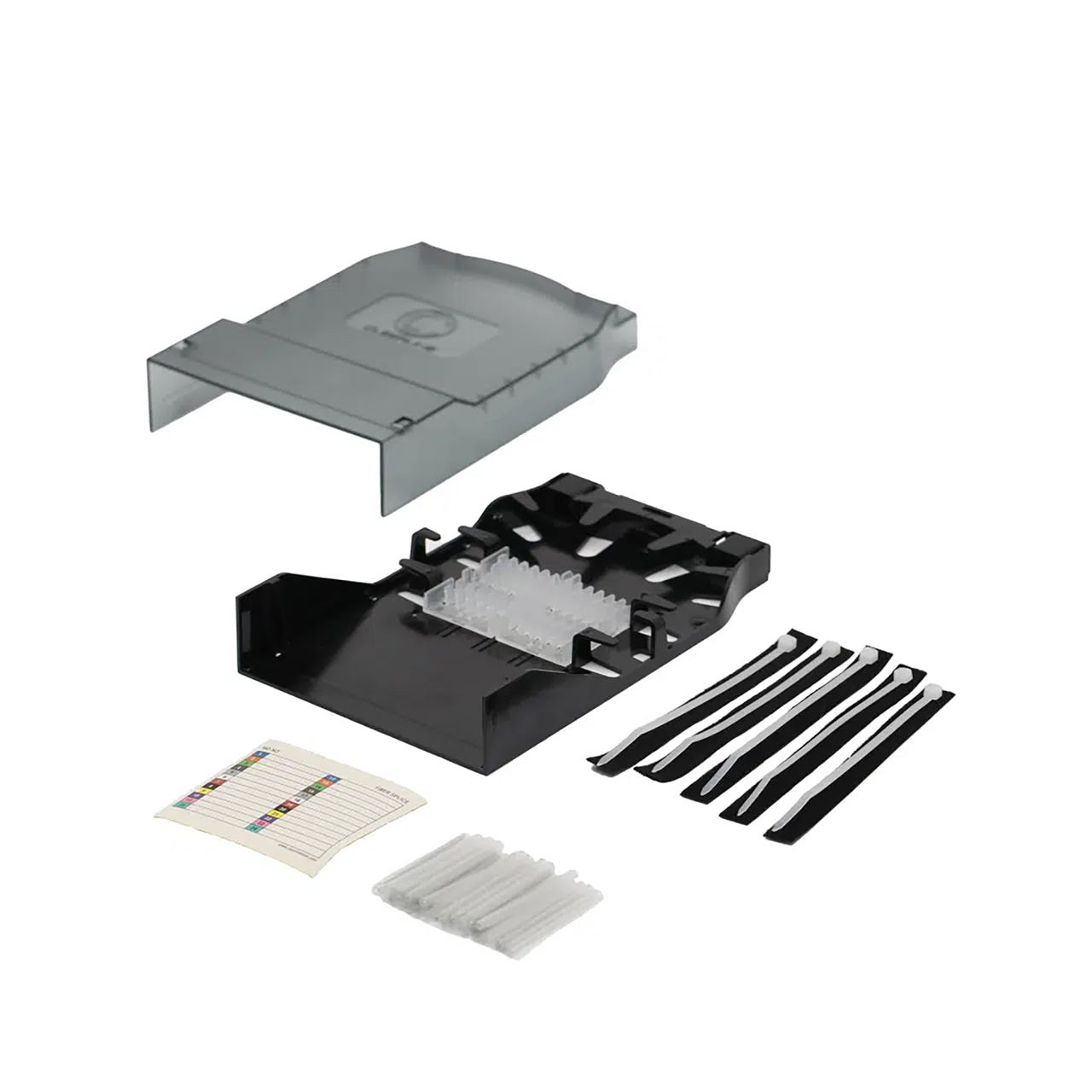

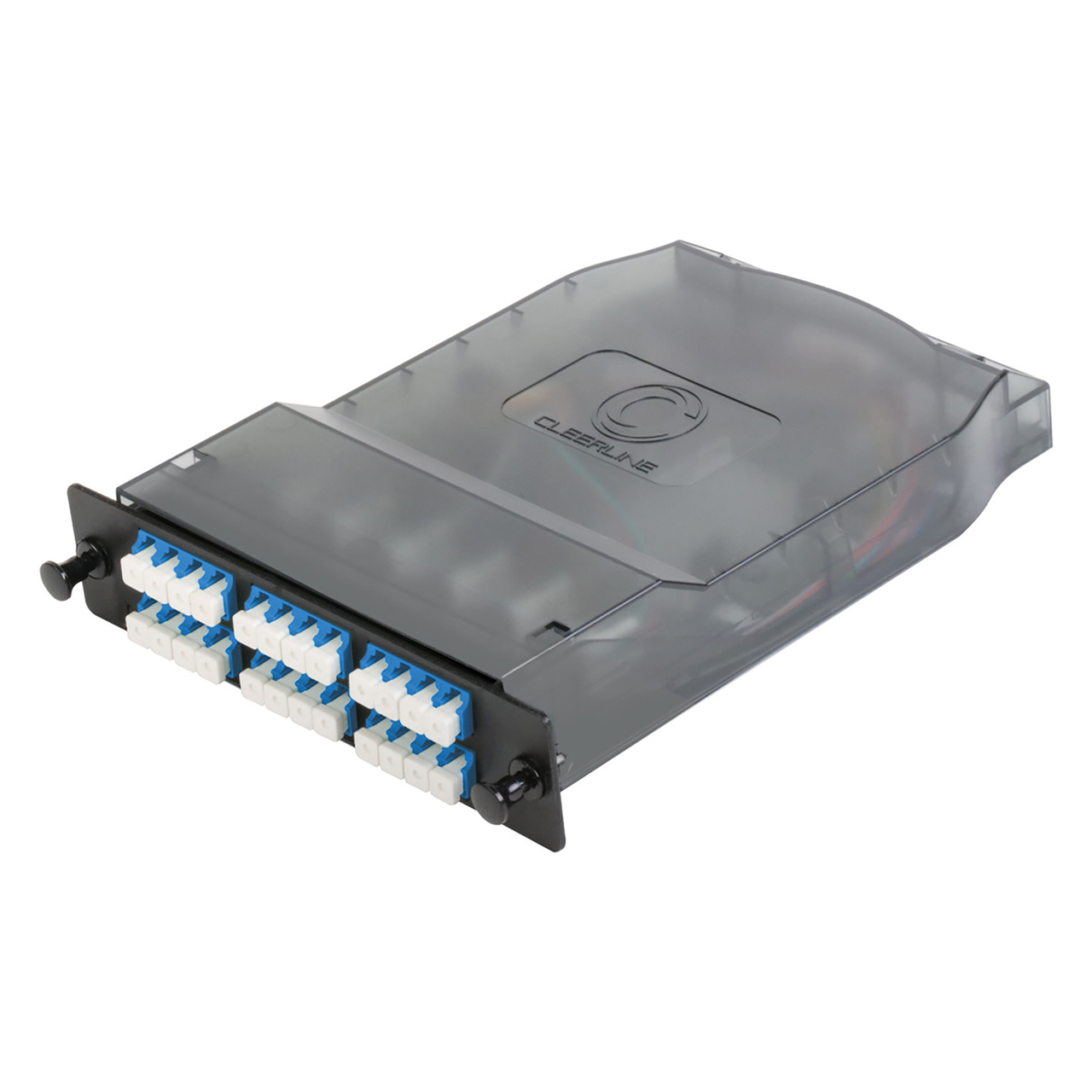

The Cleerline™ SHDLC24-SM-UPC is a HD splice cassette, which provide an efficient solution for managing fusion-spliced fibers. This cassette comes preloaded with 24 x 900μm 3' long fiber pigtails, eliminating the need for a separate splice tray. Inside the cassette, splice holders and a cable winding area allow cable management and organization. These splice cassettes are sized to fit within any LGX compatible opening. Cleerline™ Splice Cassettes have a removable transparent cover to allow easy fiber verification. All cassettes include heat shrink splice protection tubes, removeable splice organizers, and cable management accessories. Splice cassettes are available preloaded in OM3 (multimode), OS2 (single-mode) fibers, and OS2 APC
(angled polish connector) configurations. Cassettes adapters and fibers are color-coded according to TIA standards.
Applications
- Where enclosure and protection of splices is
desired.
- High density environments, data centers, telecommunications
network
- Scenarios requiring fusion splicing
