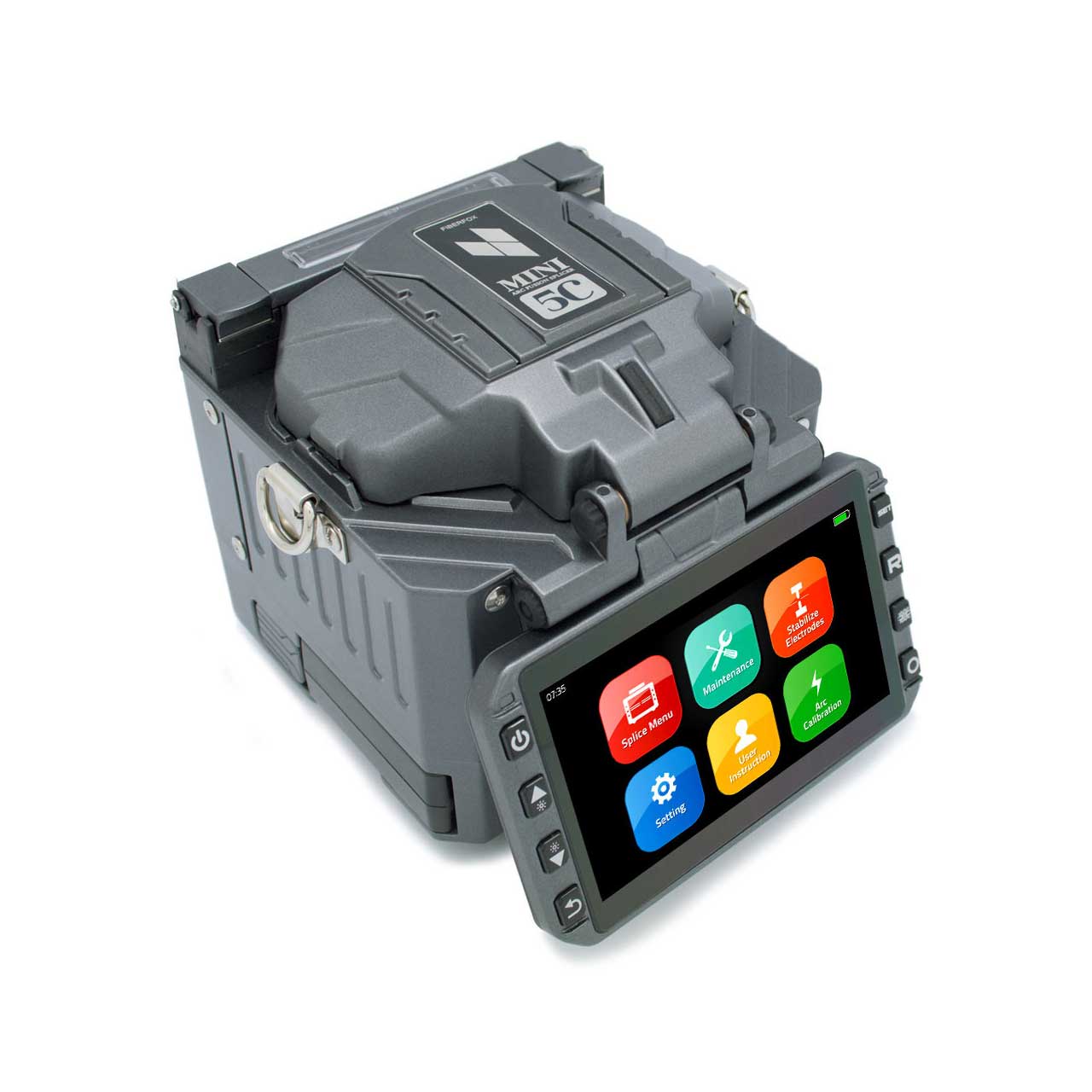

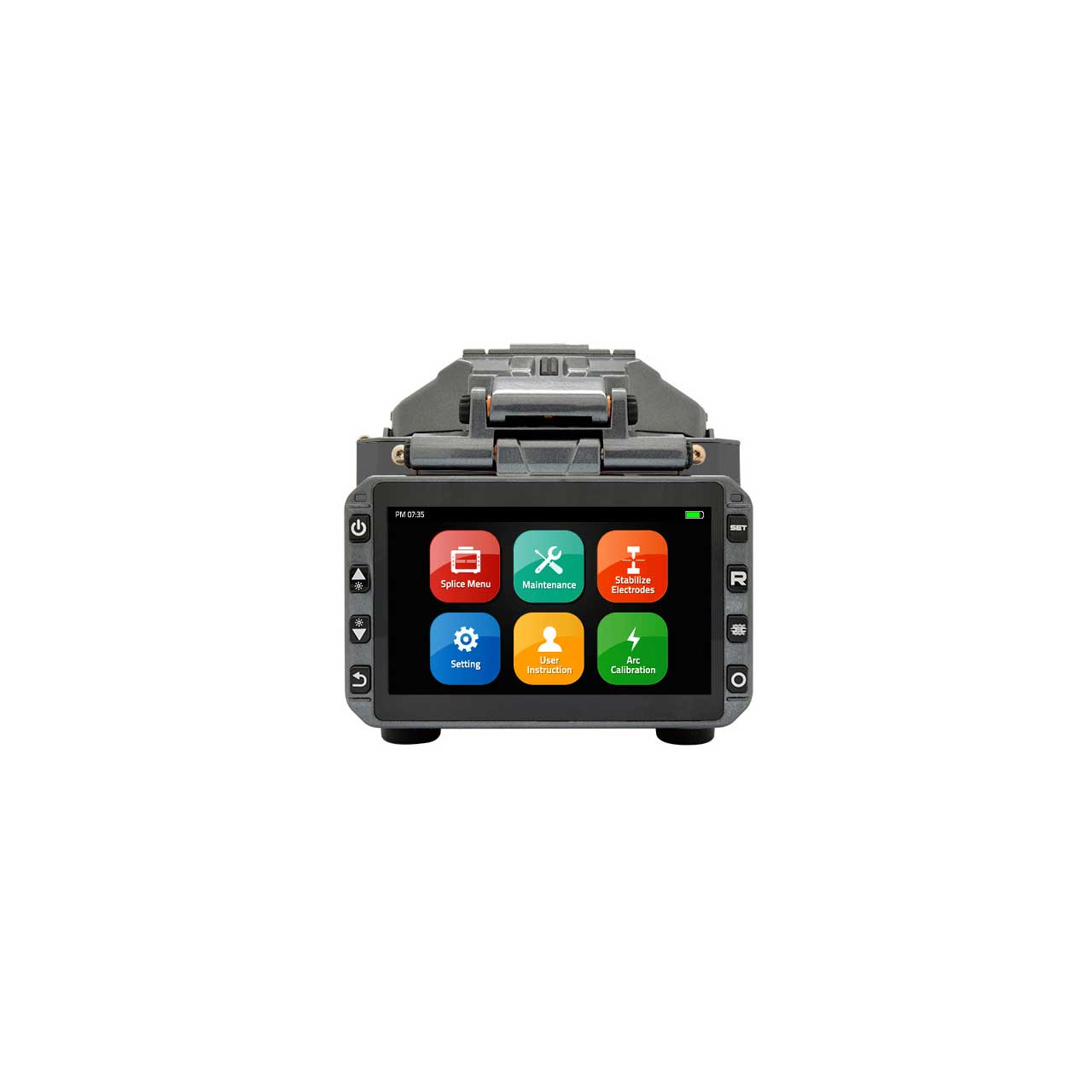

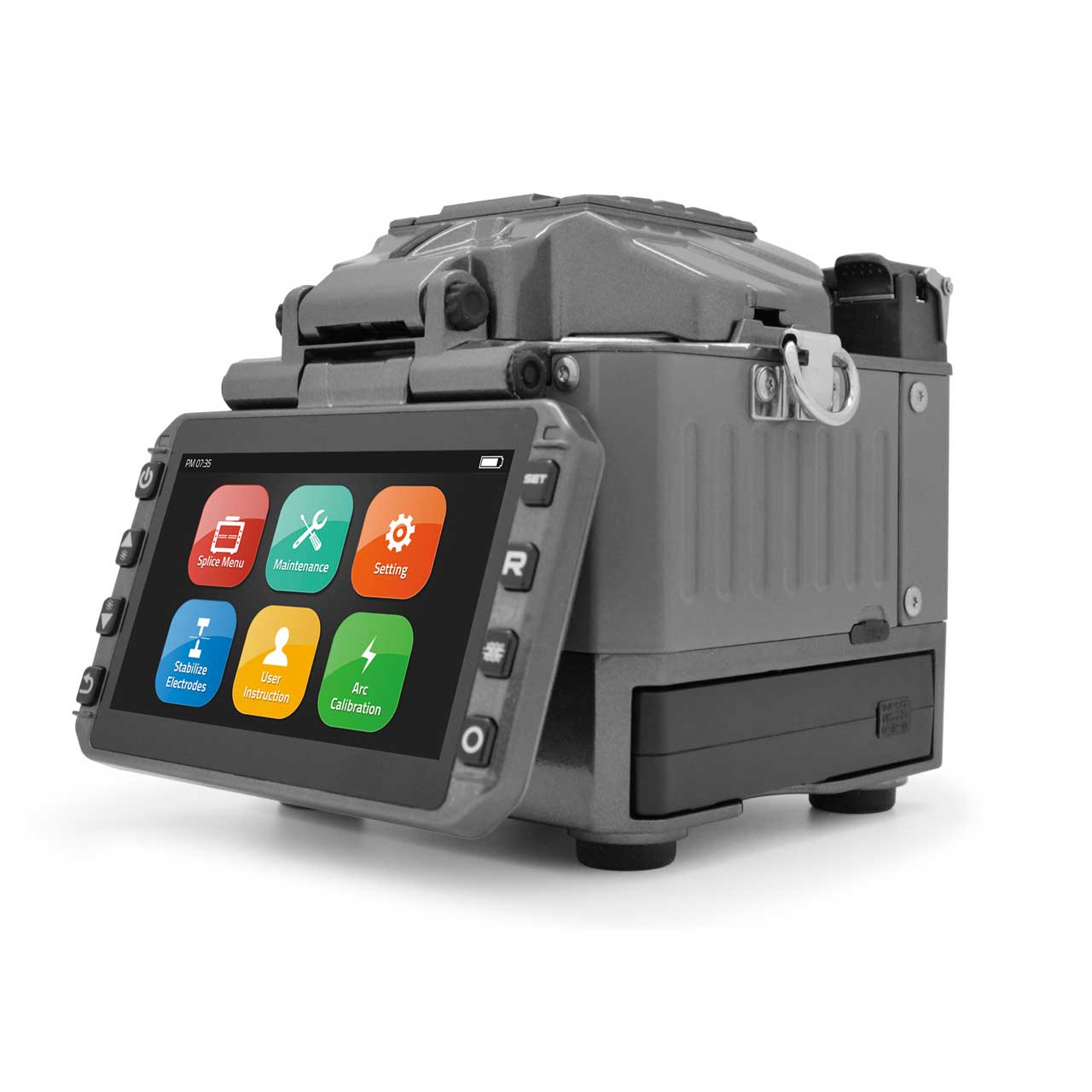

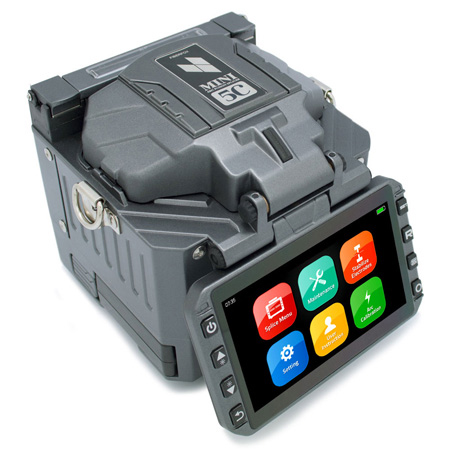

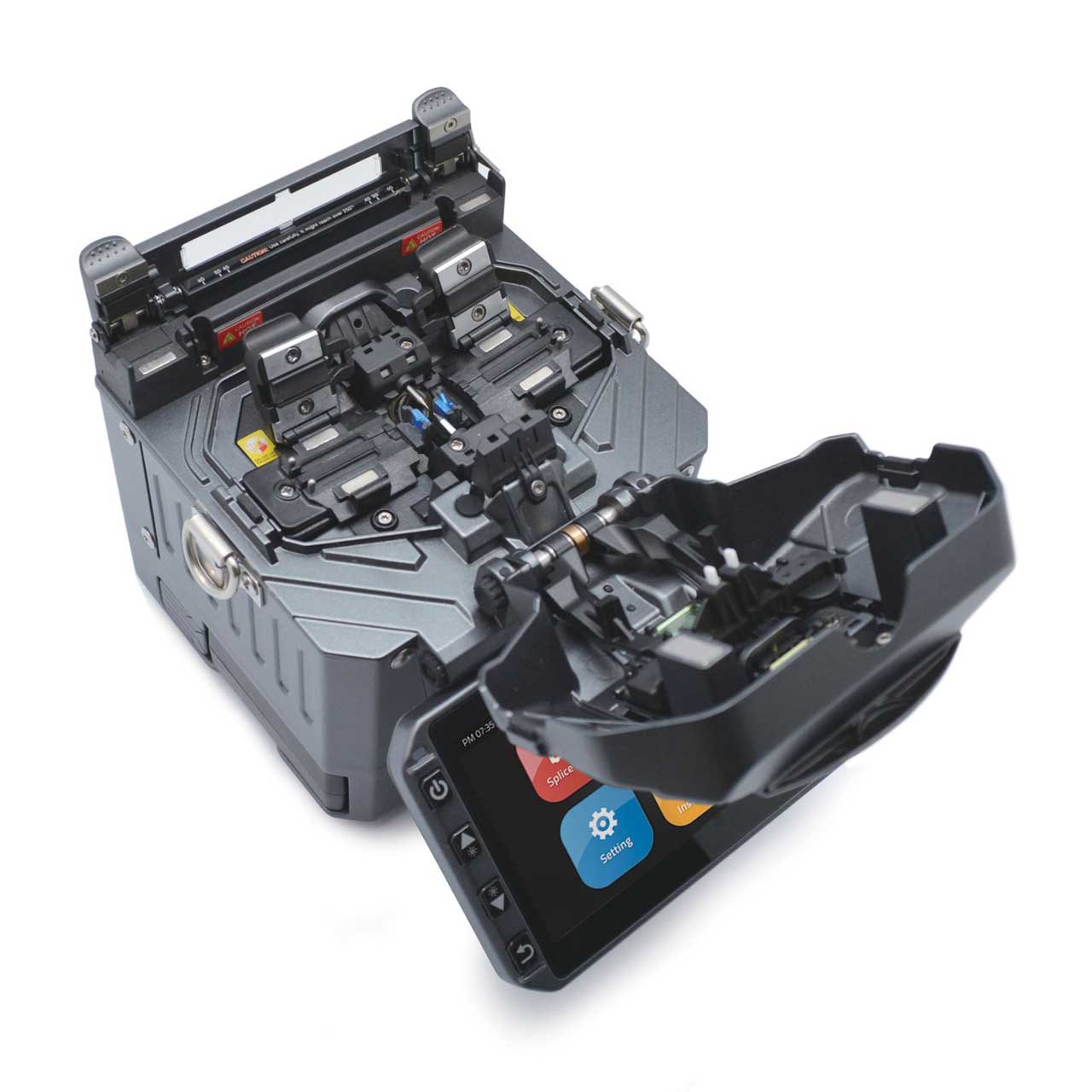

Fiber Fox MINI 5C Core Alignment Fusion Splicer with 4 Motors and Cleaver
  • Fiber Fox MINI 5C Core Alignment Fusion Splicer with 4 Motors and Cleaver
  • Fiber Fox MINI 5C Core Alignment Fusion Splicer with 4 Motors and Cleaver
  • Fiber Fox MINI 5C Core Alignment Fusion Splicer with 4 Motors and Cleaver
  • Fiber Fox MINI 5C Core Alignment Fusion Splicer with 4 Motors and Cleaver

Questions? Ask a Markertek Expert:
800-522-2025 Email

Fiber Fox MINI 5C Core Alignment Fusion Splicer with 4 Motors and Cleaver

Manufacturer: Fiberfox America Inc.

Item #: FBF-MINI-5C   •   MFG #: MINI 5C




Our Price:$5,500.00

free ship


Availability:
Direct Ship from manufacturer, contact us for availability
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Fiber Fox's MINI 5C is the Smallest and the lightest hybrid alignment fiber fusion splicer with guaranteed stability and splicing performance. The mini 5C is SOC compatible, heats up in just 16 seconds, and can cleave lengths up to 5mm all while being controlled by a full touch screen pad.


    • Features

      • Fastest Splicing Time: 7 sec with single mode fiber (quick mode)
      • 16 sec Heating time
      • Comes with 2 Battery Packs
      • Full Touch Screen
      • SOC Compatible

    • Specifications

      • Splicing Method: Economical & High Performance Core Alignment Splicer
      • Average Loss: SM(0.02dB) / MM(0.01dB) / DS(0.04dB) / NZDS(0.04dB) / G.657(0.02dB)
      • Return Loss: >>60dB
      • Splice Time: 12s average SM / SM 7s Quick mode
      • Electrode Lifespan: >3,500 arcs
      • Applicable Fiber: SM(ITU-T G.652, MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655), IT-G657A, IT-G657B, 0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, FLAT(indoor cable)
      • Cleaved Length: Coating Diameter < 0.25mm = 5-16mm, Coating Diameter > 0.25mm = 8-16mm minimum
      • Coating Diameter: 100-1000um
      • Cladding Diameter: 80-150um
      • Heating Programs: Factory installed mode : 3, User installable mode : 23
      • Heating Time: Typical 18s
      • Protection Sleeve: 40mm, 60mm, SOC-3.0, SOC-0.9
      • Data Output: Micro HDMI-USB master device
      • Splice Programs: 8 user modes, User installable mode : 70+
      • Splice Memory: Up to 2000 records
      • Battery: Typical 200 Cycles (Splice & Heat) / single battery <2 Batteries Standard>
      • Power Supply: AC 100-240V input or DC 9~14V
      • Monitor: Color 4.3'' LCD monitor, with Touch Screen (Tempered Glass)
      • Cameras: 2 CCD camera system
      • Magnification: XY : 150 times , X/Y : 300 times
      • Fiber Display: X/Y or XY, single X.Y
      • Weight: 2.88 lbs. (without battery)
      • Size: 4.8 x 4.88 x 5.4 (in)
      • Wind Protection: The max wind speed 15m/s
      • Operating Environment: Elevation 0-5000 meters, 14~140°F, 0~95% relative humidity
      • Storage Condition: Temperature -40 to 176°F, 0~95% relative humidity, battery -4~86°F
      • Pull Test: 1.96~2.25N (standard)

    • Item Includes

      • 1x - Mini 5C Splicer
      • 1x - Cleaver Pouch
      • 1x - Mini 50G Cleaver
      • 1x - Power Cord
      • 1x - USB Cable
      • 1x - AC Adapter
      • 1x - Car Cigar Jack
      • 1x - Cooling Tray
      • 1x - Spare Electrode
      • 1x - Connector Heater Block
      • 2x - Battery Packs
      • 1x - Shoulder Strap
      • 1x - Operation Manual CD
      • 1x - Hand Carrying Case
