Imagine CMN-91-3GB cMon Compact Multi-format Signal Analyzer w/ LCD 3GB
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

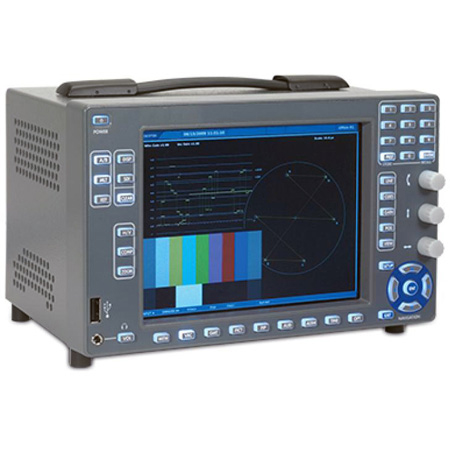

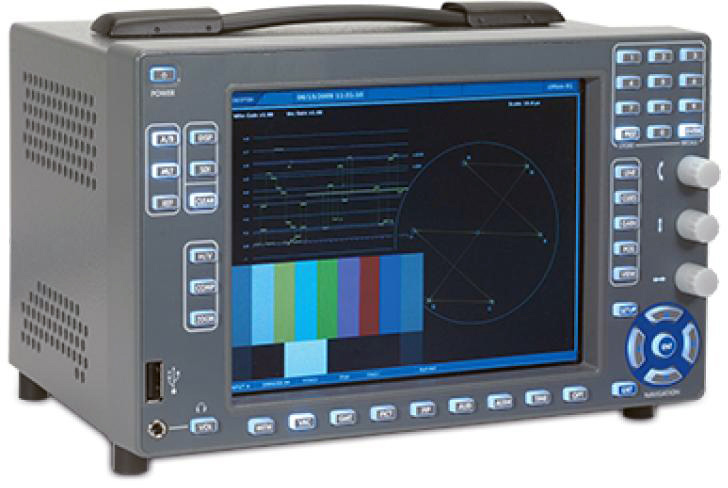

    Imagine CMN-91-3GB cMon Compact Multi-format Signal Analyzer w/ LCD 3GB

    Manufacturer: Imagine Communications

    Item #: CMN-91-3GB   •   MFG #: CMN-91-3GB


    List Price:$6,895.00
    Our Price:$6,467.70

    free ship
    Availability: Direct Ship From Manufacturer
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.



    You'll be amazed by the new Compact Monitor Series - the smallest solution on the market for efficient video and audio signal monitoring. Two models are available: the CMN-41 multiformat on-screen monitor and the CMN-91 multiformat signal analyzer with integral LCD. Each model has two SDI inputs, with versions covering SD through 3 Gb/s and selectable waveform, vector, gamut, timing, and picture full-screen display. With Compact Monitors you can meter all 16 channels of embedded audio or the one AES input. You can also view the waveform of the composite or tri-level external reference to verify signal integrity and customize the MLT display with independent size and position of waveform, vector and picture. A standard 11-17 VDC power input and optional battery mount provide flexible powering for both fixed installations and field operation. Low power consumption allows the use of convection cooling for silent operation. Both the scope (CMN-91) and rasterizer (CMN-41) packages are extremely lightweight and are available as portable or "rackmountable" units. Each package provides a compact half-rack footprint less than seven inches deep, and the short mounting depth integrates easily with today's LCD monitors.

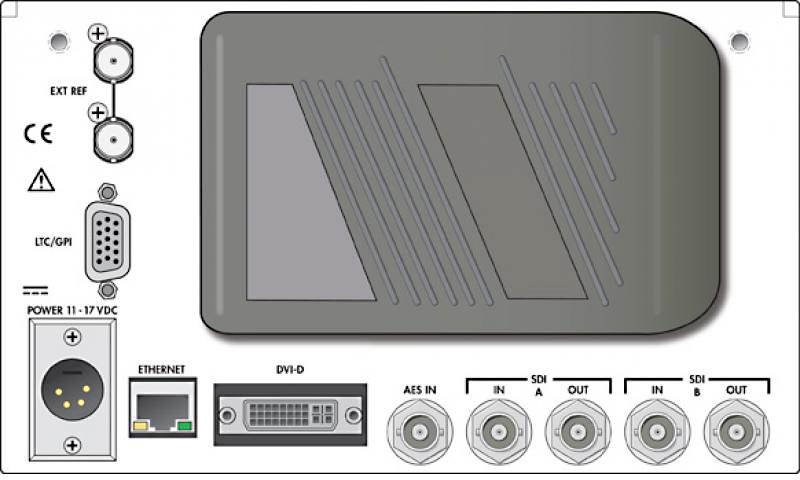

    • Features

      • Available in SD, HD/SD or 3 Gb/s/HD/SD versions
      • SD can be upgraded to HD/SD or 3 Gb/s/HD/SD
      • HD/SD can be upgraded to 3 Gb/s/HD/SD
      • Metering of all 16 channels of embedded audio
      • Two active looping SDI inputs
      • One AES audio input
      • Thumbnail picture with adjustable size and position
      • DVI-D external display output
      • Waveform display of external reference or LTC input MLT display with independent size and position of waveform, vector and picture Standard 4-pin XLR DC power input (AC adapter supplied)
      • Anton-Bauer or IDX battery mount options
      • Convection cooled, silent operation (no fan)
      • Front-panel headphone jack
      • Front-panel USB port for save/recall of presets, screen captures and SDI captures 99 presets
      • Dual rackmount option available for both models
      • Portable case with handle and tripod mount option
