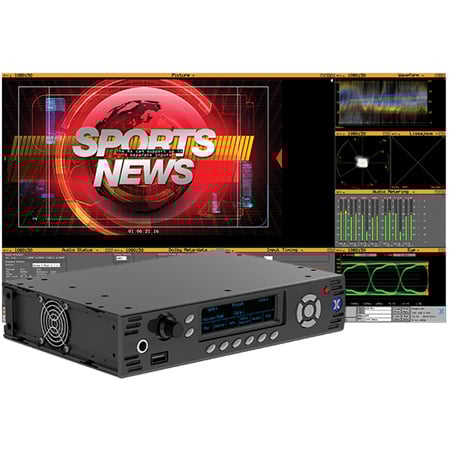

Primary Image
Phabrix
Free Shipping with $49 Minimum Order
This item is custom made. Ordering this product requires written authorization. Please contact a sales engineer at 1-800-522-2025 for details.
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

PHRX500AGE - Overview

Ideal for Quality Control applications, the Rx 500 is a single/dual channel 2K/3G/HD/SD-SDI video/audio analyzer and monitoring solution in a very compact 1/2 RU frame (dual inputs per analyzer). It supports dual inputs per analyzer and can also provide signal generation for video and audio. Up to 16 instruments can be presented simultaneously for video analysis and eye/jitter testing.The Rx 500 starter configuration includes a single channel video analyzer, with optional signal generation and eye/jitter analysis.

  • Features:

    • Up to 99 configurable presets
    • Video Capture and Remote access
    • Four Channel Eye and Jitter Analysis
    • AV Delay Generation and Analysis (Analysis Optional)
    • Extensive Video Toolset
    • Multi-channel Audio Analysis


  • Specifications:

    • SD-SDI, HD-SDI as standard
    • Optional 3G-SDI (license)
    • OLED display
    • Front panel backlit navigation keypad
    • Front panel volume/gain control
    • Front panel headphone connector 6.3mm (1/4 inch) Stereo jack
    • Front panel USB 2.0 host port type A socket + 2 rear panel USB 2.0 ports
    • Internal loudspeaker Beeper
    • I/O Module slots (each supporting a range of audio/video modules): 2
    • Internal Dual Dolbyr decoder module slot (option): 1
    • HDMI instrument output, 1920 x 1080, 4:4:4 RGB, Type A
    • SDI instrument output, 1920 x 1080, 4:2:2 YUV, BNC 75 Ohm
    • Basic SDI generator included as standard (replaces instrument output)
    • 8 channel 48kHz PCM audio on HDMI and SDI Instrument outputs
    • Reference/VITC input, passive loop through, BNC 75 Ohm compensated
    • AES input AES 3-ID, SMPTE 276M-1995, 75 Ohm BNC
    • LTC input (via 26 pin high density `D' Type socket)
    • 8x GPI I/O (via 26 pin high density `D' Type socket)
    • Stereo analog audio output, (via 26 pin high density `D' Type socket)
    • Calibrated stereo balanced analog audio output (option module)
    • Ethernet remote control via browser, RJ45 connector, 10/100Base-T
    • IP sockets based remote control as standard
    • FPGA firmware/software upgrade via Ethernet/USB
    • Desktop mounting kit
    • 19" Rack-mount kit - 1U
    • 10.5"/9.5" Rack-mount - Optional
    • Whisper quiet temp controlled fan - 1 x 40mm internal
    • Power consumption (variable on modules inserted) - 24W typical 40W max
    • 4 Pin XLR power connector, 12V nominal (9V-18V)
    • AC Power adaptor (incl), 90-264VAC, 120W
    • Dimensions (w x h x d) excl ears & projections -210x44x 170mm
    • Weight (chassis with CPU module and 1x AG option module fitted) - 1.3kg
    • 1 year manufacturers warranty


  • Warranty:

    • 1 Year Warranty
