Leader LV7300 Multi SDI Rasterizer - Mainframe Unit Only (Requires LV7300-SER01 or LV7300-SER02)

ITEM #: LR-LV7300 MFG #: LV7300

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

This item is custom made. Ordering this product requires written authorization. Please contact a sales engineer at 1-800-522-2025 for details.

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


LV7300 - Overview

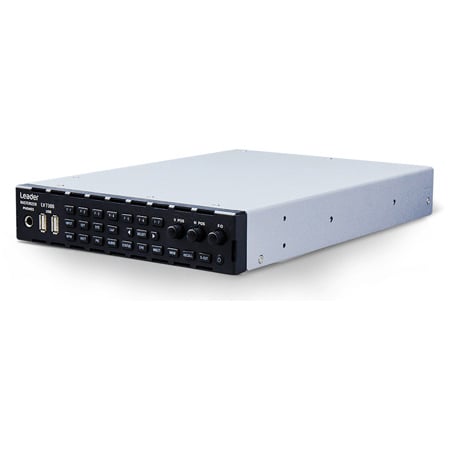

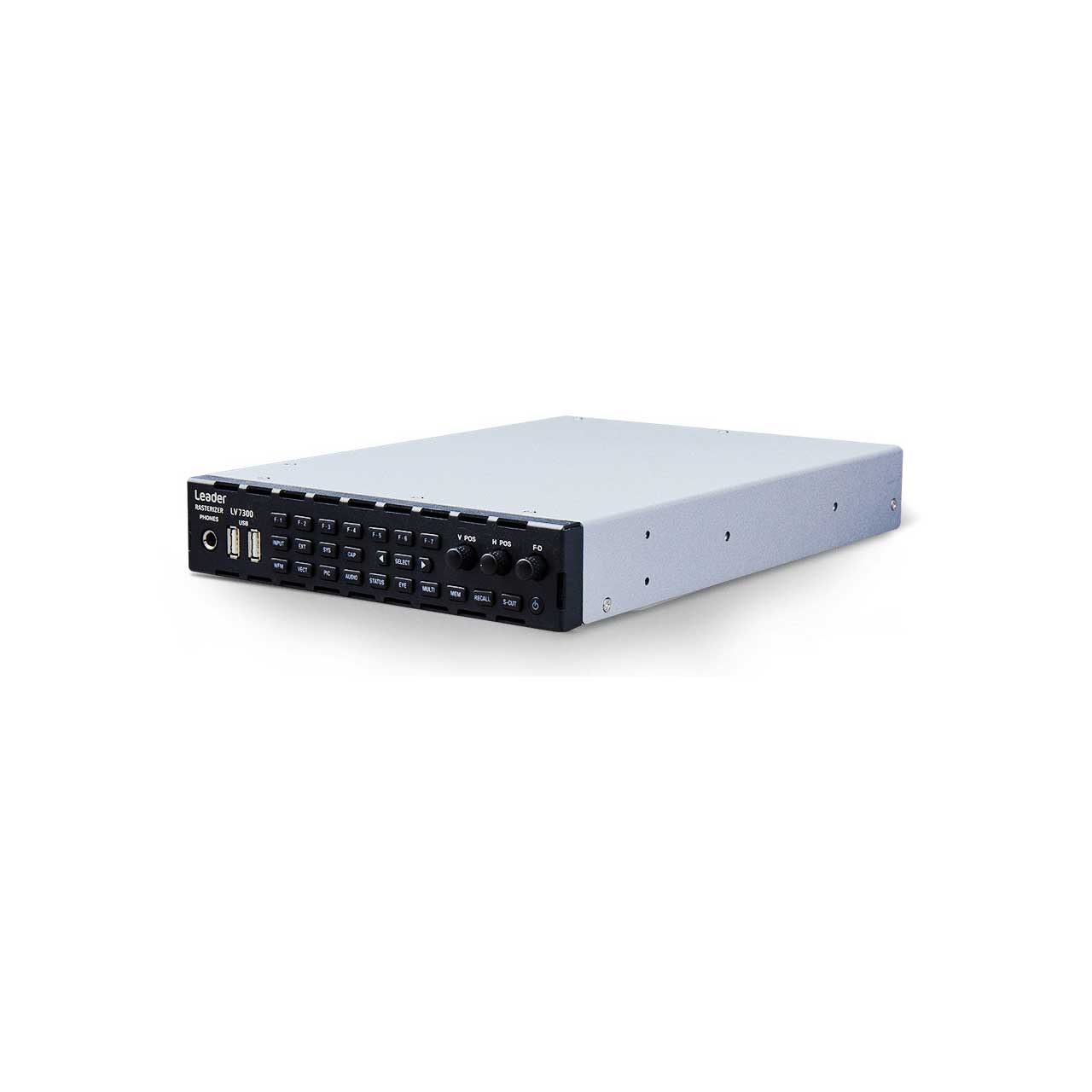

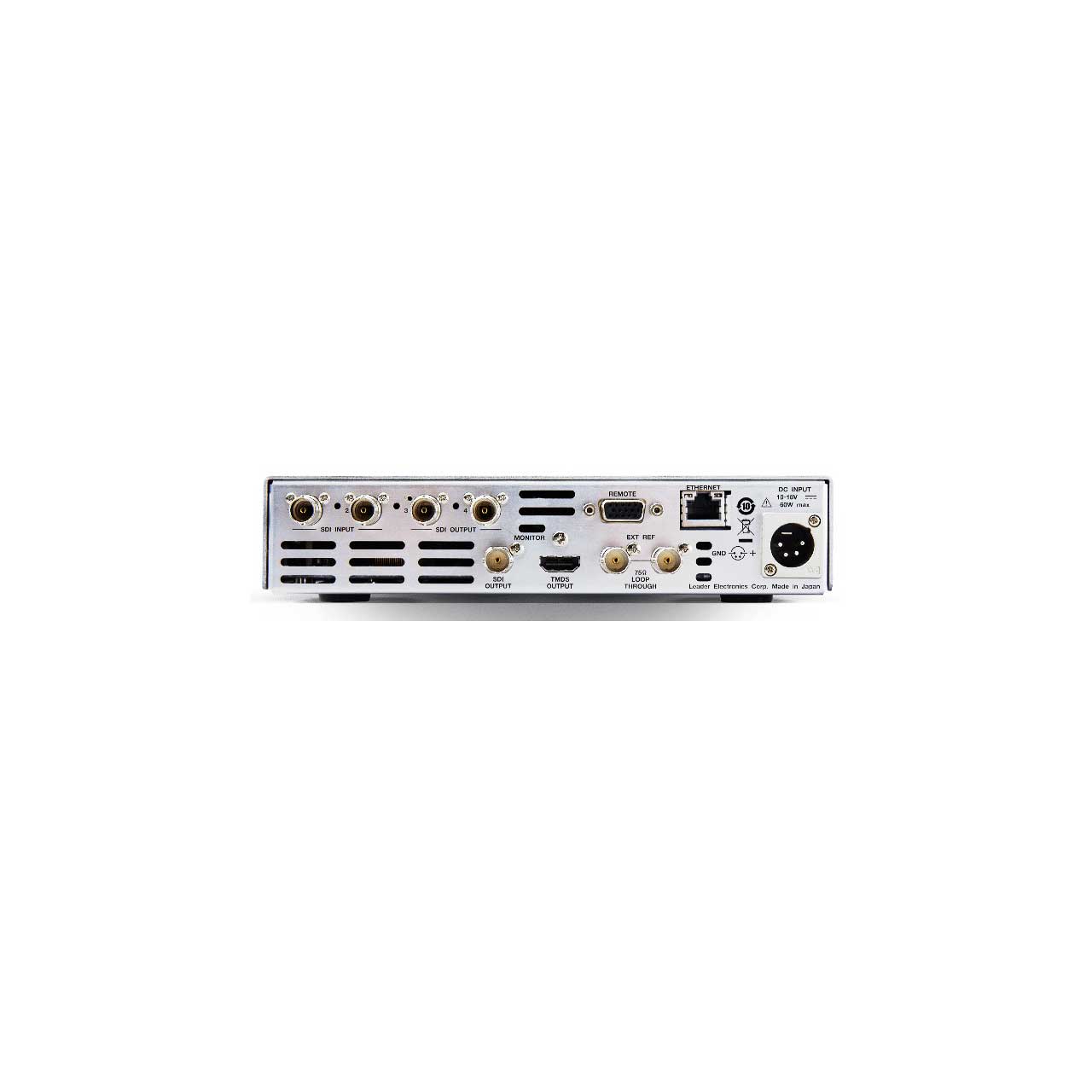

The Leader LV7300 is a space-saving, compact waveform monitor specialized for SD-SDI video signals. LV7300 is a 1U half rack size rasterizer. It is compact but supports eye pattern measurement up to 12 G-SDI. This is the mainframe unit itself, your starting point. The LR-LV7300-SER01 or LR-LV7300-SER02 are required to be added for initial operation.

Excellent operability

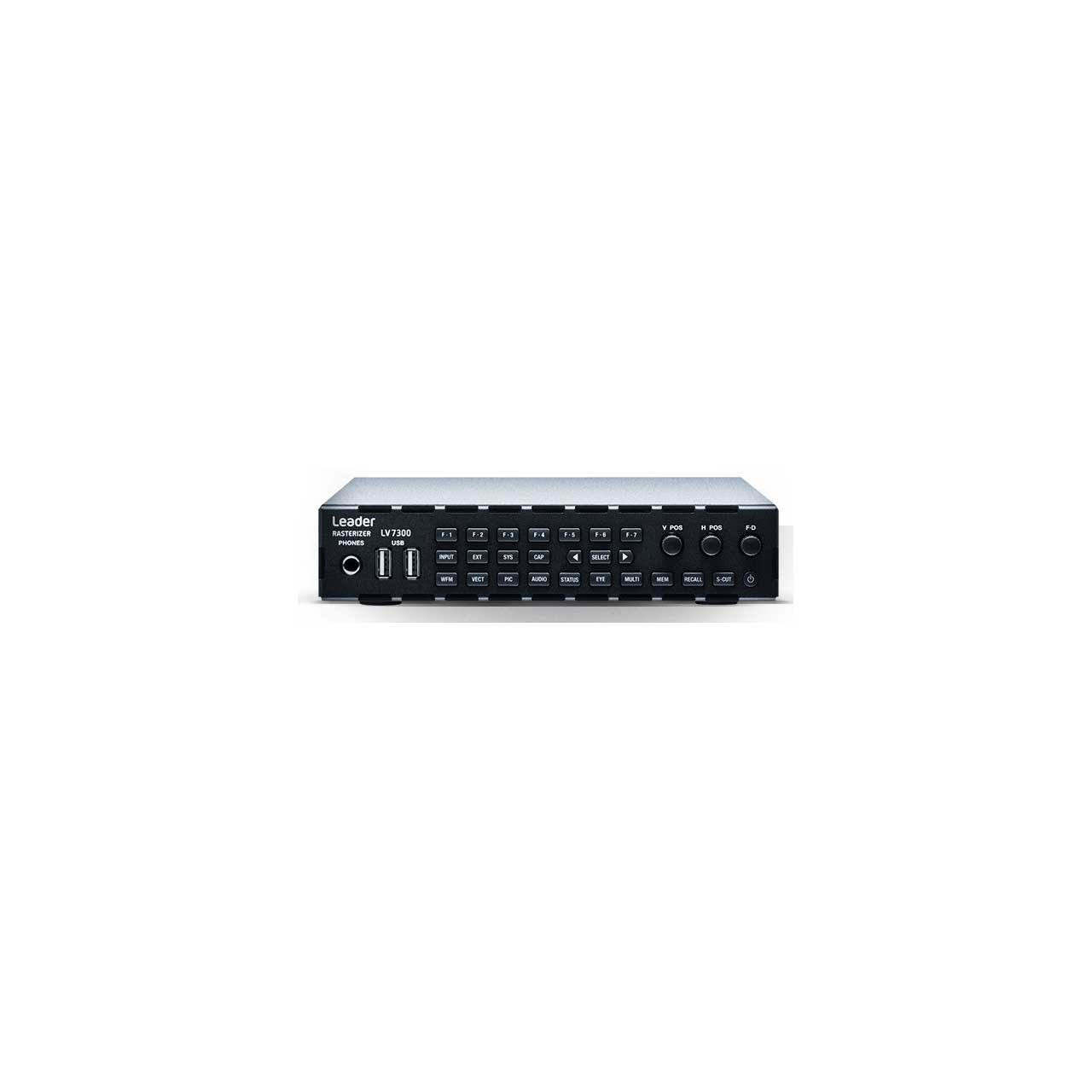

With the front panel equipped with key buttons and knobs that follow the operability of conventional models, operation with a USB mouse is also possible. In addition, the LV7300 can be operated and set intuitively by touch operation by connecting an external LCD adopted touch panel with a USB cable

Supports various signal inputs
It supports SD-SDI, HD-SDI, 3G-SDI, 12G-SDI single link.

Eye pattern display
From SD-SDI to 12G-SDI
In the physical layer measurement of the SDI signal some eye pattern display, jitter display is possible.

Customizable layout
Various items such as video signal waveforms, vector waveforms, and pictures of input signals can be laid out in any position with your favorite size.

SDI signal generation function
SDI signal generation function can handle from HD-SDI to 12G-SDI.

HDR
The HDR signal level monitoring and the level management at the assumed luminance (cd /m2 ) in a display considering OOTF are possible.

Focus Assist
Leader developed a new focus detection algorithm based on nonlinear super-resolution technology; accordingly the focus with high sensitivity can be detected even with low-contrast images, which were conventionally difficult to detect.

  • Features:

    • Supports various signal inputs
    • Various SDI signals up to 12 G-SDI can be observed/monitored.
    • Audio signals can correspond to SDI embedded voice.
    • Excellent operability
    • With the front panel equipped with key buttons and knobs that follow the operability of conventional models, operation with a
    • USB mouse is also possible. In addition, the LV5300/LV5350 adopt a 7-inch full HD panel with a touch panel function, and the LV7300 can be operated and set intuitively by touch operation by connecting an external LCD adopted touch panel with a USB cable
    • SDI input format
    • SD-SDI, HD-SDI, 3G-SDI, 12G-SDI Single Link is supported

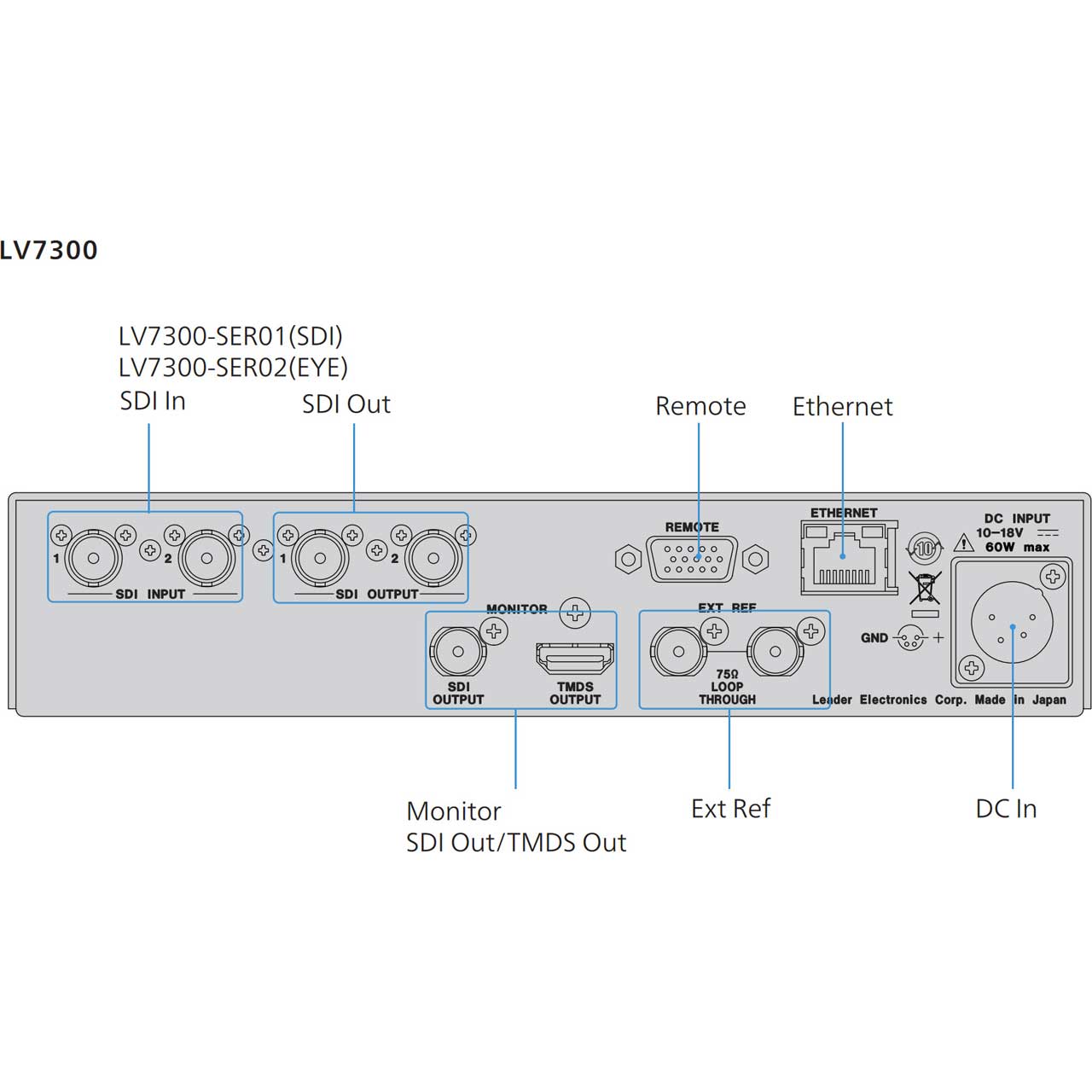

  • Specifications:

    • External Synchronize Input Terminal
    • Input Terminal: BNC terminal
    • Number of Input Terminals: 1 line, 2 terminals
    • Input Impedance: 15kΩ Passive loop through
    • Input Return Loss: 30dB or more (50kHz - 30MHz, 75Ω termination)
    • Maximum Input Voltage: ±5V (DC + peak AC)
    • Input Signal: Ternary synchronization signal or NTSC/PAL black burst signal; 10 Field ID correspondence
    • Function: SDI reference signal input for video signal waveform display and phase difference display

      Headphone Output Terminal
    • Output Terminal: Standard jack 1 terminal (stereo)
    • Output Signal: On the screen of the displayed audio signal, arbitrary 2 ch (Downmixed Lt, Rt is also acceptable)

      SDI Output Terminal
    • Function: Output screen for SDI monitor
    • Output Terminal: BNC terminal
    • Number of Output Terminals: 1
    • Output Signal: Output liquid crystal display screen is output with HD, 3G-A, 3G-B-DL. 1920x1080 60, 59.94, 50 I/P, YCBCR 4:2:2 (10 bits)

      TMDS Output Terminal
    • Function: The displayed screen is output for HDMI monitor.
    • Output Terminal: HDMI terminal
    • Number of Output Terminals: 1
    • Signal Format: Single Link T.M.D.S
    • DDC Function: Not supported
    • HOT PLUG Detection Function: Not supported
    • Output Signal: Output liquid crystal display screen is output. 1920x1080 60 P, 59.94 P, 50 P

      Control Terminal - USB
    • Terminal Shape: Standard A USB 2.0
    • Number of Terminals: 2
    • Compatible device USB memory, USB mouse, touch panel type monitor

      For Ethernet Terminal Control
    • Approved Standard: IEEE802.3
    • Supported Protocols:TELNET, FTP, SNMP, HTTP, SNTP
    • Input/Output Terminals: RJ-45
    • Function: Remote operation with an external PC or remote controller, File transfer, get status information
    • Types: 10Base-T, 100Base-TX, 1000Base-T

      Remote Terminal
    • Terminal Shape: D-Sub 15 pins (female)
    • Number of Terminals: 1
    • Control Signal: LV- TTL level (LOW active)
    • Function Preset: Recall, input signal switching, alarm output, tally
    • Alarm Output: When a format alarm, various errors, fan abnormality, or internal temperature occurs

      General Specifications
    • Operating Temperature Range: 32°F - 104°F (0°C - 40°C)
    • Operating Humidity Range: 85% RH or less (with no condensation)
    • Performance Guarantee Temperature Range: 50°F - 86°F (10°C - 30°C)
    • Usage Environment: Indoors
    • Usable Altitude: up to 2,000m
    • Overvoltage Category: 1
    • Pollution Degree: 2
    • Power Supply: Voltage DC 10V - 18V
    • Dimensions (HxWxD): 1.7" x 8.3" x 11.8" (43mm x 211mm x 300mm)

  • Item Includes:

    • AC adapter
