Camplex opticalCON MTP NO12FDW-A to (6) SM DUO NO4FDW-1-A Rack Mount

ITEM #: CMX-1RM-MTPDUO MFG #: CMX-1RM-MTPDUO

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,695.49

Our Price:

$1,525.95

Availability: In Stock
iAvailability Description Popup


CMX-1RM-MTPDUO - Overview

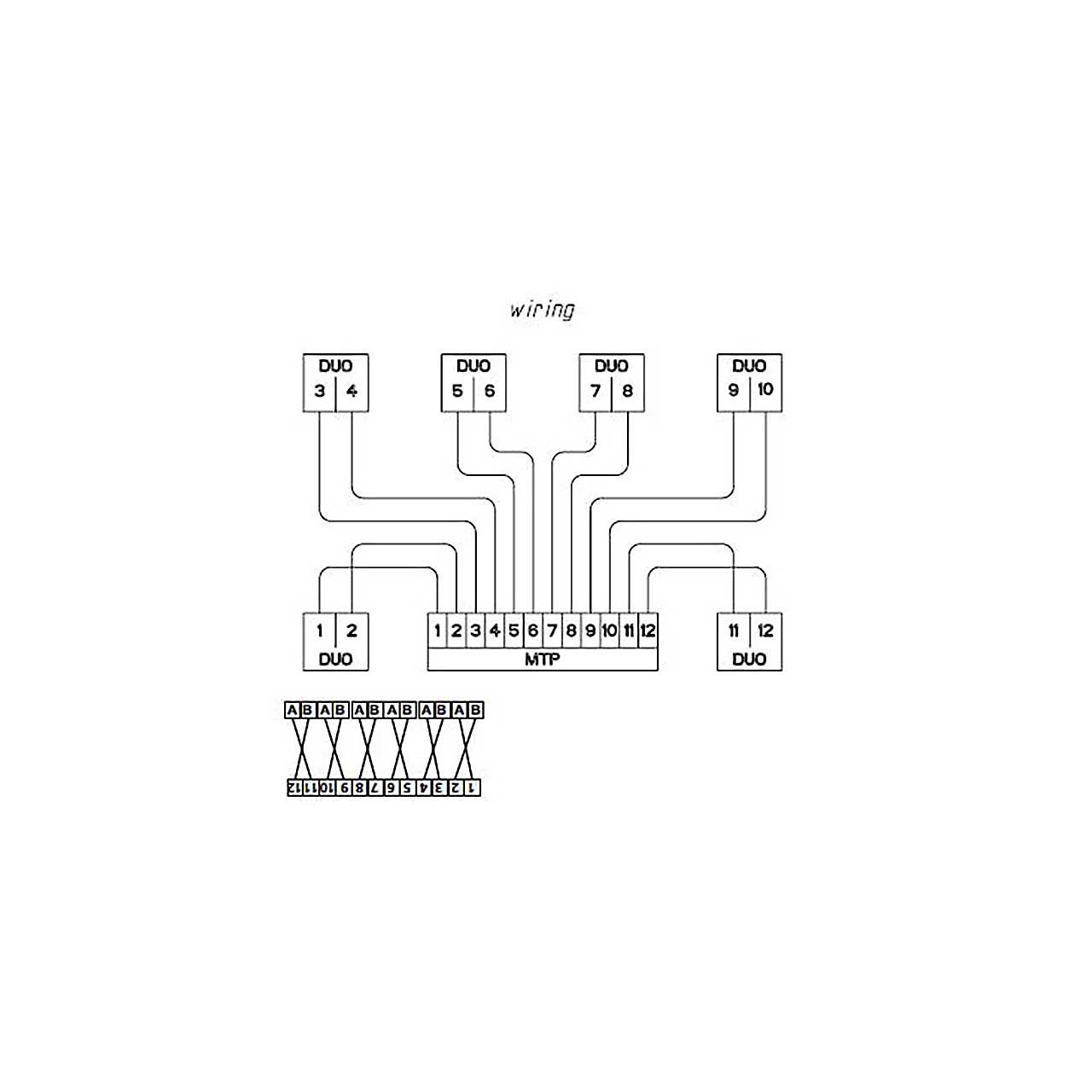

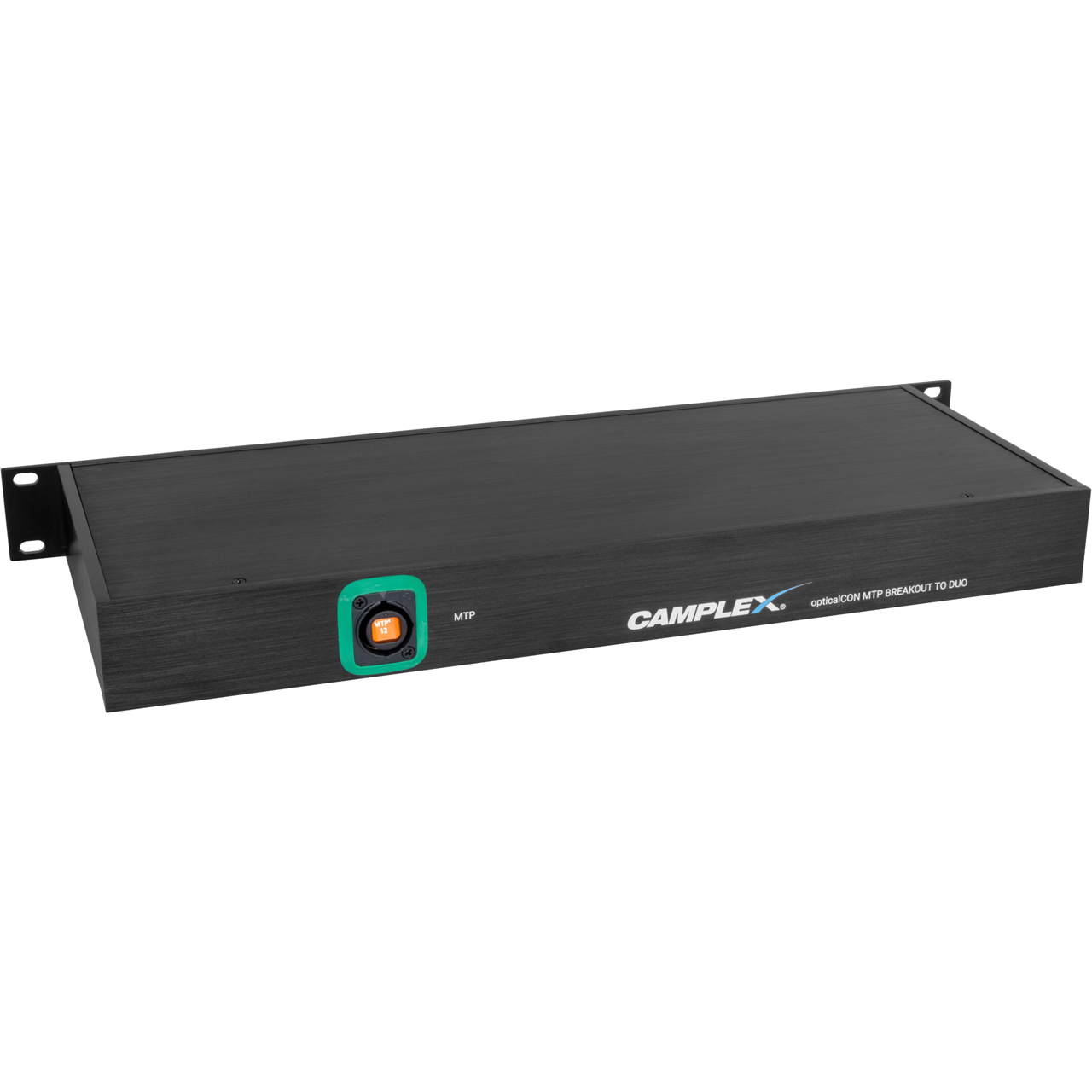

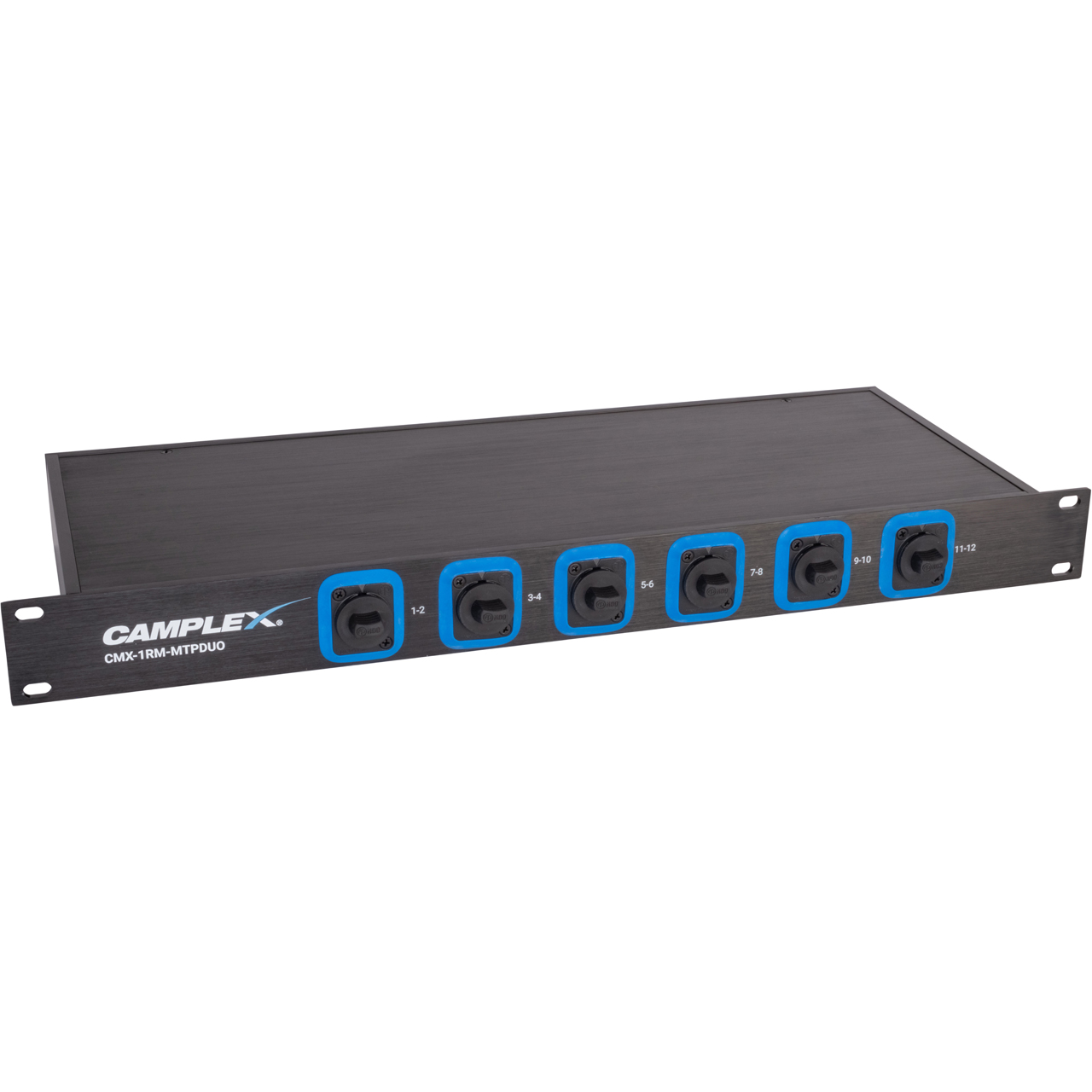

Camplex CMX-1RM-MTPDUO Rack Mountable Breakout Boxes allow for 12 channel fiber optic cable adaptation from opticalCON MTP NO12FDW-A connectors to 6 single mode duo NO2-FDW-1-A chassis mount connectors. Lightweight anodized front and back aluminum box and power-coated top and bottom, also includes dust caps. Camplex breakout boxes are a convenient way to break out your MTP cables to a variety of other connectivity formats and are ideal for rigorous indoor use.

  • Features:

    • Lightweight 1RU aluminum enclosure
    • High-Quality Neutrik connectors
    • Connector gaskets are color-coded according to Fiber Mode for easy identification
    • Low-loss opticalCON MTP connectors
    • Internal Camplex MTP breakout cable

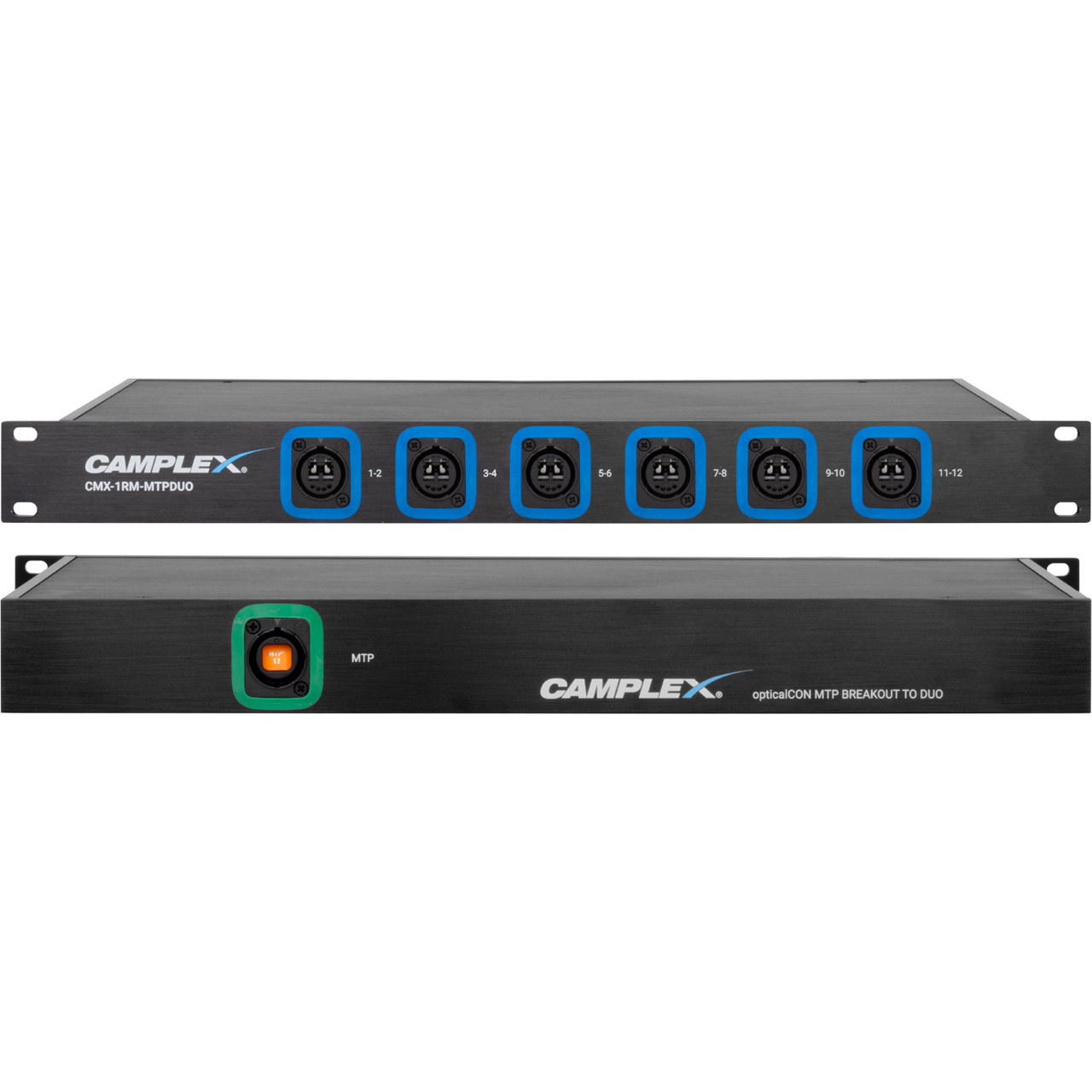

    • All channels are marked on the front and back of the enclosure for easy identification

  • Specifications:

    • Dimensions: 19"W x 9.125"D x 1.5"H

      Camplex Single Mode MTP APC connector
    • Insertion Loss: <0.35dB
    • Return Loss: >60dB

      Neutrik NO12FDW-A Connector
    • Insertion Force: < 45 N
    • Withdrawal Force: < 45 N
    • Lifetime: 2500 Mating cycles
    • Locking Force: 1000 N
    • Locking Device: Push-Pull
    • Insertion Loss: < 0.9 dB / connection

      Neutrik NO2-4FDW-A Connector
    • Dielectric Strength: 1.5 kVdc
    • Insertion Force: < 45 N
    • Withdrawal Force: < 45 N
    • Lifetime: 5000 mating cycles
    • Locking Force: 1000 N
    • Locking Device: Push-Pull
    • Insertion Loss: < 0.4 dB / connection

  • Warranty:

    • 1 Year
