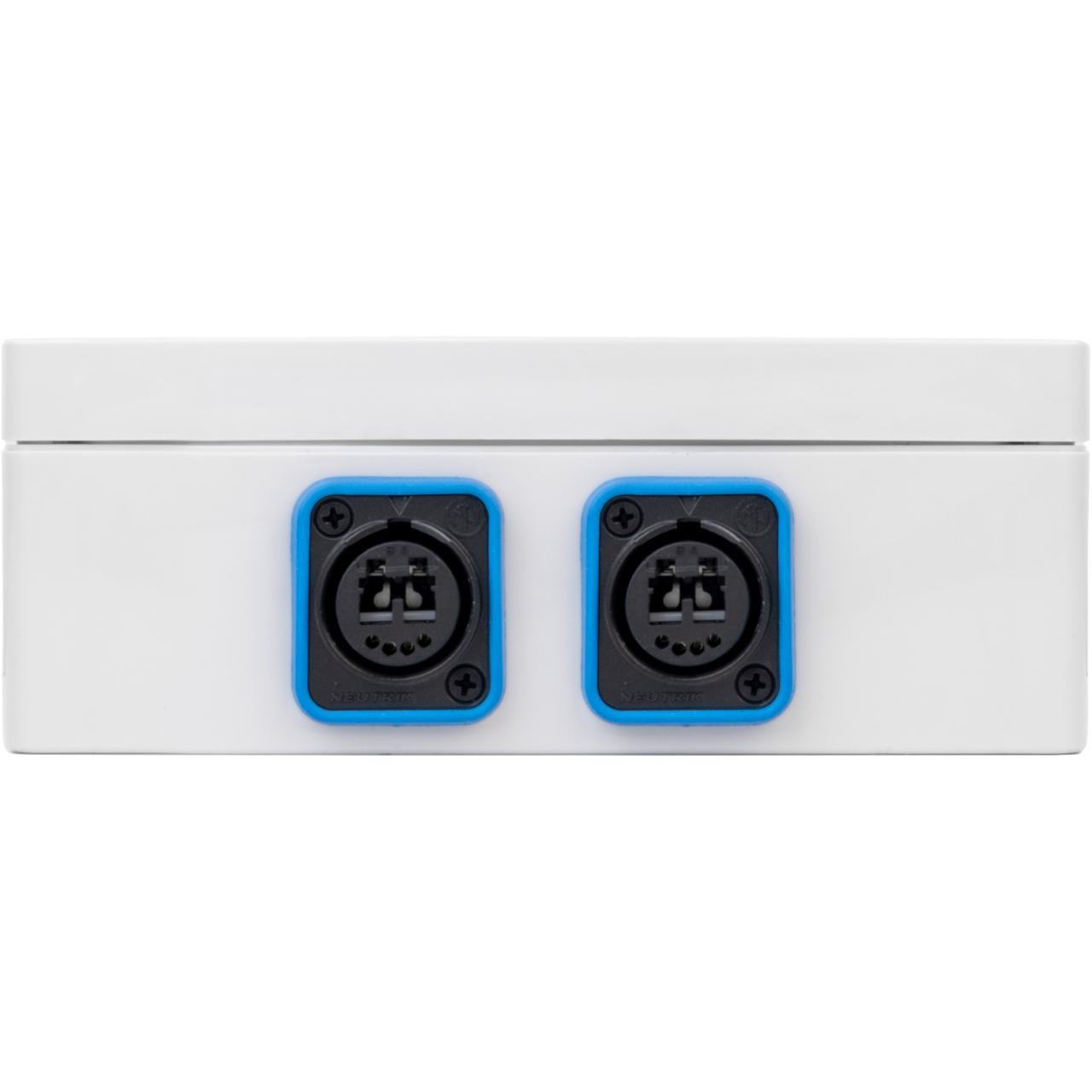

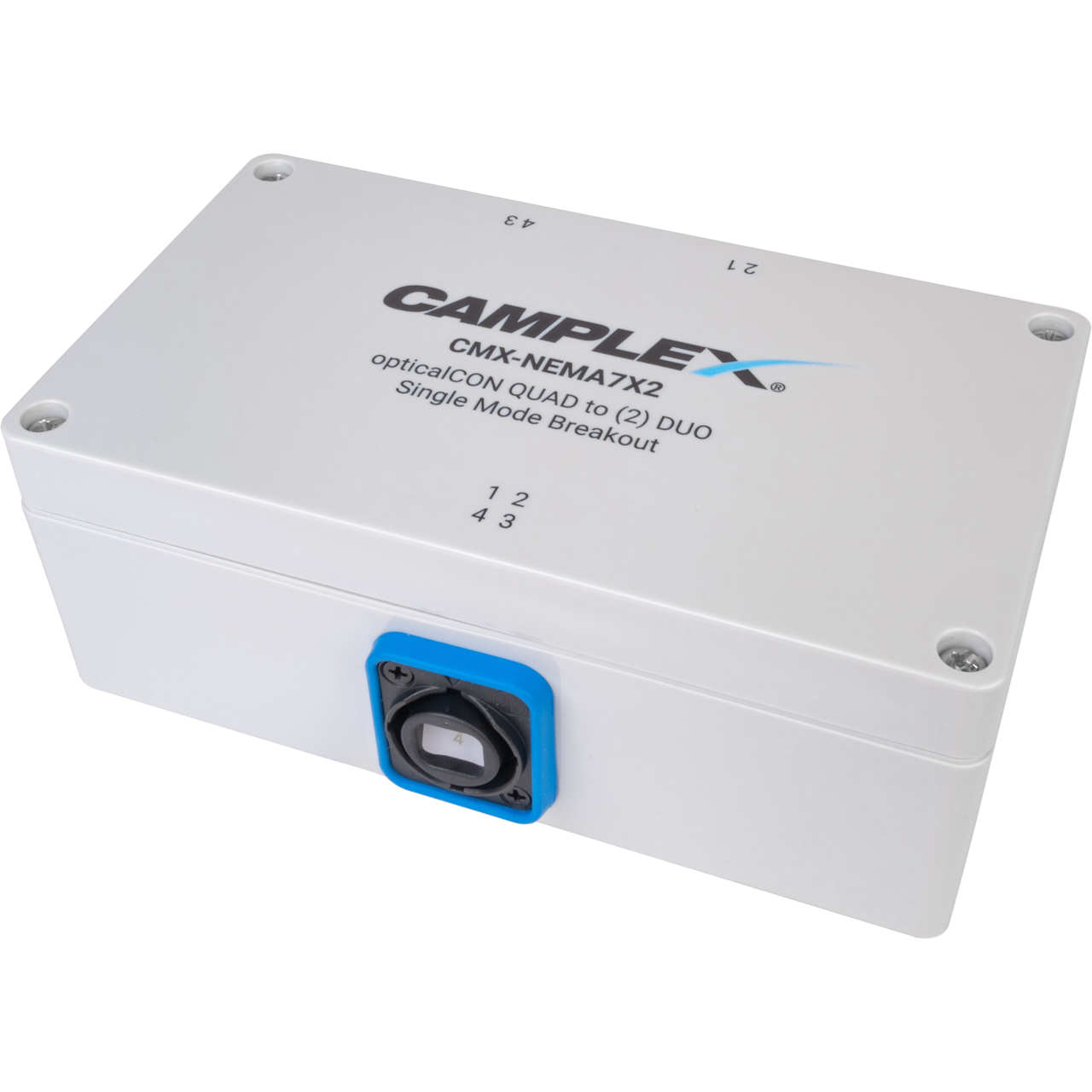

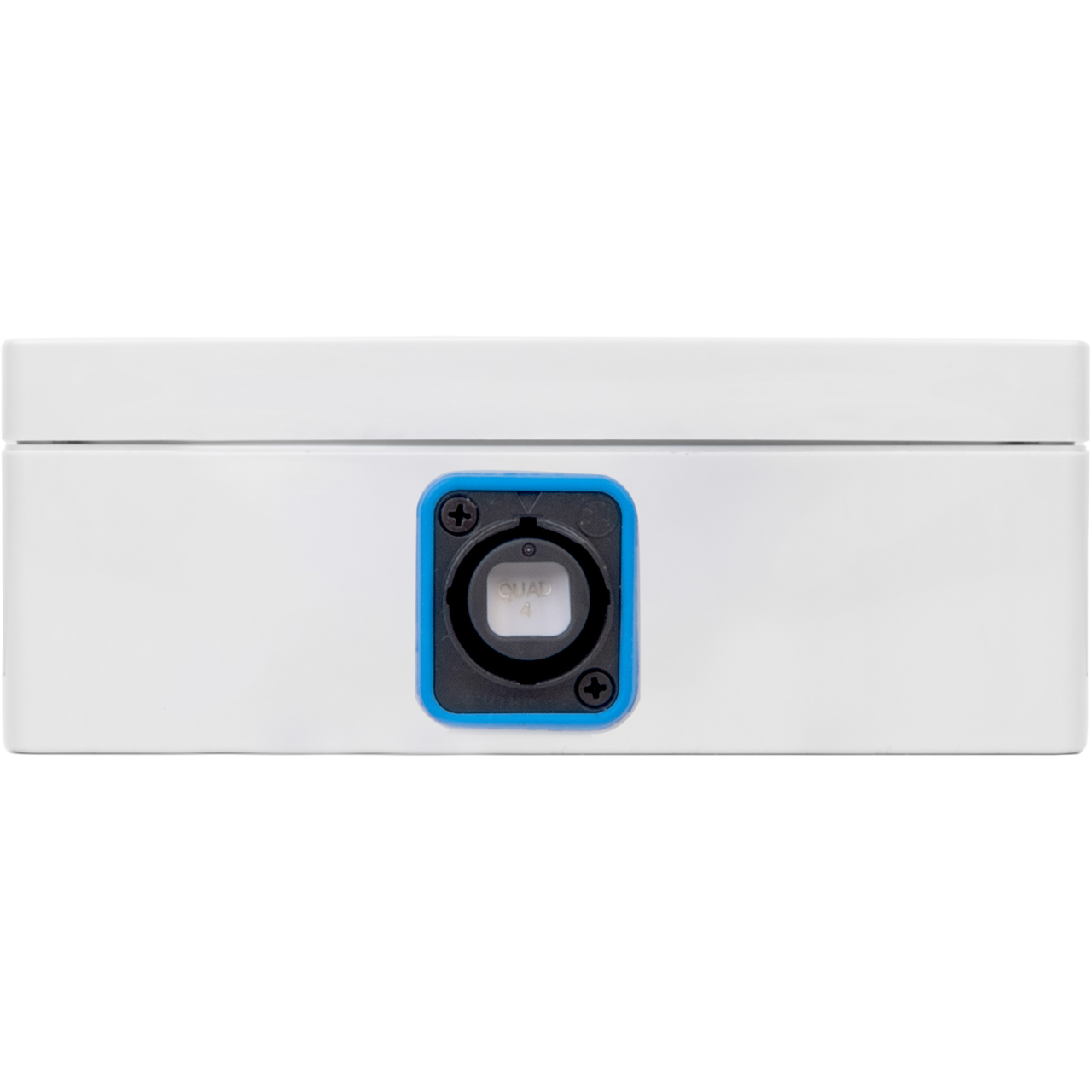

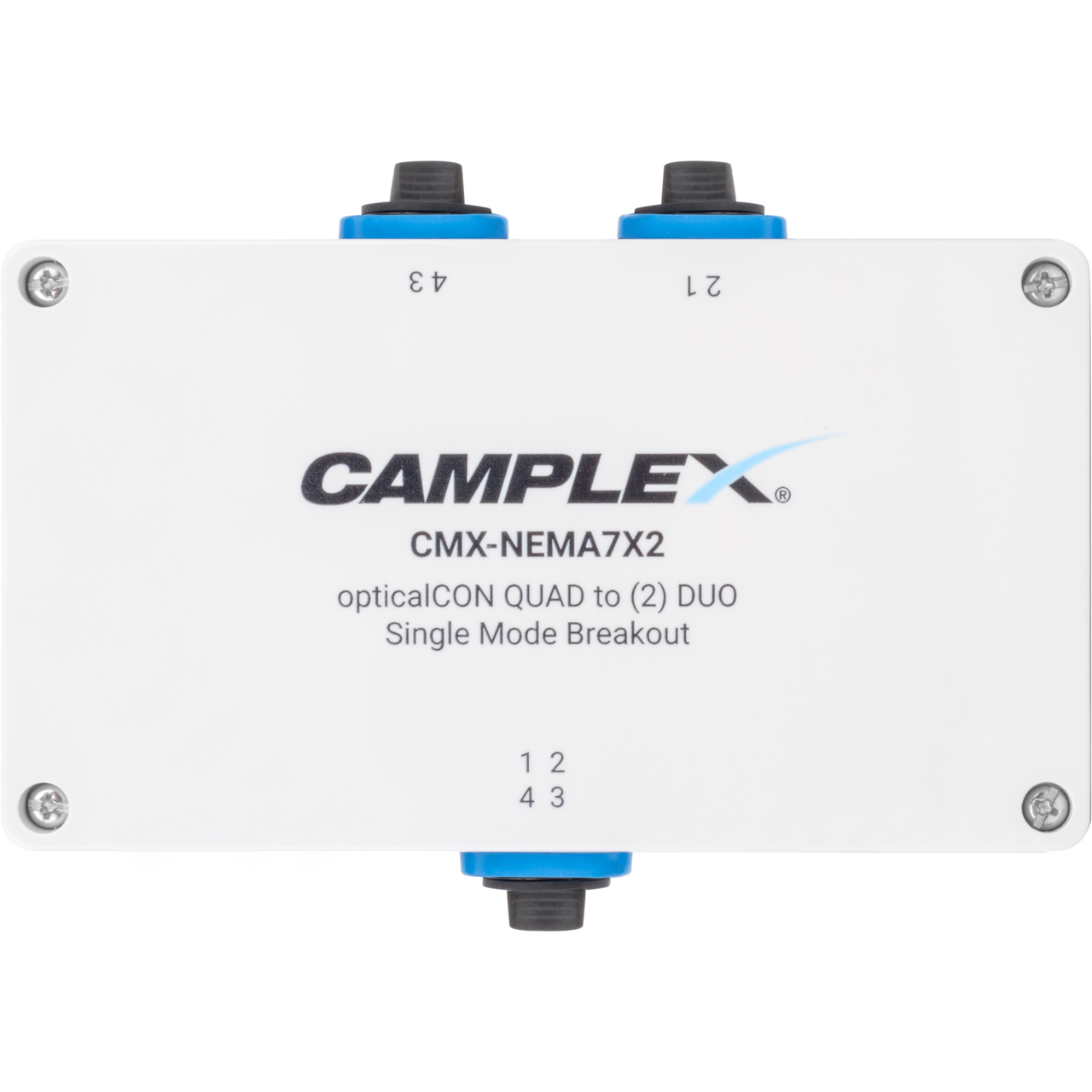

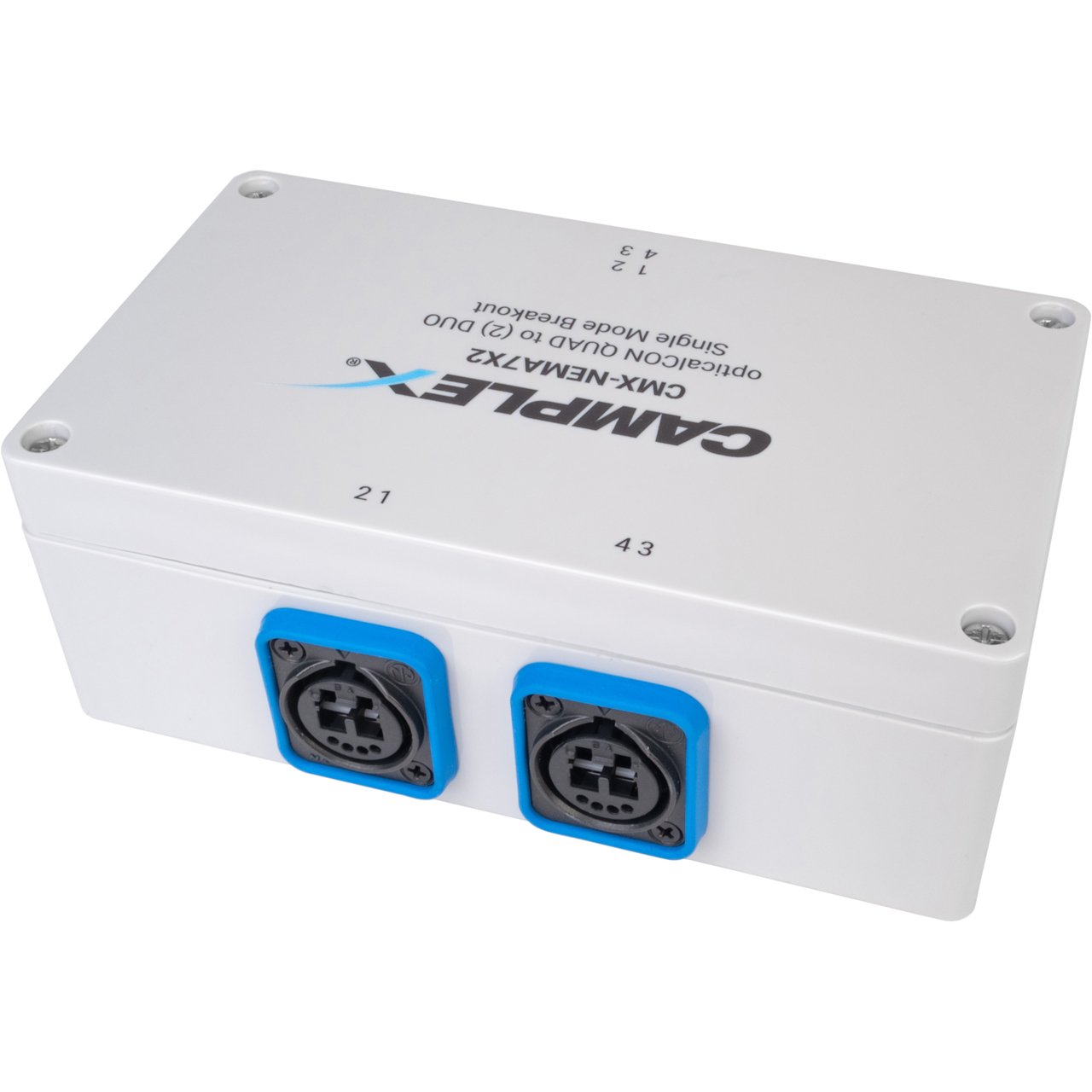

Camplex opticalCON QUAD NO4FDW-A to (2) DUO NO2-4FDW-A Single Mode Breakout Box

ITEM #: CMX-NEMA7X2 MFG #: CMX-NEMA7X2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$649.49

Our Price:

$619.49

Availability: In Stock
iAvailability Description Popup


CMX-NEMA7X2 - Overview

Handy, rugged and weatherproof Camplex fiber optic adapter-breakout boxes are used to to split a 4-channel point-to-point opticalCON QUAD connection to Neutrik opticalCON DUO connectors. All models are housed in a field serviceable NEMA weatherproof polycarbonate box with rubber gasket for rigorous indoor and outdoor use. Designed for easy cleaning, replacement and reconfiguration of internal jumpers.

Please Note: CMX-NEMA7X2 QUAD to (2) DUO is wired (A to B, B to A) and (a to b, b to a) in accordance to OpticalCon standards. The Camplex NEMA box can be opened and reconfigured to match your specific system.

  • Features:

    • High-Quality Neutrik connectors
    • Rubber feet prevent sliding
    • Lightweight NEMA-rated polycarbonate enclosures

  • Specifications:

      Neutrik Connectors
    • Contact Resistance: < 7mΩ
    • Dielectric Strength: 1.5kV DC
    • Insulation Resistance: > 2GΩ

  • Warranty:

    • 1 Year
