Camplex opticalCON QUAD NO4FDW-A to (4) ST Female Single Mode Breakout Box

ITEM #: CMX-NEMA8 MFG #: CMX-NEMA8

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$486.49

Our Price:

$445.95

Availability: In Stock
iAvailability Description Popup


CMX-NEMA8 - Overview

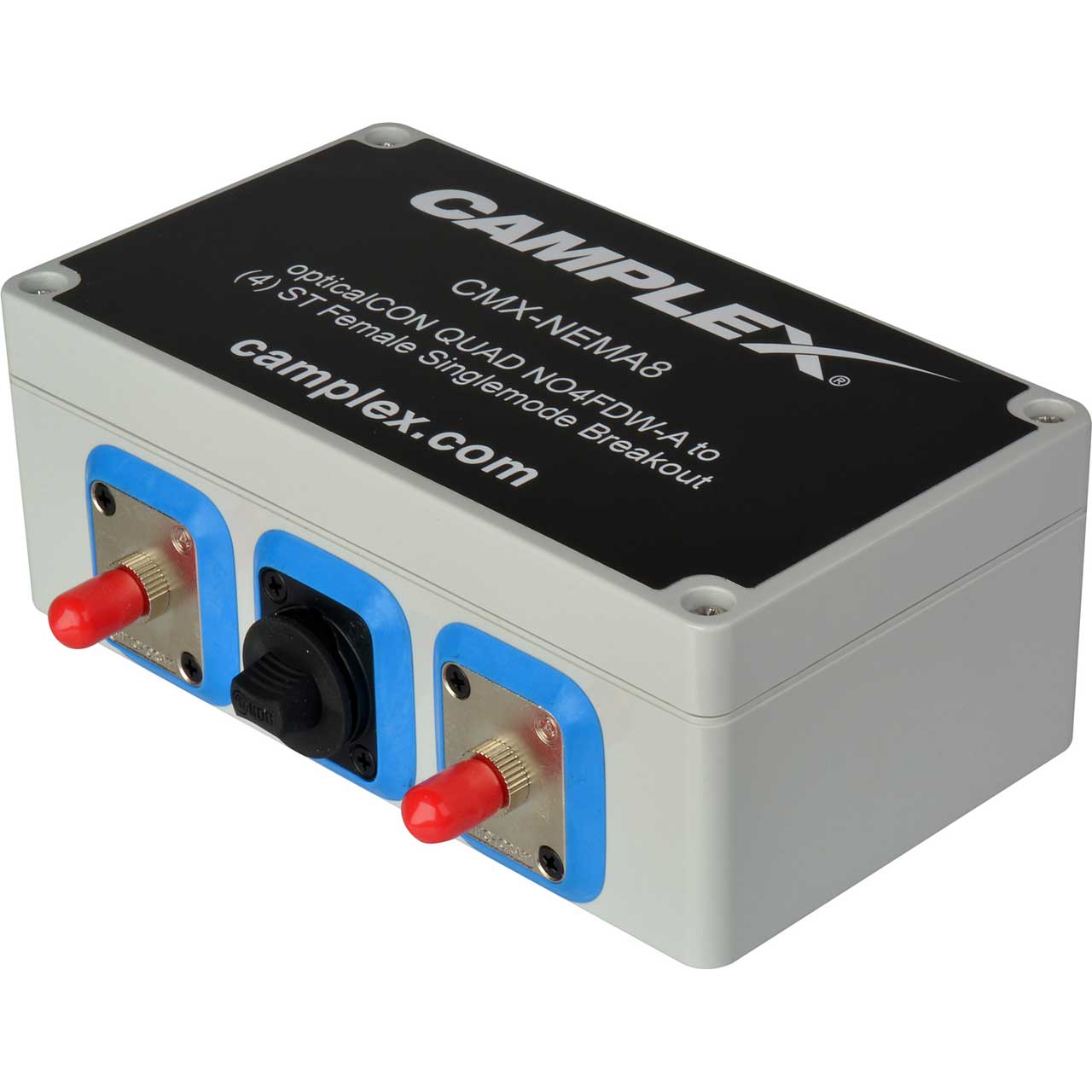

Handy rugged and weatherproof Camplex fiber optic adapter-breakout boxes are used to adapt multimode a Neutrik opticalCON QUAD connector to four (4) standard ST singlemode connectors.

All models are housed in a field serviceable NEMA weatherproof polycarbonate box with rubber gasket for rigorous indoor and outdoor use. Highest quality Neutrik opticalCON and ST fiber connectors are used with integral dust caps. Designed for easy cleaning and reconfiguration/replacement of internal jumpers.

  • Features:

    • High-Quality Neutrik connectors
    • Rubber feet prevent sliding
    • Lightweight NEMA-rated polycarbonate enclosures

  • Specifications:

      Neutrik Connectors
    • Contact Resistance: < 7mΩ
    • Dielectric Strength: 1.5kV DC
    • Insulation Resistance: > 2GΩ

      ST Connectors
    • Insertion Force: ≤0.2dB
    • Lifetime: 1000 Mating Cycles

  • Warranty:

    • 1 Year
