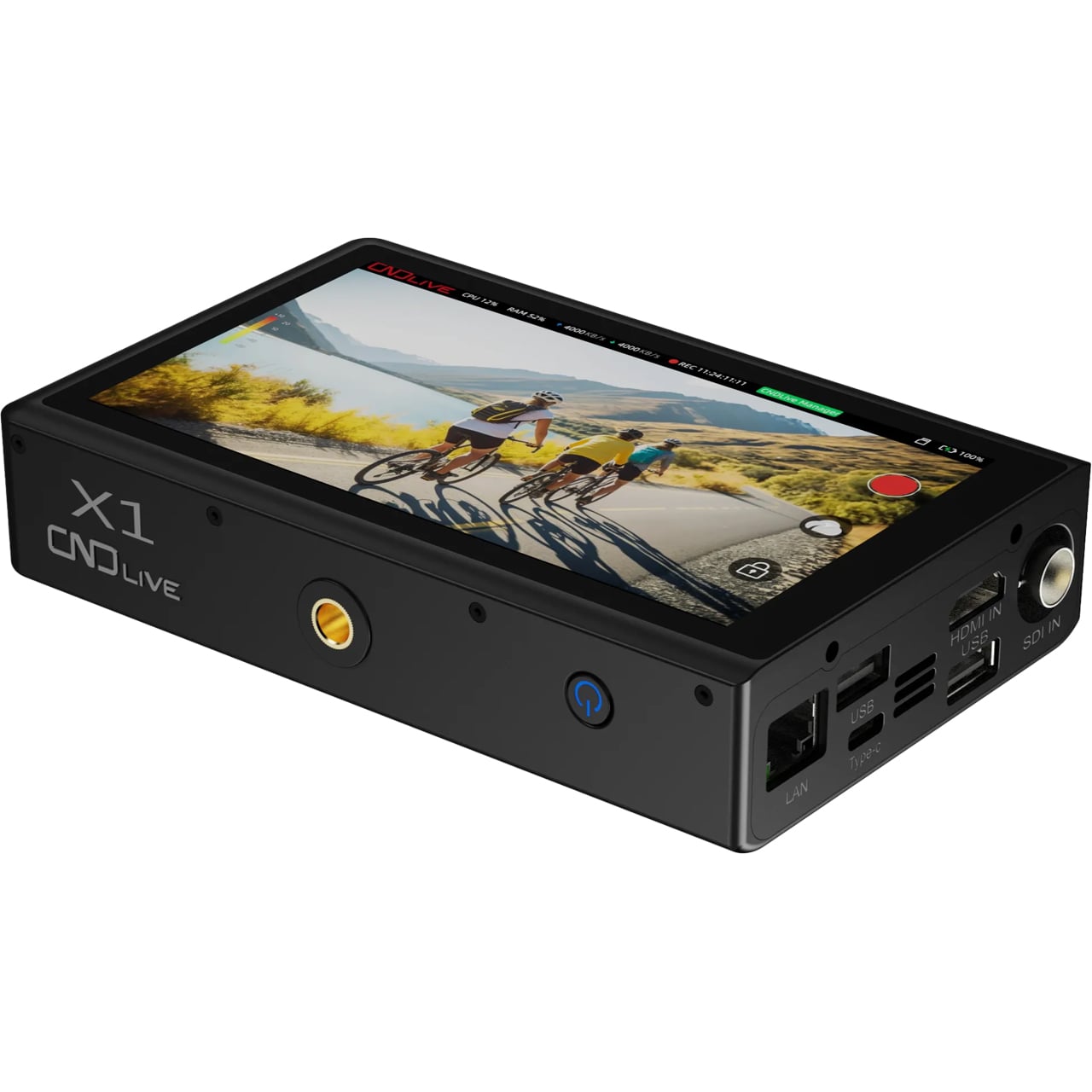

CNDLive X1 HDMI & SDI 4G Bonding Video Encoder and Monitor

X1 - Overview

• Features:

  • Dual Input Interface: Features SDI and HDMI dual input ports, compatible with a wide range of audio and video capture equipment
  • High-Resolution Encoding:
    - HDMI: Supports HDMI 2.0 with encoding up - 3840x2160p at 30fps
    - SDI: Supports encoding up to 1920x1080p at 60fps
  • Compression Standards: Supports both H.264 and H.265 (HEVC) video encoding for efficient bandwidth usage
  • Dual Stream Support: Capable of simultaneous main stream (up - 4Kp30) and sub-stream (720p60) encoding
  • 7-Network Bonding: Aggregates up to 7 network links to ensure stable transmission even in poor network conditions
  • Self-Developed Bonding Technology: Utilizes proprietary technology to maintain data transmission stability
  • Multi-Pro-col Support: Supports SRT (Caller and Listener modes), RTMP, RTMPS, HLS, TS over UDP, RTSP, and NDI|HX 2/3
  • Simultaneous Streaming: Capable of streaming to 8 different platforms simultaneously using both main and sub-streams
  • Encoding Formats: Supports AAC and G.711 audio encoding.
  • Mixing: Supports embedded audio and Line-in mixed audio
  • Built-in Display: Features a 5.5-inch capacitive touchscreen for real-time video monitoring and device status checks

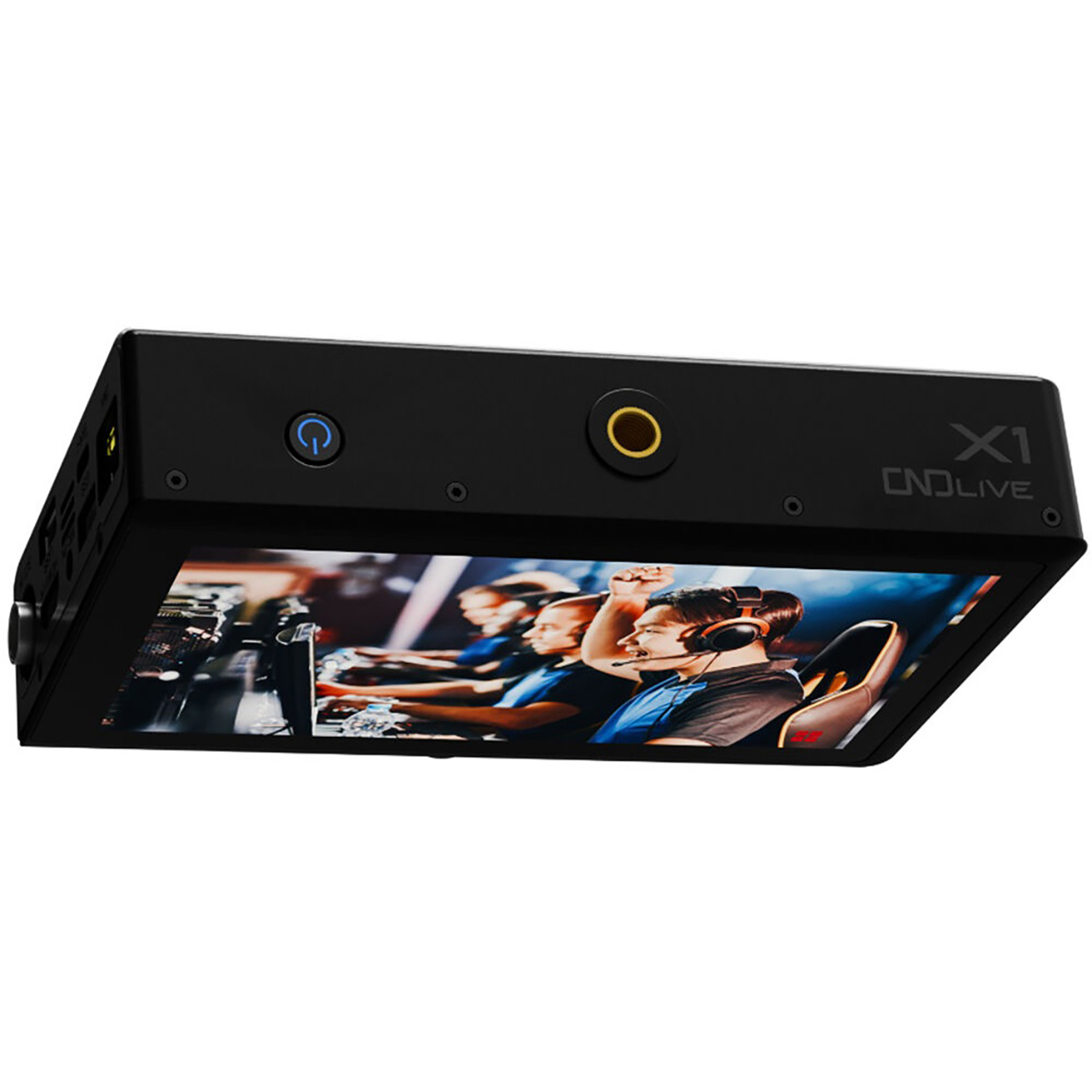

  • Portability: Compact size and lightweight design with a 1/4" threaded screw port for easy camera mounting
  • Power Supply: Built-in battery provides 3-4 hours of operation; also supports power via external power banks and Type-C connectors
  • Cooling System: Professional cooling system ensures stable operation even under high temperatures
  • Operation: Simplified visual interface allowing for full operation without reliance on an external computer
  • Device Management: Manageable via a local webpage, the CNDLive Manager (cloud or on-premise), or the optional CNDLive Manager Max hardware
  • Local Recording: Supports recording to TF card or external USB drives in TS, .MOV, and MP4 formats


• Specifications:

  • Video Inputs:
    - 1x HDMI
    - 1x 3G-SDI
  • Video Encoding: H.265/HEVC and H.264
  • Audio Encoding: AAC, G.711
  • Video Resolutions (SDI):
    - 1920x1080p (23.98/24/25/29.97/30/50/59.94/60 fps)
    - 1920x1080i (50/59.94/60 fps)
    - 1280x720p (25/29.97/30/50/59.94/60 fps)
    - 720x576i (50 fps PAL SD)
    - 720x480i (59.94 fps NTSC SD)
  • Video Resolutions (HDMI):
    - 3840x2160p (30 fps)
    - 1920x1080p (23.98/24/25/29.97/30/50/59.94/60 fps)
    - 1920x1080i (50/59.94/60 fps)
    - 1280x720p (29.97/30/50/59.94/60 fps)
  • Simultaneous 4G Bonding:

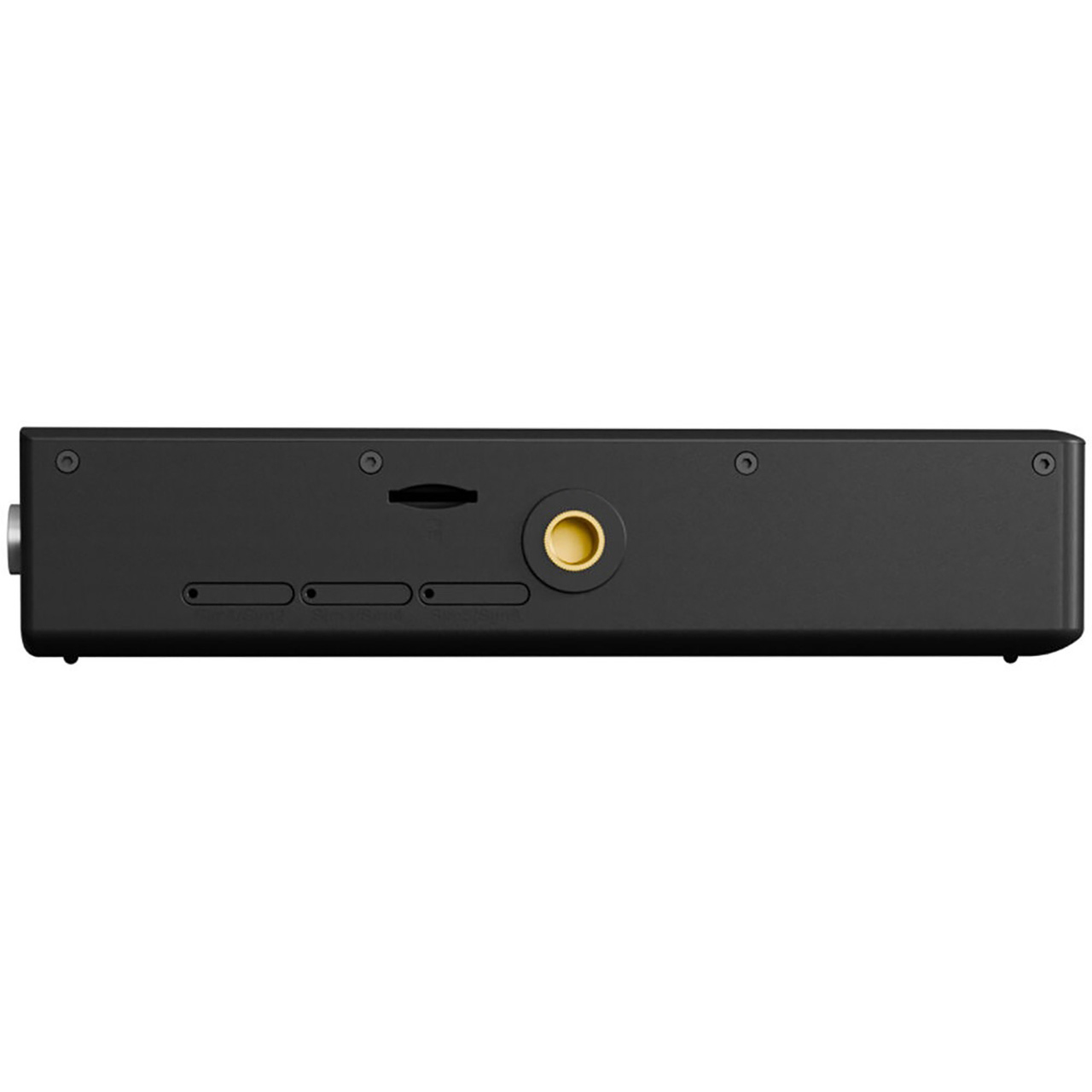

    - 3x Internal SIM cards
    - 1x Wi-Fi 6
    - 1x GbE Ethernet
    - 2x USB modems
  • IP Outputs: NDI HX 2/3, SRT, RTMP, RTMPS, HLS, RTSP, TS over UDP

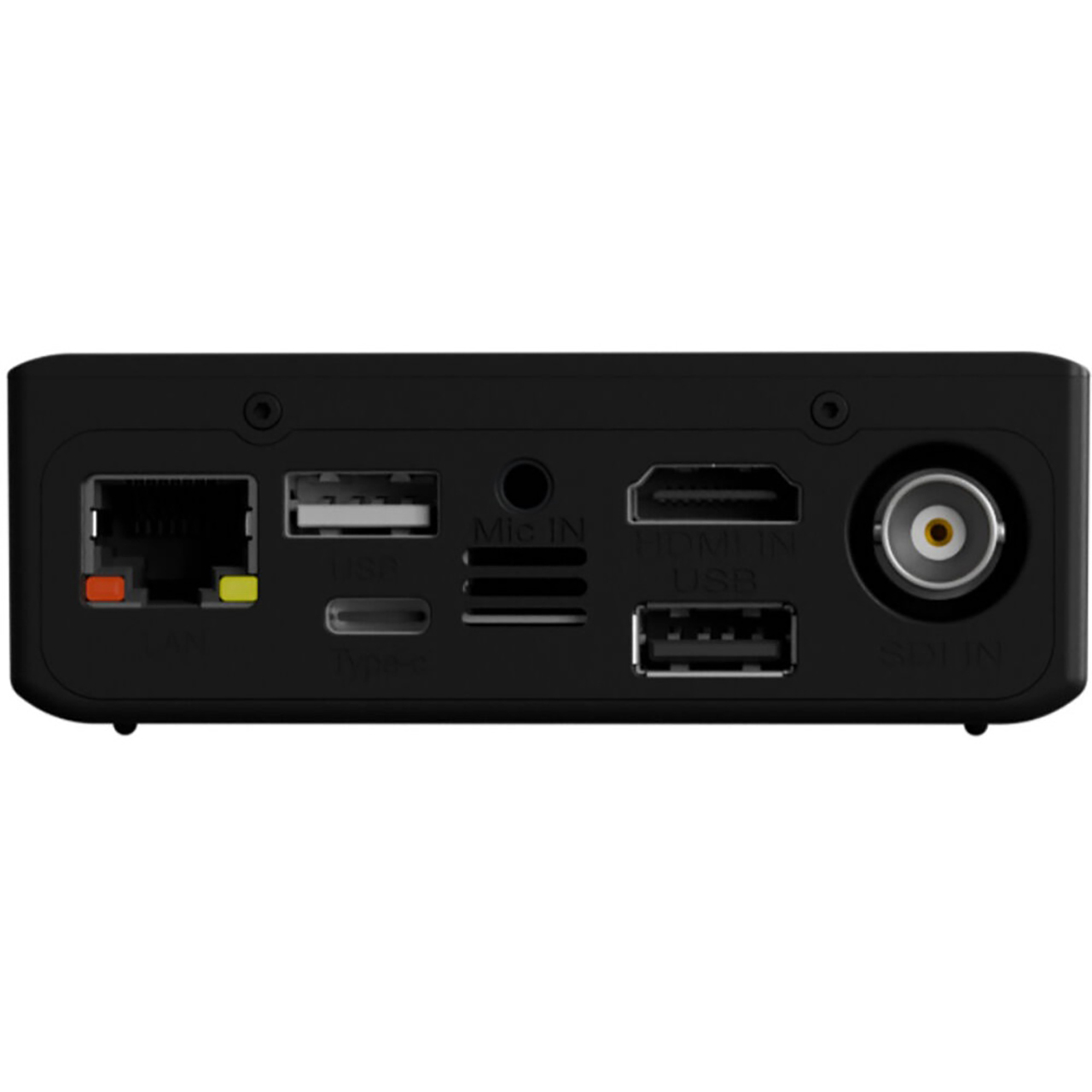

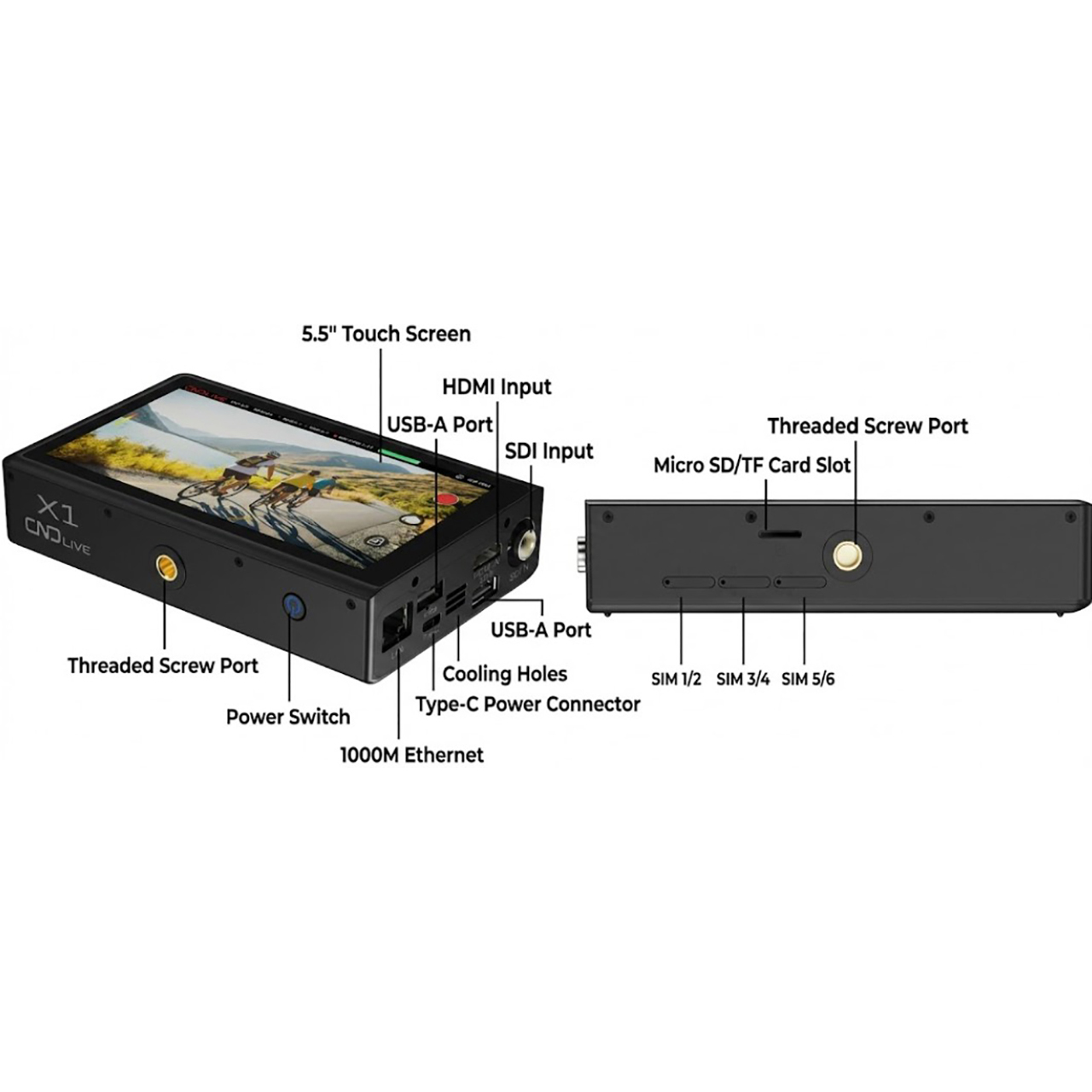

  • Interfaces:
    - 2x USB 2.0
    - 1x GbE Ethernet port
    - 1x Type-C (Power only)
    - 1x TF port
  • Recording Storage: TF card or External USB
  • Recording Formats: TS, .MOV, MP4
  • Display: 5.5" LCD Screen with Touch Interface
  • Battery: 8.4V / 5000mAh
  • Management: Webpage CNDLive Manager
  • Working Temperature: 14°F - 113°F (-10°C - 45°C)
  • Dimensions(L x W x H): 5.51" x 5.15" x 1.72" (140mm x 131mm x 43.7mm)


• Item Includes:

  • 1x X1 Main Unit
  • 1x Power Adapter
  • 1x Warranty Card
  • 1x Quick Start Guide


• GTIN:

  0774882279563
