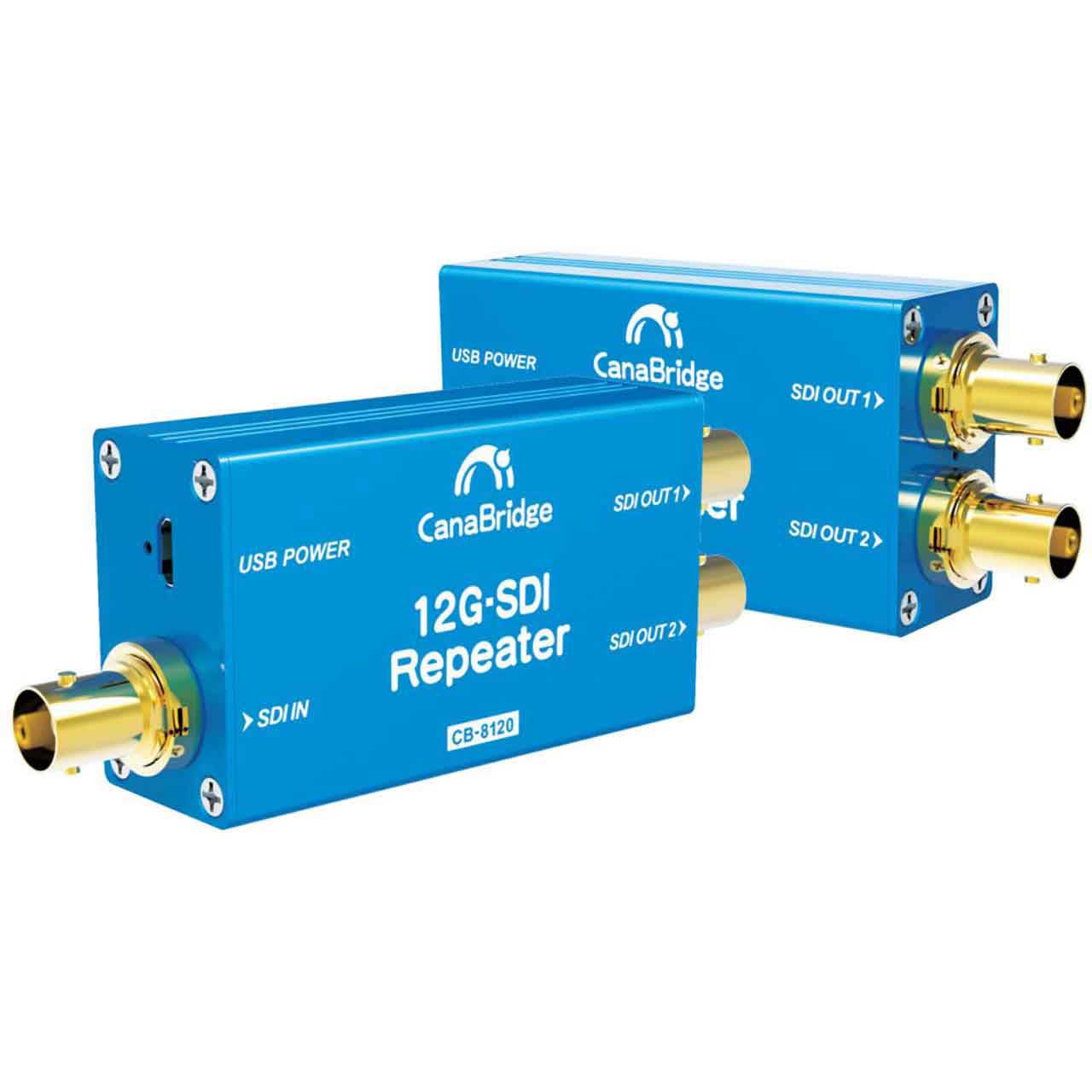

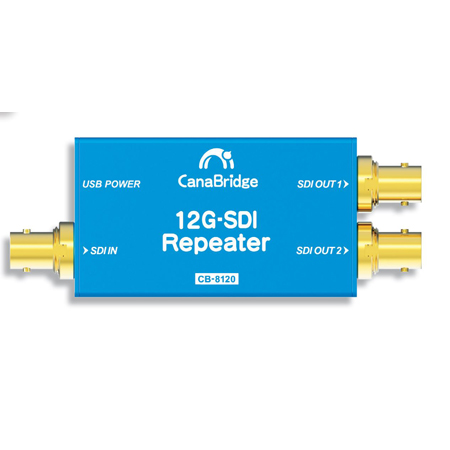

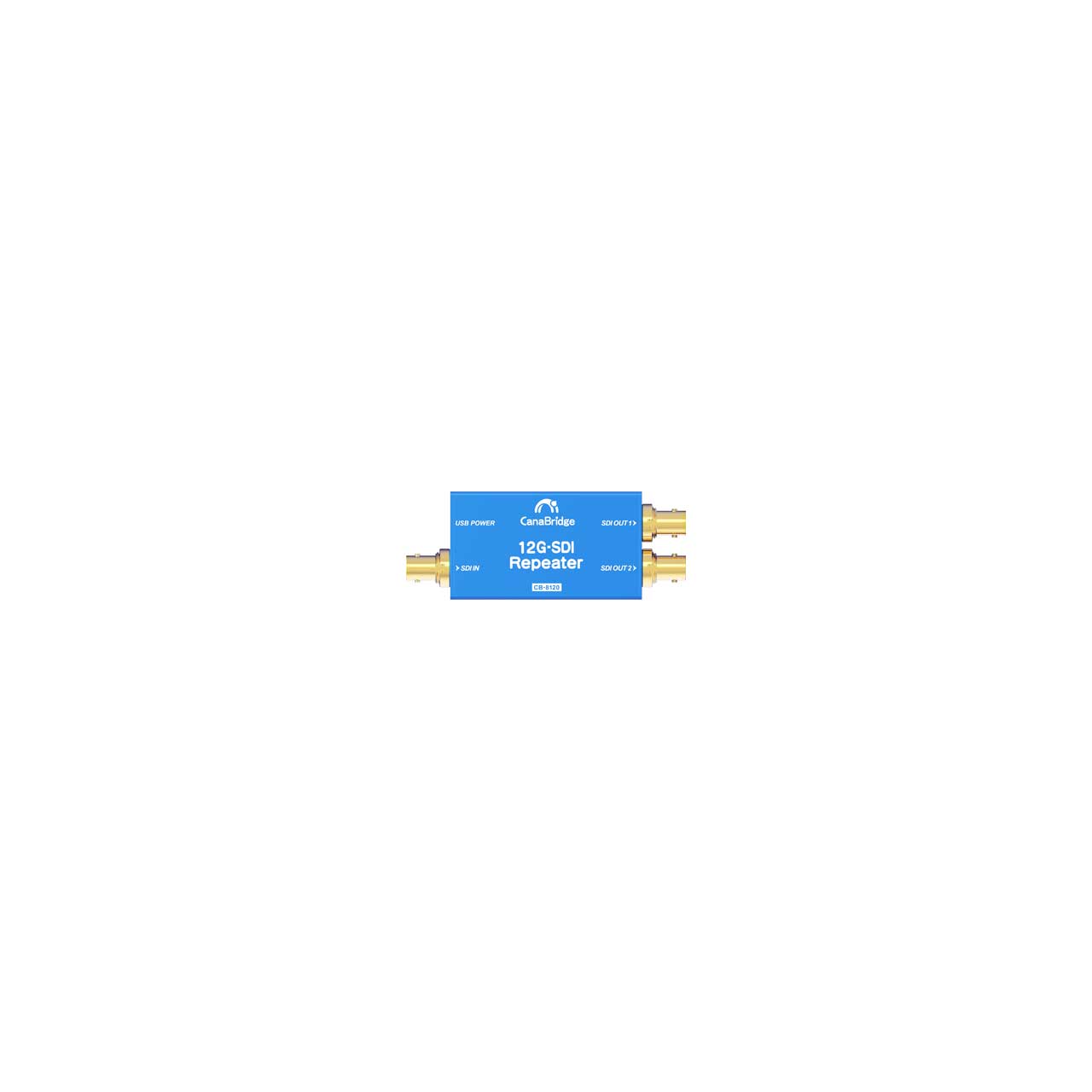

Canare CB-8120 CanaBridge 1x2 12G-SDI Signal Repeater/Splitter

CB-8120 - Overview

• Features:

  • Input: 1 x 12G-SDI, Output: 2 x 12G-SDI
  • Automatically detects SD, HD, 3G, 6G and 12G-SDI
  • Support DVB-ASI signal

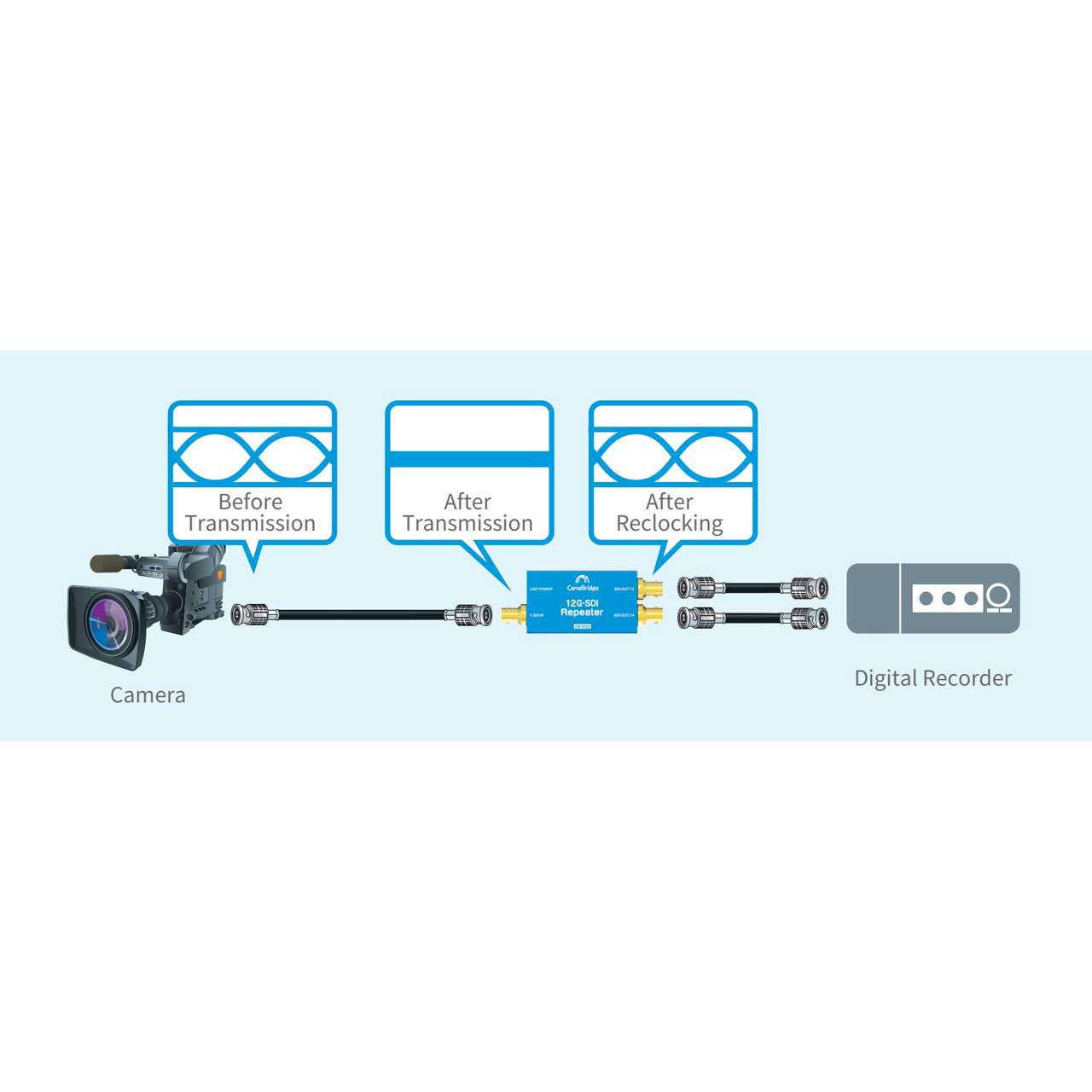

  • Automatic cable equalization and signal retiming
  • Pass all ancillary data and embedded audio
  • 3.3-5.5V micro USB power
  • Detachable bracket design for wall mounting


• Specifications:

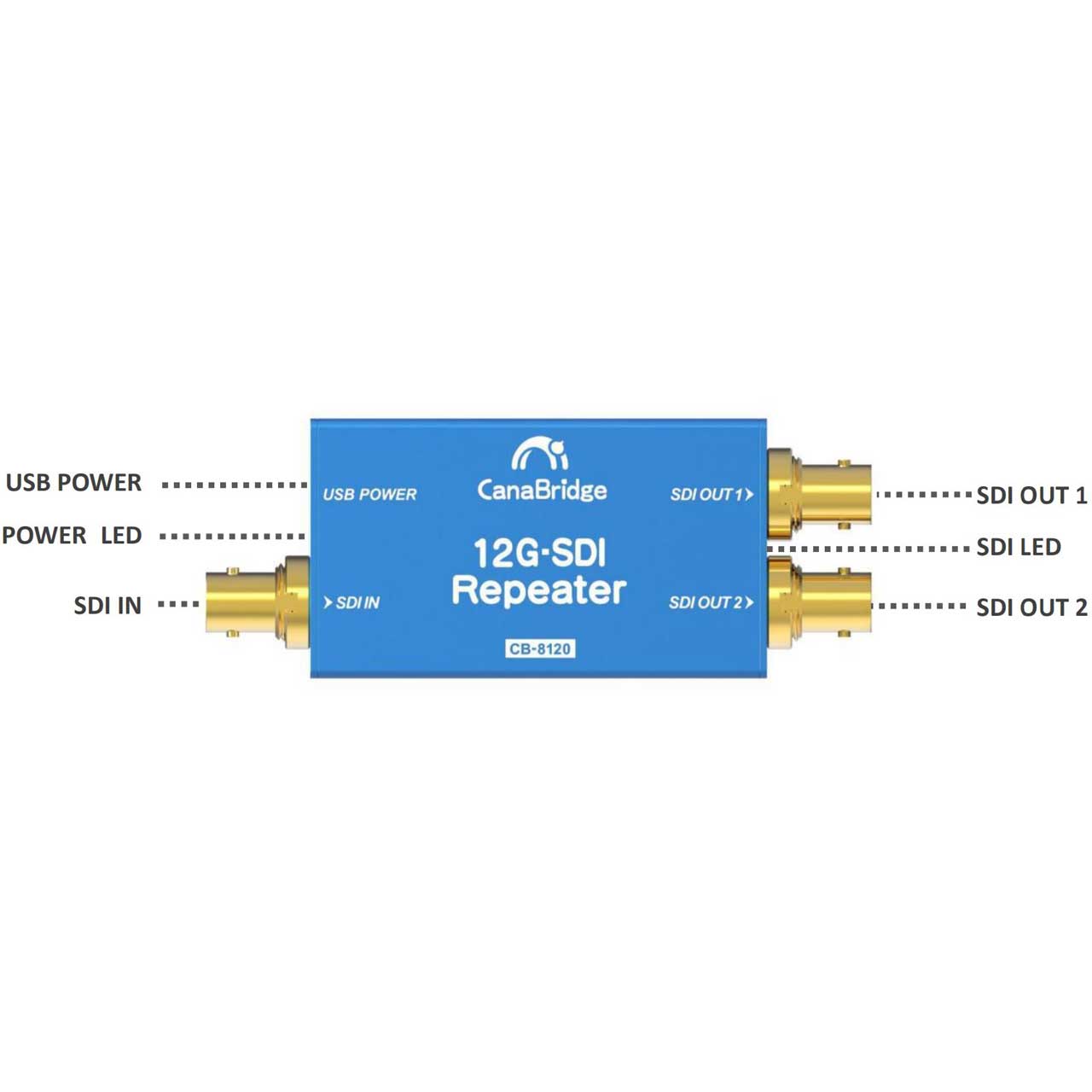

  • Connections:
  • SDI Video Input: 1xSD/HD/3G/6G/12G-SDI (75Ω BNC)
  • SDI Video Output: 2xSD/HD/3G/6G/12G-SDI (75Ω BNC)
  • Micro USB: Power
  • Power LED: Power indicator
  • SDI LED: SDI input signal indicator

    Functions and Standards:
  • SDI Video Rate: SD/HD/3G/6G/12G-SDI
  • SDI Auto Switching: Automatically detects SD, HD, 3G, 6G and 12G-SDI
  • SDI Standard: SMPTE ST 259, SMPTE ST 292-1, SMPTE ST 424, SMPTE ST-2081-1, SMPTE ST-2082-2, DVB-ASI

    Power:
  • Power: Micro USB
  • Voltage Range: USB 3.3-5.5V
  • Power Consumption: 1.0W (Max)

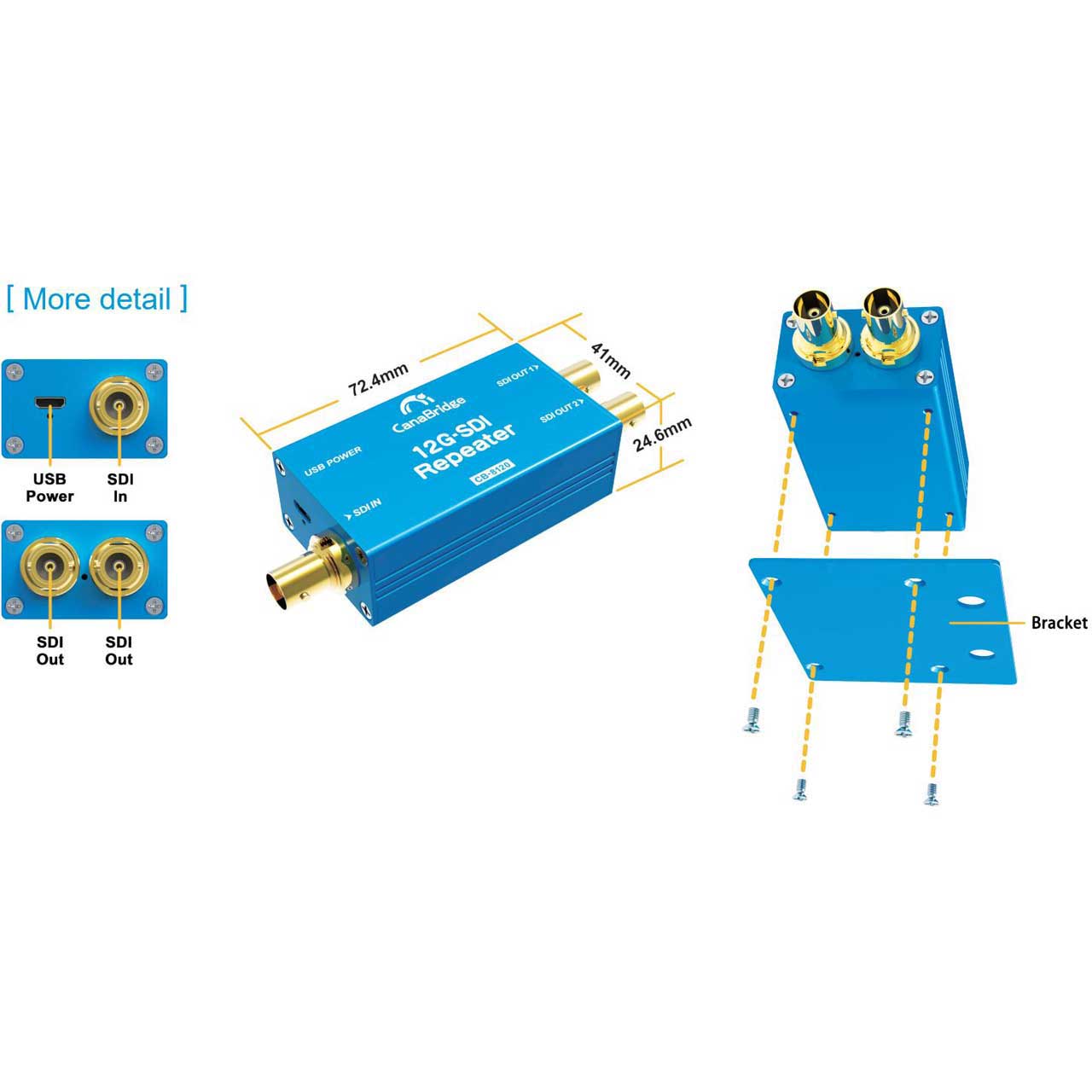

    Physical Specifications:
  • Dimension: 72.4x41x24.6mm
  • Net Weight: 110g
  • Gross Weight: 470g

    Environmental Specifications:
  • Operating Temperature: 0~60 deg C
  • Storage Temperature: -30~70 deg C
  • Relative Humidity: 0%~90% non-condensing


• Item Includes:

  • 1x CB-8120 (12G-SDI Repeater)
  • 1x Mounting Bracket with 4 screws (12g)
  • 1x DC 5V Universal Power Supply with 5 International Socket Adapters
  • 1x USB Cable (150cm)
