Blackmagic Design 12G SDI Fiber Extender Kit with 12G Optical Fiber Mini Converter/12G LC Duplex SFP/2x 12G SDI Cables

ITEM #: BMD-12GSDIFX-KIT MFG #: 12GSDIFX-KIT

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:

$390.98

Our Price:

$359.00

Availability: In Stock
iAvailability Description Popup


    12GSDIFX-KIT - Overview

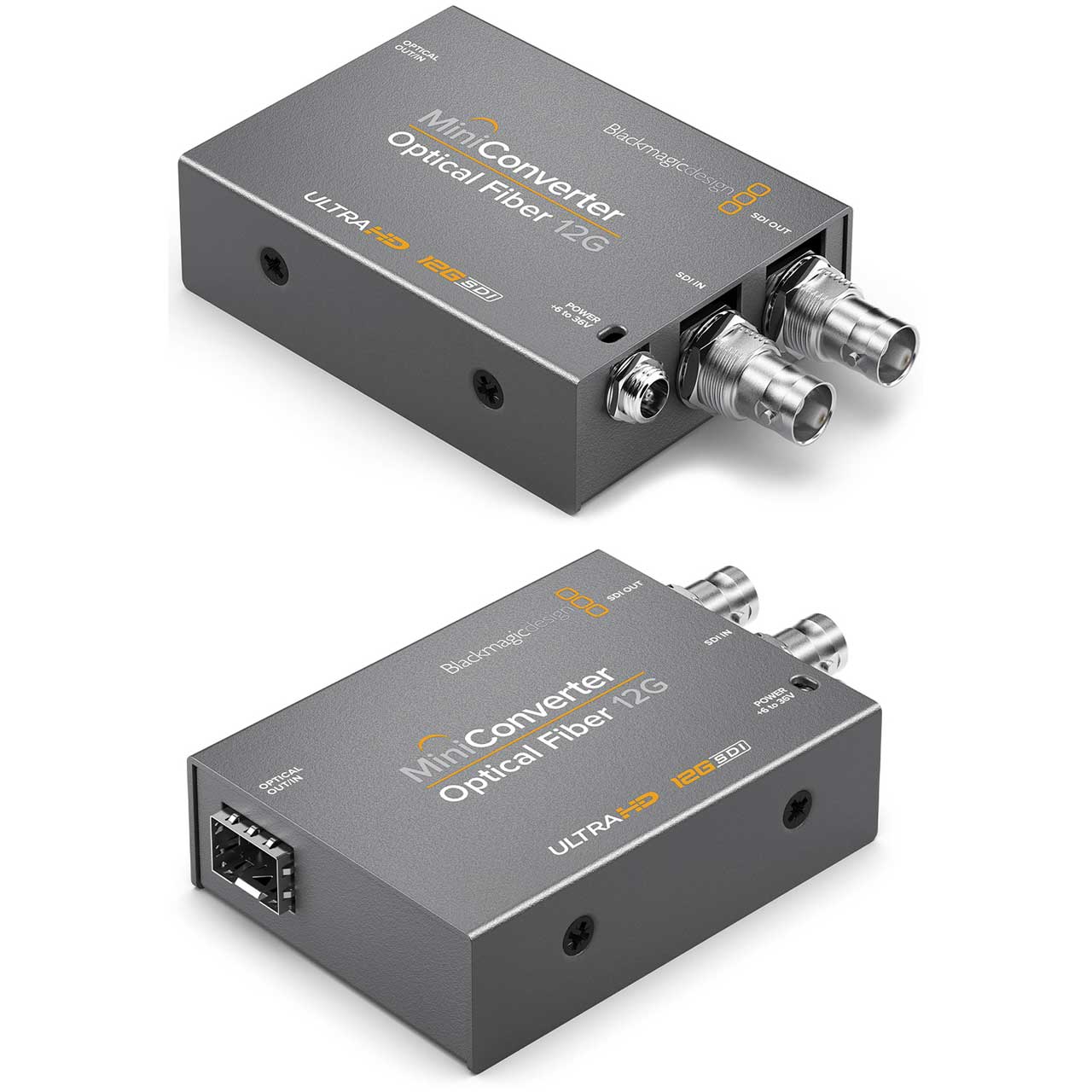

    The Blackmagic Design Mini Converter Optical Fiber 12G converts SDI to optical fiber and optical fiber to SDI in both directions at the same time! You can even have different video standards going in each direction! The 12G-SDI connections are multi rate, which makes it compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices. You can install any standard 3G, 6G or 12G-SDI SFP optical fiber module so you can send SDI using the same low cost optical fiber cables that are commonly used for computer networks.

    Mini Converter Optical Fiber 12G features a standard SFP type socket that lets you add any SMPTE compatible 3G, 6G or 12G-SDI SFP module. It also works with the same of low cost optical fiber cables that are commonly used for computer networks. This type of optical fiber cable can be run much longer distances and is much more affordable than copper SDI cable.

    For power, Mini Converter Optical Fiber 12G includes a universal power supply with 4 international socket adapters so it can be used anywhere in the world. It also features a screw lock connector that prevents the power cord from being accidentally disconnected.

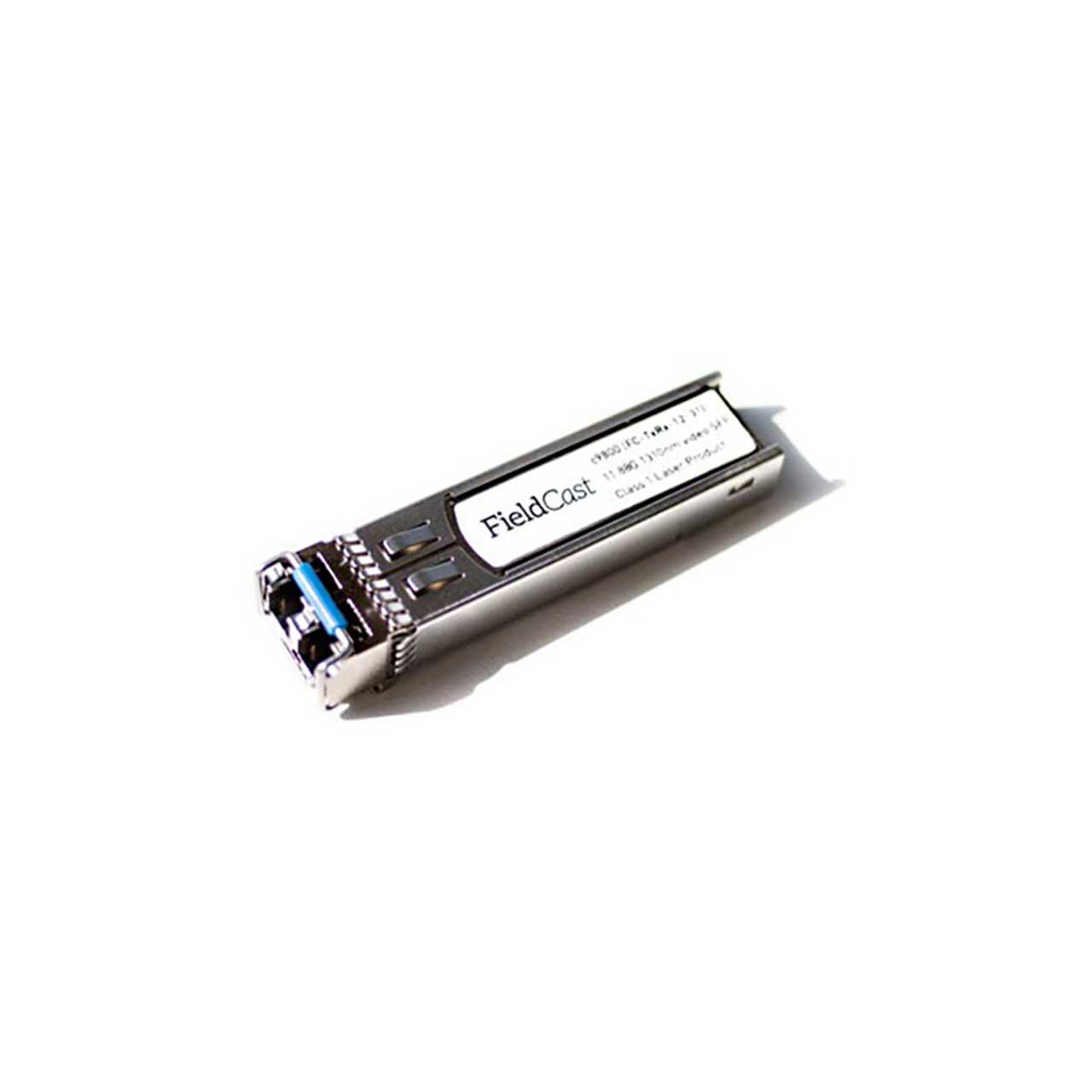

    The FieldCast FC-C9800 is a bidirectional 1310nm 12G video SFP, compatible with a wide range of optical fiber video equipment, such as Blackmagic Design products with fiber optic I/O's, ShieldRock Optical-Fiber Extenders. Supports NTSC/PAL, 720p, 1080p/i, and 4K at up to 60fps.

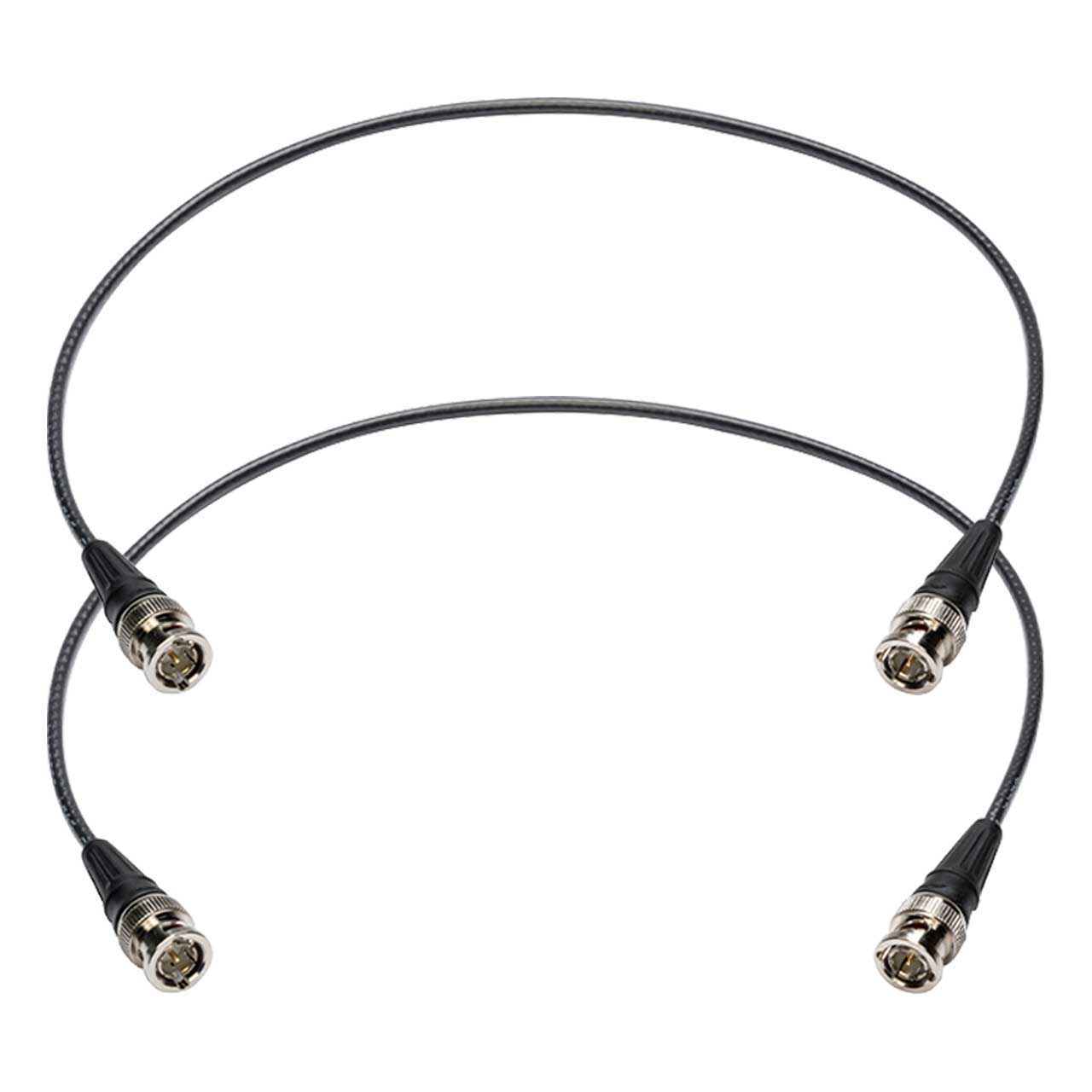

    The Laird 4855R BNC cables break the 12GHz 4K UHD coax barrier! These next-gen RG59 BNC cables are designed to handle 12GHz 4K UHD signals up to 150 feet (3G-SDI up to 310 Feet) and provide the critical link between your switchers, cameras and other 4K video gear.

    • Features:

      • Mini Converter Optical Fiber 12G
      • 8x 12G-SDI inputs, all with auto re-sync and format and frame rate converters
      • Supports all video formats from HD to Ultra HD 2160p at 59.94 frames per second
      • 1x built in multiview for 8 sources, as well as preview and program
      • Built in media pool graphics storage for 90 frames of Ultra HD, 360 frames of 1080HD or 1440 frames of 720HD video
      • Built in DVE with borders and drop shadow
      • Transitions include cut, mix, dip, SMPTE wipes and more
      • 1 upstream keyer including chroma keyer plus 2 downstream keyers
      • 1 auxiliary output with aux switching buttons and LCD screen for viewing
      • Built in audio mixer live mixes embedded audio from all video inputs and independent audio inputs
      • Balanced XLR stereo analog audio inputs
      • Internal sources include black, color bars, two color generators and 2 media player outputs
      • Ethernet connection for computer connection
      • Mac and Windows control panel software included
      • Compatible with all ATEM Broadcast Control Panels
      • Black Burst and HD-Tri-Sync genlock input for integration into large systems

        FC-C9800 SFP
      • 1310nm video LC SFP
      • Bidirectional TxRx Tranceivers where Tx stands for Transmitter and Rx for Receiver
      • Available in 12G, 6G and 3G
      • Compatible with a wide range of optical fiber video equipment, such as Blackmagic Mini Converter Optical Fiber 12G, Blackmagic Studio Camera (4K), ATEM Talkback Converter 4K, ATEM Studio Converter, ShieldRock Optical-Fiber Extenders

    • Specifications:

      • Mini Converter Optical Fiber 12G
        Connections
      • SDI Video Inputs: 1x SD, HD and 12G-SDI Video and 1x Optical Fiber Input
      • SDI Video Outputs: Automatically matches the SD, HD and 12G-SDI video input on the Optical Fiber
      • Optical Fiber Connection (optional): 1x SMPTE optical fiber SFP socket. Optical fiber SFP module sold separately.
      • Optical Fiber Video Inputs: 1x 10 bit SD/HD/12G-SDI switchable
      • Optical Fiber Video Outputs: Automatically matches the SD, HD and 12G-SDI video input
      • Optical Fiber Audio Inputs: 16 channel embedded
      • Optical Fiber Audio Outputs: 16 channel embedded
      • Multi Rate Support: Auto detection of SD, HD or 12G-SDI
      • Reclocking: Yes

        Standards
      • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
      • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
      • 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
      • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
      • 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
      • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 425M, SMPTE 424M-B, SMPTE ST-2081, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI
      • SDI Video Rates: SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K
      • SDI Video Sampling: 4:2:2 and 4:4:4
      • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit
      • SDI Color Precision: 4:2:2 and 4:4:4
      • SDI Color Space: YUV and RGB
      • SDI Auto Switching: Automatically detects SD, HD or 12G-SDI
      • ASI Support: Yes

        Operating Systems
      • Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.

        Power Requirements
      • Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
      • Power Consumption: 2 Watts
      • Operational Voltage Range: 6 - 36V DC

        Environmental Specifications
      • Operating Temperature: 32°F - 104°F (0°C - 40°C)
      • Storage Temperature: -4°F - 113°F (-20°C - 45°C)
      • Relative Humidity: 0% - 90% non-condensing

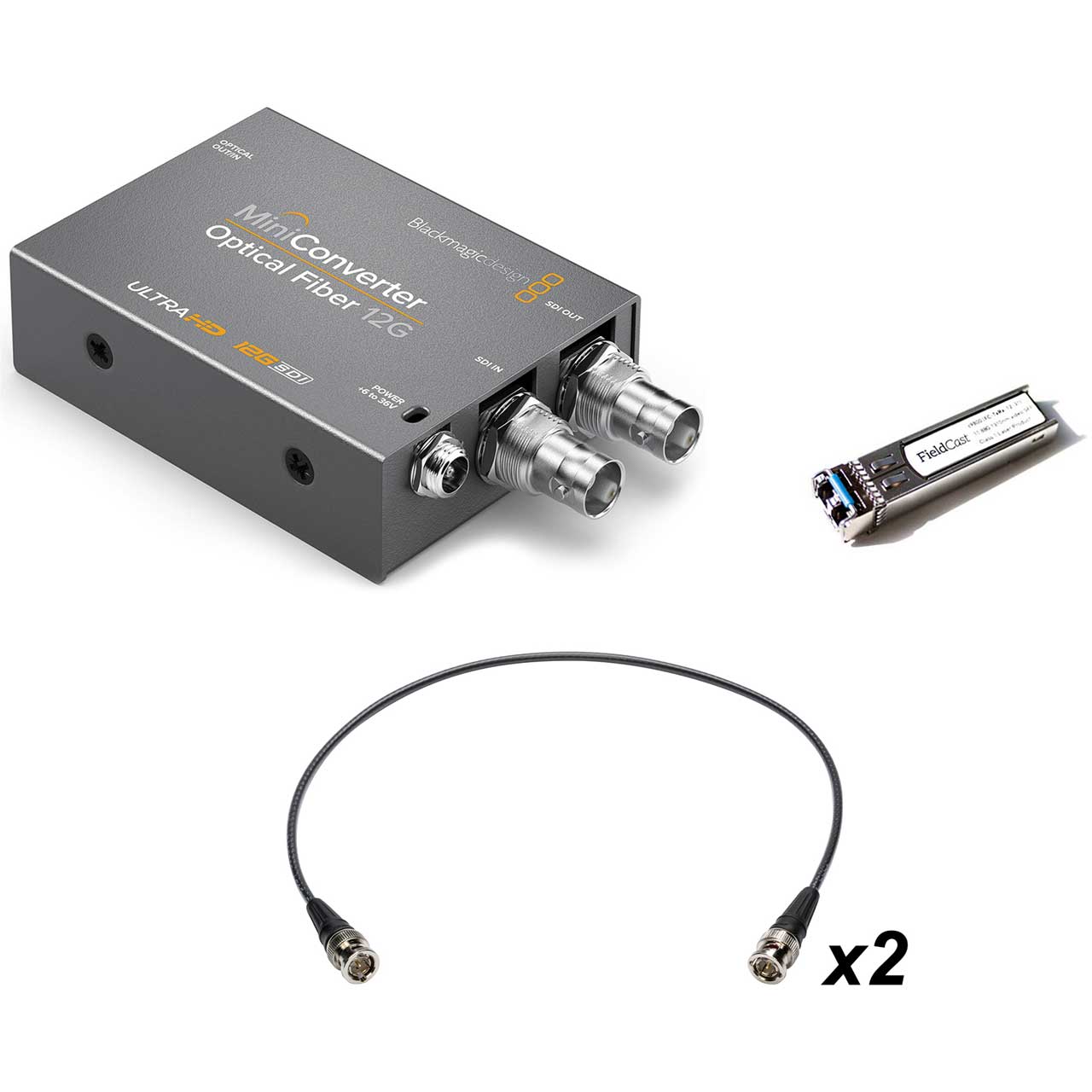

    • Item Includes:

      • 1x Blackmagic Design 12G Optical Fiber Mini Converter
      • 1x Fieldcast FC-C9800 LC Duplex 12G SFP
      • 2x 3ft Laird 4855R 12G SDI/4K UHD BNC Cable

    • Warranty:

      • Blackmagic Design Mini Converter Optical Fiber 12G: 3 Year Limited Manufacturer's Warranty
      • Fieldcast FC-C9800 LC Duplex 12G SFP: 1 Year Limited Warranty
      • Laird 4855R BNC Cable: 1 Year

    • GTIN:

      9338716005400
