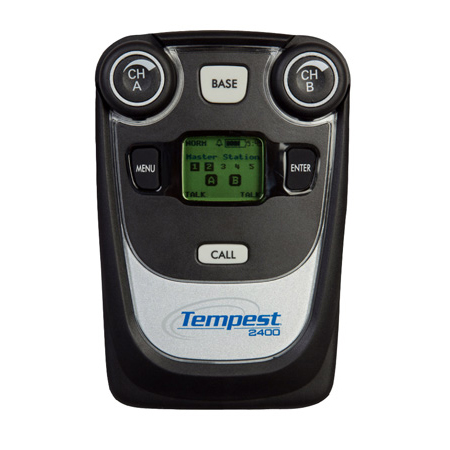

Pliant Technologies TMP-MS224 Tempest 2.4GHz 2 channel MasterBelt - Li-ion Battery Included

ITEM #: COA-TMP-MS224 MFG #: TMP-MS224

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the COA-TMP-MS224

TMP-MS224 - Overview

The Pliant TMP-MS224 Tempest MasterBelt is ideal for mobile production and offers all the advanced features, reliability, and robustness of the Tempest2400 rackmount BaseStation in a compact, portable, and easy-to-deploy package that can be conveniently worn on the hip. The Tempest MasterBelt is designed to act as a Tempest BaseStation. This enables the Tempest Wireless technology to be used in applications where users move together within the same workspace. Because the "Base" is a "Belt"-there is added flexibility for the group to be on-the-go.

Technology:
The MasterBelt operates in the 2.4GHz band and uses Frequency-Hopping Spread Spectrum (FHSS) and TDMA technology. Its unique RF platform enables it to coexist with other common wireless sources such as traditional wireless microphones, IFB or in-ear monitor systems, and Wi-Fi networks.

Performance:
The Tempest MasterBelt (and BeltStations) are ruggedly designed and constructed with an incredibly strong, lightweight ABS co-polymer blend with a high performance polyurethane over-mold, which makes it comfortable to wear and durable in challenging production environments.

Operation:
The MasterBelt supports two intercom channels (A/B) and can support up to five BeltStations operating in full duplex simultaneous communication. The MasterBelt can also operate in Shared or Split modes common to the Tempest Wireless technology. These modes can support an unlimited number of BeltStations operating in a listen and push-to-talk manner.

Each of the five wireless BeltStations per MasterBelt has a unique audio path (i.e., point-to-point), and can simultaneously monitor and/or talk on both wireless intercom channels while in dual listen mode. Alternatively, BeltStations may be placed in single listen mode if the user desires to switch back and forth between the two channels separately.

PLEASE NOTE: This product contains Lithium Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Features:

    • Tempest BeltStation that acts as a BaseStation
    • Compatible with all Tempest2400 BeltStations
    • Ideal for mobile, on-the-go applications where
    • wireless communications are needed
    • Tour guides, camera crews, utility crews, and
    • any application where users move together
    • 2.4GHz worldwide, license free operation
    • Patented FHSS transmission scheme
    • 2xTX redundant data transmission
    • Supports up to 5 full-duplex wireless BeltStations
    • Supports unlimited BeltStations in Shared Mode
    • 2 communication channels (conversations)
    • True dual talk/listen operation
    • Vibrate Call alert as well as in-ear audible
    • tone option
    • Lithium-Polymer removable/rechargeable battery
    • Durable, weather-resistant enclosure
    • RoHS compliant

  • Specifications:

    • SYSTEM SPECIFICATIONS
    • RF Frequency 2400 to 2480 MHz
    • RF Scheme FHSS with TDMA
    • Effective Radiated Power 100mW using 2dBi antenna
    • Receiver Sensitivity -93 dBm for 10-5 BER
    • Radio Certification FCC Part 15.247, ETS 300 328 v1.8.1 rules (apply to model numbers ending in “EU” only**), Canadian RSS-210, license free.
    • Transmission Range 1,000 ft. (304.8 m) under ideal conditions.
    • 500 ft. to 900 ft. (152.4 m to 274.3 m) typical
    • Audio Dynamic Range >94dB
    • Audio Frequency Response 300Hz-3.8KHz with proprietary audio voice shaping
    • System Latency Less than 50ms direct
    • RoHS Compliant Yes

    • MASTERBELT SPECIFICATIONS
    • Intercom Audio Channels 2
    • Simultaneous Listen Paths True Dual Listen
    • Headset Connector 4-pin male XLR
    • Microphone Type Dynamic or Electret, auto selected
    • LCD Display 102 × 80 pixels
    • Antenna Internal +2 dBi patch
    • USB BeltStation Power Supply Input 100-240 V, 0.3 A, 50-60 Hz; Output 5 V, 1.25 A
    • Battery Life, Rechargeable Up to 8 hours
    • Charge Time, Lithium-Polymer Battery Under 3 hours
    • Optional Power 3 Standard AA alkaline cells
    • Battery Life, Alkaline Batteries Approximately 4 hours
    • Dimensions (inches) H 6.1 in. × W 4.0 in. × D 1.75 in.
    • (156 mm × 102 mm × 44.5 mm)
    • Weight (with Lithium-Polymer Battery) 14.3 oz. (1.17 kg)
    • Operating Environment -20°C to 50°C (-4°F to 122°F) | 10% to 90% humidity

  • Item Includes:

    • Multi-blade Charger, Tempest CD, USB Cable, Pairing Cable, Battery, Quickstart Guide

  • Warranty:

    • Two Year Parts and Labor
