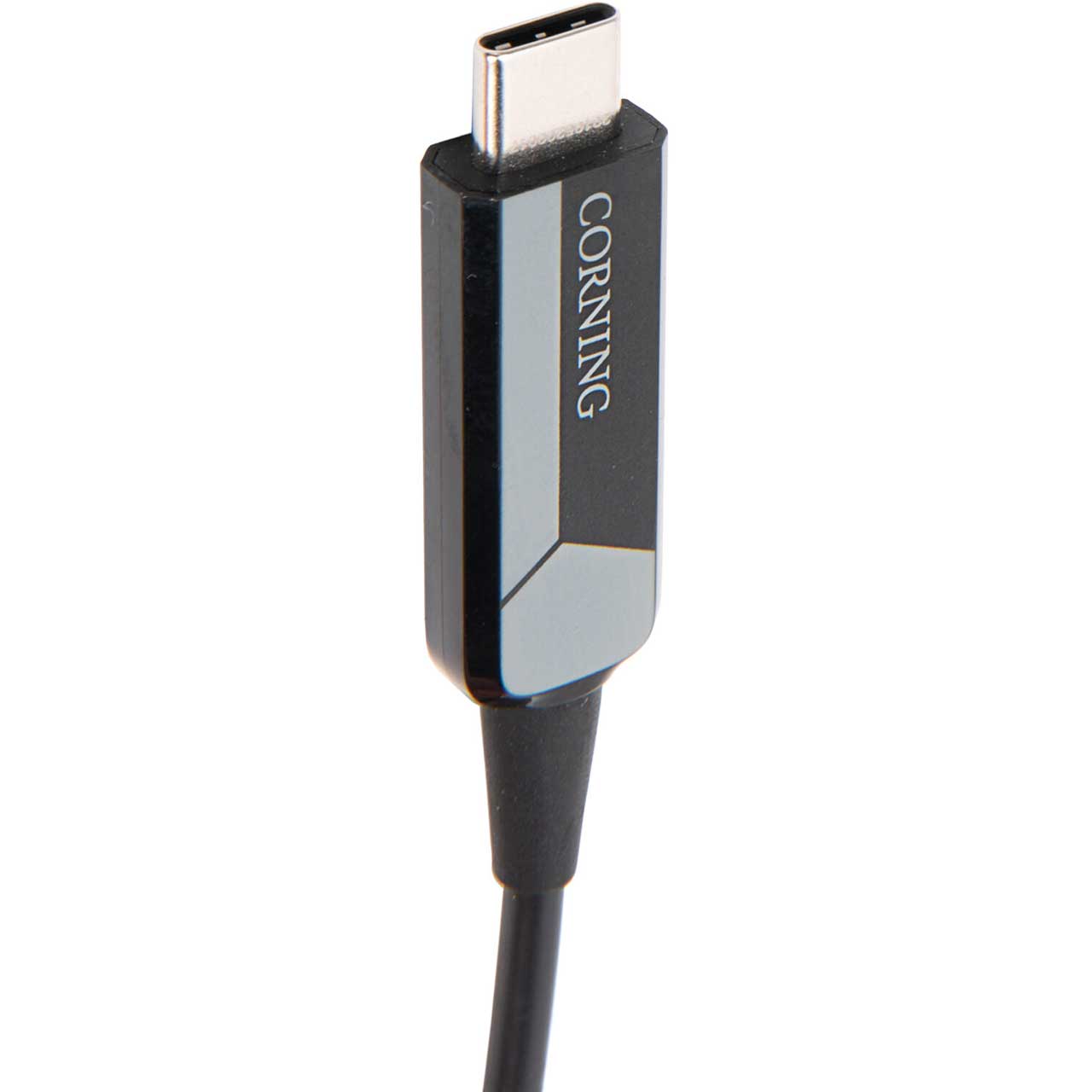

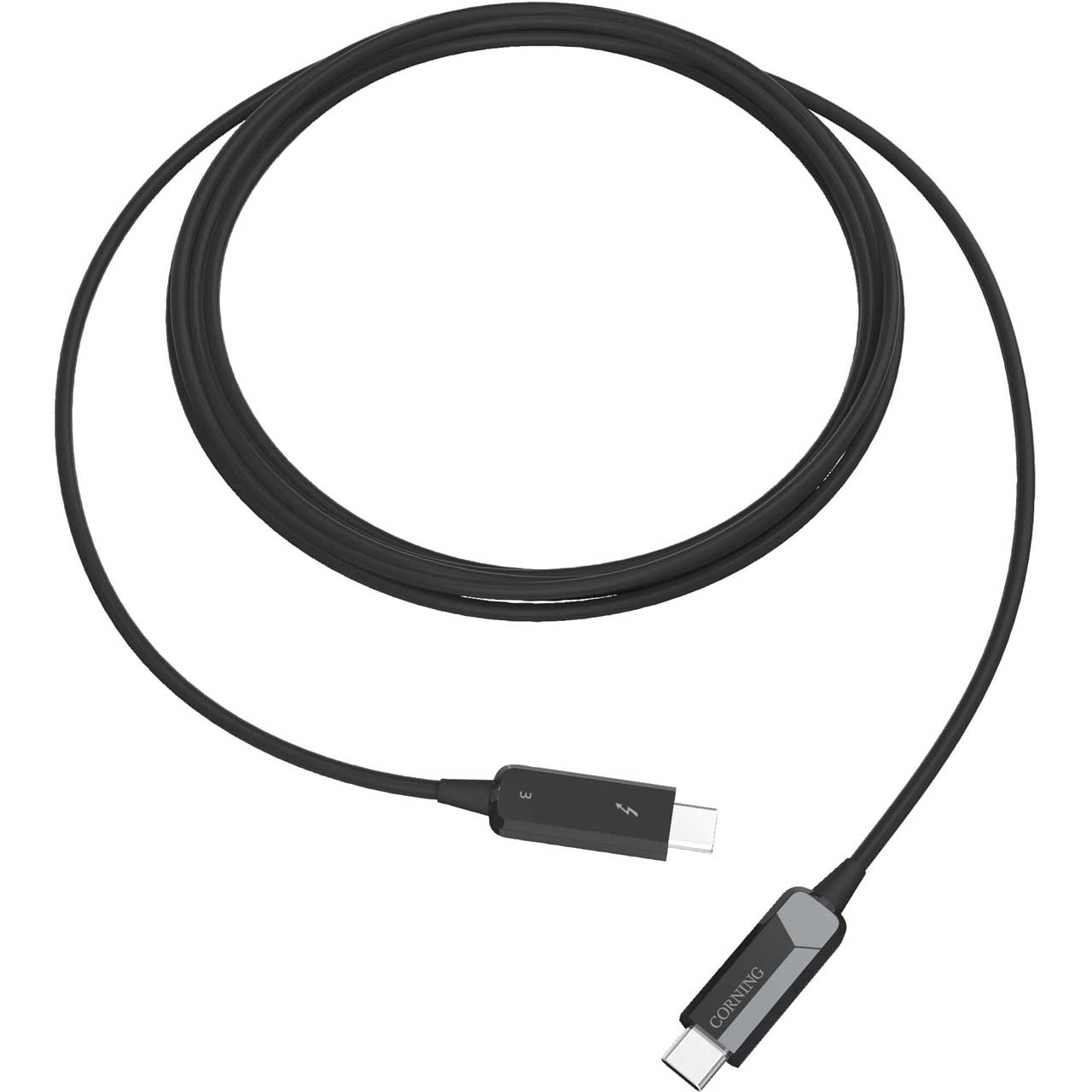

Corning COR-AOC-CCU6JPN050M20 AOC 40 Gb/s Thunderbolt 3 USB Type-C Optical Cable - 164 Feet/50 Meter

COR-AOC-CCU6JPN050M20 - Overview

• Features:

  • 40 Gbps Thunderbolt 3
  • Flippable and reversible connectors
  • Daisy chain multiple Thunderbolt devices
  • All-dielectric cable provides enhanced galvanic isolation
  • Robust cable design with improved abrasion resistance
  • All new thermal shutdown - protects internal components from long-term exposure to elevated temperatures
  • Supports one 5K display or two 4K displays
  • No driver software required


• Specifications:

  • Distance
  • Computer/Host to Device: Up to 50 m

    Connector
  • Type-C

    Power
  • For use with self-powered peripherals and Thunderbolt 3 ports only

    Environmental and Mechanical
  • Dimensions (W x D x H): (12.4 x 34.9 x 6.5 mm)
  • Max. cable tensile strength: 100N (22 lbs)
  • Operating temperature: 0°C to 50°C (32°F to 122°F)

    Compliance
  • Eye safety: Class 1 laser product per IEC 60825-1:2014
  • Emissions: FCC Class (B), CE
  • Regulatory: RoHS 3

    Compatibility
  • Corning recommends only using Thunderbolt 3 optical cables with macOS®
  • Does not support native USB or DisplayPort
  • Does not provide bus power


• GTIN:

  0021615020535
