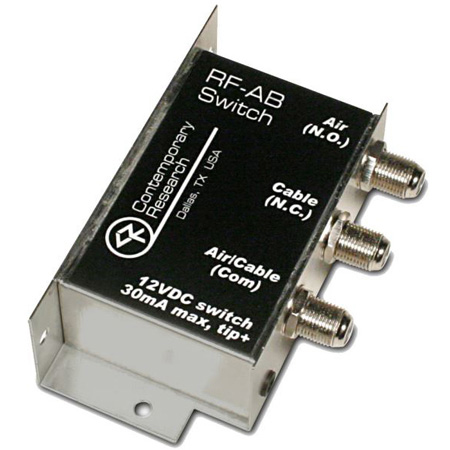

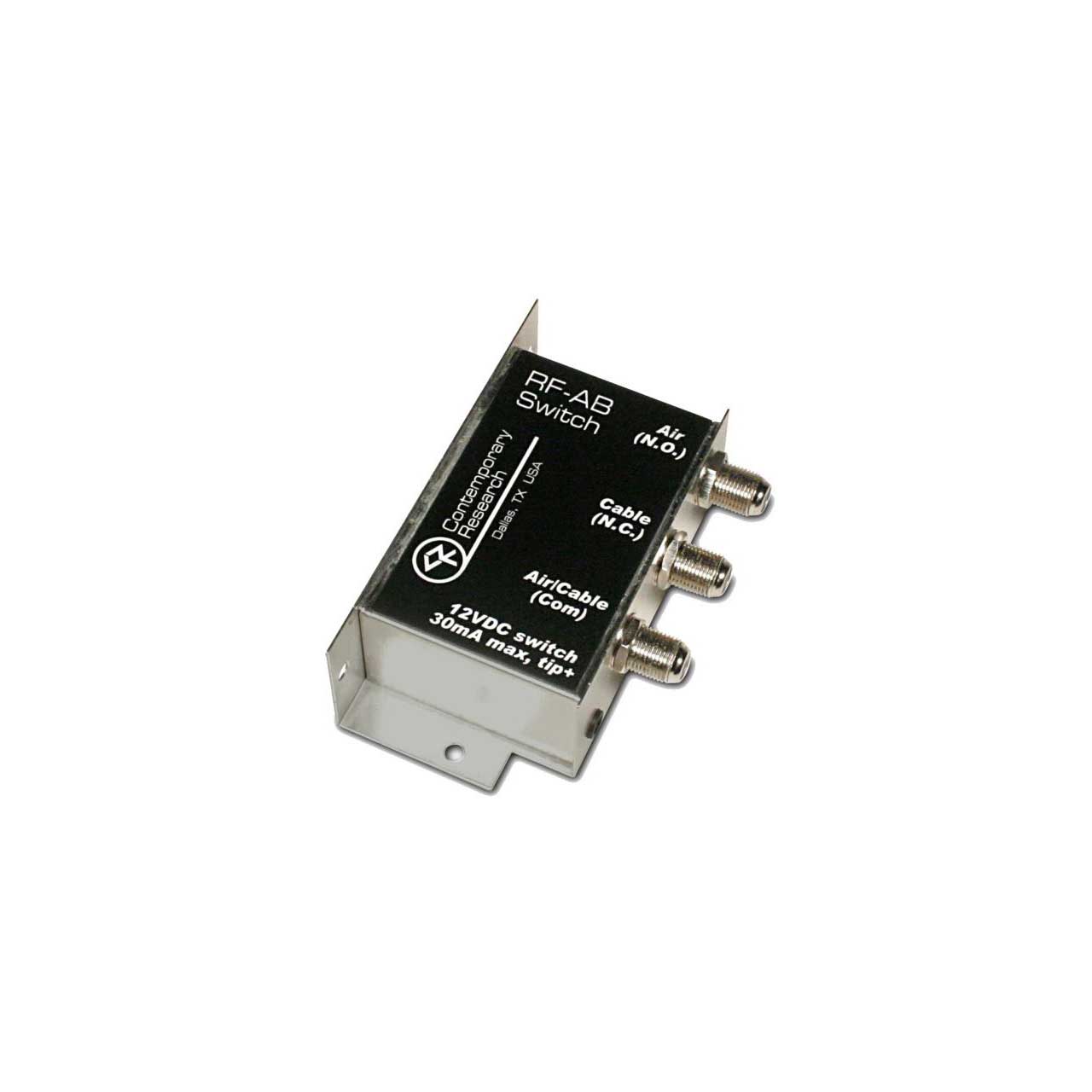

The Contemporary Research RF-AB RF Switch is a self-terminating remote controllable RF A/B switch.
When used with the CR 232-ATSC+ HDTV Tuner, the RF-AB will automatically switch between Air and Cable RF feeds. The included 3.5 mm cable connects the RF-AB to the A/C jack on the back of the tuner.
As a general-purpose RF A/B switch, the RF-AB correctly handles RF signals by terminating the RF feed when it is switched off. In addition, the switch will default to the Cable input when there is no DC power..
Switches two RF feeds to one output
Terminates RF inputs when switched off
High RF isolation
2.5 GHz bandwidth allows use for air, cable, and satellite RF
Remote controllable with 12 VDC current on/off
Defaults to Cable input when unpowered
Metal enclosure, can be mounted horizontally or vertically
Connects to 232-ATSC+ HDTV Tuner for integrated Cable/Air channel tuning
