K-CSX-1200-C-PRO - Overview

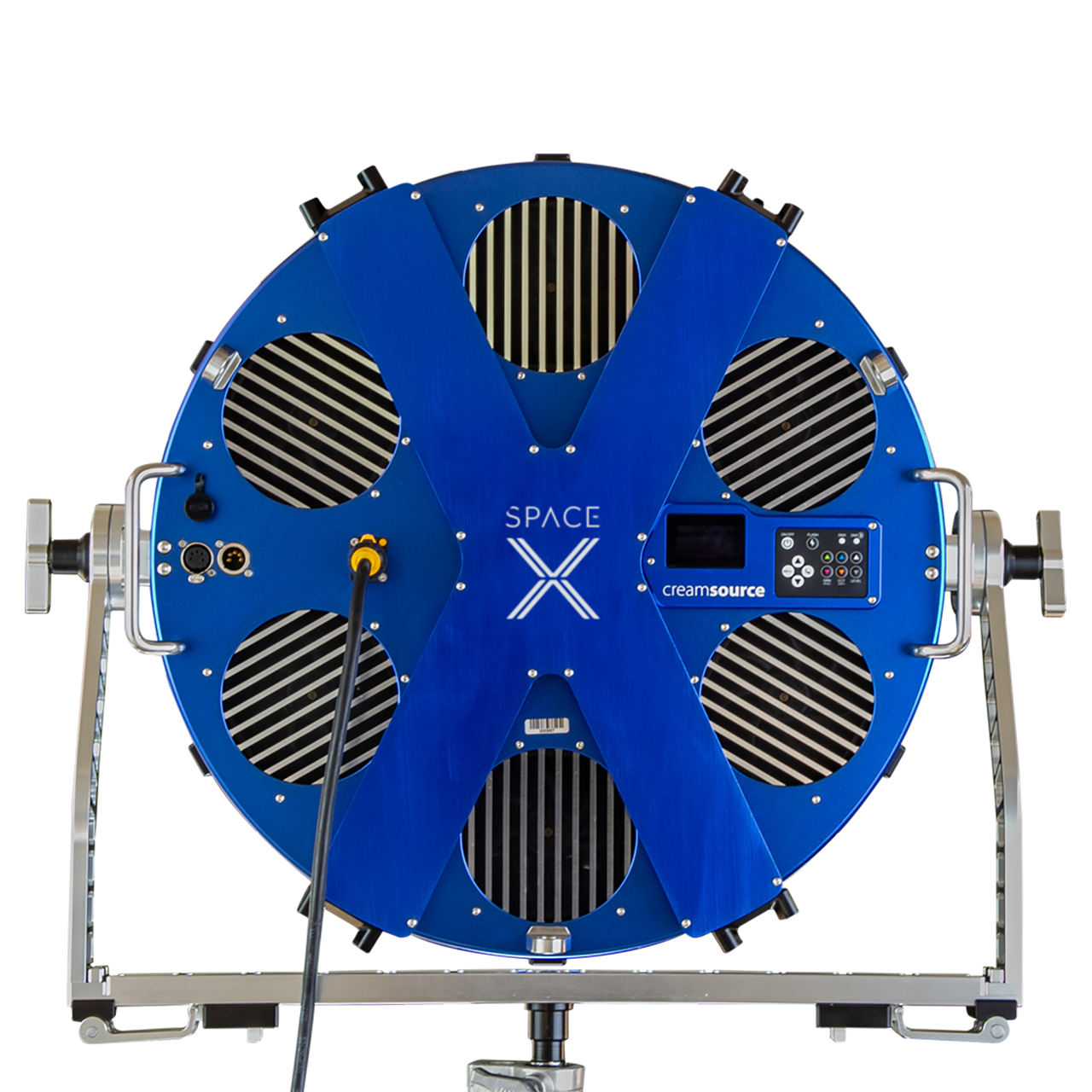

The Creamsource SpaceX K-CSX-1200-C-PRO is a powerful and versatile 1200W RGBAW LED lamp head designed for professionals in film, TV, and broadcast lighting. Featuring a full color spectrum with continuous color temperature adjustment from 2200K to 15000K, the SpaceX offers full control over the Green/Magenta axis, providing unparalleled flexibility for lighting effects and color management. Whether used for top-lighting, creating soft light, or delivering punchy beams, this fixture's wide 115° beam angle provides impressive output, delivering 4,727 lux at 6.6 feet (3200K, Native), and up to 7,600 lux with the 50-degree intensifier optic. SpaceX allows you to adjust hue and saturation, giving you infinite possibilities for color creativity and dynamic lighting setups.

SpaceX is optimized for both indoor and outdoor applications, with its lightweight, ergonomic design and robust construction. The fixture includes a built-in power supply, eliminating the need for a bulky external ballast, and the power supply is integrated into the head for easy rigging and transport. At just 40 lbs, this sleek and portable fixture is designed for quick setup and operation. The fixture's powerful LED engines are cooled by an active low-noise fan system, ensuring quiet operation and efficient heat dissipation during use. With a typical CRI of 95 and TLCI of 95, SpaceX delivers superb color reproduction, making it an ideal choice for critical lighting setups.

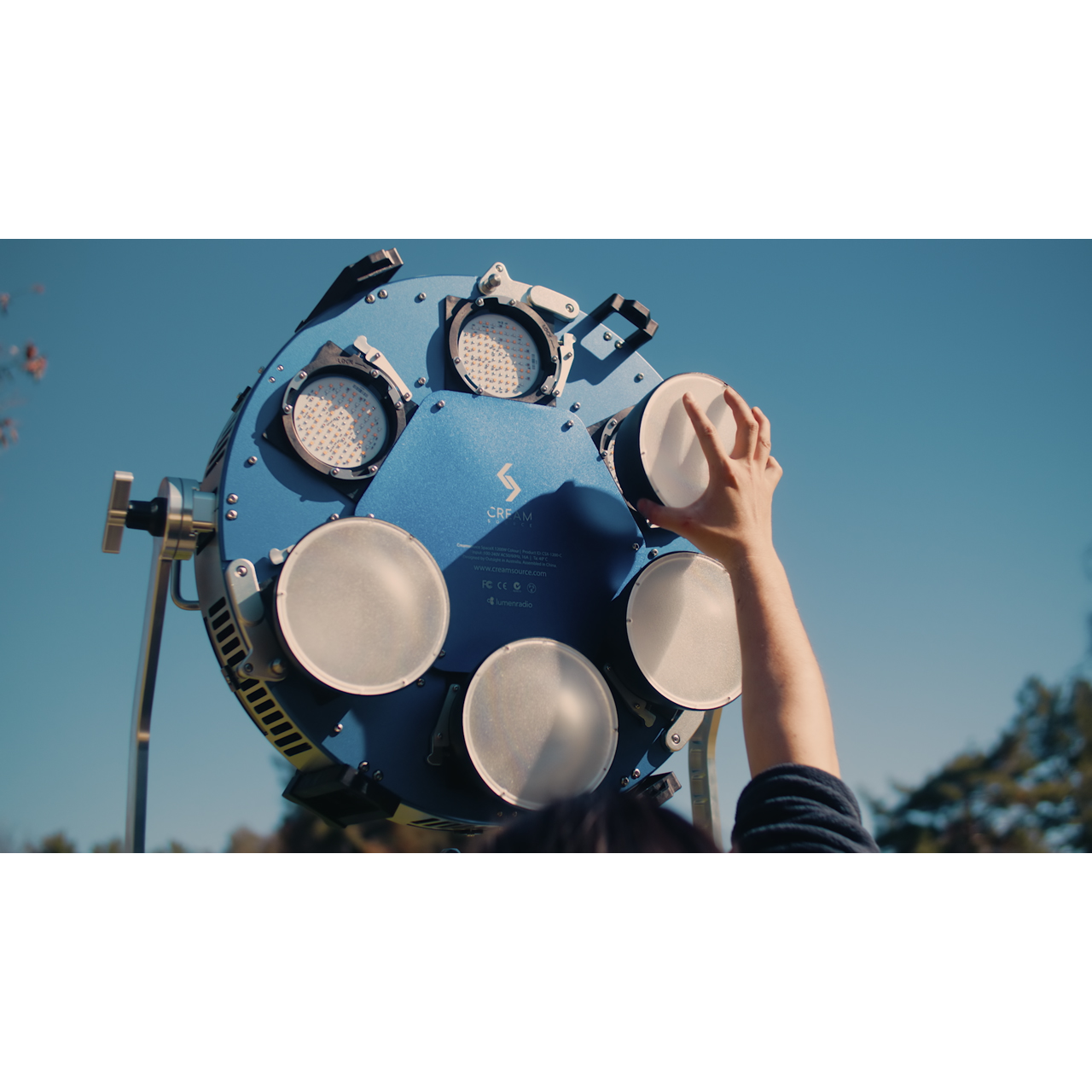

Included in the Pro Kit are six 50-degree intensifier optics, which enhance the light output, increasing the lux per foot and boosting the beam intensity for even greater control. SpaceX also features wireless DMX control through LumenRadio, offering easy, flexible remote operation. DMX control via standard 5-pin XLR connectors, an onboard control interface with an OLED display, and optional wired remote control give users multiple ways to adjust and operate the fixture. With a 50,000-hour estimated LED lifespan, the SpaceX is built to provide long-term reliability, backed by a 5-year warranty upon registration.

  • Features:

    • 115° Beam Angle
    • 2200K - 15000K Color Temperature
    • Hue and Saturation Control
    • Full Minus to Full Plusgreen Control
    • 5K Tungsten Output Equivalent
    • 0-100% Dimming, Flicker Free
    • Standard 3-Wire Points or Yoke Mount via 28mm Junior Spigot for Easy Mounting
    • Industry-standard DMX Control via 5-pin XLR Connectors
    • Integrated Wireless DMX and Lumen Radio
    • Local Control with OLED Display Panel
    • Quiet Adjustable Fan Speeds with Pause
    • Multi-Voltage AC Operation

  • Specifications:

      Physical
    • Dimensions: 23.2" x 7.8" (584.2mm x 198.12mm)
    • Weight: 40lbs (18.14kg)
    • Yoke Type: Manually-Operated Yoke
    • Fixture Mounting: 1x 1-1/8" Stud (Via Yoke Mount)
    • Protection Class: IP20

      Power
    • Power Source: AC Power (Cable Included)
    • Inputs/Outputs:
      - 1x powerCON AC Power Input
      - 1x XLR 5-Pin DMX Input
      - 1x XLR 5-Pin DMX Output
    • Input Power: 100 to 240 VAC, 50/60 Hz at 16A
    • Included Cable: 1x USA Type-A/B to powerCON Cable
    • Power Consumption: 1200W

      Optical
    • LED Wattage: 1200W
    • Light Source: RGBAW LED
    • Color Range: 2200K-15000K CCT, Plus/Minus Green/Magenta, Hue/Saturation, XY, Gels, Direct RGBAW, Effects
    • CRI: 95
    • TLCI: 95
    • Beam Angle: 115° (Native), 50° (with Optic Lens)
    • Dimming: 0-100% with High Resolution, Super-Smooth Low End Mode
    • Estimated LED Lifespan: 50,000 hours (L70)

      Photometrics
    • 115-Degree Native 3200K:
      - 3200K @ 6.6FT: 4,727 lux
      - 3200K @ 13.1FT: 1,253 lux
      - 3200K @ 19.6FT: 555 lux
      - 3200K @ 26.2FT: 308 lux
      - 3200K @ 32.8FT: 199 lux
    • 50-Degree Optic 3200K:
      - 3200K @ 6.6FT: 7,050 lux
      - 3200K @ 13.1FT: 2,020 lux
      - 3200K @ 19.6FT: 1,000 lux
      - 3200K @ 26.2FT: 600 lux
      - 3200K @ 32.8FT: 400 lux
    • 115-Degree Native 5600K:
      - 5600K @ 6.6FT: 5,031 lux
      - 5600K @ 13.1FT: 1,333 lux
      - 5600K @ 19.6FT: 591 lux
      - 5600K @ 26.2FT: 328 lux
      - 5600K @ 32.8FT: 212 lux
    • 50-Degree Optic 5600K:
      - 5600K @ 6.6FT: 7,600 lux
      - 5600K @ 13.1FT: 2,200 lux
      - 5600K @ 19.6FT: 1,070 lux
      - 5600K @ 26.2FT: 650 lux
      - 5600K @ 32.8FT: 428 lux

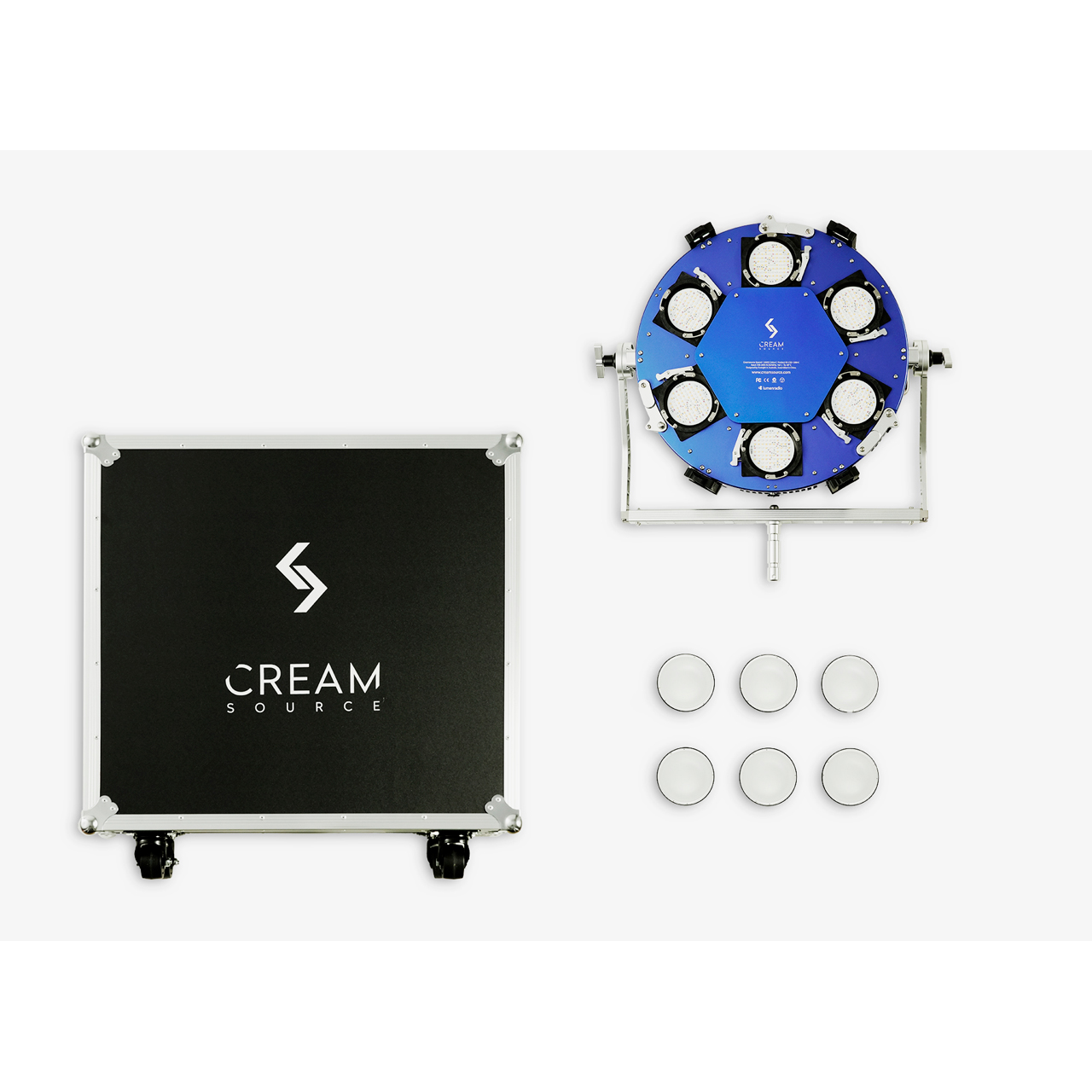

  • Item Includes:

    • 1x SpaceX RBGAW Color LED Light, 1200W
    • 1x Space-X Yoke
    • 1x PowerCON AC Cable
    • 6x 50-Degree Intensifier Optics

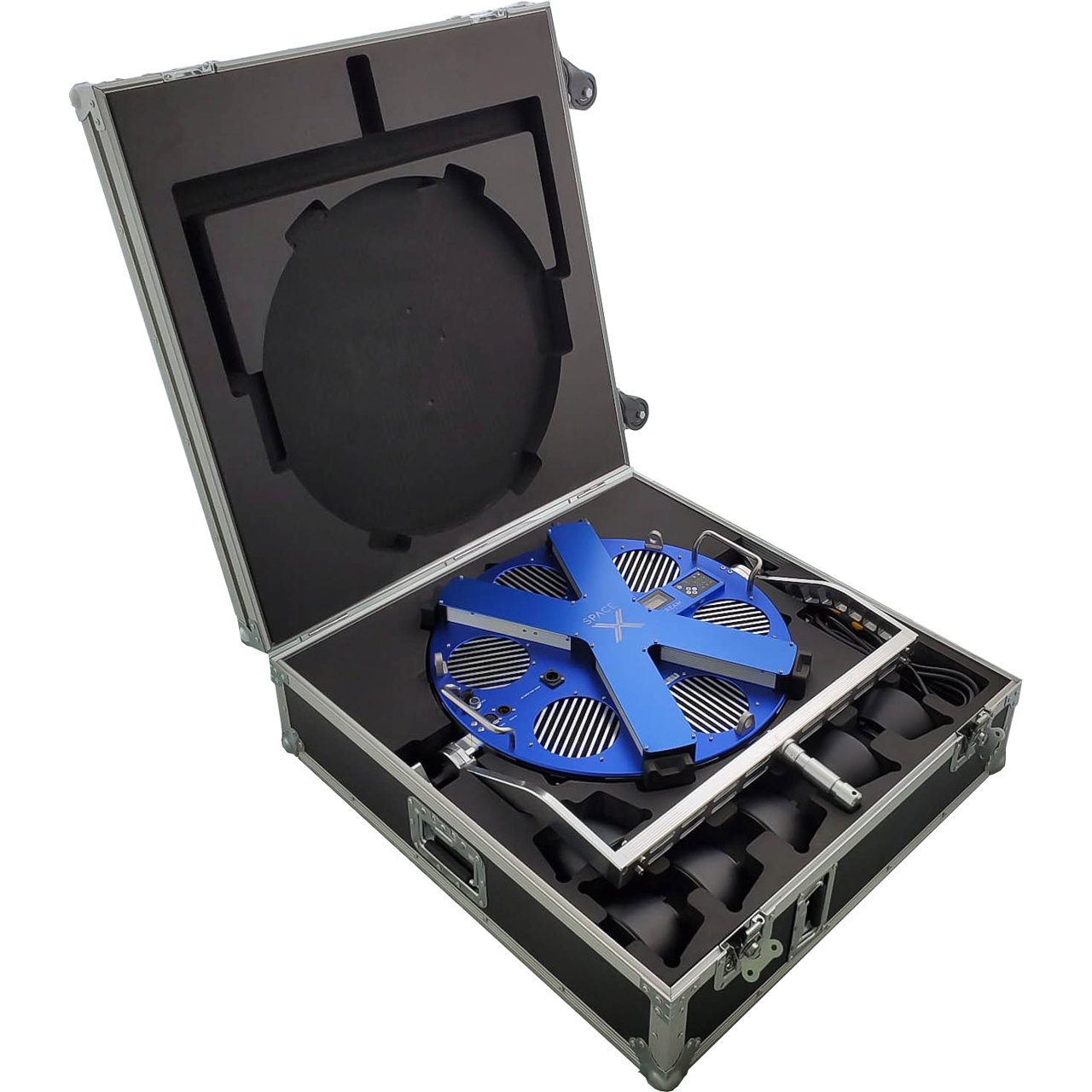

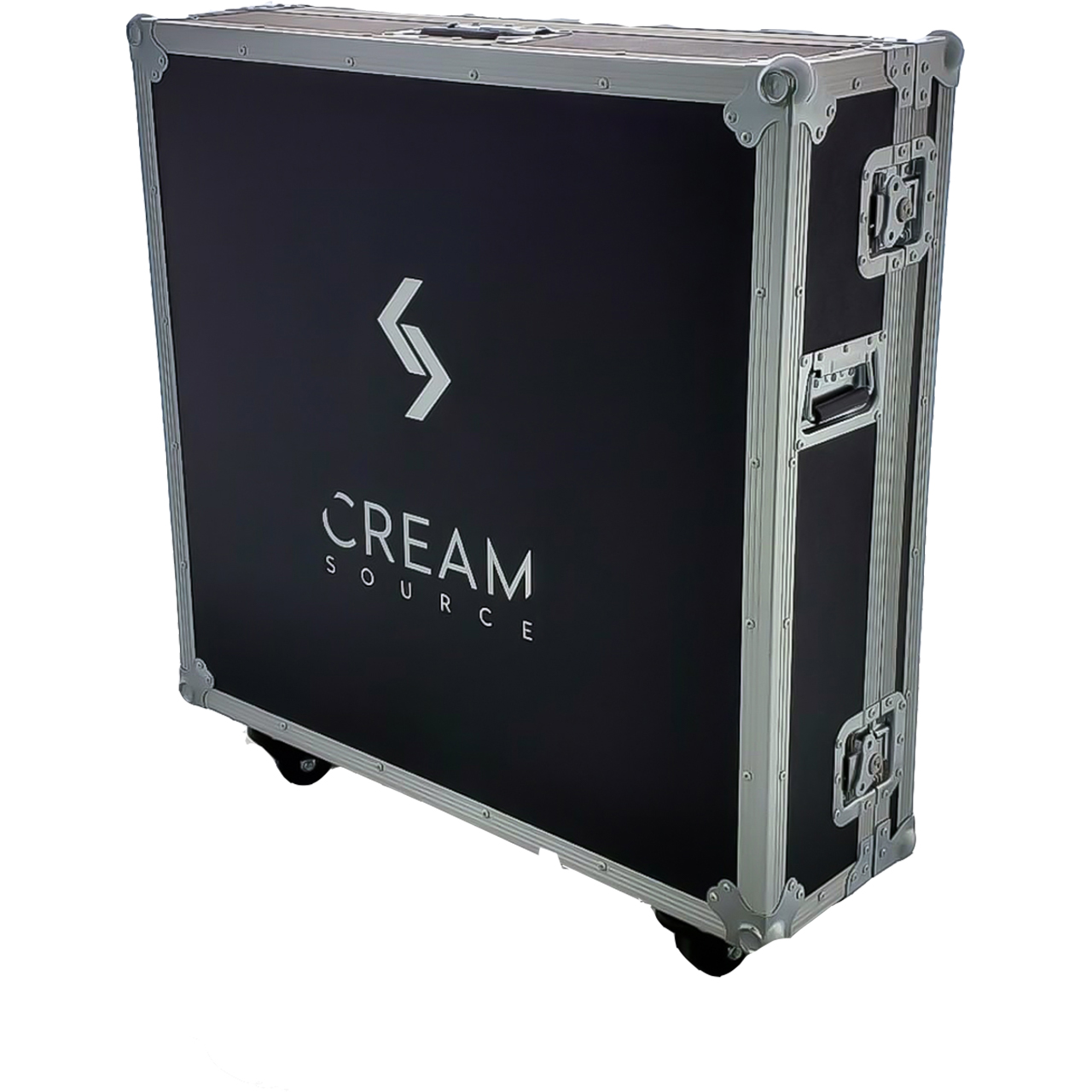

    • 1x Hard Case
    • 1x Quick Start Guide

  • Warranty:

    • 3-Year Limited Warranty
