Creamsource K-CSX-1200-C SpaceX 1200W RGBAW LED Lamp Head with 115-Degree Beam and 2200K to 15000K CCT with Yoke

ITEM #: CRM-K-X-1200-C MFG #: K-CSX-1200-C

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$2,749.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


K-CSX-1200-C - Overview

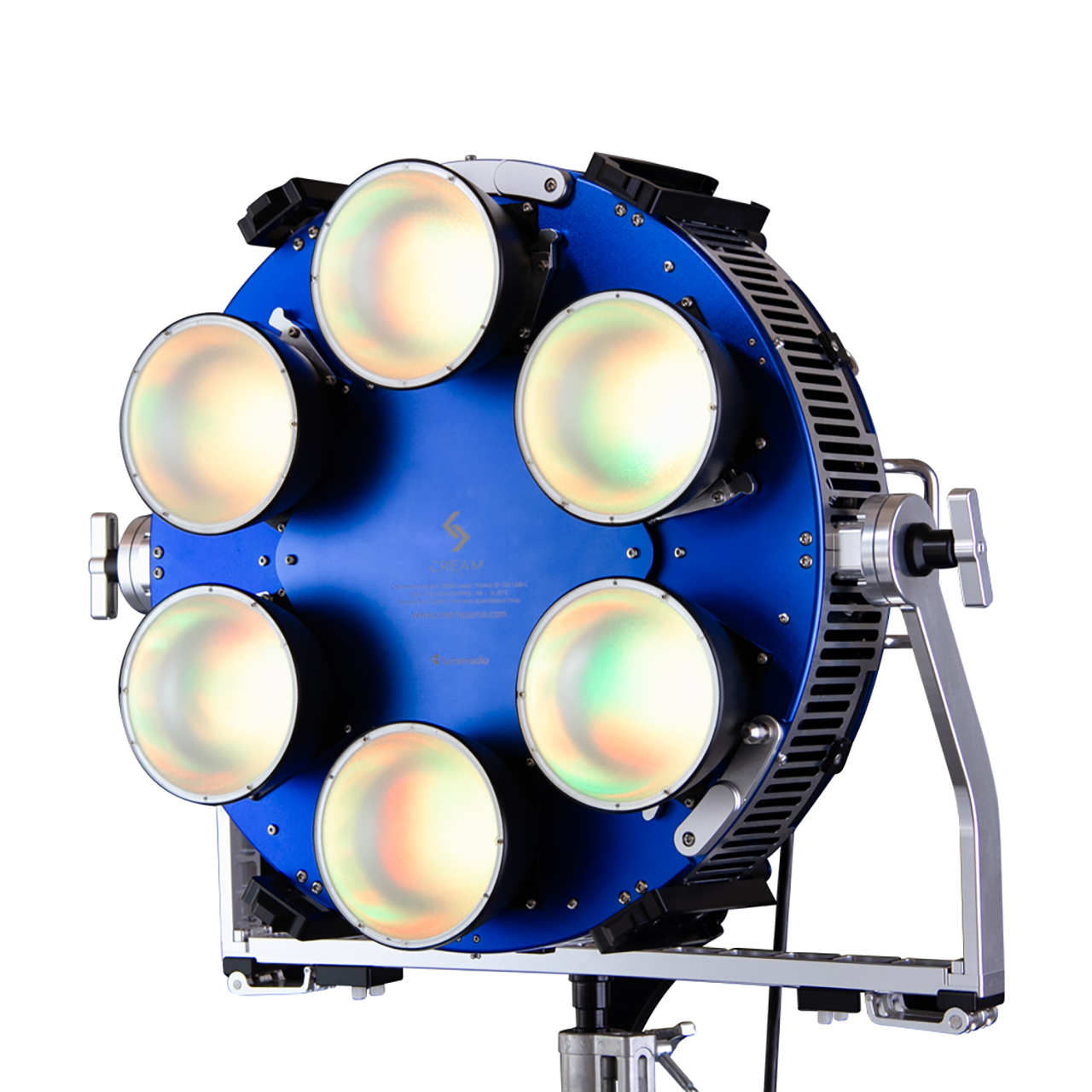

The Creamsource SpaceX K-CSX-1200-C is a 1200W RGBAW LED lamp head designed to provide exceptional versatility and performance in a compact and lightweight package. With a full-color spectrum that spans from 2200K to 15000K, including full control over the green/magenta axis, SpaceX offers precise color management and a high degree of flexibility for professional lighting applications. Whether used for top-lighting, creating soft or hard light effects, or enhancing color accuracy, this fixture is perfect for both studio and on-location setups. With an efficient design and a beam angle of 115°, it produces up to 58,200 lumens and 2,340 lux at 3 meters (5600K, Open Face), providing powerful yet soft and smooth lighting across large areas.

Building on the success of its predecessors, SpaceX integrates six powerful LED engines and features a streamlined, ergonomic design that eliminates the need for a bulky ballast. The integrated power supply and antennas enhance the unit's portability and ease of use, while the compact form factor makes it easy to rig and transport. The SpaceX features an optional 50-degree intensifier reflector that boosts its already impressive output by nearly doubling the lumens per foot. Additionally, the fixture includes an intuitive user interface with a color OLED display, allowing for smooth operation and seamless adjustments. Whether you are working indoors or outdoors, SpaceX's durable construction and IP20 rating make it reliable and robust for various shooting conditions.

Equipped with wireless DMX via LumenRadio, the SpaceX provides convenient and reliable wireless control. It also offers industry-standard DMX control via 5-pin XLR connectors, and it supports wired remote control options. The fixture's dynamic effects and full color temperature adjustment provide limitless possibilities for gaffers and lighting specialists. Whether you're creating natural daylight looks or experimenting with creative color effects, SpaceX delivers precise and consistent color performance with excellent CRI (95) and TLCI (95) ratings. With a 50,000-hour estimated LED lifespan, this fixture ensures long-term reliability for even the most demanding production schedules.

  • Features:

    • 115° Beam Angle
    • 2200K - 15000K Color Temperature
    • Hue and Saturation Control
    • Full Minus to Full Plusgreen Control
    • 5K Tungsten Output Equivalent
    • 0-100% Dimming, Flicker Free
    • Standard 3-Wire Points or Yoke Mount via 28mm Junior Spigot for Easy Mounting
    • Industry-standard DMX Control via 5-pin XLR Connectors
    • Integrated Wireless DMX and Lumen Radio

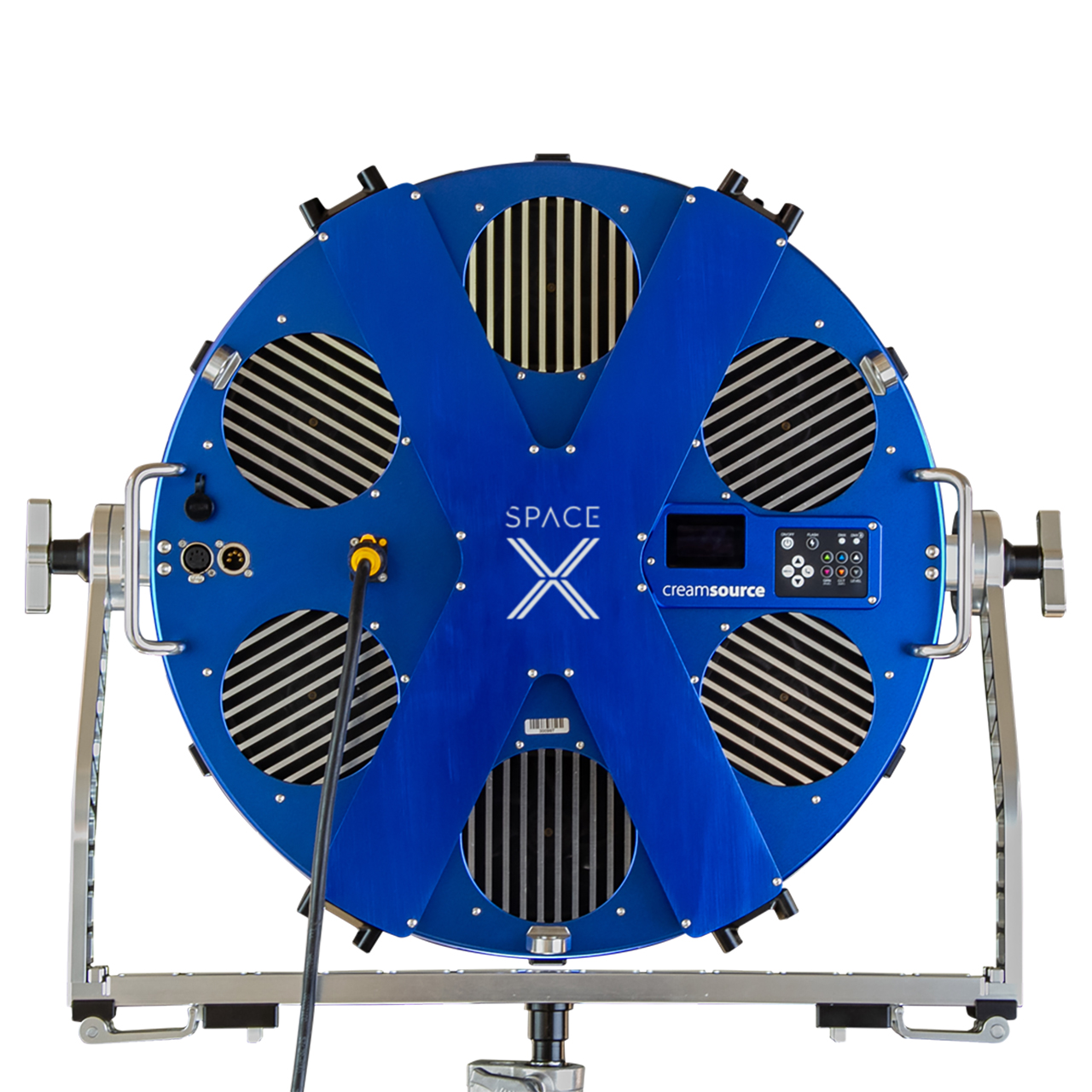

    • Local Control with OLED Display Panel
    • Quiet Adjustable Fan Speeds with Pause
    • Multi-Voltage AC Operation
    • Intensifier 50° Optic 6-Pack with Case
    • Waterproof Hardcase for SpaceX

  • Specifications:

      Physical
    • Dimensions: 23.2" x 7.8" (584.2mm x 198.12mm)
    • Weight: 40lbs (18.14kg)

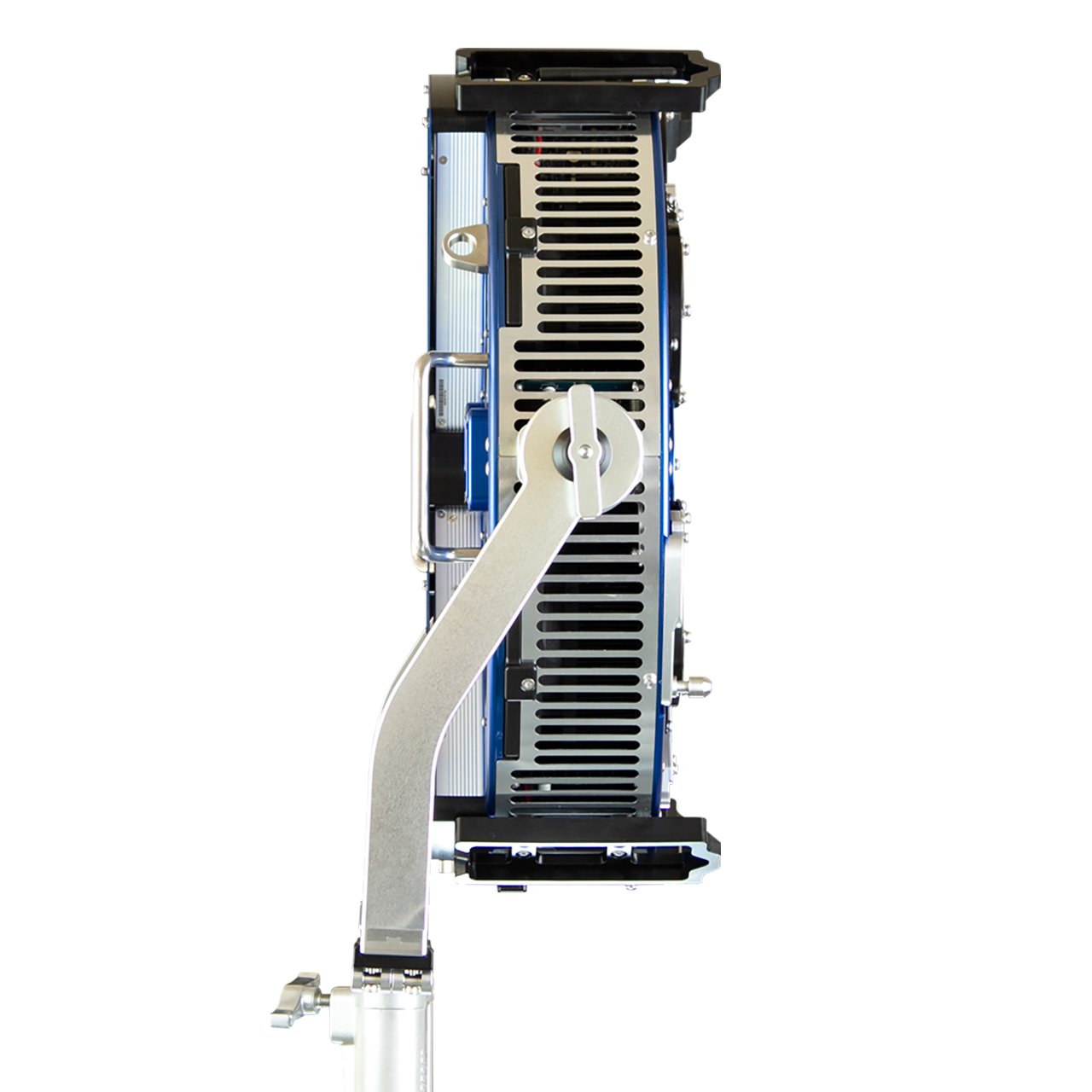

    • Yoke Type: Manually-Operated Yoke
    • Fixture Mounting: 1x 1-1/8" Stud (Via Yoke Mount)
    • Protection Class: IP20

      Power
    • Power Source: AC Power (Cable Included)
    • Inputs/Outputs:
      - 1x powerCON AC Power Input
      - 1x XLR 5-Pin DMX Input
      - 1x XLR 5-Pin DMX Output
    • Input Power: 100 to 240 VAC, 50/60 Hz at 16A
    • Included Cable: 1x USA Type-A/B to powerCON Cable
    • Power Consumption: 1200W

      Optical
    • LED Wattage: 1200W
    • Light Source: RGBAW LED
    • Color Range: 2200K-15000K CCT, Plus/Minus Green/Magenta, Hue/Saturation, XY, Gels, Direct RGBAW, Effects
    • CRI: 95
    • TLCI: 95
    • Beam Angle: 115° (Native), 50° (with Optic Lens)
    • Dimming: 0-100% with High Resolution, Super-Smooth Low End Mode
    • Estimated LED Lifespan: 50,000 hours (L70)

      Photometrics
    • 115-Degree Native 3200K:
      - 3200K @ 6.6FT: 4,727 lux
      - 3200K @ 13.1FT: 1,253 lux
      - 3200K @ 19.6FT: 555 lux
      - 3200K @ 26.2FT: 308 lux
      - 3200K @ 32.8FT: 199 lux
    • 50-Degree Optic 3200K:
      - 3200K @ 6.6FT: 7,050 lux
      - 3200K @ 13.1FT: 2,020 lux
      - 3200K @ 19.6FT: 1,000 lux
      - 3200K @ 26.2FT: 600 lux
      - 3200K @ 32.8FT: 400 lux
    • 115-Degree Native 5600K:
      - 5600K @ 6.6FT: 5,031 lux
      - 5600K @ 13.1FT: 1,333 lux
      - 5600K @ 19.6FT: 591 lux
      - 5600K @ 26.2FT: 328 lux
      - 5600K @ 32.8FT: 212 lux
    • 50-Degree Optic 5600K:
      - 5600K @ 6.6FT: 7,600 lux
      - 5600K @ 13.1FT: 2,200 lux
      - 5600K @ 19.6FT: 1,070 lux
      - 5600K @ 26.2FT: 650 lux
      - 5600K @ 32.8FT: 428 lux

  • Item Includes:

    • 1x SpaceX RBGAW Color LED Light, 1200W
    • 1x Space-X Yoke
    • 1x PowerCON AC Cable
    • 1x Quick Start Guide

  • Warranty:

    • 3-Year Limited Warranty
