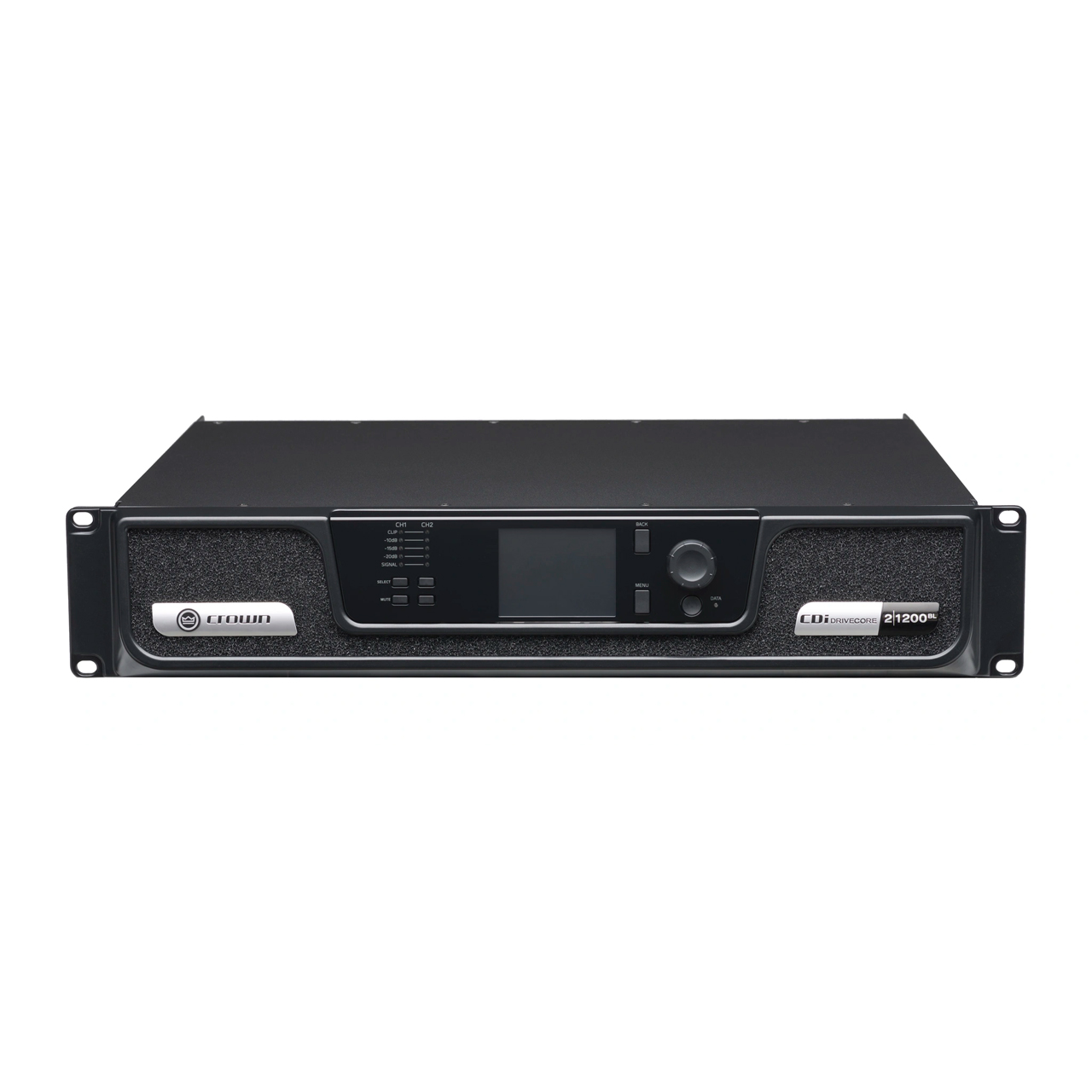

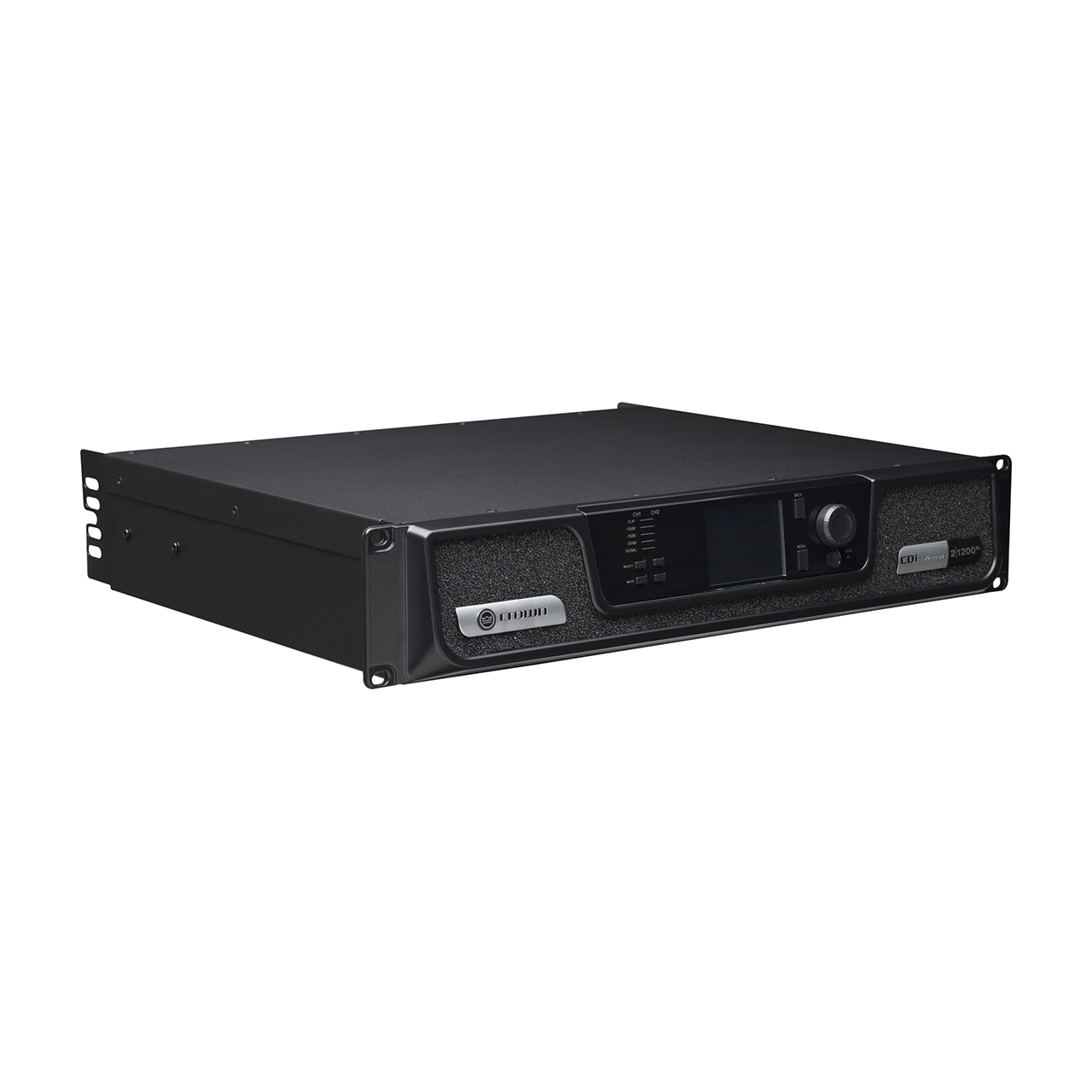

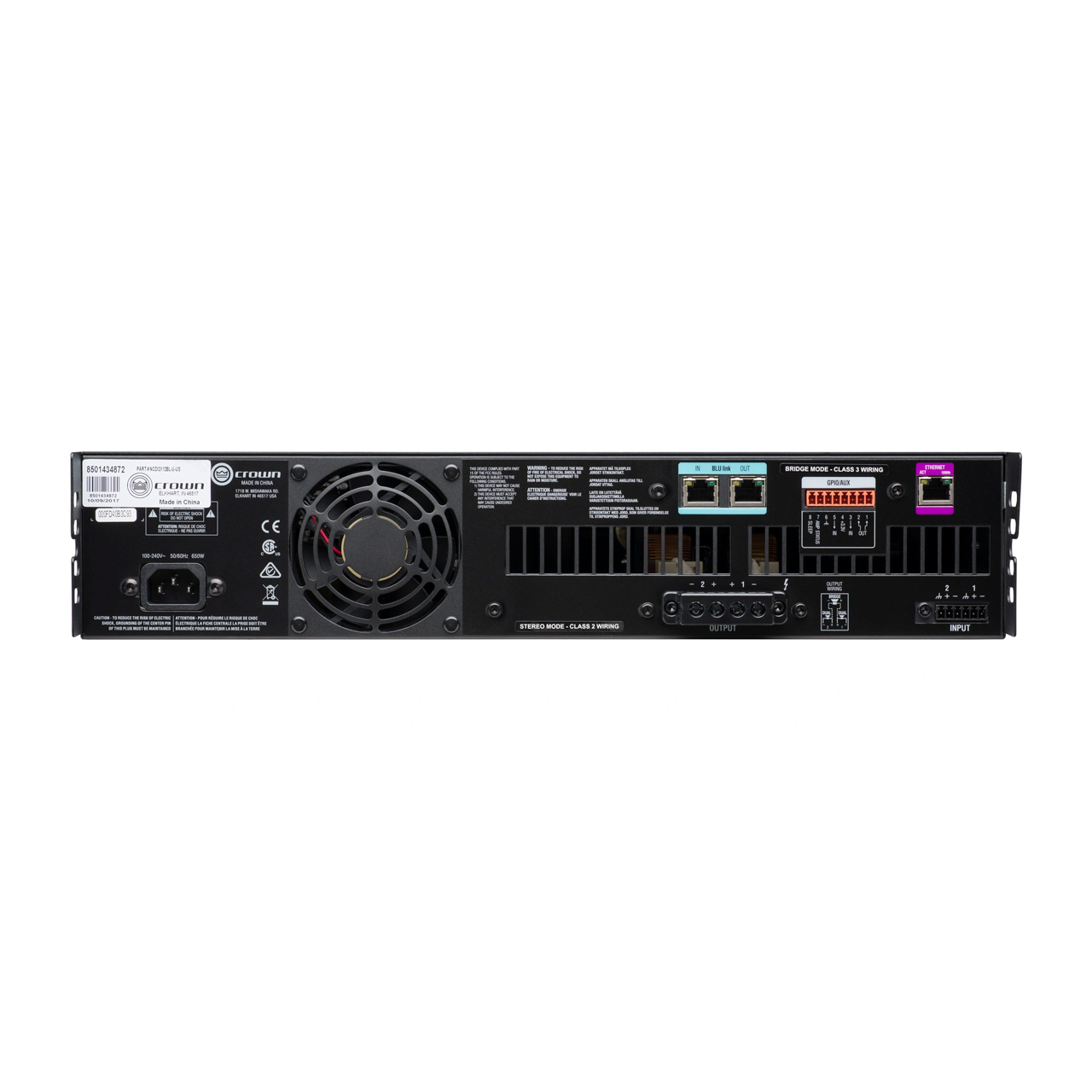

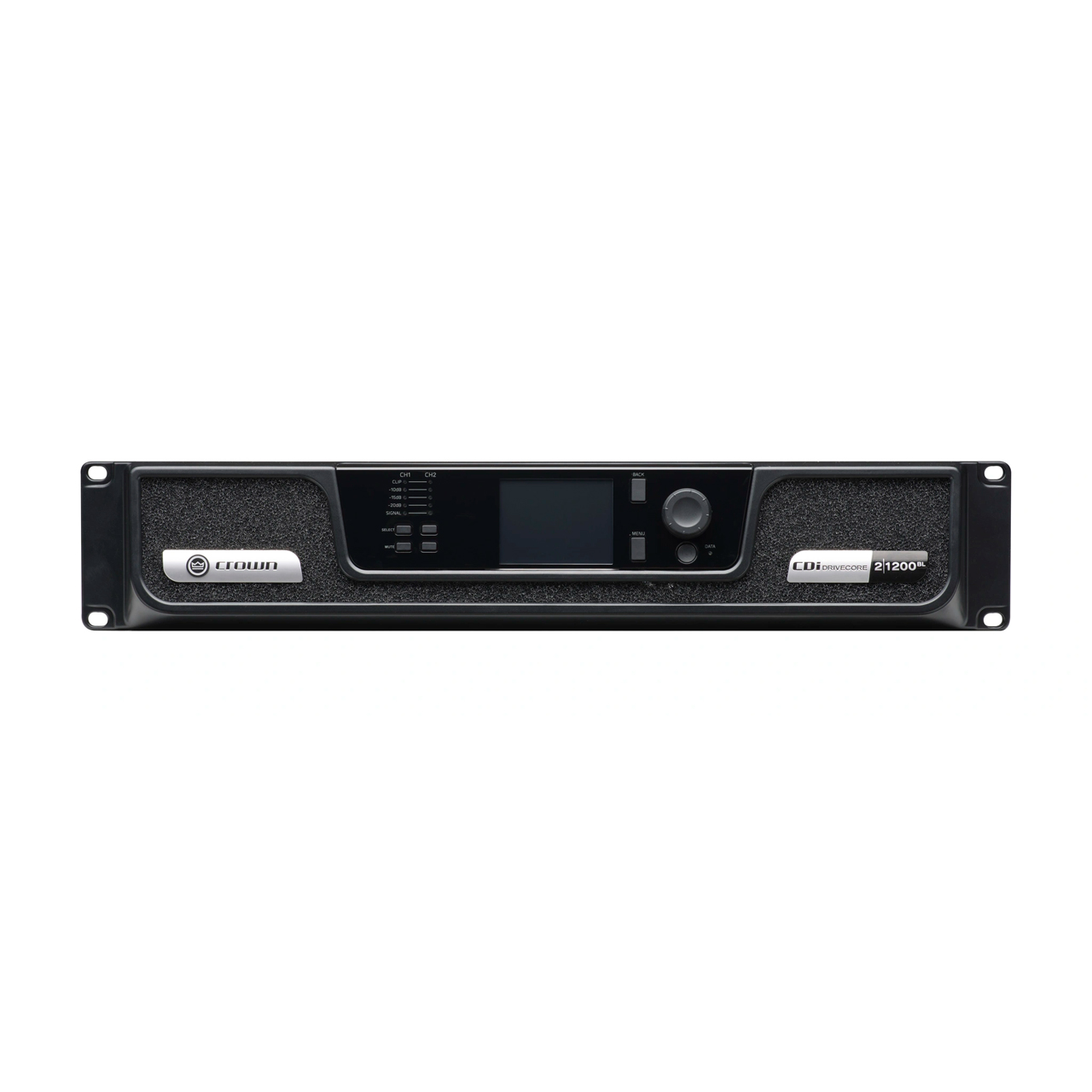

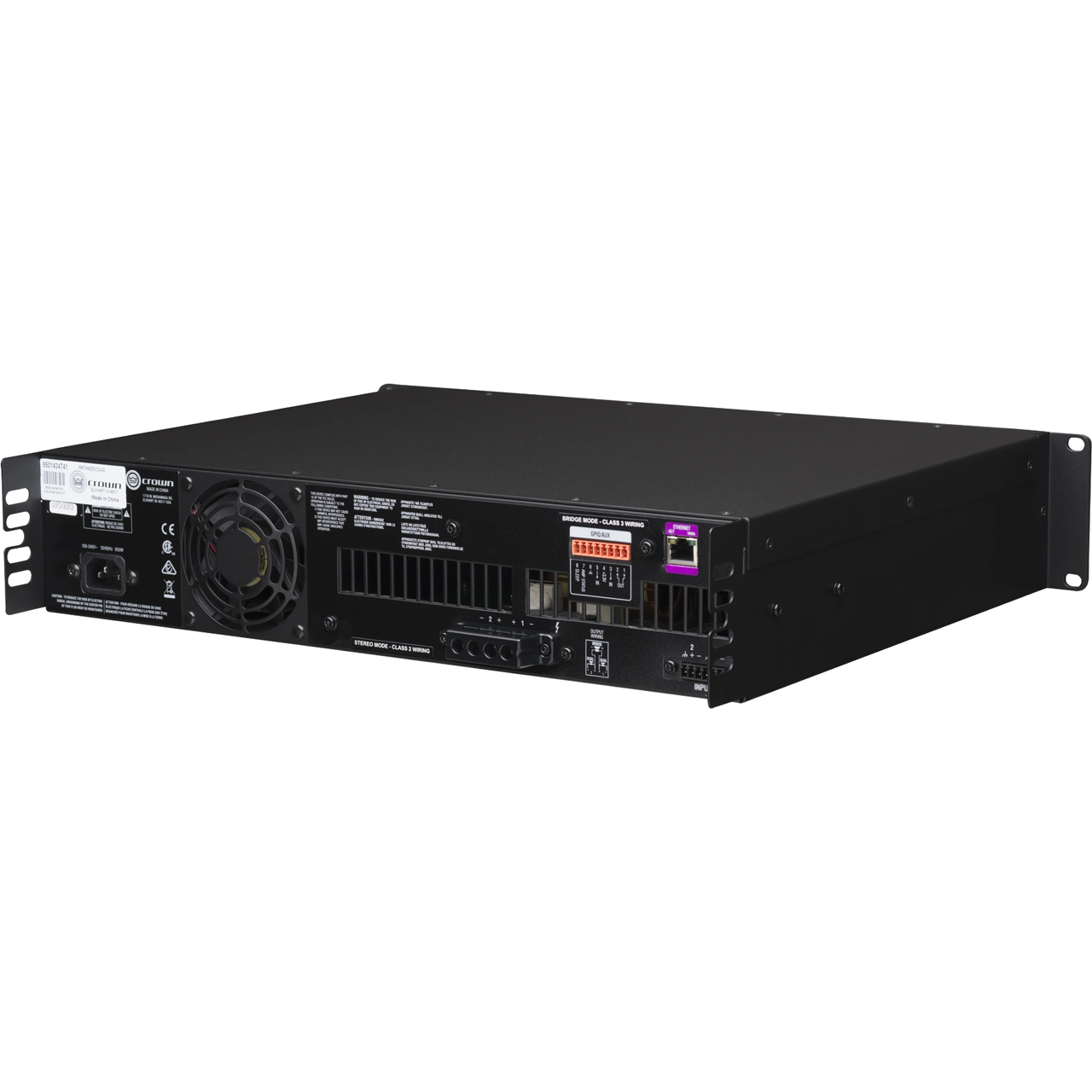

Crown CDi 2l1200BL DriveCore Series 2 Channel DSP Amplifier 1200W Per Channel with BLU Link Input

CDI 2|1200BL - Overview

Quick and Easy to install!

• Features:

  • Exclusive multi-patented DriveCore Technology. The patented DriveCore integrated circuit combines hundreds of discrete circuits into one chip for better performance, lower power consumption, and improved reliability
  • BLU link digital audio transport. Up to 256 Channels of digital audio over Category 5e cabling
  • Supports configuration and control using HiQnet Audio Architect
  • Monitoring and control over TCP/IP
  • Color LCD and front panel user interface for amplifier configuration, control, and monitoring
  • Programmable GPIO (general purpose input/output) control port
  • Digital signal processing (Input/output EQ filters, crossover, input/output delay, LevelMAXTM limiters)
  • Support for importing of FIR filter coefficients
  • 20 device presets - 1 factory and 19 user
  • 96kHz/32-bit floating-point signal processing
  • Universal power supply with PFC for reduced current draw and industry-leading efficiency
  • Power saving modes
  • Remote power off. Sleep mode activated via AUX port
  • 70Vrms/100Vrms direct drive
  • Each channel independently configurable for Low Z or High Z operation
  • Advanced protection circuits. Amplifier and loads are protected against shorted outputs, DC, mismatched loads, overheating, over/under-voltage, and high-frequency overload
  • Complies with GreenEdge by HARMAN - Environmentally friendly practices in design, manufacturing, and packaging complement energy-efficient operation
  • Support for BSS Audio Soundweb Contrio Ethernet wall controllers
  • Included speaker tunings for various JBL speaker models


• Specifications:

  • BLU link: Yes
  • Channels: 2
  • Sensitivity (for full rated power at 8Ω): 0.7V RMS
  • Rated Power Output (per channel @ 4Ω): 1200W
  • Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) at 8Ω: > 104dB
  • THD (full rated power, 20Hz - 20kHz): 0.35%
  • Damping Factor (20Hz - 100Hz): > 1000
  • Frequency Response (8Ω, 20Hz - 20kHz): ±0.25dB
  • Crosstalk (below rated power) 20Hz - 1kHz: > 80dB
  • Input Impedance (nominally balanced, nominally unbalanced):
    - 20kΩ balanced
    - 10kΩ unbalanced
  • Dimensions (WxHxD)(depth not including 1.3" front panel protrusion): 19" x 3.5" x 14.71"
  • Weight: 17.2lbs (7.8kg)
  • Power Supply Connector: 15A IEC connector, 100V - 240V


• Item Includes:

  • 1x CDi 2|1200BL


• Warranty:

  • 3 Year Limited Warranty
