Cabletronix CT-AMM Micro Commercial Fully Agile SAW Modulator - 54 - 806 MHz

ITEM #: CT-AMM MFG #: CT-AMM

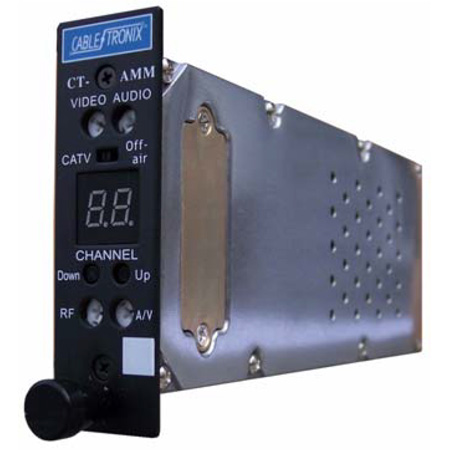

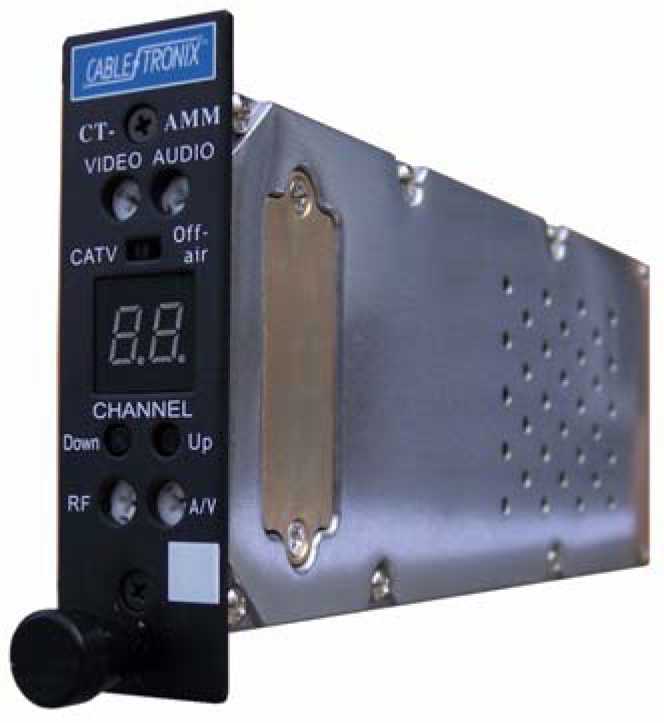

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the CT-AMM

CT-AMM - Overview

The CableTronix CT-AMM is a professional quality fully agile micro modulator providing an audio and video modulated RF carrier from 54 to 806 MHz on any CATV channel from 2 to 125, and any Off-Air channel from 2 to 69. Any standard video source can be used, including satellite receivers, demodulators, VCRs, laser/DVD players, and TV/security cameras.

The CT-AMM employs highly stable synthesized frequency control. Setup and tuning is easy and straightforward taking advantage of the unit's front panel access to all level controls and indicators. Channel frequency information with FCC offsets is programmed into each unit at the factory. Nonvolatile memory maintains channel selection in event of power loss.

The CT-AMM meets or exceeds government regulatory requirements, including FCC group delay pre-distortion for color transmission, and FCC Docket 21006 aeronautical offset requirements.

  • Features:

    • Output frequency of 54 to 806 MHz supports all CATV channel assignments, Chs. 2-125 CATV
    • Now featuring a cast housing
    • Rapid headend design and deployment
    • Reduced costs associated with higher priced units with same specifications
    • Excellent broadband noise performance at - 78dBc
    • Recessed front panel access to all level controls and indicators
    • Use with Cabletronix CTPS-12 power supply and CTRC-12 rack chassis or with 3rd party power
      supplies and/or chassis depending upon configuration
    • 1 year warranty with a 1 year loaner guarantee
    • 3 year extended warranty available


  • Specifications:

    • RF
    • Output Frequency: 54 ~ 806 MHz. CATV Channels 2 to 125, Off-air channels 2-69
    • Output Level: +50 dBmV typical, 20 dB Adjustable
    • Spurious Output: > 60 dB
    • C/N Ratio: 60 dB typical
    • Broadband Noise: -78 dBc
    • Frequency Accuracy: ±5 kHz
    • Output Impedance: 75 Ohms
    • Output Return Loss: 12 dB
    • A/V Ratio: -18 to -12 dB ( ±2 dB ) , Adjustable

      Video
    • Input Level: 0.7 V p-p (Min.) for 87.5 % Modulation
    • Input Impedance: 75 Ohms
    • Input Return Loss: 20 dB
    • Flatness: ±1 dB
    • Video Signal-to-Noise Ratio: 62 dB
    • Differential Gain: 2.0%
    • Differential Phase: 2deg;
    • Group Delay Response: meets FCC group delay pre-distortion requirements for color transmission

      Audio
    • Input Level: 0.35V ~1V peak to peak for 50 kHz Deviation
    • Input Impedance: > 10 k Ohms
    • Flatness: ±1 dB, 50 Hz ~ 15 kHz
    • Harmonic Distortion: <1 %, 50 Hz ~ 15 kHz

      General
    • DC Power Input: 5V ( 400 mA ) , 12V ( 150 mA )
    • Weight: 14 oz.
    • Dimensions: 1in W x 3.5in H x 7.5in D
    • Operating Temperature Range: 32°F to 122°F
