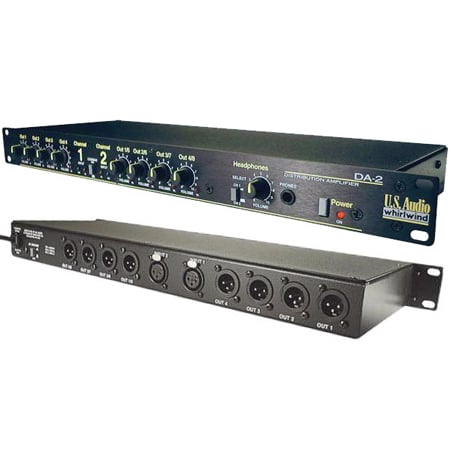

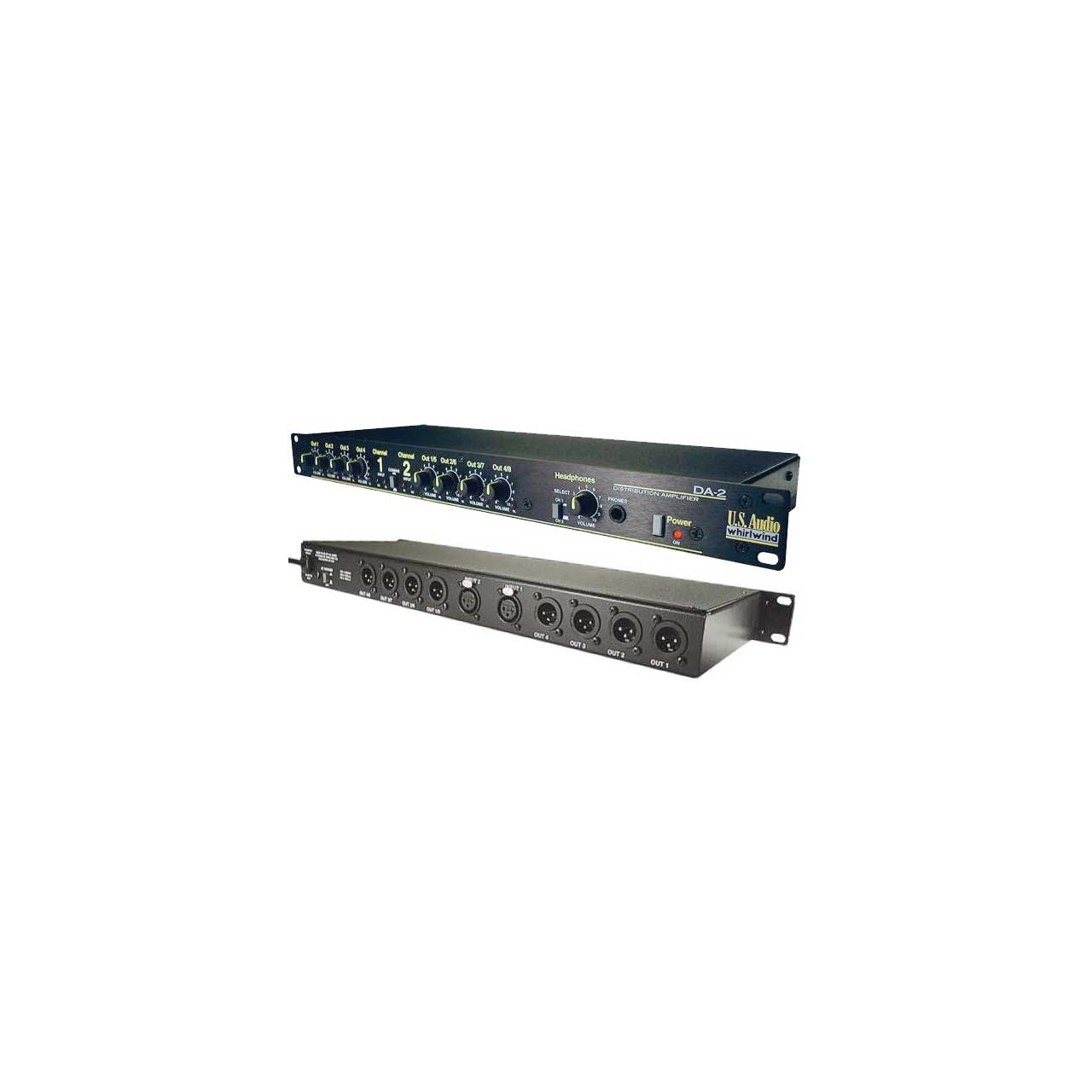

US Audio DA-2 Distribution Amp

ITEM #: DA-2 MFG #: DA-2

Free Shipping with Minimum Order Banner

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    DA-2 - Overview

    In normal (stereo) mode, the Whirlwind/US Audio DA-2 provides four outputs per each of two inputs. A front panel COMBINE switch applies both inputs to all 8 outputs, where the DA-2 becomes a one or two in, eight out DA.

    Each output is ground lifted and has its own level control and clip indicator light. Input signals are monitored by signal-present LEDs and clip LEDs. The headphone circuit can be switched to monitor either channel.

    All audio connections are made through actively balanced line level XLR connectors.

    Where transformer isolation is necessary, the ISO-8 (a 1U 8-channel accessory) is available.

    • Specifications:

      • Frequency Response: 20Hz-20kHz ±0.3dB
      • Maximum Input level: +22dBu
      • Input Impedance: 1Meg Ohm
      • Common Mode Rejection: 90dB at 60Hz
      • Maximum Output Level: +22dBu
      • Output Impedance: 112 Ohm
      • S/N at 0dB Input, 0dB Gain: 87dB
      • Rise Time: 3µS
      • Total Harmonic Distortion: 0.004% @ 1kHz
      • Output Channel Separation: 74dB
      • Headphone Impedance: 75 Ohm minimum
      • Channel Output Gain: 18dB
      • Power Requirements: 115 VAC (240 VAC model available; DA-2X)
