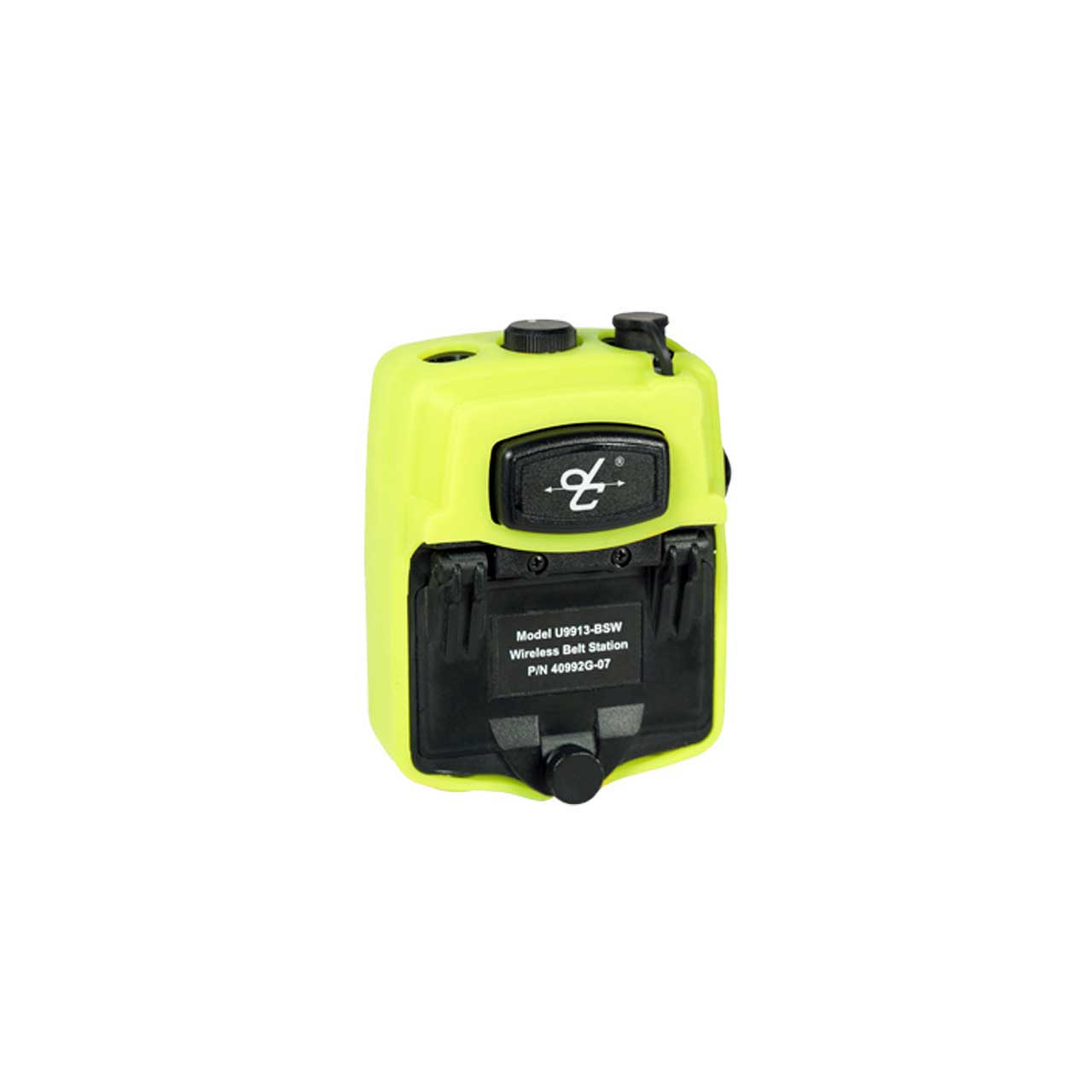

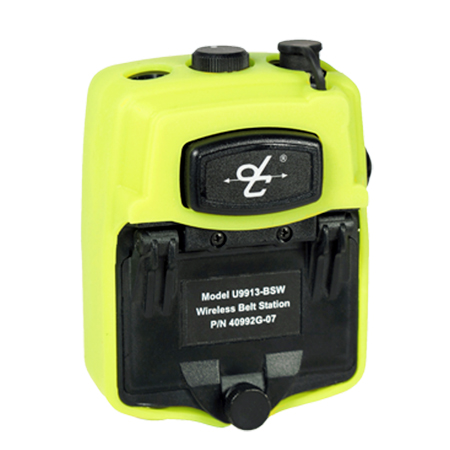

David Clark U9913-BSW Series 9900 Wireless Intercom Beltpack

ITEM #: DC-U9913-BSW MFG #: U9913-BSW

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$699.75

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    U9913-BSW - Overview

    The Series 9900 Wireless Intercom System is the perfect solution for wireless intercom communications in demanding environments, such as airline/airport operations, fire/rescue applications, marine intercom, or any application requiring rugged, secure and reliable communications in and around high-noise areas.

    The U9913-BSW VOX Belt Station provides the same functionality as the U9910-BSW, except that the PTT button acts as an intercom-only VOX override, and does not transmit to ancillary devices connected to the system Gateway, such as an aircraft interphone or mobile radio. It is designed as a wireless interface, or portable part, between a headset and a wireless system Gateway or Controller through close-proximity linking with their individual belt stations.

    A Bi-Color LED, located on the on/off/link button, provides the status of the user's wireless link, intercom PTT transmit, and battery charge. Each belt station is powered by a replaceable, rechargeable Lithium Polymer battery, which provides 24 hours of continual use.

    With it's valuable and practical versatility, robust construction and ease of use, the U9913-BSW provides crisp, clear communication with confidence.

    • Features:

      • Hands-free, full duplex intercom via system Gateway
      • Range of up to 300 feet (line-of-sight) to and from the Gateway
      • Once linked to a Gateway, automatically reconnects on each power-up until purged from system ("strong link")
      • Up to 4 Belt Stations can be connected to the system Gateway
      • Marine-grade, water-tight enclosure and components
      • Audible voice prompts for link/purge status, out-of-range, low battery
      • Easily accessible battery compartment with removable Li-Polymer battery
      • Removable Li-Polymer battery (24 hours continual usage) for charging (3-4 hours)
      • VOX control with proprietary "helper" tone, assists in ideal VOX setting
      • Large PTT for link, radio PTT, VOX override
      • Power button with LED indicator for visual status of link, PTT and battery charge
      • Military-grade, twist-lock headset connector
      • Rubberized outer skin, black
      • 360-degree rotational belt clip

    • Specifications:

      • Weight (with battery): 10oz (280g)
      • Frequency: 1920MHz - 1930MHz
      • Average Power Output: 4mW (100mW peak) in USA
      • Range: 300 Foot line-of-sight, typical
      • Carriers: 5 each - 1,728kHz Spacing
      • Time Slots: 2 x 12 up and down stream
      • Operating Temperature: 14° to 113°F (-10° to 45°C)
      • Storage Temperature: -4° to 140°F (-20° to 60°C)
      • Dimensions (HxWxD): 4 x 2-3/4 x 1-7/8" (2.5"D with belt clip)
      • Power Source: Li-polymer rechargable 3.7V cell, 2000mAh
      • Power Consumption/Current Draw: 100mA, typical

    • Item Includes:

      • 1x U9913-BSW Belt Station/VOX (Intercom Only)
