Delvcam DUALFPV-7PL 7 Inch FPV Monitor with Dual 5.8GHz Channel Auto Searching Function

ITEM #: DELV-DUALFPV-7PL MFG #: DUALFPV-7PL

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the DELV-DUALFPV-7PL

DUALFPV-7PL - Overview

Excellent Display & Feature Rich Monitor
The DELV-DUALFPV-7PL monitor features a 1280 x 800 resolution and 178° wide viewing angles on an IPS panel creating clear and bright images. This monitor includes dual antennas which can receive two different video signal channels and can overlay the video signals directly on the same monitor. The built-in 2600mAh battery provides 3 to 4 hours of power and includes a battery charge level indicator.

  • Features:

    • Channel auto searching
    • 4 Bands and total 32 channels
    • Built-in battery & battery charge level indicator
    • Multiple Picture-in-Picture(PiP) modes
    • 5.8GHz wireless signal sensitivity indicator
    • 4-hour timer & alert indicator
    • High contrast: 800:1
    • Snow screen, no more "blue" screen

  • Specifications:

    • DISPLAY
    • Panel: 7" LED backlit
    • Physical Resolution: 1280x800
    • Aspect Ratio: 16:9
    • Brightness: 400cd/m2
    • Contrast: 800:1
    • Viewing Angle: 178°/178°(H/V)
    • Response Time (ms): AV 2.092, HDMI 4.628

      INPUT
    • Wireless 5.8GHz AV: 2 (339/DW), 1 (339/W)
    • HDMI: 1
    • AV: 1

    • OUTPUT
    • AV: 1

    • AUDIO
    • Speaker: 1

    • POWER
    • Current: 1300mA
    • Input Voltage: DC 7-24V
    • Battery: Built-in 2600mAh battery
    • Battery Plate: V-mount / Anton Bauer mount / F970 / QM91D / DU21 / LP-E6
    • Power Consumption: <18W

    • ENVIRONMENT
    • Operating Temperature: -20°C~60°C
    • Storage Temperature -30°C~70°C

    • DIMENSION
    • Dimension(LWD): 7.28 x 4.96 x 1.18 inch
    • Weight: 0.85 lbs

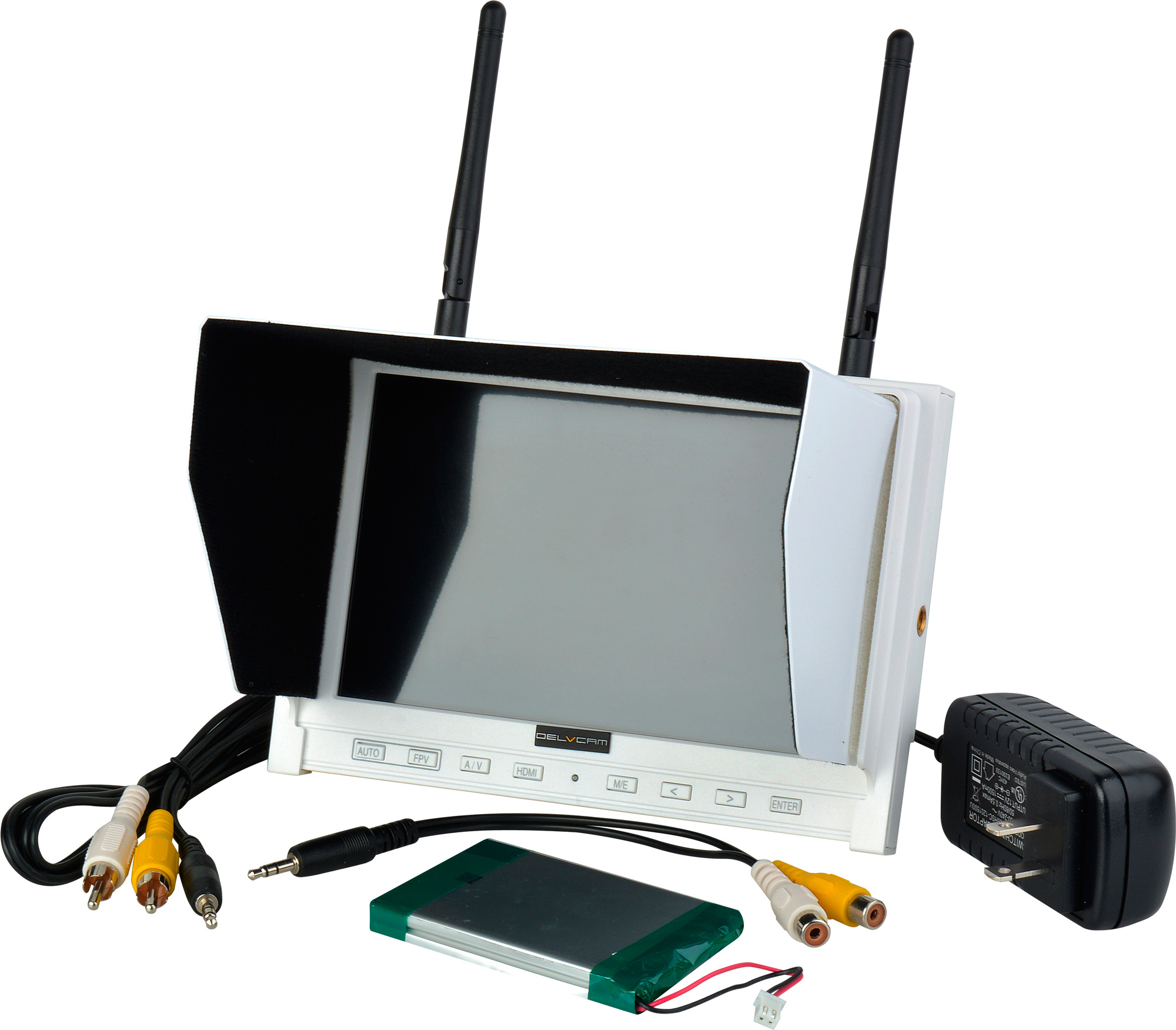

  • Item Includes:

    • Sunshade
    • 2600mA Battery
    • AV Input & Output Cables
    • 12VDC Power Cable
    • Dual Antennas

  • Warranty:

    • 1 Year

  • GTIN:

    0854554007219
