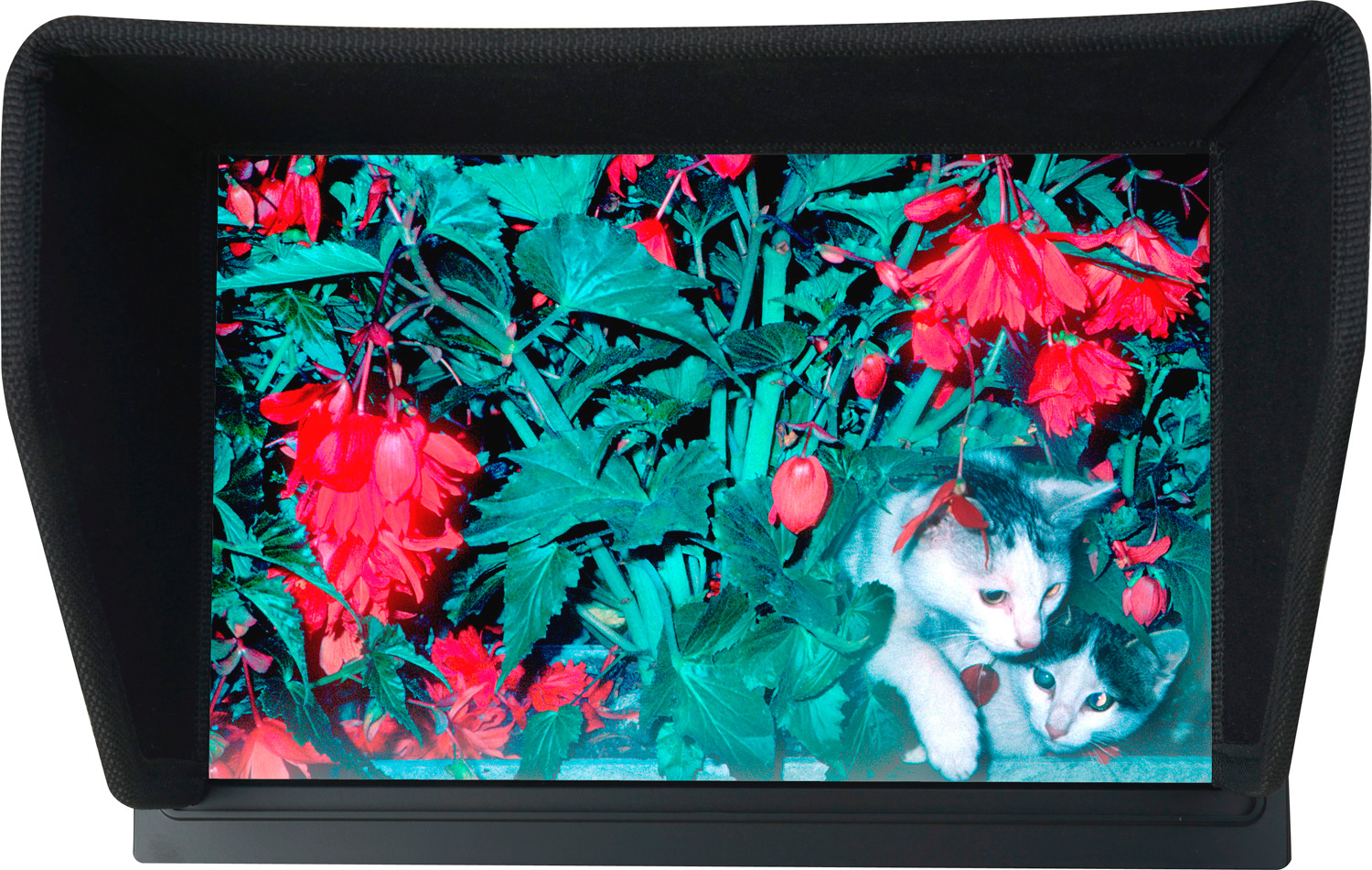

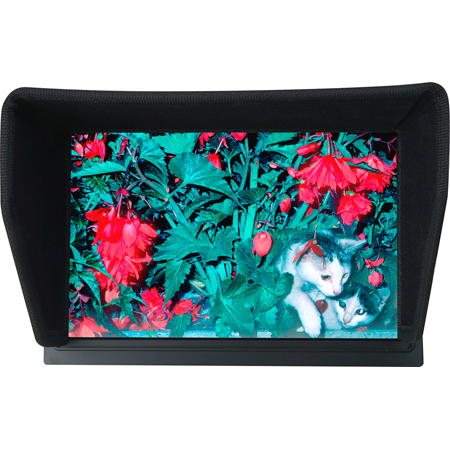

Delvcam DELV-TOUCH-10 10.1in HDMI In / Out on Camera-Top Touch Screen Monitor B-Stock

Item #: DELV-TOUCH-10BST   •   MFG #: DELV-TOUCH-10BST



List Price:$629.95
Our Price:$599.95
Special Price:$399.95

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!





    Delvcam creatively integrated waveform, vector scope, video analyzer & touch control into on-camera monitor, which provides Luminance/Color/RGB histograms, Luminance/RGB parade/YCbCr parade Waveforms, Vector scope and other waveform modes; And measurement modes such as Peaking, Exposure & Audio level meter. These assist users to accurately monitor when shooting, making and playing movies/videos.

    Level meter, Histogram, Waveform & Vector scope can be displayed horizontally at the same time; Professional waveform measurement & color control to realise and record Natural color.

    Histogram consist of RGB, Color & Luminance histograms.
    RGB histogram: shows the red, green, and blue channels in overlay histogram,
    Color histogram: shows histograms for each of the red, green, and blue channels,
    Luminance histogram: shows the distribution of brightness in an image as a graph of luminance.

    Waveform
    Waveform monitoring consist of Luminance, YCbCr parade & RGB parade Waveforms, which used for measuring the brightness, luminance or chroma values from a video input signal. It not only can warn the user for out-of-range conditions such as overexposure errors, but also assist with colour correction & camera white and black balance.

    Vector scope
    Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.

    Audio Level Meter
    The Audio Level Meters provide numerical indicators and headroom levels.
    It can generate accurate audio level displays to prevent errors during monitoring.

    Please Note: Touch Screen Functions are for Monitor Control Only!


    • Features

      • Color/RGB histogram, waveform, vector scope & Audio level meter,
      • Multi-touch capacitive screen (Touch Screen functions are for Monitor Controls Only)
      • IPS panel 170° wide viewing angles,
      • High resolution: 1280x800,
      • High contrast: 800:1,
      • Abundant interfaces,
      • Wide voltage: DC 7-24V,
      • Tally indicating, Slimmer & portable design!
      • B-Stock Condition: Bottom of suitcase is scratched

    • Specifications

      • DISPLAY
      • Display Screen10.1" LED IPS
      • Touch Panel Multi-touch capacitive (Touch Screen functions are for Monitor Controls Only)
      • Physical Resolution 1280x800, support up to 1920x1080
      • Aspect Ratio 16:9
      • Brightness 350cd/m2
      • Contrast 800:1
      • Viewing Angle 170°/170°(H/V)

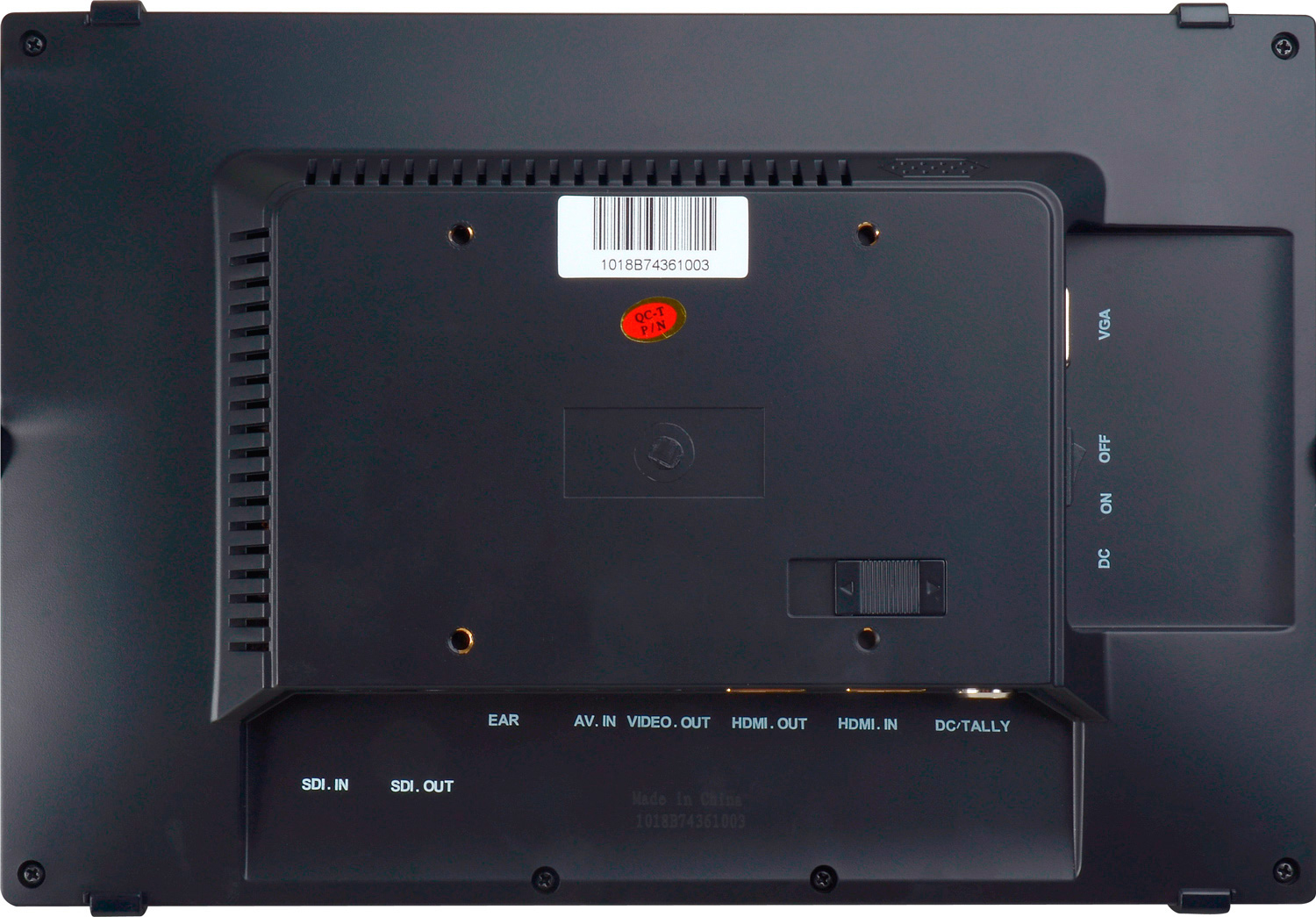

      • INPUT
      • HDMI 1
      • Composite 1
      • TALLY 1
      • VGA 1
      • OUTPUT
      • HDMI 1 (optional)
      • VIDEO 1
      • AUDIO
      • Speaker 1 (build-in)
      • Ear Phone Slot 1
      • POWER
      • Current 1200mA
      • Input Voltage DC 7-24V
      • Battery Plate
      • V-mount / Anton Bauer mount /
      • F970 / QM91D / DU21 / LP-E6
      • Power Consumption =12W
      • ENVIRONMENT
      • Operating Temperature 0C~50C
      • Storage Temperature -20C~60C
      • Dimension(LWD) 250x170x29.6mm
      • Weight 630g

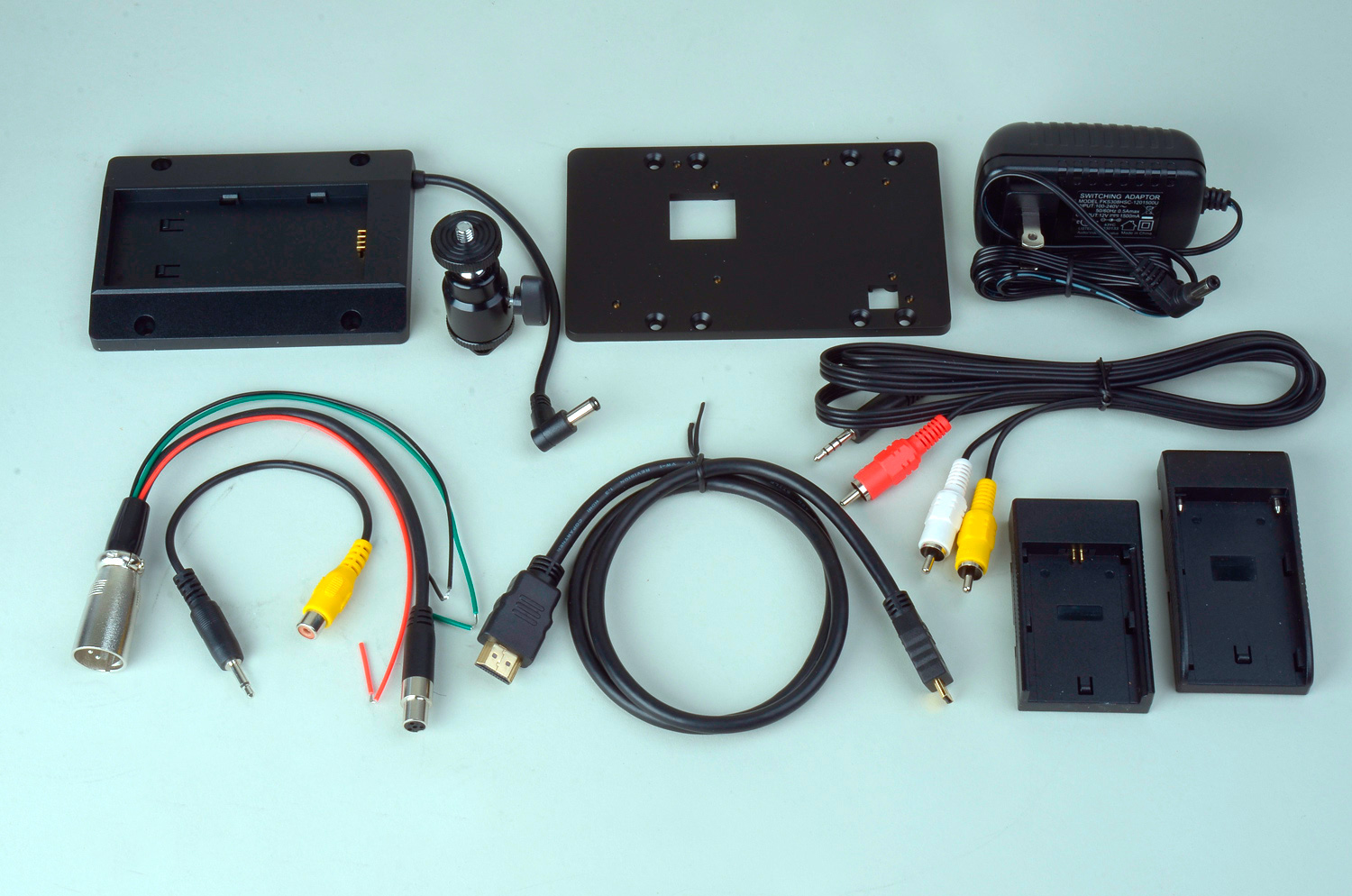

    • Item Includes

      • Gimbal Bracket
      • Cables: HDMI, Mini XLR & Tally
      • 12VDC POwer Adapter
      • Talley Connector
      • Shoe Mount
      • VESA Plate
      • Battery Plates: LPE6 & F970

    • Warranty

      • 1 Year
