Lilliput HT10S 10.1-Inch 3G-SDI Ultra High 1500 Nits Brightness Touch On-Camera Control Monitor - V-Lock Battery Plate

ITEM #: LIL-HT10S MFG #: HT10S

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Lilliput Electronics
Free Shipping with $49 Minimum Order

List Price:

$399.00

Our Price:

$359.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    HT10S - Overview

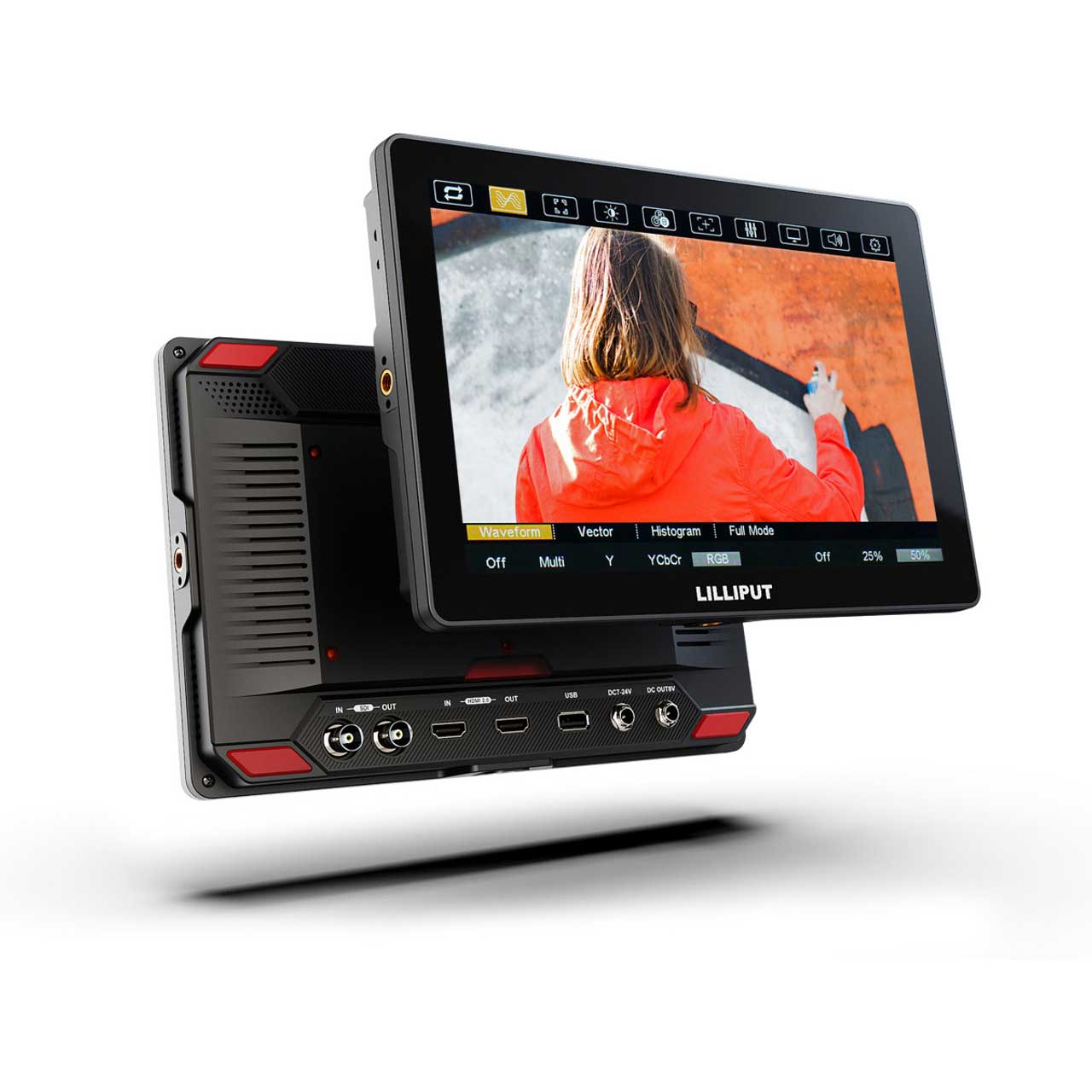

    The Lilliput HT10S is a precision on-camera monitor with an amazing 1500 nit Ultra High Bright LED Panel that is designed specifically for photography and film-makers in outdoor video and film shooting environments.

    It has a touchscreen capable of controlling a video cameras menu directly from the LED Panel (connected by LANC cable), and features a HDR 10+ and 3D-LUT (Look Up Table) capabilities.

    • Features:

      • 1500nits, Auto Dimming
      • 50000h LED Life
      • HDR 3D-LUT
      • LANC cable control
      • Touch Screen
      • V-lock Battery Plate
      • Camera Control
      • 3G-SDI up to 1080p 60Hz
      • HDMI 2.0 up to 2160p 60Hz


    • Specifications:

      • Display
      • Touch Screen: Capacitive touch
      • Panel: 10.1" LCD
      • Physical Resolution: 1920x1200
      • Aspect Ratio: 16:10
      • Brightness: 1500 nit
      • Contrast: 1000:1
      • Viewing Angle: 170°/ 170°(H/V)
      • LED Panel Life Time: 50000h
      • Color Space: 125% BT.709 / 92.5% DCI-P3
      • HDR Supported: HLG; ST2084 300/1000/10000

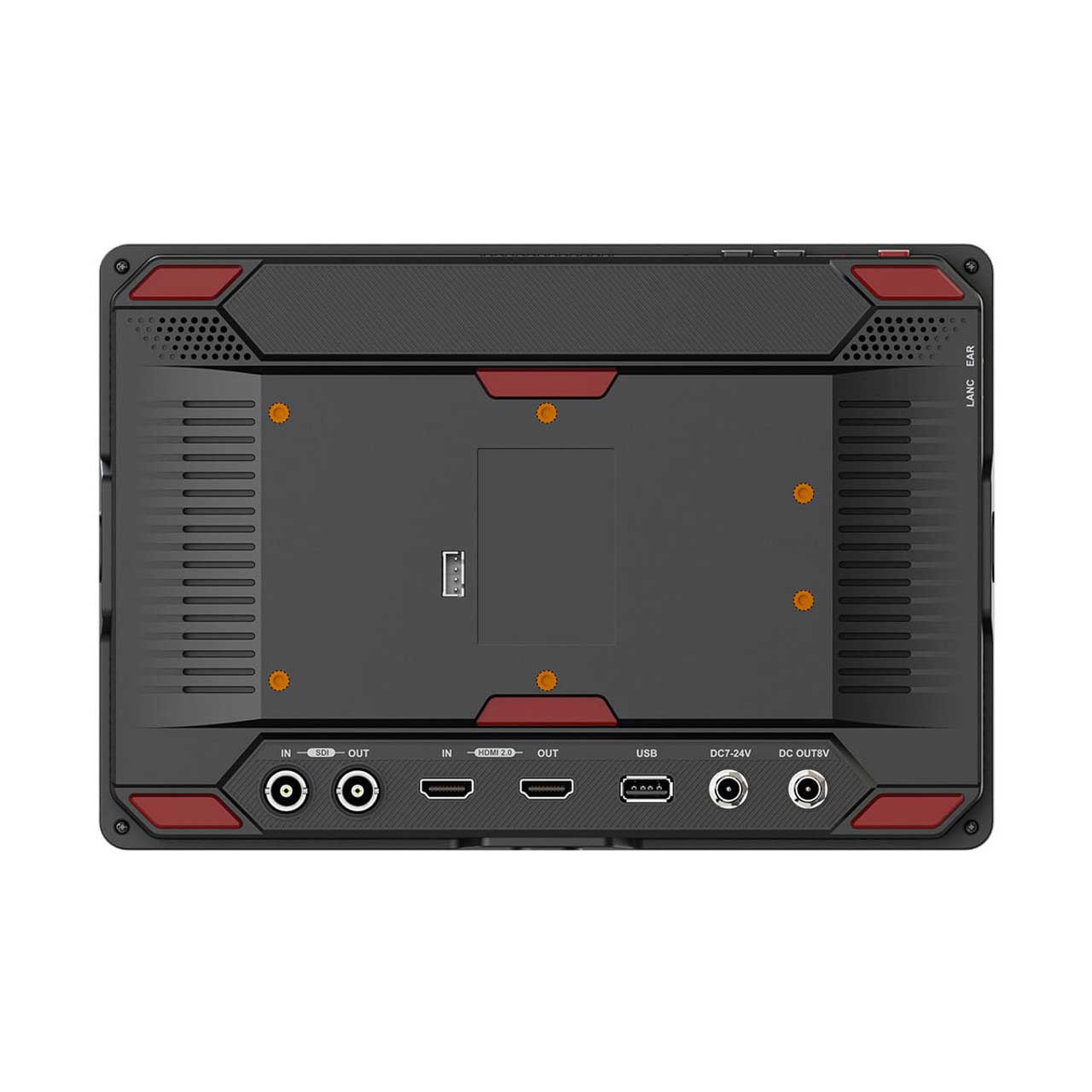

        Signal Input
      • SDI: 1x 3G-SDI
      • HDMI: 1x HDMI 2.0

        Signal Loop Output
      • SDI: 1x 3G-SDI

        Audio In/Out
      • HDMI: 8ch 24-bit
      • Ear Jack: 3.5mm - 2ch 48kHz 24-bit
      • Built-in Speakers: 1
      • HDMI: 1x HDMI 2.0

        Power
      • Input Voltage: DC 7-24V

        Environment
      • Operating Temperature: 0°C~50°C

        Other
      • Dimension(LWD): 251mm x 170mm x 26.5mm
      • Weight: 850g
      • Storage Temperature: -20°C~60°C
      • Power Consumption: =23W (12V)


    • Item Includes:

      • 1x Lilliput HT10S 10.1-Inch Ultra High 1500 Nits Brightness Touch On-Camera Control Monitor - V-Lock Battery Plate
