Digital Forecast UHD X-GEN Bridge UHD 12G-SDI/HDMI 2.0 UHD Test Pattern Generator and UHD Recorder

UHD X-GEN - Overview

• Features:

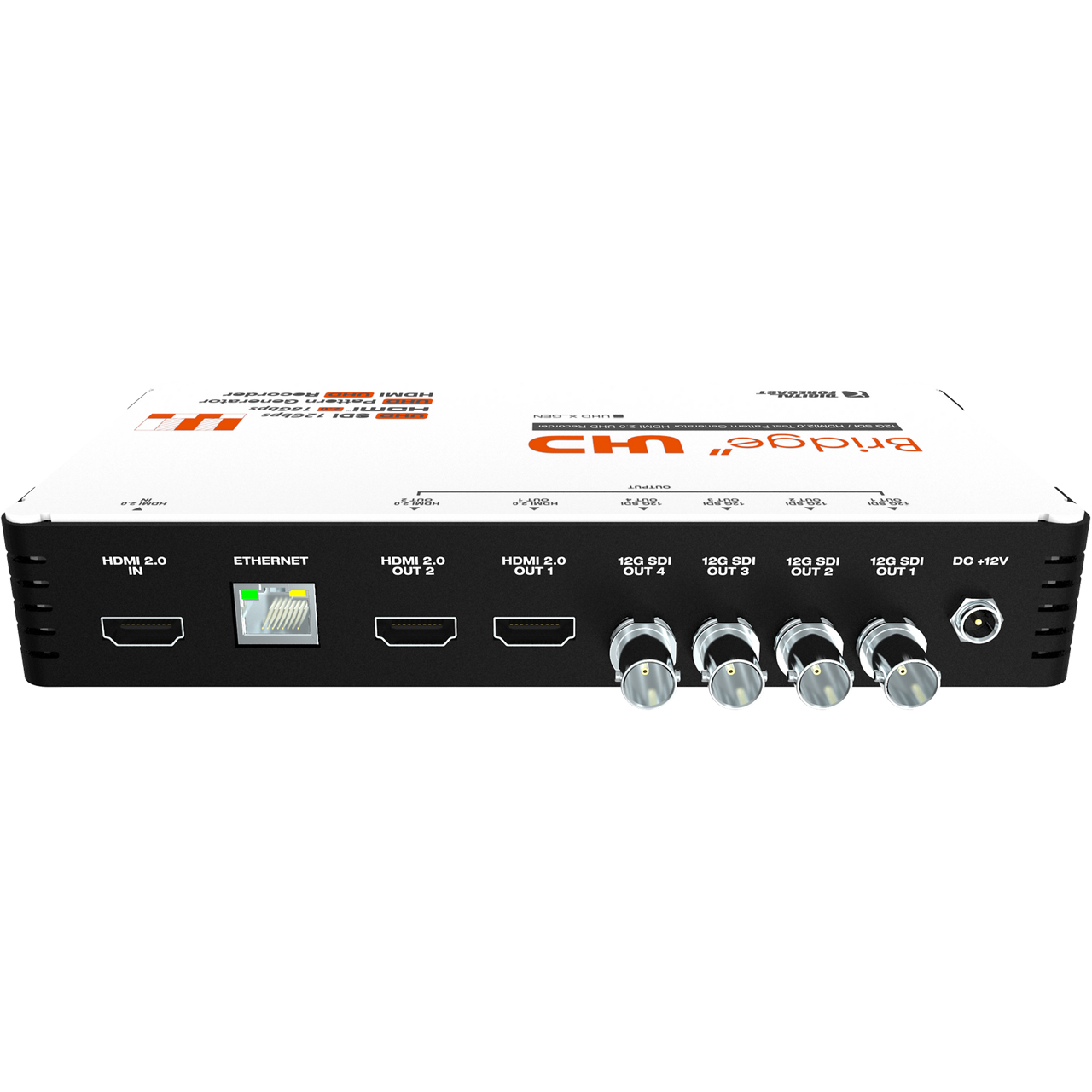

  • 1x HDMI 2.0 Input
  • 2x HDMI 2.0 Output, 4x 12G SDI Outputs
  • Supports still image and video 4K moving pattern output.
  • UHD Encoder function for recording HDMI input signals.
  • Supports standard HD, FHD, and UHD resolution output.
  • Network support for pattern data management
  • Supports SD card for recording, saving, and playing video.


• Specifications:

  • Power Level: +12V DC power
  • Power Consumption: 20W (Max 25W)
  • Operating Temperature: 32°F - 131°F (0°C - 55°C)
  • Humidity: 0% - 95% RH, non-condensing
  • Digital Video:
    - HD: 720p (60/59.94/50), 1080i (60/59.94/50), 1080p: (25/29.98/30)
    - FHD: 1080p (60/59.94/50)
    - 2K/4K: 2160p (25/29.98/30)
    - 4K: 2160p (60/59.94/50)
  • Data Rates:
    - HDMI: 600MHz
    - SDI: 12Gbps
  • Signal Level: 800mVp-p ±80mV
  • Dimensions: 8.27" x 4.13" x 1.46" (210mm x 105mm x 37mm)


• Item Includes:

  • 1x Digital Forecast UHD X-GEN Pattern Generator
  • 1x Power Adapter
