Doug Fleenor Design DMX512 521E-5 Five Inputs to One Output DMX Combiner on Isolated 5 Pin XLR

ITEM #: DFD-521E-5 MFG #: 521E-5

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$4,605.00

Our Price:

$3,742.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    521E-5 - Overview

    No visible delay - Bumps are fast - Fades are smooth!

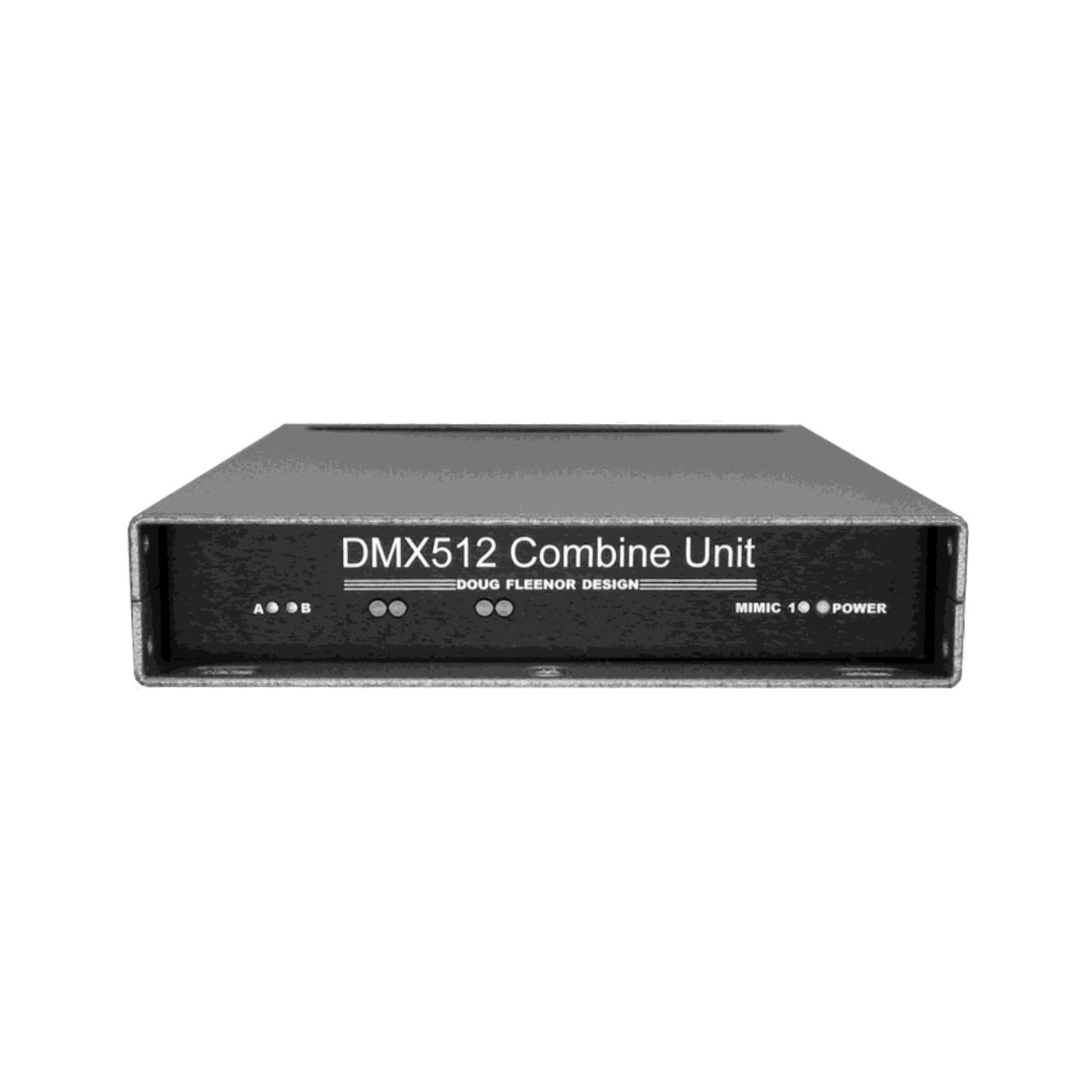

    The DMX512 521E-5 by Doug Fleenor Design is a Five Input to One Output DMX Combiner on Isolated Neutrik 5 Pin XLR.

    Enhanced Combine Units from Doug Fleenor Design solve the problem of combining multiple DMX input signals into a single DMX output signal. The most common configuration of the unit allows two consoles to control a single set of dimmers in a highest takes precedence or pile on mode. Examples of where this might be necessary include booth console/stage manager's console, primary console/backup console, and where one console controls intensity of a moving light fixture while a second console is used for color and/or position. Units with up to six inputs are available. More than six inputs can be accommodated using a Master/Slave arrangement.

    Units that patch and/or route the DMX dimmer channels are available for applications where two consoles control a single dimmer rack with loads in separate rooms. Such units prevent the operator in room "A" from bringing up the lights in room "B". The custom possibilities based on the DMX512 Combine Unit are almost endless. The DMX512 accepts Colortran Multiplex (CMX) on one or both inputs as well as output CMX.

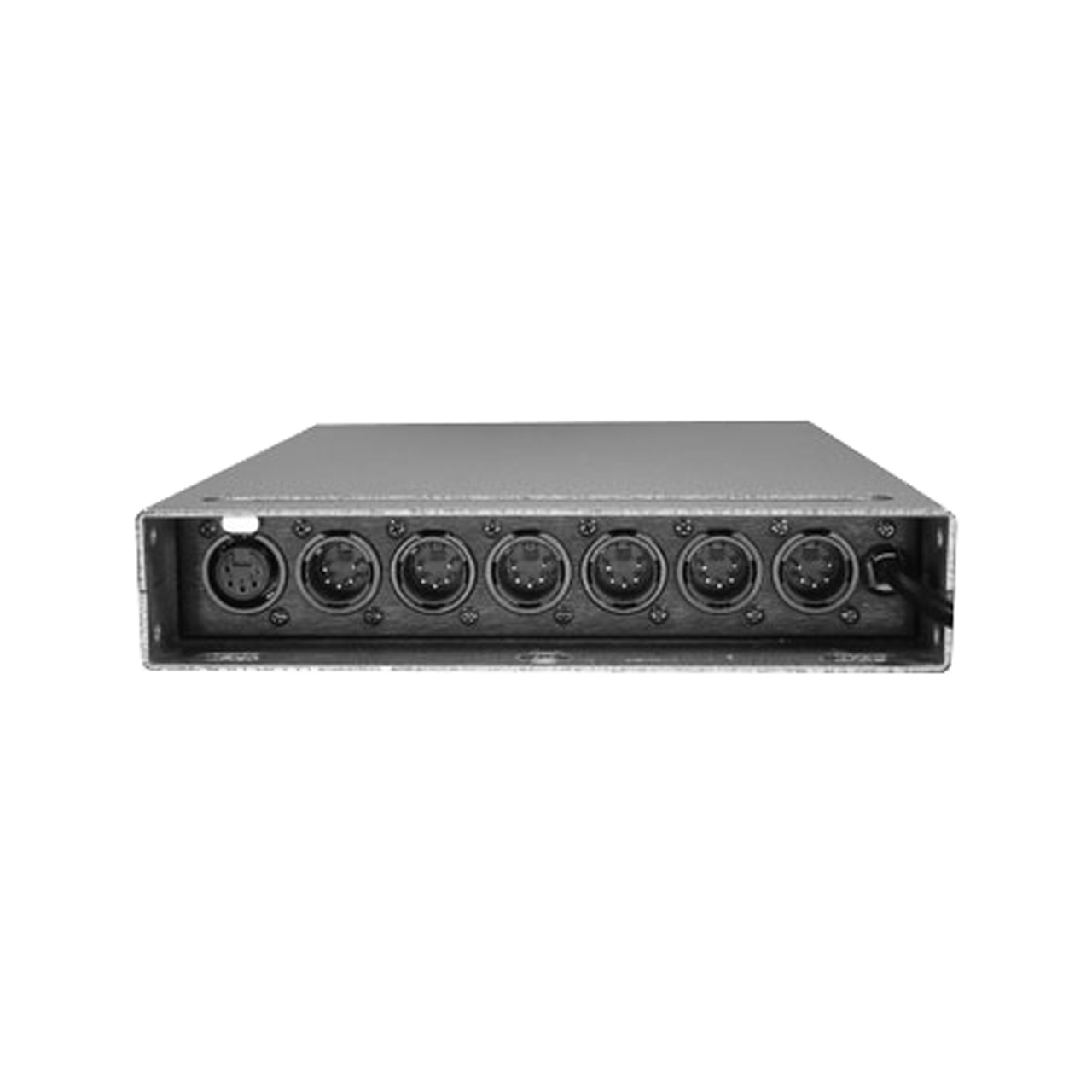

    Please Note: Image #2 for illustration only, this unit is 5x1 on an isolated 5-pin xlr.

    • Features:

      • Only one fiftieth of a second delay
      • No visible delay
      • Bumps are fast
      • Fades are smooth
      • No user adjustments
      • Easy "fool proof" installation
      • Chassis is 1/10" powder coated aluminum
      • Rugged and attractive for years of service
      • Two 1/2" holes are provided for clamps
      • Easily mounts to truss or pipes
      • Carry handle allows access to connector
      • Output connectors are easy to release, even with gloves on
      • All integrated circuits are socketed
      • Eases field service
      • Power and input signal indicators
      • Simplifies system trouble shooting

    • Specifications:

      • Baud rate: 250 Kilobaud
      • Input circuit: EIA-485 receiver with 120 ohm termination between +data and -data
      • Input connectors: Gold plated 5 pin male (Neutrik D1 series) Terminal Block Optional
      • Output circuit: EIA-485 driver
      • Output connector: Gold plated 5 pin female (Neutrik D1 series) Terminal Block Optional
      • Input to output delay: 1/100 second average 1/50 second maximum
      • Power input: 100 - 120 volts, 50/60 hertz, 12 watts (208 - 240 volt optional)
      • Power cord: Attached 5' 18/3 cord with parallel blade w/ ground plug.
      • Color: Silver hammertone with black front and back panels.
      • Size and weight: 1.74"H x 11.25"D x 8.25"W, 4.9 pounds
      • All specifications meet or exceed DMX512 requirements

    • Item Includes:

      • 1x Doug Fleenor Design 521E-5 Five Input/One Output Isolated 5 Pin XLR DMX Combine Unit

    • Warranty:

      • 5 year warranty
