    DMX12DIM-ELV - Overview

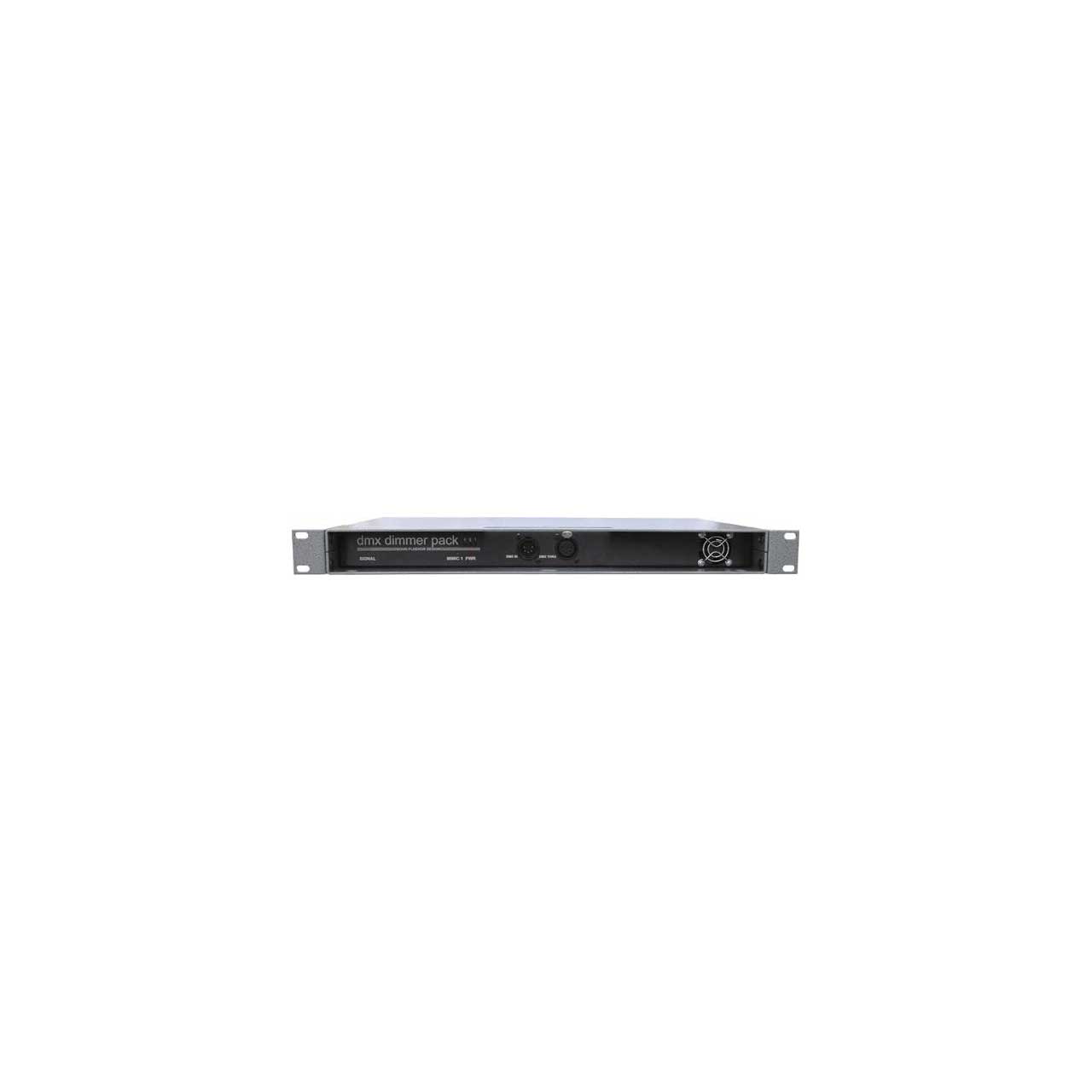

    The Doug Fleenor Design DMX12DIM-ELV is a 12 channel, 100 Watt per channel dimmer pack. It is fed by a single 120VAC 15A branch circuit. Each of the dimmers can be separately controlled using a DMX512-based lighting controller.

    The dimmers use MOSFET power devices. The dimmed outputs are Electronic Low Voltage(ELV) compatible using reverse phase (aka: trailing edge) control techniques. The DMX12DIM-ELV is housed in an enclosure suitable for portable use or for mounting in a standard 19" rack. The DMX12DIM ELV occupies 1U of rack space. The DMX12DIM-ELV provides grounded parallel blade output connectors.

    • Specifications:

      • Input circuit: Protected EIA-485 receiver (LT1785)
      • Input protection: Undamaged by up to 60 Volts continuous, 15KV transients
      • Input signal: 0.2 volts minimum, 12 volts maximum, DMX512, DMX512/1990, or DMX512-A
      • Input connector: Gold plated 5 pin male XLR (Neutrik D-1 series) 3 pin XLR optional
      • Input pass through: Gold plated 5 pin female XLR (Neutrik D-1 series). All five pins are passed through
      • Termination: None. Unused pass through connectors must be externally terminated
      • Power input: 120 VAC 60 Hz 10 Amps at full load. Actual current draw is 0.07A plus connected load
      • Power input connector: NEMA 5-15P (15A U-ground) on 18 inch 12 gauge pigtail
      • Idle power: 7 Watts
      • Power output: 120 VAC 60 Hz 0.83 Amps (100W) maximum per output
      • Minimum load: No minimum load requirement
      • Output protection: 1.5A internal fuse on each output channel

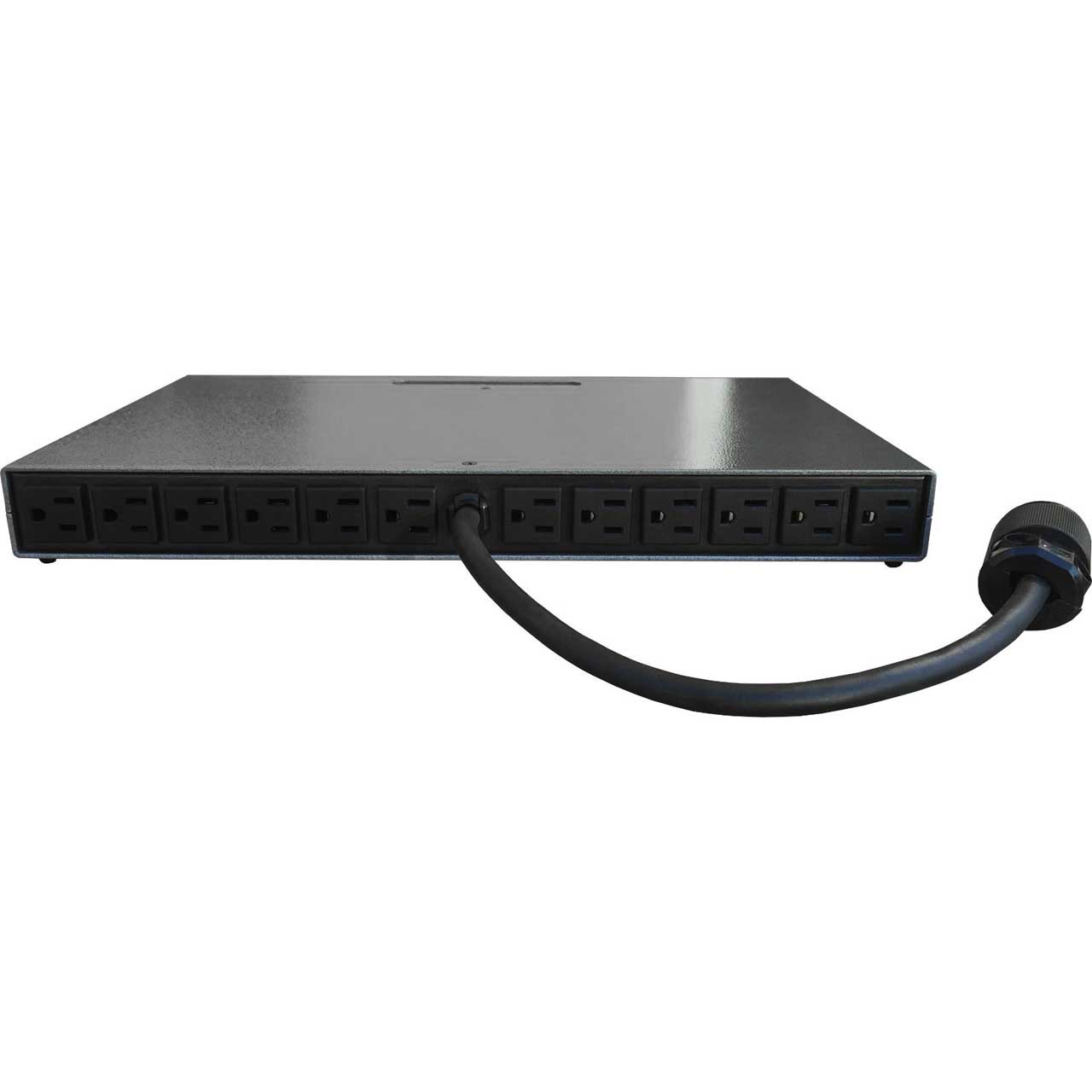

      • Output connectors: NEMA 5-15R (15A grounded parallel blade)
      • Dimming circuit: Digitally fired, opto-isolated, MOSFET power devices. These components allow for forward or reverse phase dimmer control
      • Rise/fall time: 2 uS (10% to 90% at 90 degree firing angle) at rated load
      • Dimming curve: Square law. Visually appealing on LED lamps (120V), halogen lamps, magnetic lowv oltage (MLV) and electronic low-voltage (ELV)
      • Non-dim curve: Each channel can be configured as a non-dim which turns on at 60%, off at 40%
      • Outputs switch on at zero crossing. Other non-dim trip point options include 50% and 1% (globally settable)
      • DMX footprint: Twelve consecutive DMX slots beginning with the selected DMX starting address
      • DMX starting address: Three digit front panel thumbwheel switch. Address changes are immediate (no power cycling required)
      • Local control: An "address switch" setting of 601 turns on output 1, 602 turns on output 2, etc. Setting; 699 turns on all outputs. Setting 698 turns on all outputs when DMX is present. Setting; 697 turns on all outputs if any DMX level is above zero.

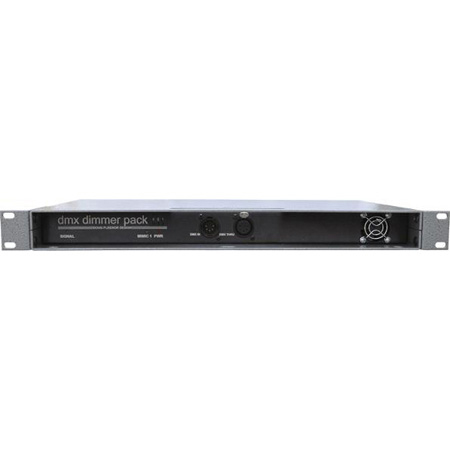

      • Status indicators: Red POWER indicator; Green MIMIC 1 indicator mimics the intensity of output 1 (useful in troubleshooting); Green SIGNAL indicator illuminates when DMX512 is present; flashes when local control is active (address switch settings of 601 thru 624 and 697 thru 699).
      • Cooling: Processor controlled low speed fan exchanges internal air from front to side.
      • Isolation: DMX512 input is optically isolated from AC power circuits to 600 Volts.
      • Color: Silver hammer tone with black front and rear panels.
      • Safety listing: Pending ETL Listing to UL 508
      • Size(H x D x W): 1.7 in x 10.5 in 19 in (17 in behind rack ears)
      • Weight: 7 pounds

    • Item Includes:

      • Rack ears

    • Warranty:

      • 5 year
