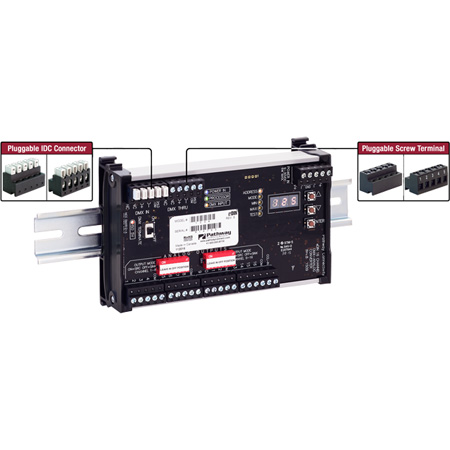

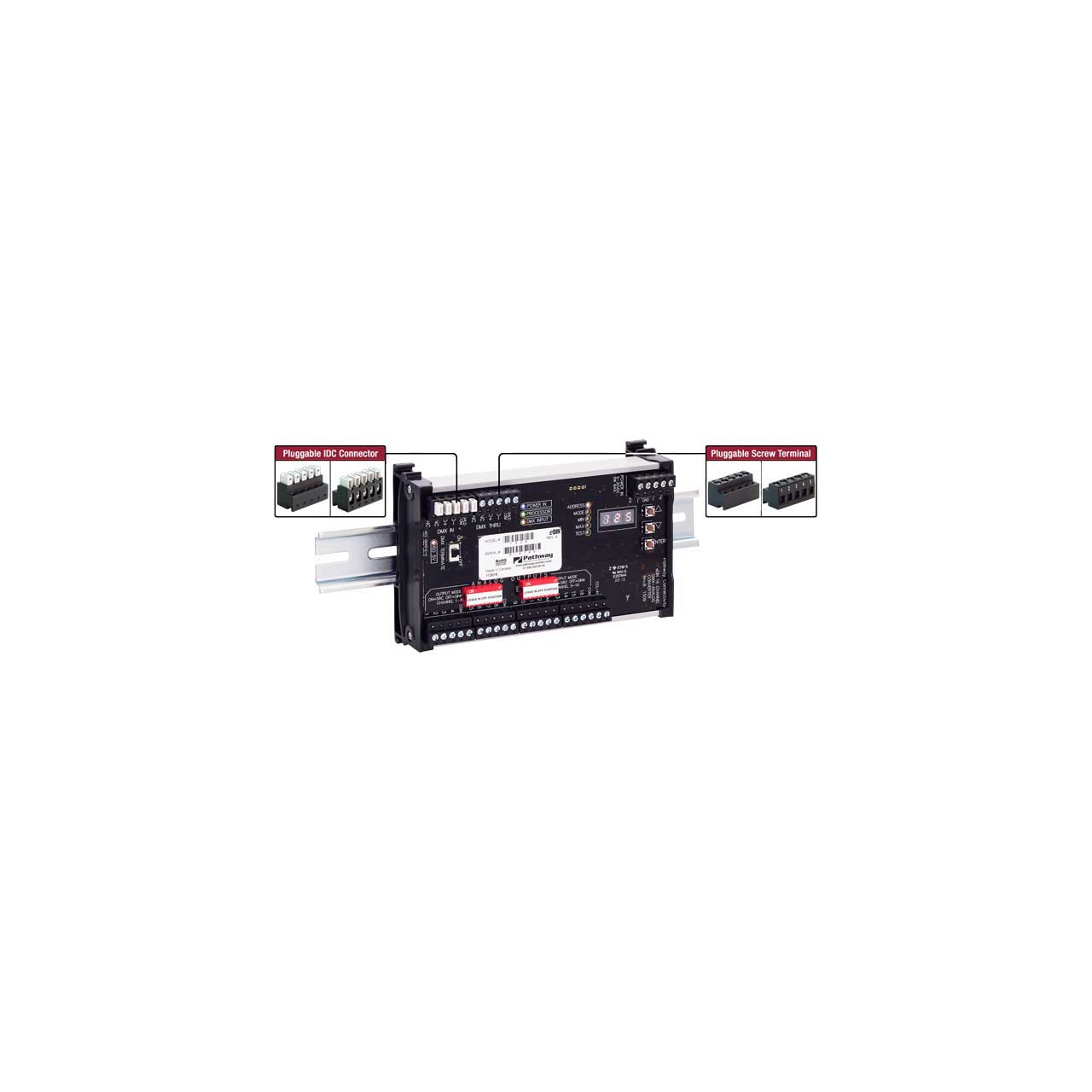

Pathway Connectivity PWINF DIN D2A DMX Interface with DIN-mount - 16 Channel Demultiplexer (6.25in)

PWINF DIN D2A - Overview

• Features:

  • DMX512 start address and operating mode may be set from front panel interface or remotely using E1.20 RDM
  • Indicator LEDs for power, processor, and DMX input status
  • Standard DC output modes of 0-10V, 0-15V, 0-2.5V, or 0-5V
  • Custom mode allows user-set minimum and maximum DC output up to 16V
  • EFBC/LED Driver mode allows single DMX channel control of mains voltage (via SSR) and 0-10V dimming
  • Maximum current rating per output of 10mA (sourcing) or 30mA (sinking)
  • CCL "Panic Input" drives all outputs to full
  • Pluggable terminal block connections accept solid or stranded wire between #26 and #16 AWG
  • One DMX512-A/RDM data input connection
  • One passive DMX512-A data through connection
  • Data and power easily daisy-chained between modules
  • Termination switch
  • Firmware field-upgradable using RDM (requires Pathway Pathport gateway and RDM utility program)


• Specifications:

  • General
  • 1500V opto-isolation between input and output ports
  • 250V fault protection on input and output ports
  • Input operating voltage: 9-30 VDC
  • 6W power consumption
  • Operating conditions: -10° to 45°C; 10-90% relative humidity, non-condensing


• Item Includes:

  • 1x Pathway P1004 Demultiplexer with 16 Channels and eDIN - 6.25 Inch
