SW1-5 - Overview

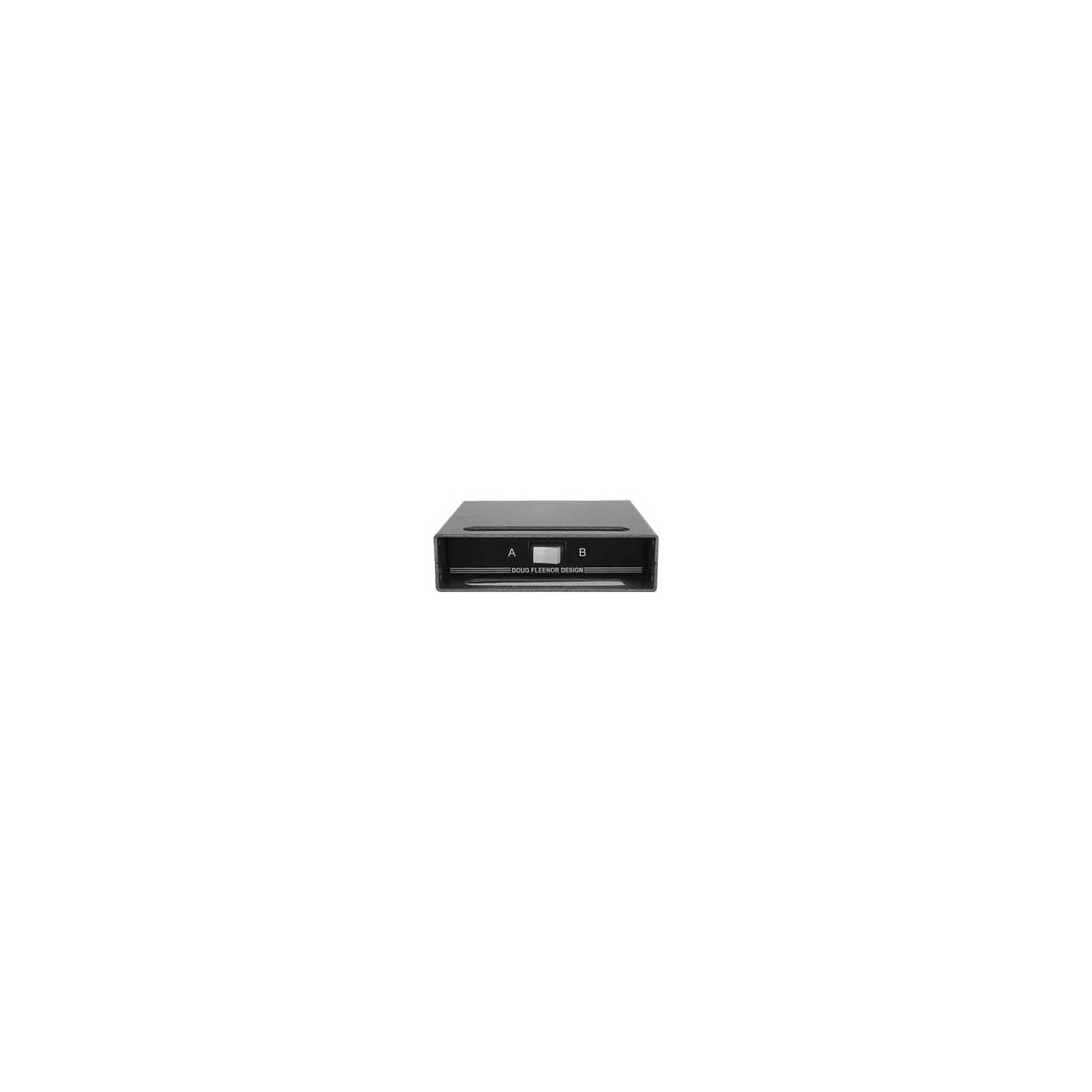

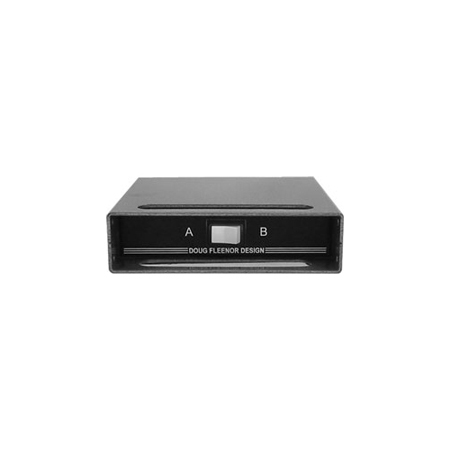

Doug Fleenor Design SW1-5 is one universe A/B DMX switch with 5-pin XLR created to switch DMX512 signals. Originally designed to switch between primary and backup consoles, these switches are often used to select from two (or more) input locations. Model SW1 switches a single DMX512 universe (one A input, one B input, one output). Custom units for switching any number of universes are available and switching between more than two input sources is possible as well (A/B/C switches, for example).

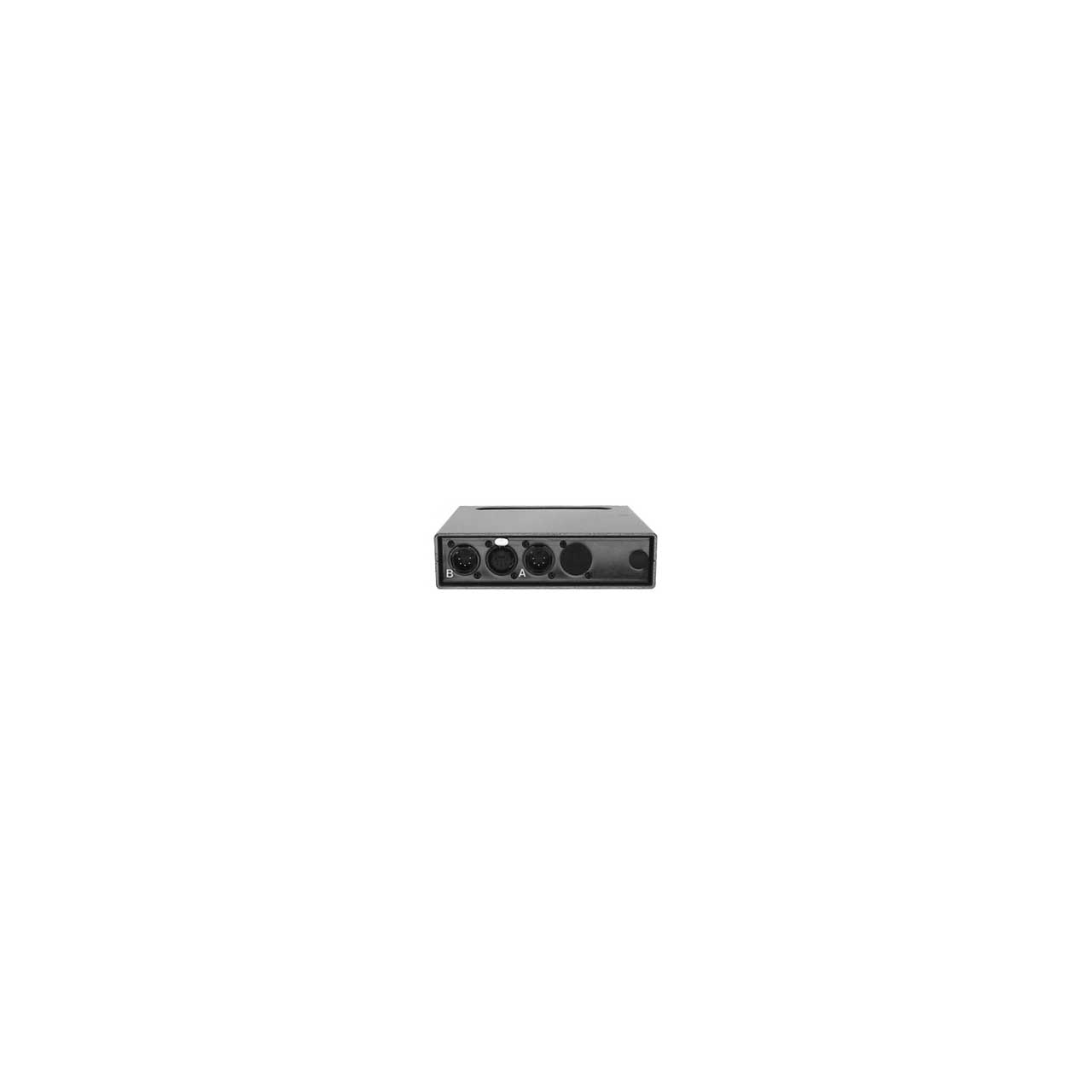

Doug Fleenor Design Switch Boxes consist of a high reliability switch (rocker or rotary) wired to Neutrik five pin gold plated XLR style connectors (three pin or terminal block optional). The units are housed in metal enclosures of appropriate size and are rack mountable (with optional rack ears). The standard units switch the Data+ and Data- lines. Custom units can switch any or all contacts. Custom "remote switch" units using relays in place of the manual switch are also available.

  • Specifications:

    • SW1: Single Universe A/B Switch Box
    • Switch: Two position rocker switch.
    • Color: Top, bottom and sides: Silver hammer tone. Front and back: Black.
    • Dimensions (HxDxW): 1.7 x 6.5 x 6.5"
    • Weight: 1.4Lbs
  • Warranty:

    • Limited Manufacturer'S Warranty
