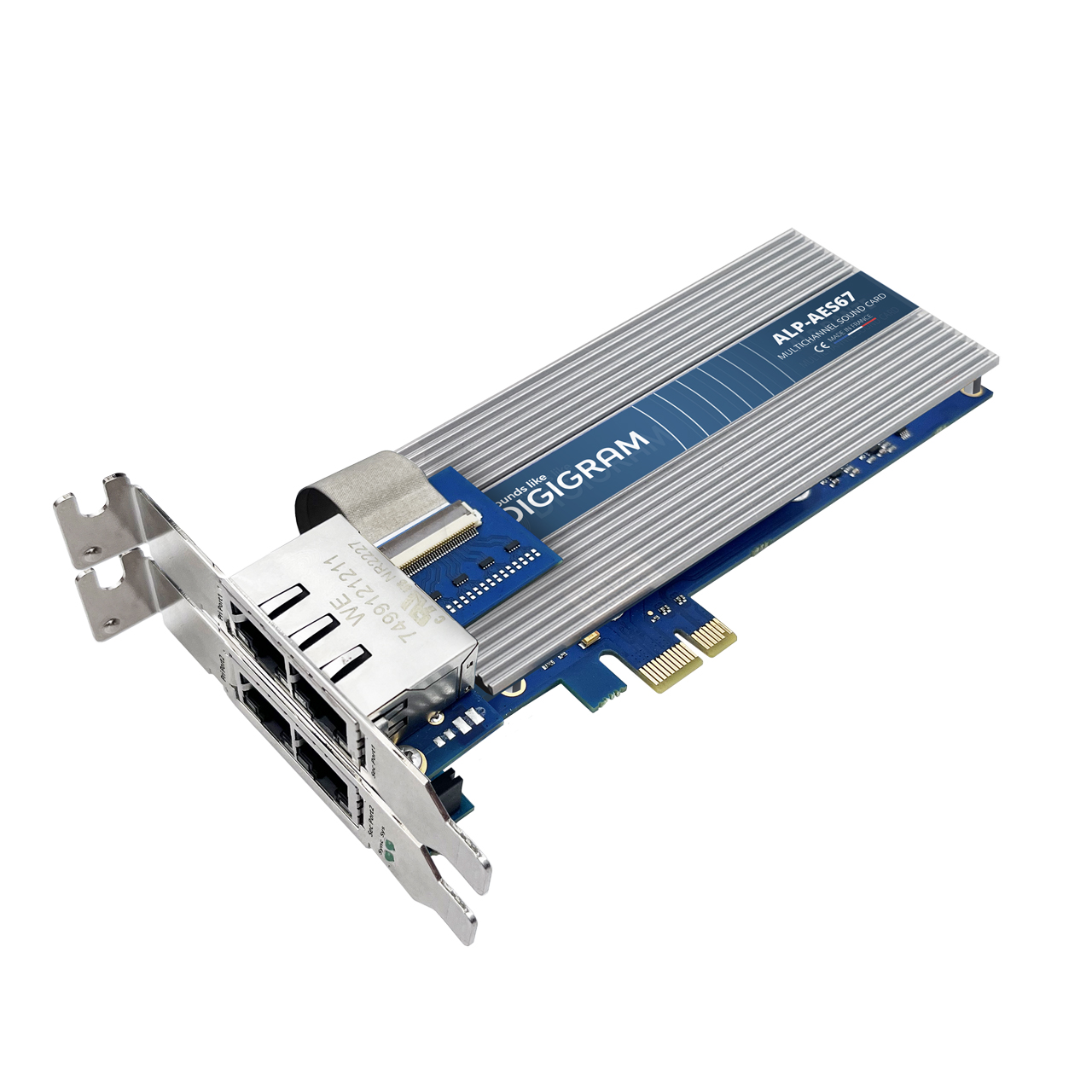

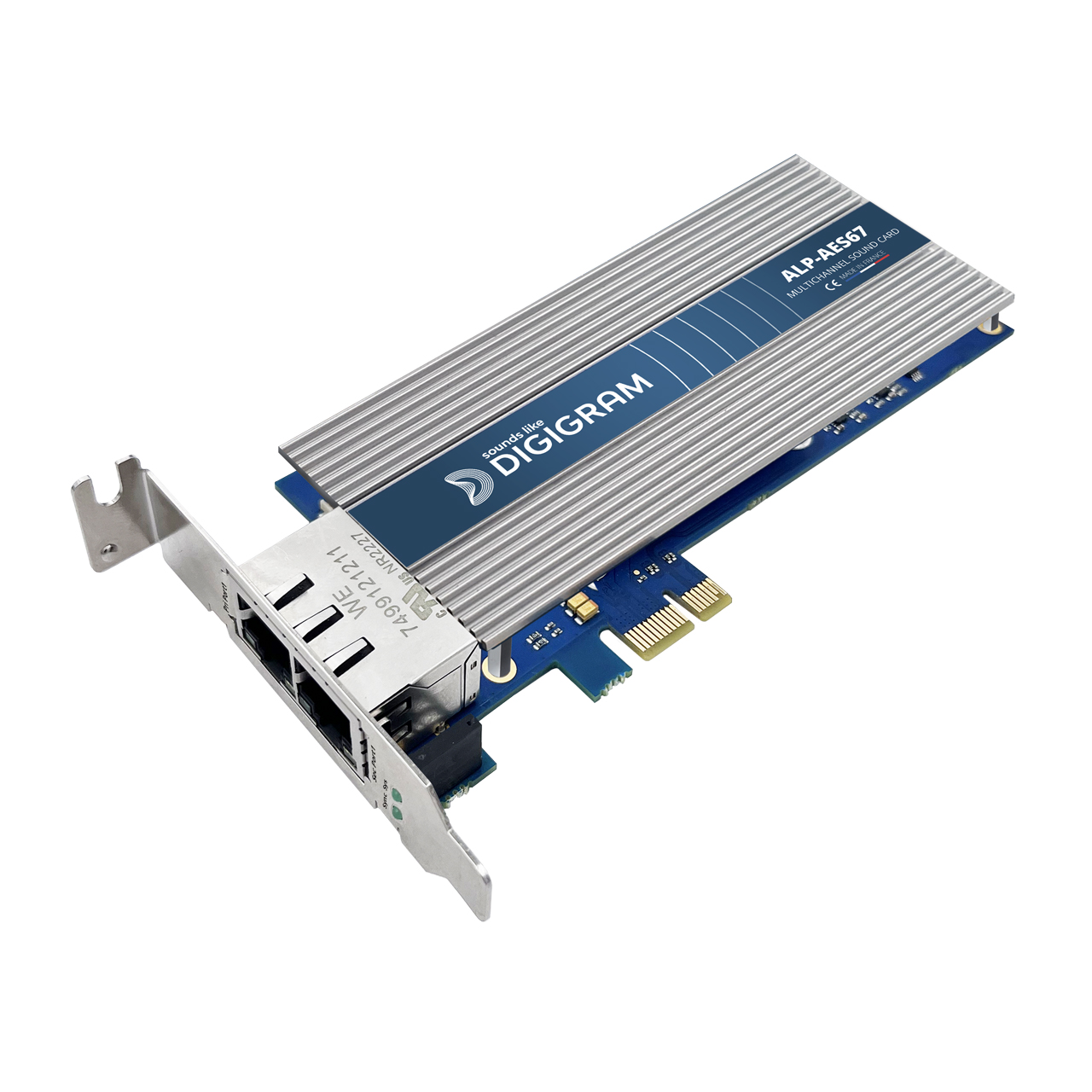

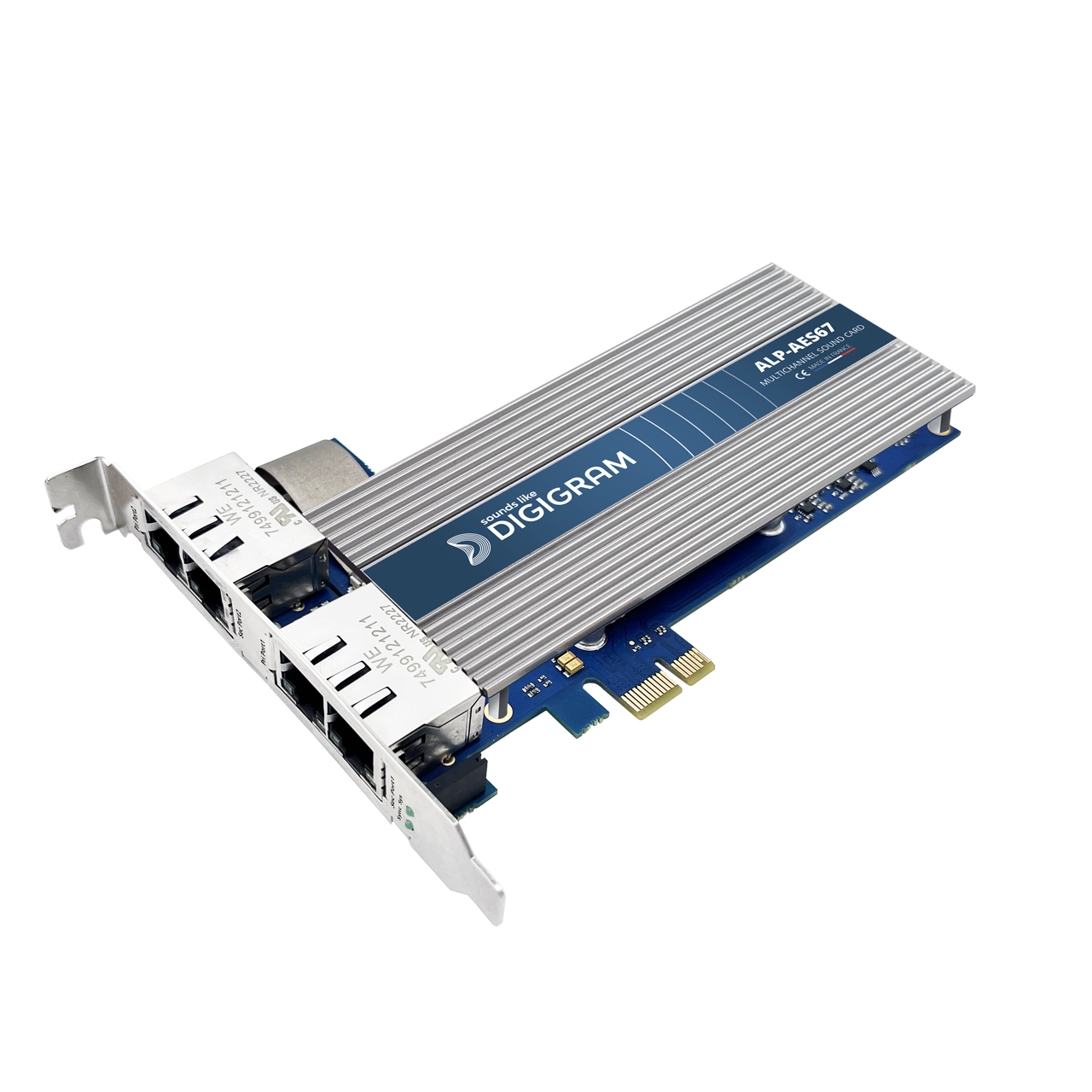

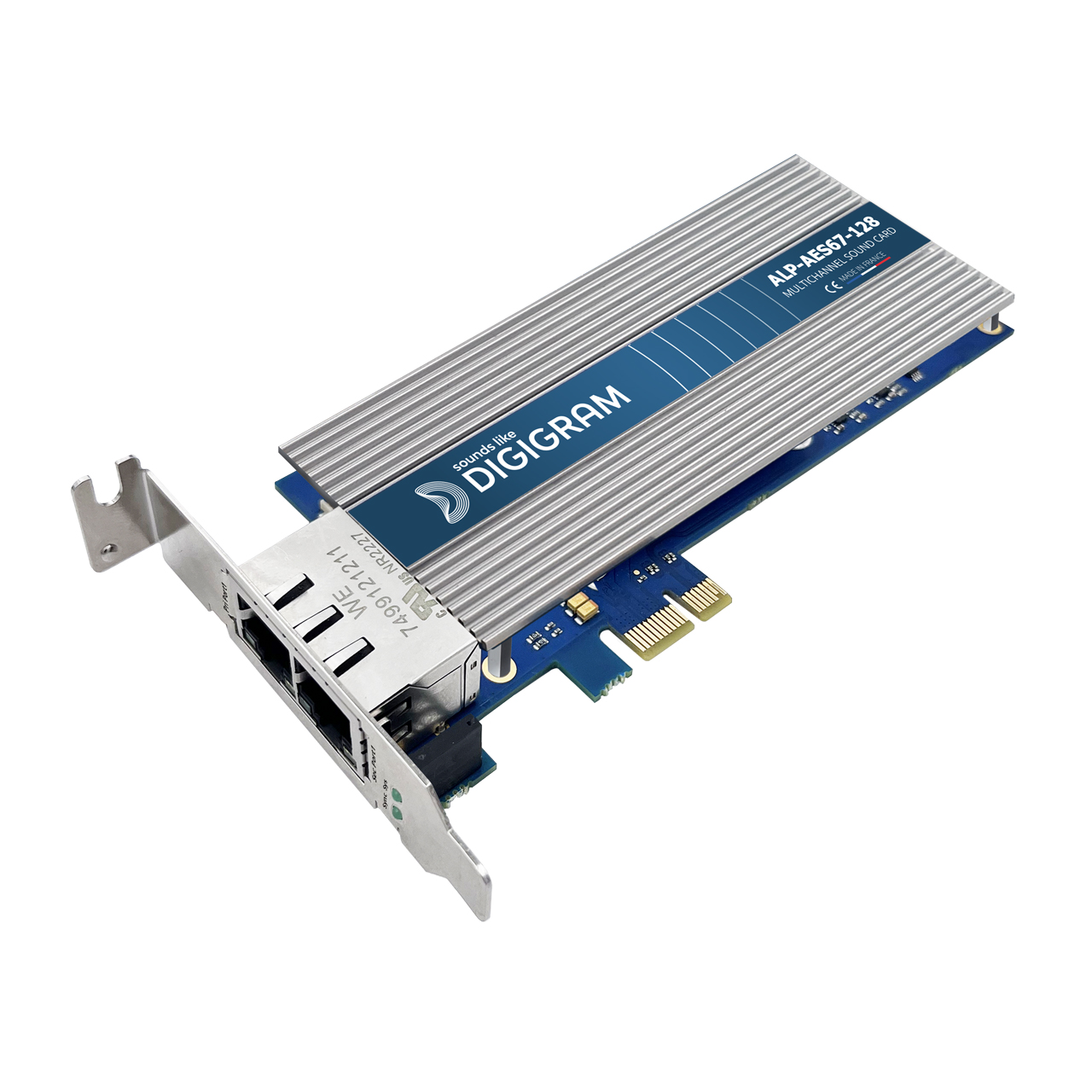

Digigram ALP-AES67-128 Ravenna SMPTE ST-2110 PCI Express Sound Card - 128 I/O Channels

ITEM #: DGR-ALP-AES67128 MFG #: ALP-AES67-128

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,999.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ALP-AES67-128 - Overview

Familiar With the Digigram ALP-AES67?
As part of the classic Digigram ALP-X family, the ALP-AES67 is built on a reliable, robust, and stable architecture. It features a fanless, low-profile PCI Express design, compatible with Windows and Linux PCs and servers, ensuring sustainability and low consumption. ALP-AES67 cards guarantee sub-millisecond round trip latency and seamlessly integrate AoIP networks. Used with ALP-X Manager, Digigram's unified control panel for the whole ALP range, ALP-AES67 cards work wonders with applications where mission-critical audio is paramount.

When Seamless And Complete AES67 Integration Is Key
ALP-AES67 cards are fully compliant with AES67, RAVENNA, ST2110-30 (Level A, AX, B, BX, C, CX) and provide ST2022-7 redundancy (Class A, B, C, D) for increased network security. Additionally, the full support of Out of Band Management brings an extra level of security to the network infrastructure and network management. Whether you choose ALP-AES67-64 channels (64 in/64 out) or ALP-AES67-128 channels (128 in/128 out), the full compatibility with AES67 will make the difference in your mission-critical operations for radio and TV broadcast, live entertainment, immersive sound, security and defense, or transportation.

When Mission-Critical Demands The Best
Compact, yet powerful, ALP-AES67 naturally comes with all the Digigram signature features: rock-solid hardware for a life-long use, hiccup free reliability, pristine audio quality are the golden standards for these ALP models that deliver effortless integration into your AES67 workflows.

  • Features:

    • Drivers for Windows and Linux
    • 128 Playback/Recording Channels
    • Switching Ports Mode
    • Redundant Ports Mode
    • One Size Fits All
    • Fanless Design
    • Reliable AES67 Node
    • Compliant with AES67, RAVENNA, SMPTE ST2110-30/ST2022-7
    • 2 or 4 Ethernet Ports for Redundancy and Switching
    • Flexible PTP Clocking
    • Seamless Integration

  • Specifications:

      Network Connectivity
    • Configurations: 2x Gbps Ethernet ports that can be used in redundant mode (ST 2022-7)(Or in switching mode)

      Input/Output Channels
    • 44.1kHz/48kHz: 128 x 128
    • 88.2kHz/96kHz: 64 x 64
    • 176.4kHz and 192kHz: 32 x 32

      Audio Streams
    • Max 64 Input Streams
    • Max 64 Output Streams

      Drivers and OS
    • Supported OS:
      - Windows: as of Windows 10 20H2, Server 2019
      - Linux: Ubuntu as of ver. 20, Debian as of ver.11, Rhel as of ver.9
    • Drivers:
      - Windows: Asio, Wasapi/DirectSound
      - Linux: Alsa
    • One Driver Package:
      - Multi-application and multi-cards
      - API available to access the parameters

      AOIP Compliance
    • RAVENNA
    • SMPTE ST 2110-30 Level A, AX, B, BX, C, CX
    • SMPTE ST 2022-7 Class A,B,C,D

      Buffering
    • Up to 2000 samples per channel (41.7ms at 48kHz)

      Sample Format
    • PCM 16, 24, 32 bits

      In Band or Out of Band Management
    • WEB GUI
    • Aneman & MTDiscovery (Merging Technologies)
    • NMOS IS=04 & IS=05 (Discovery & Registration, Connection Management)

  • Item Includes:

    • 1x ALP-AES67-128 PCI Sound Card
    • 1x Low Profile 2 Ethernet Port Bracket
    • 1x Low Profile 4 Ethernet Port Bracket
    • 1x Full-Height Profile 4 Ethernet Port Bracket

  • Warranty:

    • 2 Year Warranty
