AuviTran AXC-AE8IO 4 Analog In and 4 Analog Out PCI Card for Audio Toolbox on Euroblock


free ship

List Price:


Our Price:


Availability: Temporarily Out of Stock
iAvailability Description Popup

    AXC-AE8IO - Overview

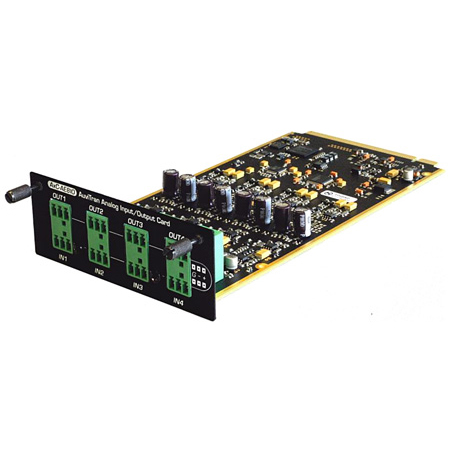

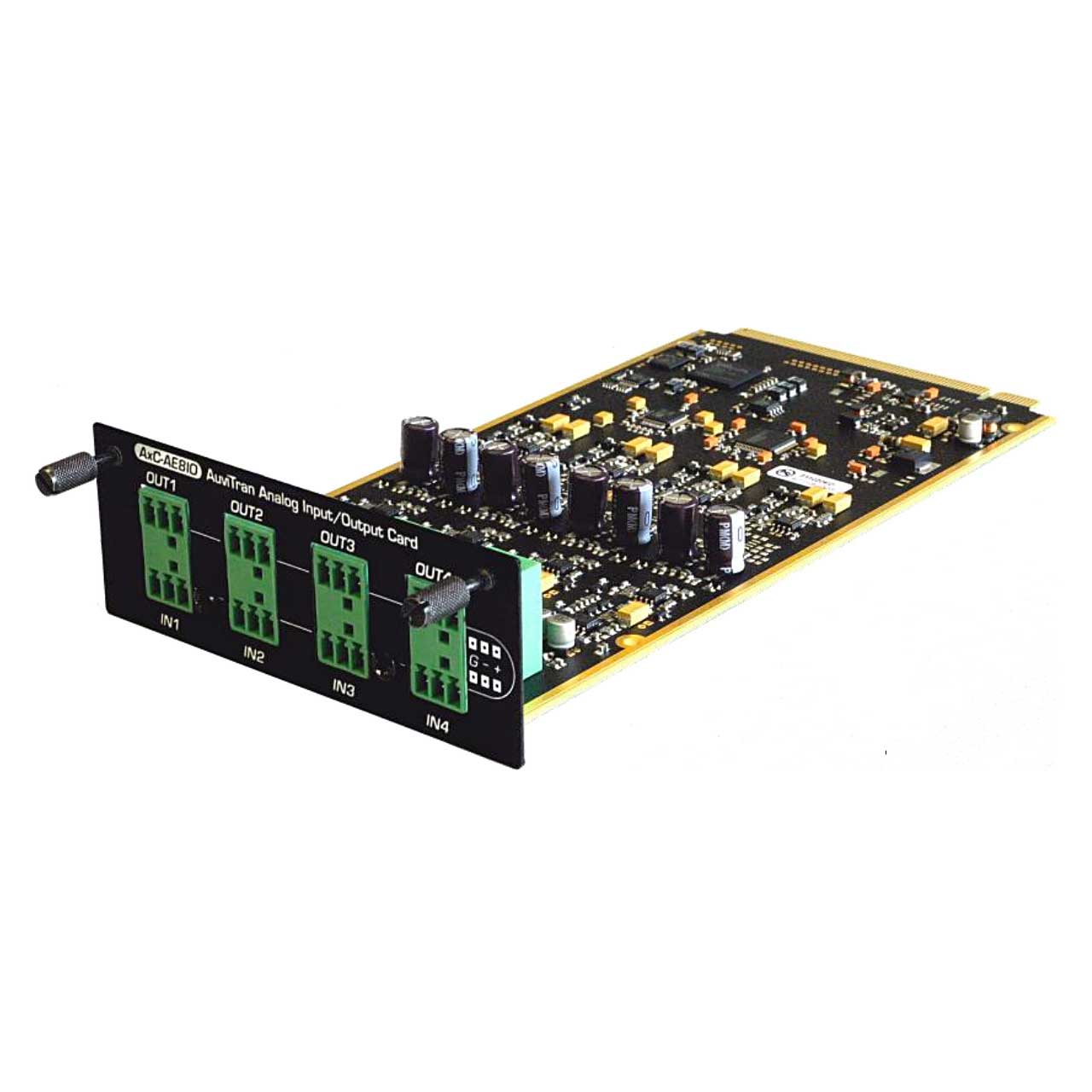

    The AuviTran AxC-AE8IO is an eight channel, high-end analog input/output AxC card, with Euroblock connectors for the AuviTran Audio ToolBox platform.

    The AxC-AE8IO combines high-performance AD and DA converter chips, with an excellent circuit design in a format of one AxC card for high end fixed installation applications.

    An internal smart design avoids loud noises during start-up and cut-off. This mechanism meets the constraints of use for high power sound reinforcement systems for professional audio applications.

    A 0.5 dB step digital attenuator/gains from -115dB to +12dB and two hardware reference level pads of +10 dBu or +24 dBu are fully controllable via software. It enables fine level calibration for addressing a large panel of applications in professional audio systems. Attenuation-gain setting and vu-meter can be monitored and controlled individually per channel via network for a remote management, from virtually anywhere.

    Two AxC-AE8IO cards inserted in an AVBx3-ES100 enables you to build a 1U 19" unit with high performance 8 analog inputs + 8 analog outputs for professional high-end, fixed installations including:
    - Stadiums, concert halls
    - Public Address and paging systems in museums, theme parks and resorts
    - Broadcast studios
    - Theaters, bars, pubs discos
    - Exhibitions and conference centers
    - Public address in transportation terminals
    - Recording studios
    - Live broadcast studios and OB Van

    AXC-AE8IO - Recommended Accessories
