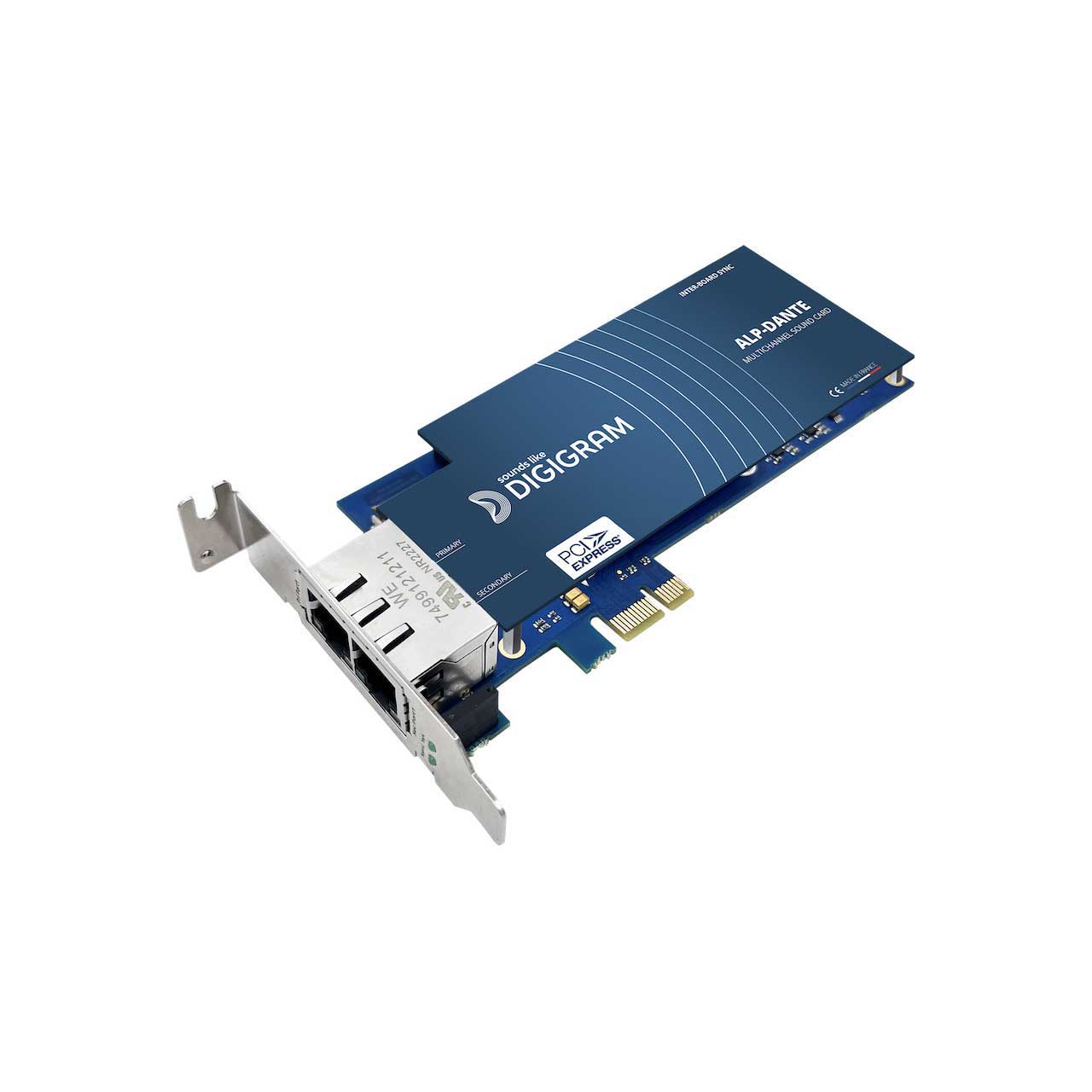

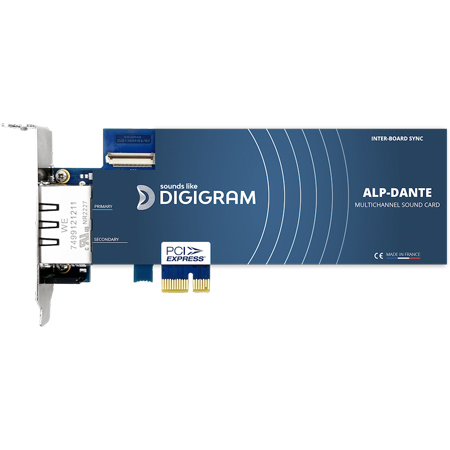

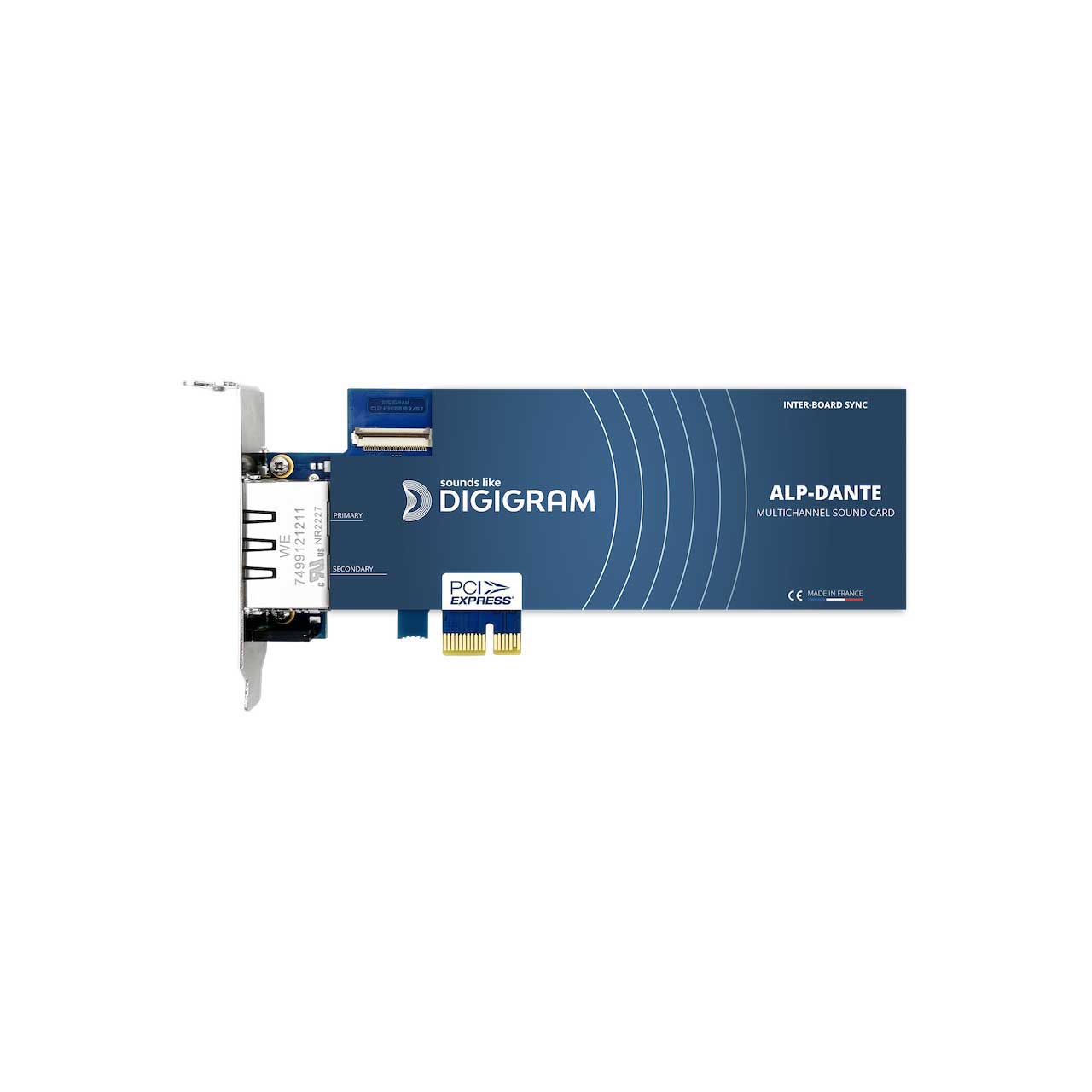

Digigram ALP Dante Low Profile PCie Card with 64x64 Dante Channels for Windows/Linux

ITEM #: DGR-ALPDANTE MFG #: ALP-DANTE

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$1,470.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ALP-DANTE - Overview

    Smart and ultra versatile

    Redefine 'versatility' with the Digigram PCIe ALPDANTE audio interface: its low-profile form-factor design matches all PCs and servers to address many applications. Its fanless design reduces consumption and is an asset for durability and sustainability. The card's connectivity, combined with 64 channels of playback and 64 recording channels to/from a Dante network, opens new possibilities to reach beyond usual applications.

    ALP-DANTE operates under Windows or Linux environments to address various applications. Built on the same reliable and stable architecture as all ALP-X cards, ALP-DANTE is the perfect match for mission-critical applications where audio is key: its versatility works wonders in broadcast, public safety, medical, transportation, or countless industry markets.

    • Features:

      • Low profile PCIe Fanless design
      • Compatibility with AES67 & SMPTE ST2110-30
      • Drivers for Windows & Linux
      • 64 playback channels
      • 64 recording channels
      • Switching ports mode
      • Redundant ports mode
      • Management via Dante controller and Dante device manager

    • Specifications:

      • Format
      • Form Factor: Low profile PCIe / Full-height PCIe (with the provided additionalfull-height bracket)
      • Dimensions(LxWxH): Low Profile PCIe: 6.6" x 2.7" x 0.8" (168 mm x 69 mm x 20 mm) Full-height PCIe: 6.6" x 3.9" x 0.8" (168 mm x 99 mm x 20 mm)
      • Bus: 1x PCI Express (x2, x4, x8, x16 compatible)

        Drivers
      • Supported OS: Windows (as of Windows 10 and Server 2016), Linux
      • Drivers: Windows: Asio, Wasapi/DirectSound Linux: Alsa
      • One Driver Package: Multi-application and multi-card API available to access the parameters

        Control Panel
      • Digigram ALP-X ASIO Settings (Windows): Asio Control Panel: up to 8 ALP-X cards, Select I/Os used through Asio
      • Digigram ALP-X Manager (Windows): Asio Control Panel: up to 8 ALP-X cards, One unified control panel for the whole ALP-X range, Vu-meters, clock frequency

        Other Specifications

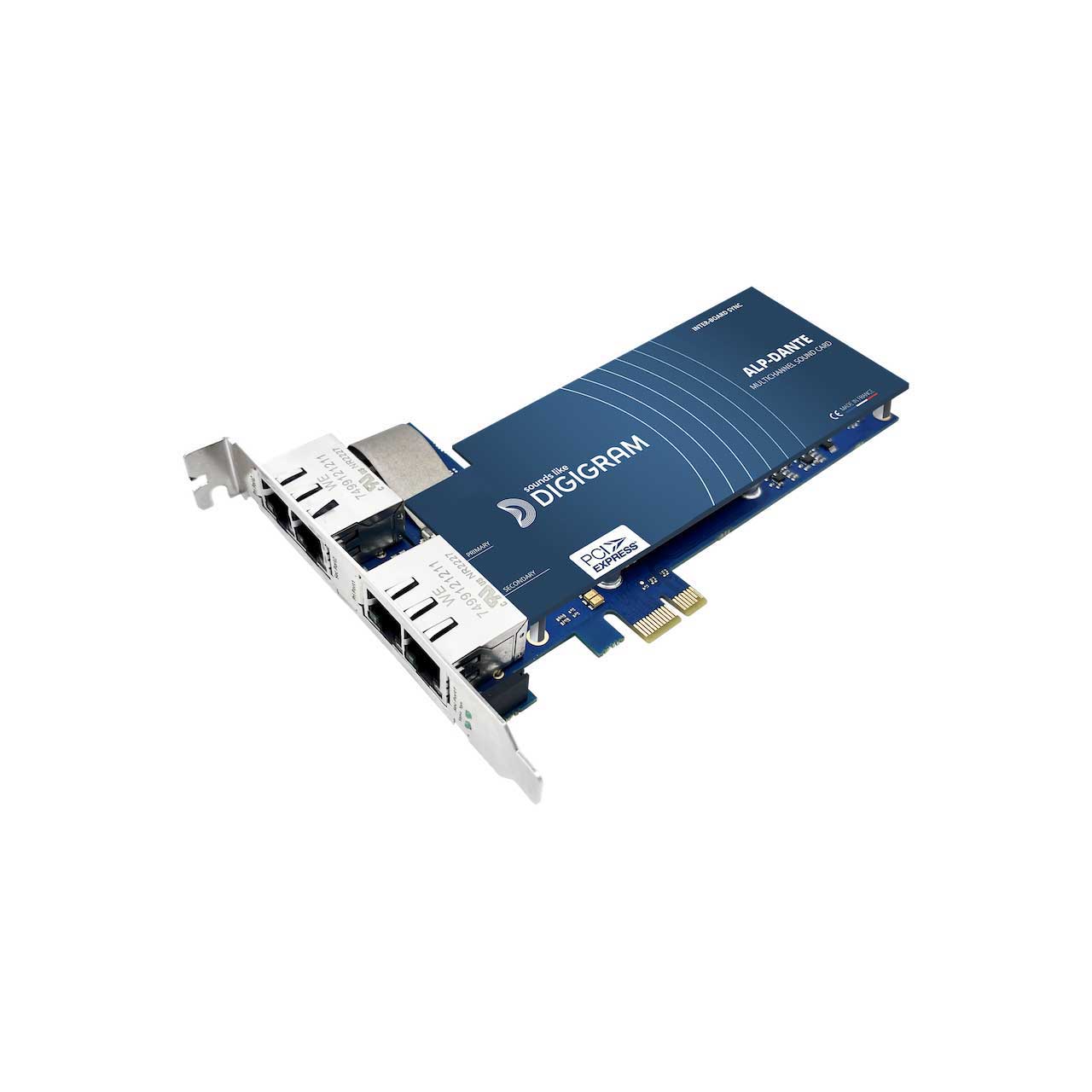

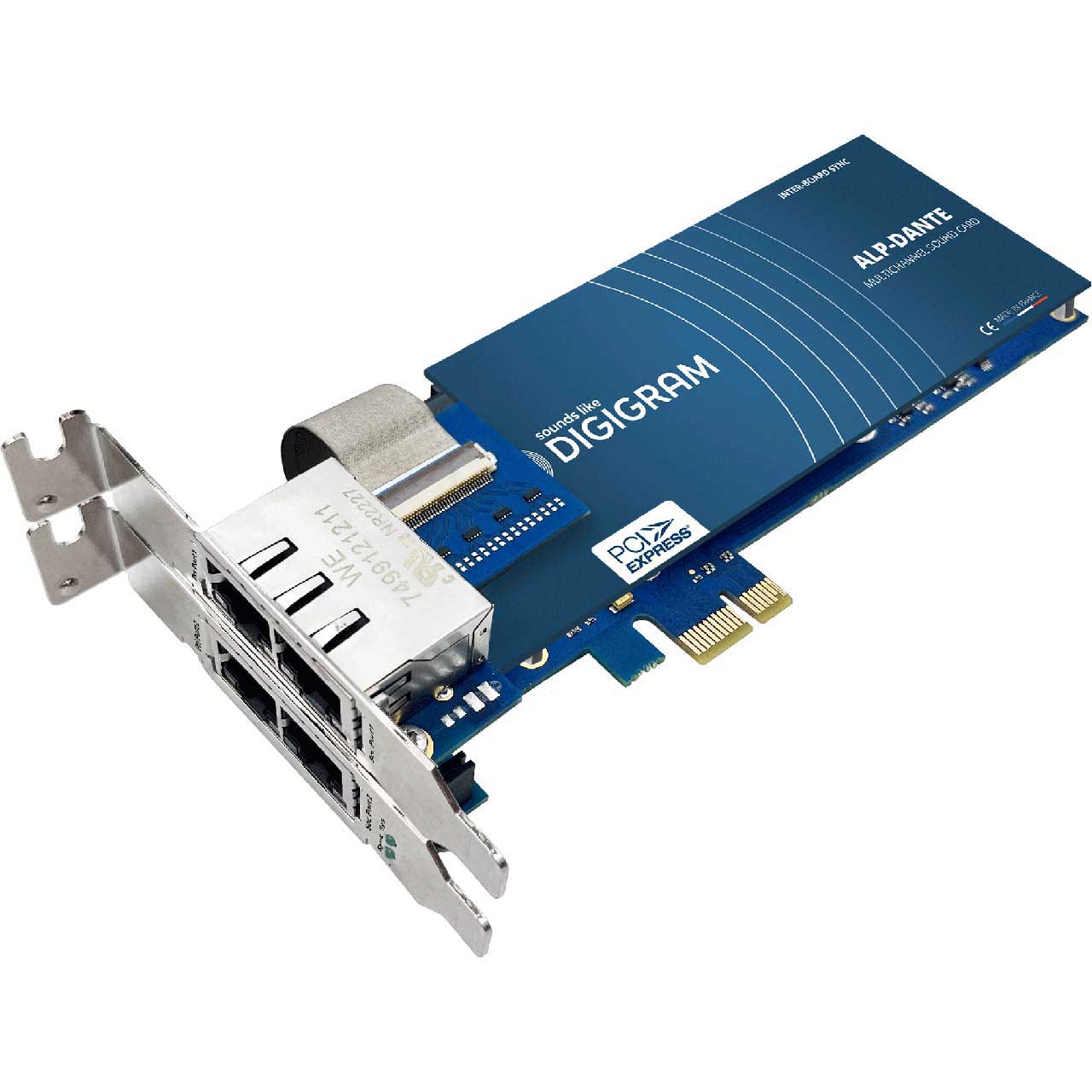

      • Network connectivity: Configuration with two network ports: 2x Gbps Eth ports that can be used in redundancy mode (Pri, Sec), or in switching mode (Pri, Switch) Configuration with four network ports: 4 Eth ports on the full-height bracket, or 2 Eth ports on each low-profile bracket
      • Input and output channels: 64 x 64 channels at 44.1kHz and 48 kHz, 32 x 32 channels at 88.2 kHz and 96 kHz, 16 x 16 channels at 176.4 kHz and 192 kHz
      • Audio flows: Maximum 32 input and 32 output streams
      • Buffering: Up to 2000 samples per channel (41.7ms at 48 kHz)
      • AoIP compatibility: Support for AES67 and SMPTE ST2110-30
      • Sample format: PCM 16, 24, 32 bits
      • Management: Audinate Dante Controller and Dante Domain Manager

    • Item Includes:

      • 1x Digigram ALP Dante Low Profile PCIe Card
      • 1x Full Height Bracket
