Digigram PYKO-In Stereo IP Audio Encoder
  • Digigram PYKO-In Stereo IP Audio Encoder
  • Digigram PYKO-In Stereo IP Audio Encoder
  • Digigram PYKO-In Stereo IP Audio Encoder
  • Digigram PYKO-In Stereo IP Audio Encoder

Questions? Ask a Markertek Expert:
800-522-2025 Email

Digigram PYKO-In Stereo IP Audio Encoder

Manufacturer: Digigram

Item #: DGR-PYKO-IN   •   MFG #: PYKO-IN




Our Price:$749.00

free ship


Availability:
Direct Ship from manufacturer, contact us for availability
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Required Accessories

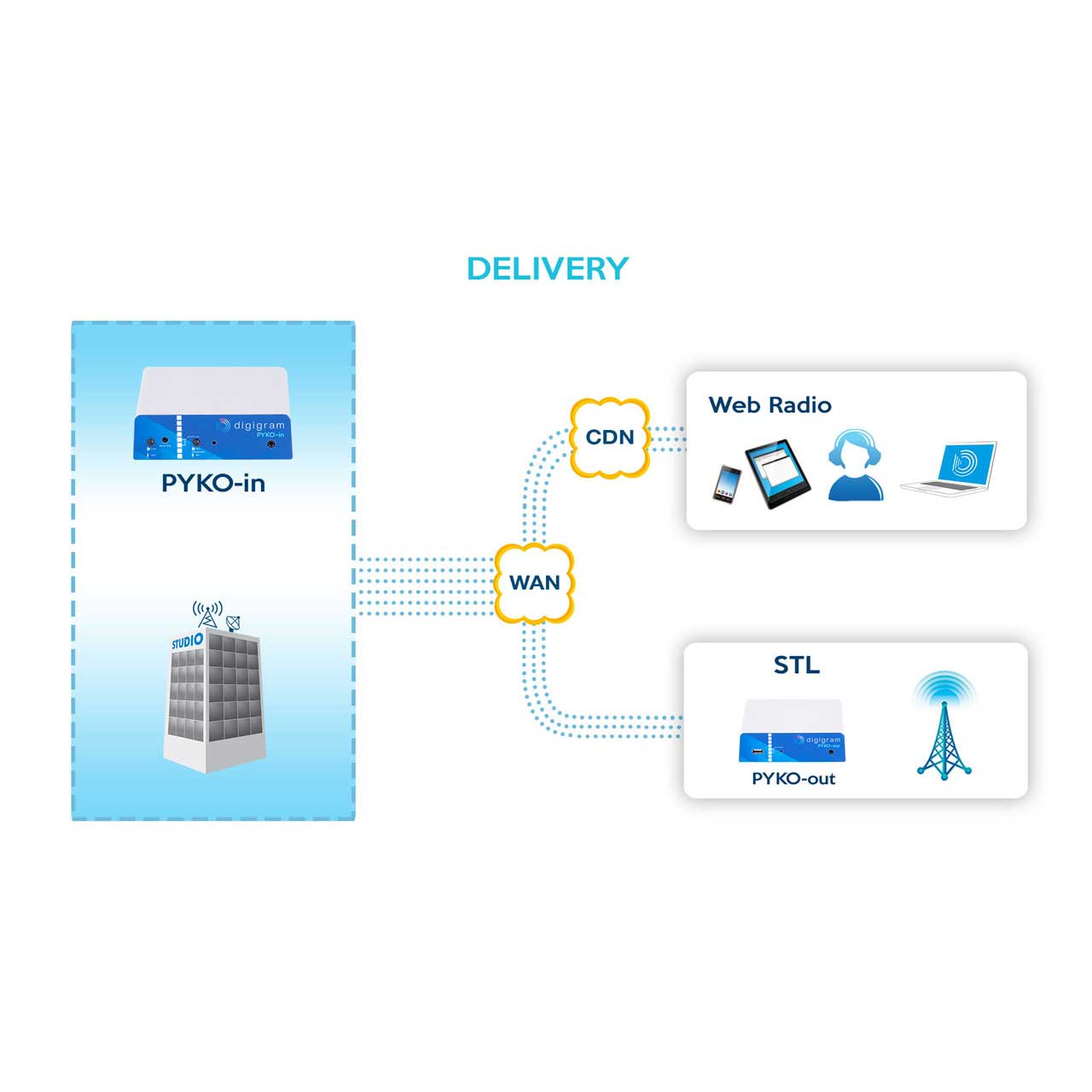

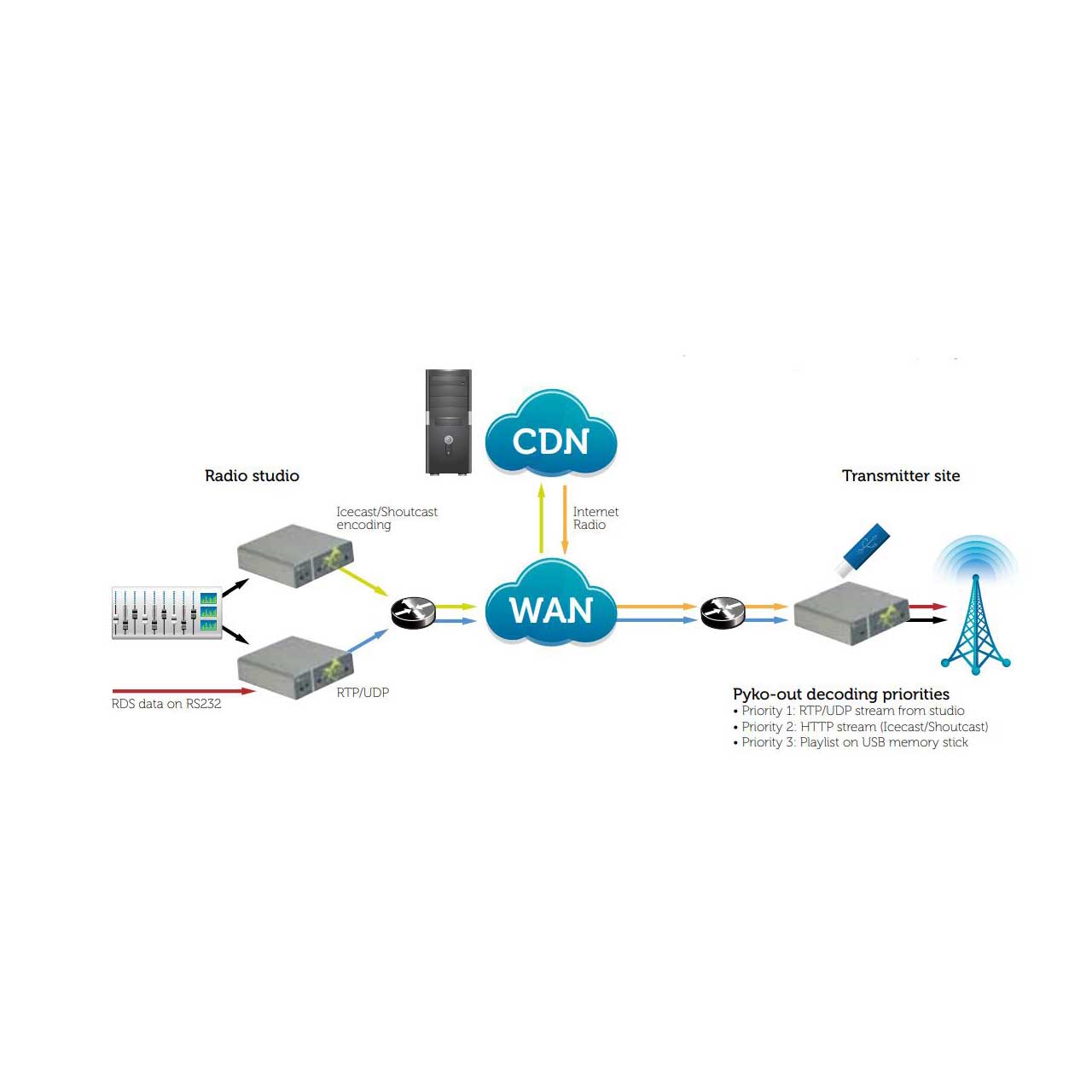

    Digigram PYKO-in is a stereo IP audio encoder that can be used in two modes. One mode allows converting the analog audio source into an IP audio stream sent to one or several destinations. Typical applications include STL, WEB radio encoding, background music, and paging. Combined with PYKO-out, PYKO-in is a cost effective solution for establishing IP audio links. Another mode allows using PYKO-in as a mono encoder/decoder; typical applications include intercom over IP.

    At a glance

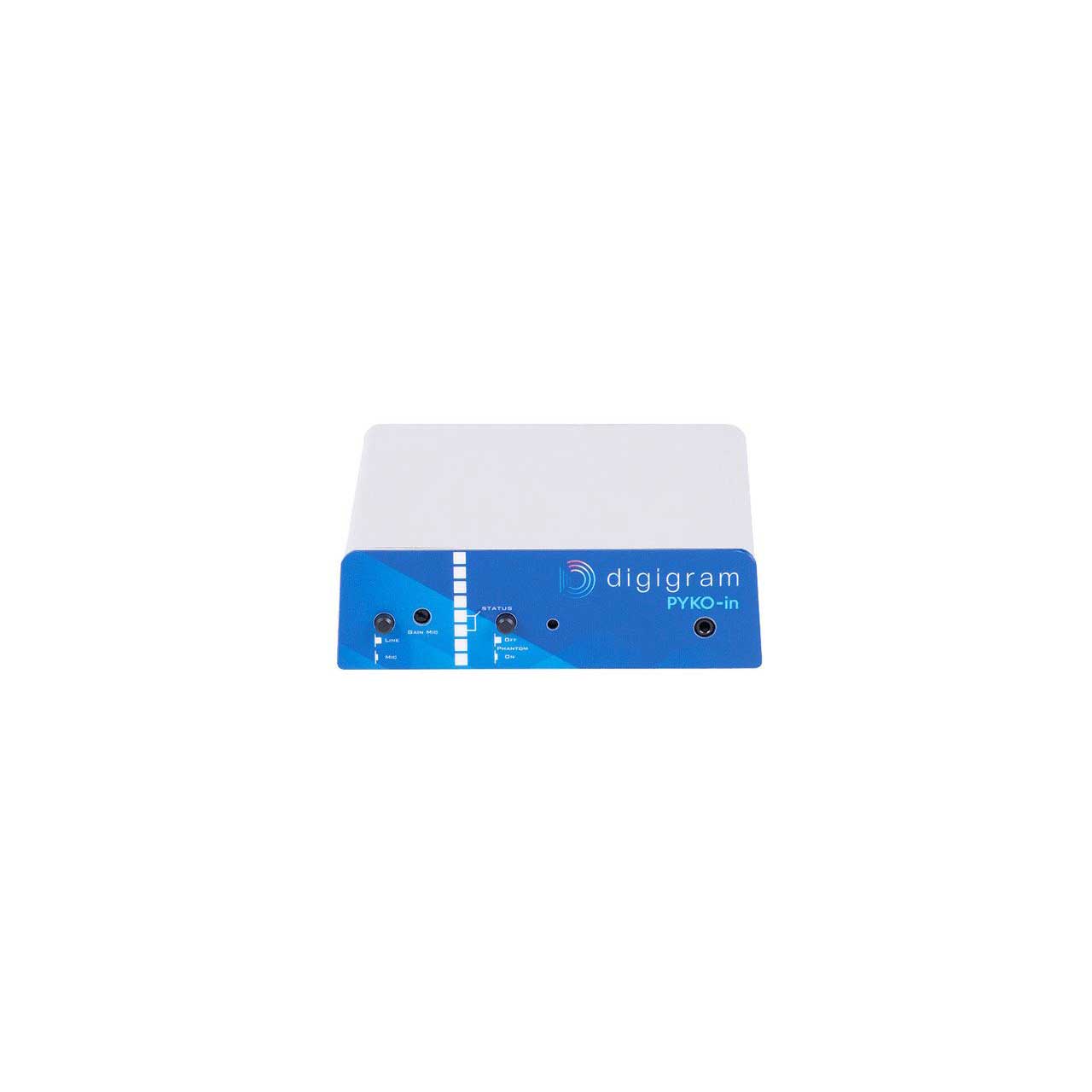

    PYKO-in is a small form factor rack-mountable stereo IP audio encoder or mono IP audio codec, depending on the way it is configured. Used as a stereo encoder, it features two balanced analog mono inputs. Used as a mono codec, it features one balanced analog mono input and one mono balanced mono output. One of the inputs offers a microphone preamp with phantom power, which is useful when PYKO-in is used for intercom. PYKO-in generates standard RTP streams in G711, PCM, or MPEG L3 audio format and allows for auxiliary data tunneling (serial data and 4 GPI statuses).

    Applications:
    Stereo IP audio encoder, or mono encoder/decoder with mic preamp
    Standard RTP streaming
    WEB radio encoding: Icecast/Shoutcast, MPEG L3
    Control and monitoring through WEB pages, monitoring via SNMP

    Benefits:
    Low price for an STL, or for a WEB radio encoder, but still with high audio quality
    No need for external mic preamp for intercom
    No need to be highly skilled to install and configure it


    • Features

      • Two balanced analog inputs, or one balanced analog input and output

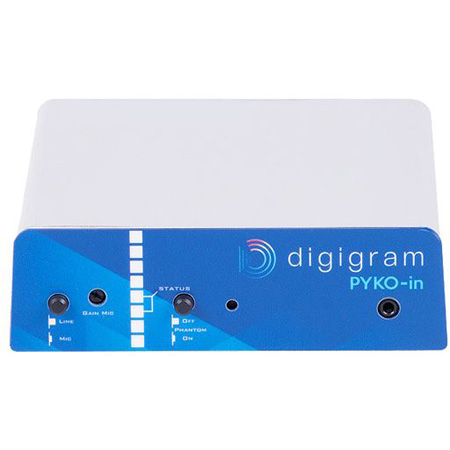

      • Mic preamp with 12V phantom power on one input, selectable from front panel
      • Supports G711, PCM, and MPEG L3 audio formats
      • Standard RTP streaming, or Icecast/Shoutcast encoding in MPEG L3
      • Auxiliary data tunneling (serial data, 4 GPIOs)
      • Unicast, multicast, multi-unicast and multi-multicast (up to six destinations)
      • Configuration and monitoring from WEB pages, or through ASCII commands via TCP
      • Possibility to start/stop the stream via GPIs
      • Front panel headphones mini-jack
      • External power supply

    • Specifications

      • Configuration
      • Size (mm) / weight (g): 140 x 41 x 145 mm / 434g
      • Power supply: External 24VDC +/-20%
      • Operating temperature / humidity: 0°C to 55°C / 0% to 70% non condensing

      • Balanced analog audio I/Os
        1 stereo input / 1 mono I/O in full duplex-mode
        Left input Mic/line with 12V phantom power
        E.I.N (48 kHz, G=39 dB, Z=200 Ohms) <-115 dBm
      • Maximum level / impedance
        Inputs: +4 dBu / +18 dBu / > 10 Kohms
        Mic level/impedance -2 dBu > 10 kohms
        Left output (full-duplex mode only): +4 dBu / +18 dBu / < 100 ohms
      • Frequency response: 0/-2 dB <20-20000Hz>
      • THD + Noise:
        Input: < - 84dB @ -1 dBFS <20-20000Hz>
        Output: < - 84 dB @ -2dBFS <20-20000Hz>
        SNR: <- 98 dB <20-20000Hz>

        Audio formats
      • PCM 16bits, G.711(æLaw/aLaw), G722
      • MPEG Layer 3 (VBR up to 192 kBit) (not in full-duplex)

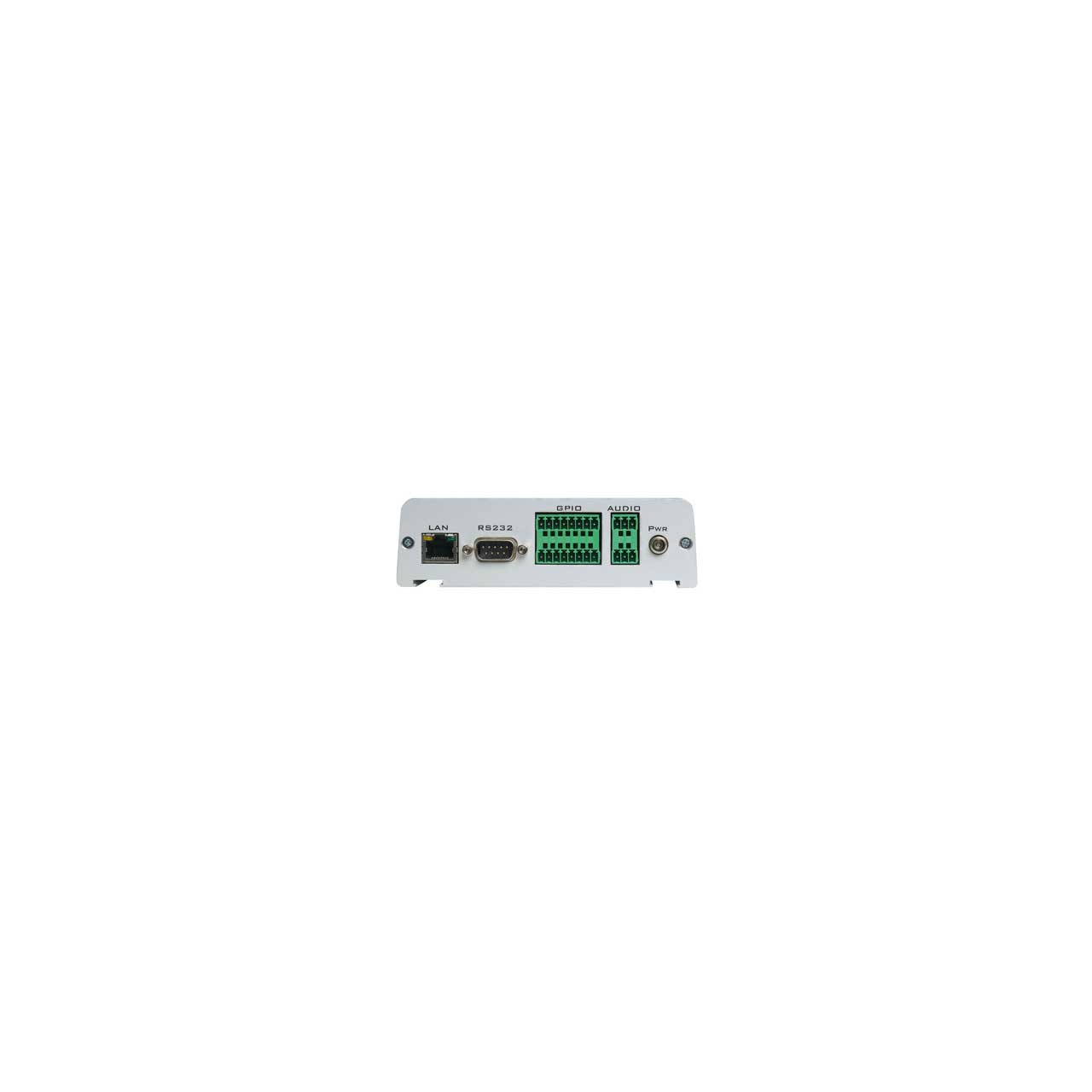

        Connectors
      • Analog audio: Terminal block
      • Network: 10/100 Mbit Ethernet (RJ45)
      • RS232: SubD 9pin male
      • GPIOs:
        4 GPO , 4 independant contact relays
        4 GPI , TTL input 5v/5mA overvoltage and EMC protections
        Terminal block
      • Headphone Out: 3.5 mm Jack
