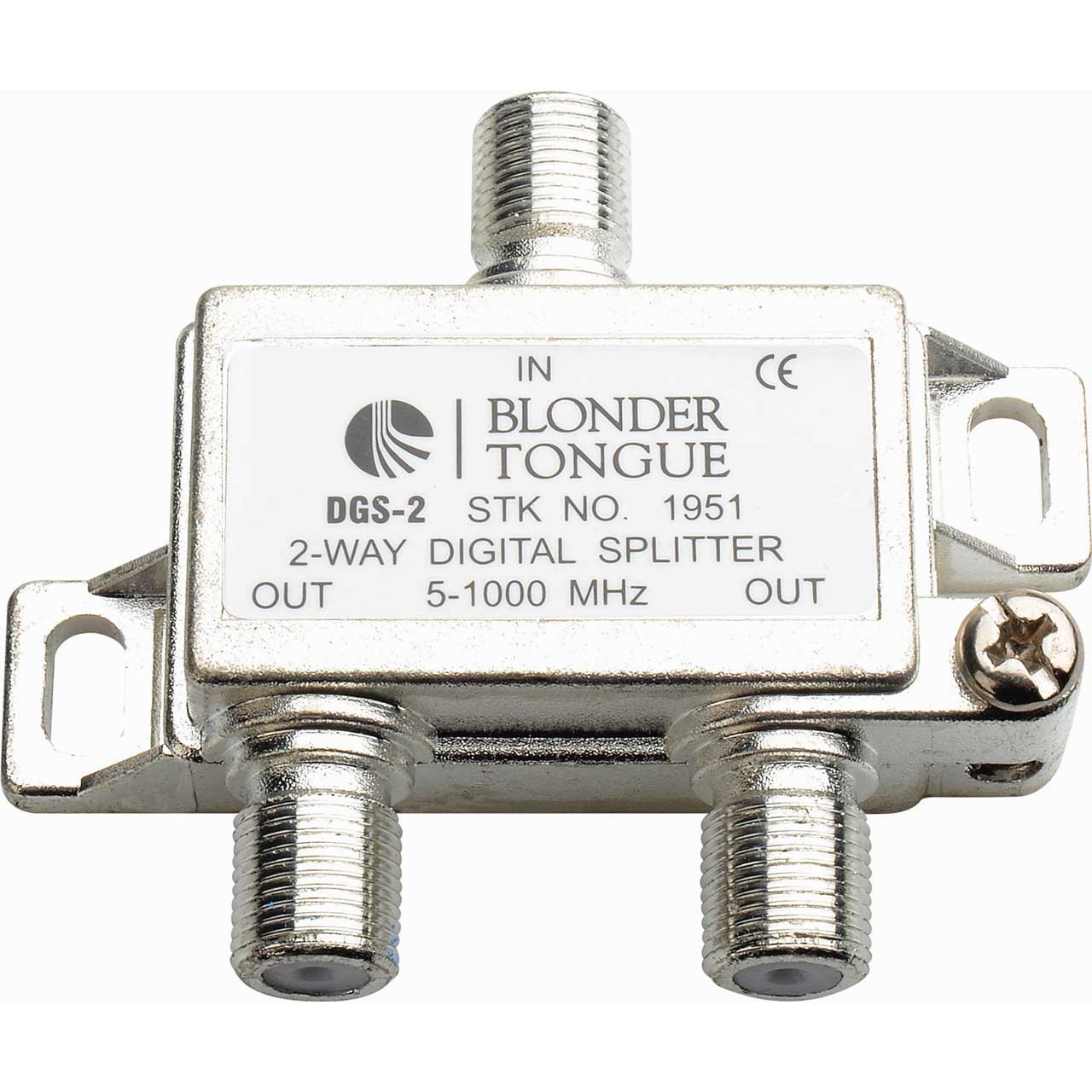

Blonder Tongue DGS-2 Solder Back Digital Ready 5 - 1000MHz 2-Way F Splitter - 25 Pack

DGS-2 - Overview

• Features:

  • Category A3 Standard 6kV, 100kHz Ring Wave Surge Withstand Capability on All Ports
  • -60dBmV Spurious Signals and 2nd Order Harmonics with a +55dBmV Return Input Carrier
  • -120dB RFI, Solder Back Design
  • Machine Threaded Flat F Ports
  • Compliant with SCTE Splitter Guidelines
  • Zinc Alloy Die-Cast Housing


• Specifications:

  Loss (dB)
  • 5 - 15MHz: 3.5
  • 15 - 42MHz: 3.5
  • 43 - 65MHz: 3.5
  • 66 - 250MHz: 3.5
  • 251 - 550MHz: 3.5
  • 551- 750MHz: 3.7
  • 751 - 1000MHz: 3.7

    Isolation (dB)
  • 5 - 15MHz: 30
  • 15 - 42MHz: 40
  • 43 - 65MHz: 30
  • 66 - 250MHz: 30
  • 251 - 550MHz: 30
  • 551 - 750MHz: 28
  • 751 - 1000MHz: 28

    Return Loss - Input (dB)
  • 5 - 15MHz: 25
  • 15 - 42MHz: 28
  • 43 - 65MHz: 28
  • 66 - 250MHz: 28
  • 251 - 550MHz: 28
  • 551- 750MHz: 25
  • 751 - 1000MHz: 25

    Return Loss - Output (dB)
  • 5 -15MHz: 30
  • 15 - 42MHz: 35
  • 43 - 65MHz: 25
  • 66 - 250MHz: 25
  • 251 - 550MHz: 25
  • 551 - 1000MHz: 25


  • Weight: 3.5lbs


• Warranty:

  • 1 Year Limited Warranty
