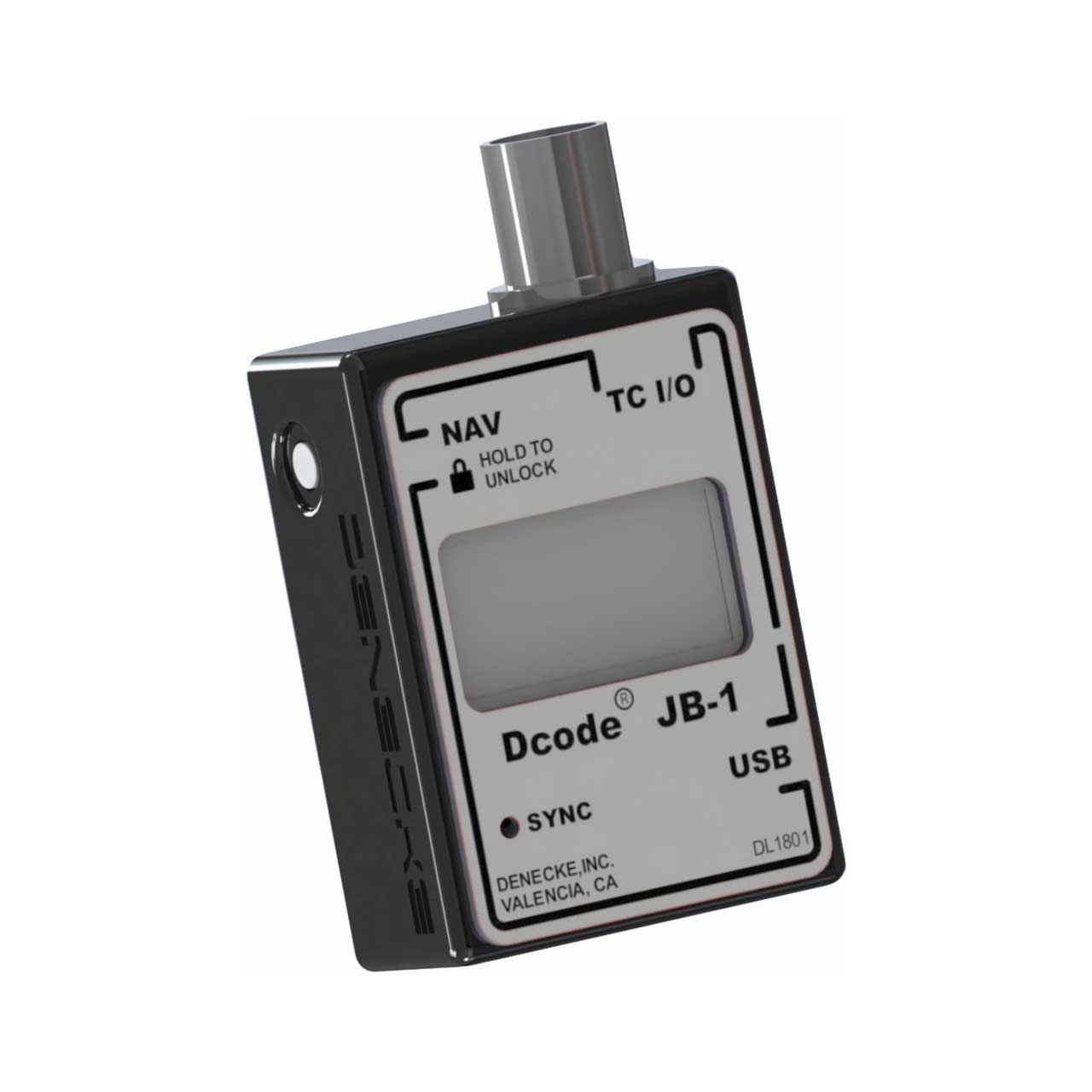

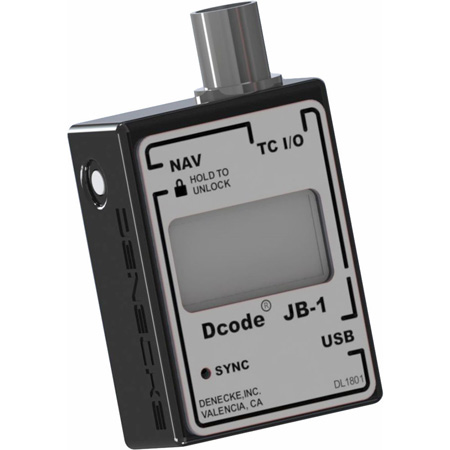

Denecke JB-1 Compact Synchbox Time Code Generator with Display - TCXO Crystal & 23.976 HD Compatible

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Denecke JB-1 Compact Synchbox Time Code Generator with Display - TCXO Crystal & 23.976 HD Compatible

    Manufacturer: Denecke Inc.

    Item #: DKE-JB-1   •   MFG #: JB-1



    List Price:$280.00
    Our Price:$266.00

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!





      The Denecke JB-1 features a display and menu system, which allows for ease of use and display of timecode and settings. It reads, generates and jam syncs to all standard frame rates including 23.976 for High Definition shoots. The JB-1 features an automatic jam sync capability, which senses the incoming timecode rate. Cross jamming of different rates can be accomplished as well. The advanced Temperature Compensated Crystal Oscillator (TCXO) has ten times the frequency stability than previous products, eliminating the need to jam more than once per day.


      • Features

        • Generates and Jam Syncs to all common SMPTE Timecode frame rates
        • Cross jams regardless of incoming frame rates
        • Sunlight-readable display with backlight
        • Bidirectional BNC
        • Selectable TC output levels (6 preset, 2 user), eliminating the need for external output reduction pads
        • Runs on a user replaceable internal LiPo battery cell
        • Simple to set up Reprogrammable for new features and updates, via both Mac and Windows computers
        • Very high stability crystal ensures low drift
        • Compact aluminum housing

      • Specifications

        • Input: -15dB @ 4.7K; BNC Connector TCXO Crystal: +/- 0.1PPM @ -40° to +85° C
        • Output: Six Preset and two User Programable levels between 0.00V to 2.40V; BNC Connector
        • Size: 1.84" (W) x 1.36" (H) x 0.63" (D); (46.7mm x 34.5mm x 15.9mm)
        • Battery Power: Internal LiPo cell Weight: 2 oz.
        • External Power: 5V, via Micro USB Connector Battery Life: Approx. 150 Hours (12 Hours with Back Light Continuously ON)
