DNF SW2X1-9 Serial A/B Switch Card - Requires SW2X1 Housing

SW2X1-9 - Overview

• Features:

  • Use as 2 IN x 1 OUT or 1 IN x 2 OUT
  • Passive IN to OUT (relay contacts)
  • Switch A 9-pin or B 9-pin to C 9-pin

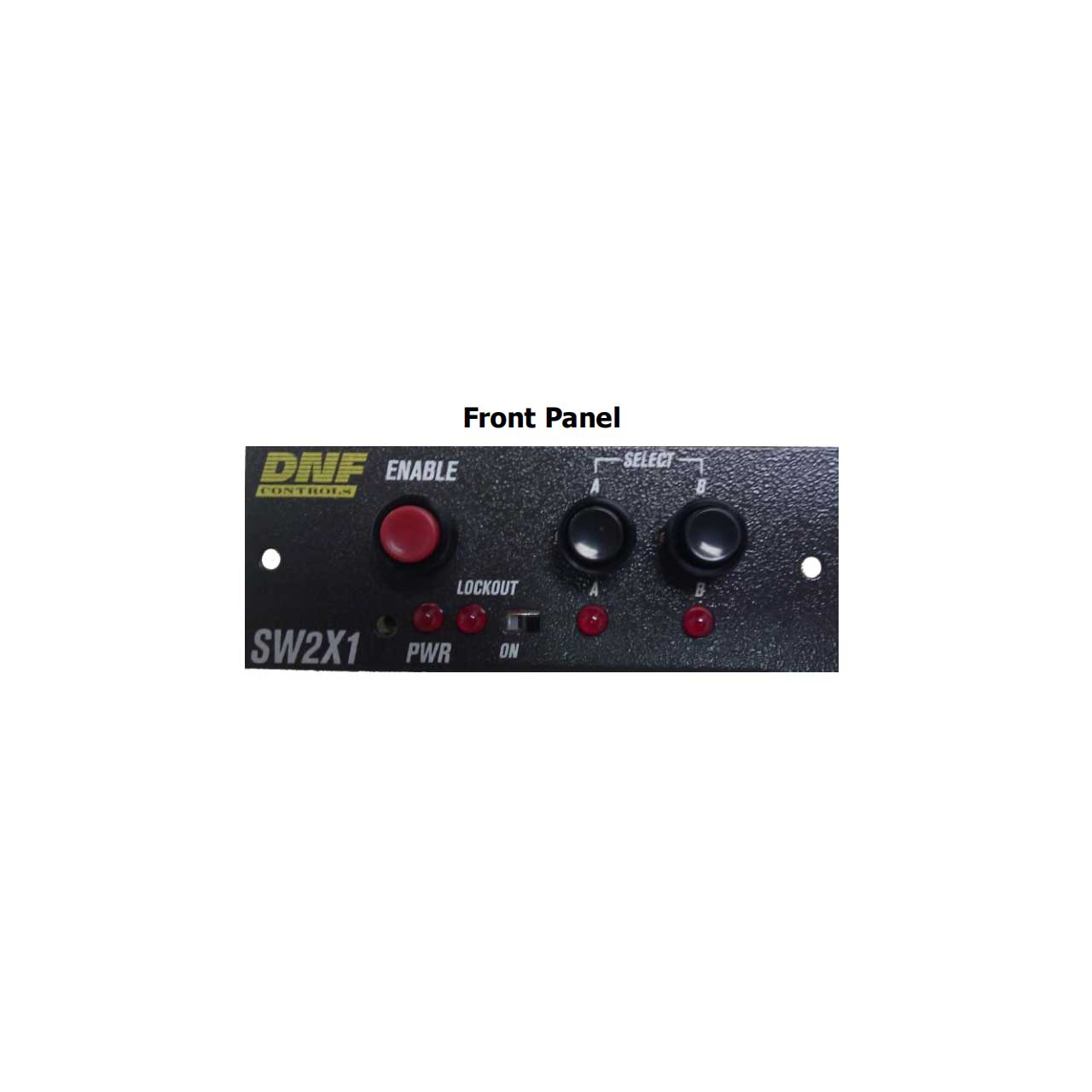

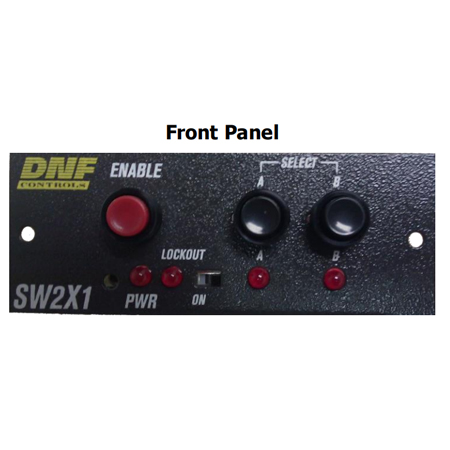

  • Front Panel: Select A or B
  • Lockout Front Panel switches
  • Remote: 2- GPI Inputs: Select A / Select B
  • 1- GPI Input: OFF= A, ON= B
  • Mounts in SW2X1 Rackmount Housing
  • ENABLE Switch eliminates errors


• Specifications:

  • IN/OUT Relay contact ratings:
  • Rated load: 0.50 A at 125 VAC, 1A 24 VDC
  • Carry current: 2 A
  • Max. operating voltage: 125 VAC, 60 VDC
  • Max. operating current: 1 A
  • Max. switching capacity: 62.50 VA, 30W
  • Contact resistance: 100 milliOhm
