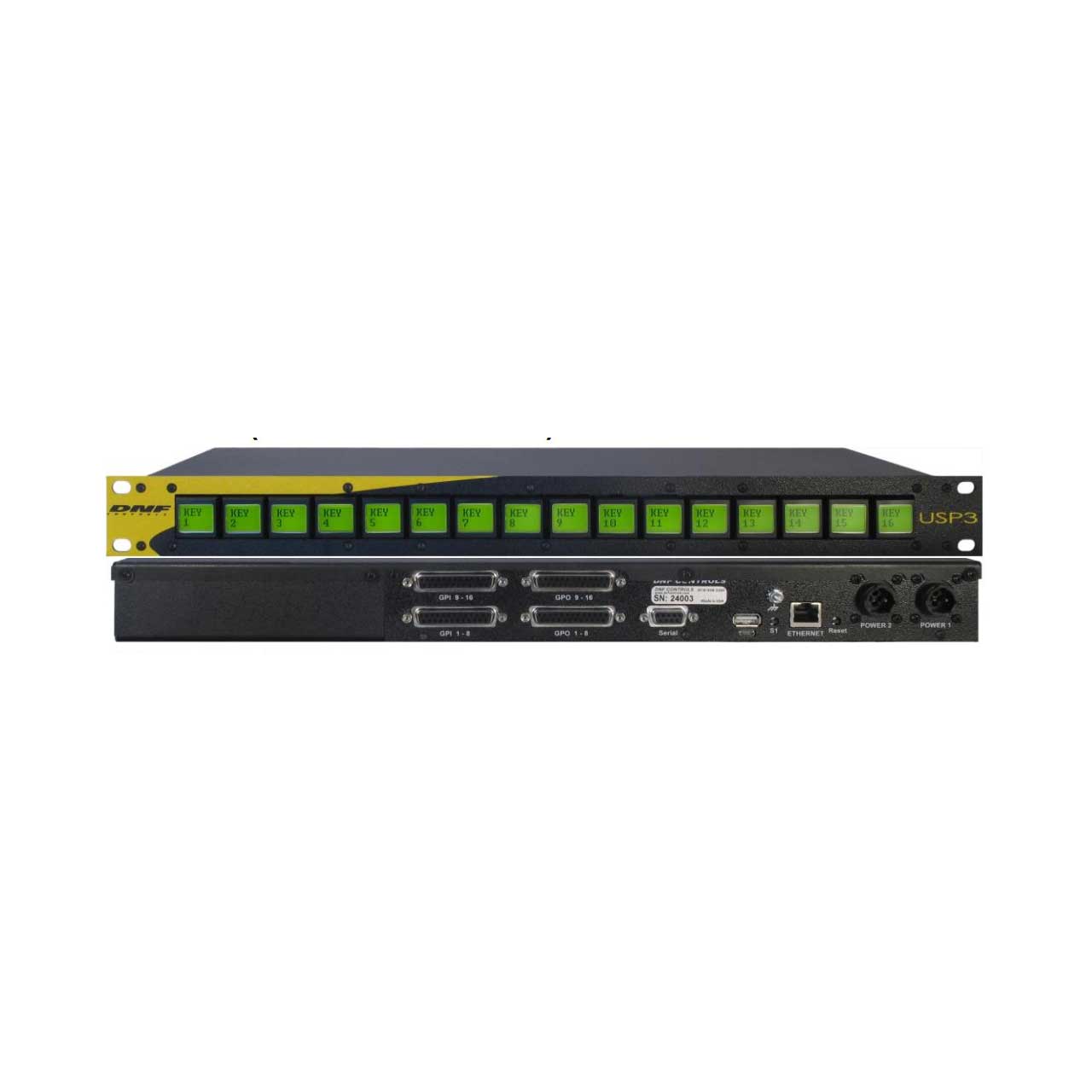

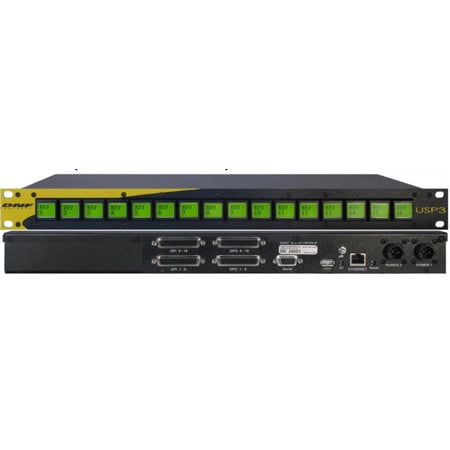

DNF USP3-16 Universal Switch Panel with 16 LCD Push Buttons - 1 RU

ITEM #: DNF-USP3-16 MFG #: USP3-16

free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    USP3-16 - Overview

    DNF Controls USP3-16 is the GO-TO Problem Solver. The Universal Switch Panel makes it easy to create just the right control interface and gives users control over only those functions they need to simplify operations and reduce errors. Show users only the device or system information, status and tallies they need in order to react quickly and accurately to any situation.

    Use the USP3 to extend the life of legacy equipment, integrate new & legacy during transition, and provide new equipment with a known, familiar, user friendly interface. The USP3 supports GPI and push button control of GPI Outputs, serial RS232 & RS422 messages, and Ethernet TCP / UDP / SNMP / HTTP messaging.

    Easy Setup
    Using a standard web browser to assign functions to keys, enter key text, and select key colors, simply complete the text boxes and choose options from the drop-down menu to configure. Save USP3 configuration to your PC. Create multiple configurations for special events, weekend staffing, and temporary needs. Copy saved configurations from / to other panels.

    • Features:

      • Fast Ethernet, 100baseT full-duplex
      • RS232/RS422 serial port
      • Ability to manage the simplest to the most sophisticated control applications
      • Generate & Monitor ASCII / Hex Command data
      • SNMP Transmit & Receive
      • Give operators the control they need over the machines they depend upon
      • Simplifies complex user interfaces
      • Monitors & Controls multiple devices from a single panel
      • Limits control and tallies to what operators need
      • Button press controls GPI Output(GPO) On/Off, and transmits serial & Ethernet messages
    • Specifications:

      • LCD Push Buttons: 16
      • GPIs: 16 opto-isolated inputs
      • GPOs: 16 isolated relay contact closures
      • Serial: RS422 / RS232
      • Ethernet: 100BaseT Full Duplex
      • Redundant Power Supplies (optional)
