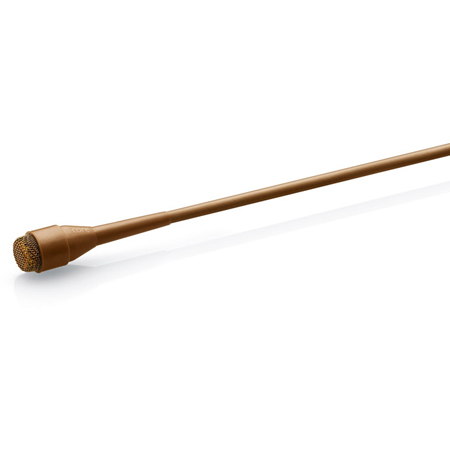

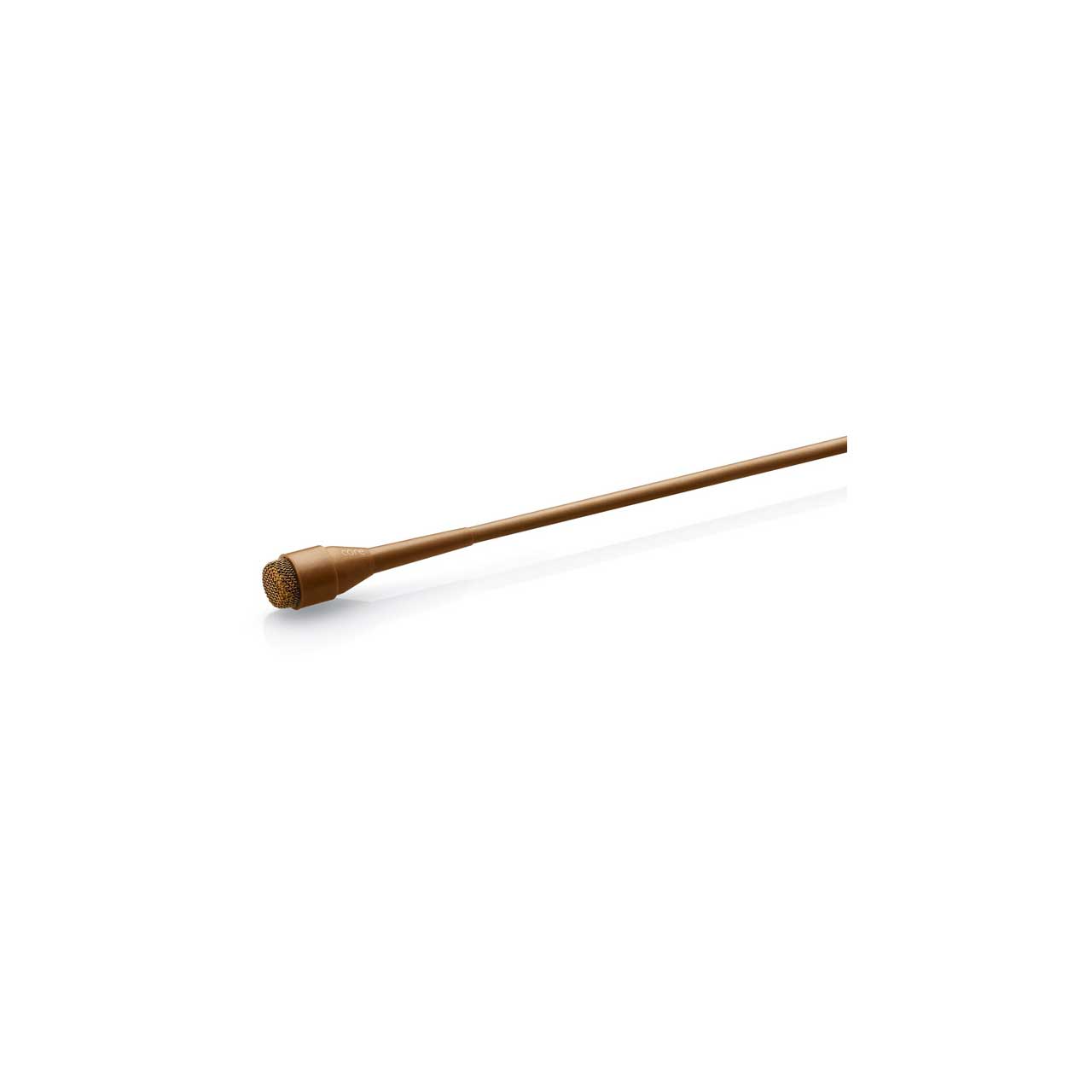

DPA 4060-OC-C-C104060 CORE Normal-Sensitivity Omni Lavalier Mic with TA4F Adapter for Shure - Brown

ITEM #: DPA-4060-OC-CC10 MFG #: 4060-OC-C-C10

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$615.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    4060-OC-C-C10 - Overview

    Big Sound - Small Footprint

    The DPA 4060-OC-C-C104060 omnidirectional condenser lavalier microphone is small in size, but mighty in flexibility. Due to its miniature size, it exhibits an exceptionally accurate omnidirectional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup. The omnidirectional pattern also makes it less sensitive to handling noise as well as pop and wind noise.

    DPA originally designed this microphone for use with wireless systems in theaters but today it is one of the most loved mics for television and film applications as well. It is especially suited for capturing speech in all of its nuances and can be used to close-mike a wide range of instruments. This microphone handles sound pressure levels up to 134 dB before clipping occurs. This mic is well suited for applications where the sound source is more remote or damped and you need to have a good balance signal versus noise.

    • Features:

      • TA4F Adapter for Shure
      • Uniform, consistent sound between DPA mics
      • Extremely rugged and reliable
      • Diminutive size made for flexible and easy concealment
      • Large selection of clips, windscreens, grids and other accessories
      • Modular adapter system fits most professional wireless systems

    • Specifications:

      • Directional pattern: Omnidirectional
      • Principle of operation: Pressure
      • Cartridge type: Pre-polarized condenser
      • Frequency response: 20 Hz - 20 kHz
      • Effective frequency range ±2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
      • Sensitivity, nominal, ±3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa
      • Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 æPa (max. 26 dB(A))
      • Equivalent noise level, ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)
      • Distortion, THD < 1% - Legacy: 120 dB SPL RMS, 123 dB SPL peak
      • Distortion, THD < 1% - CORE: 126 dB SPL RMS, 129 dB SPL peak
      • Dynamic range - Legacy: Typ. 100 dB
      • Dynamic range - CORE: Typ. 106 dB
      • Max. SPL, THD 10%: 134 dB SPL peak
      • Rated output impedance: 30-40 Ω
      • Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
      • Power supply (for full performance): For wireless systems: Min. 5 V - max. 10 V through DPA adapter
      • With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
      • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
      • Color: Brown
      • Weight: 7.5 g (0.26 oz) incl. Cable
      • Microphone diameter: 5.4 mm (0.21 in)
      • Microphone length: 12.7 mm (0.5 in)
      • Cable length: 1.8 m (5.9 ft)
      • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
      • Temperature range: -40°C to 45°C (-40°F to 113°F)
      • Relative humidity (RH): Up to 90%
      • Sensitivity selection tolerance (at 1 kHz): ±1.5 dB

    • Item Includes:

      • 1x 4060 Miniature Omnidirectional Microphone, Normal SPL
      • 1xTA4F Adapter for Shure

    • Warranty:

      • 2-Year Limited Warranty
