This series contains the 4060, 4061, 4062, 4063 and 4071 Omni Miniature Mics. Each version is tailored towards a specific application based on sensitivity, voltage and placement needs. They are all based on the original 4060; the very first miniature microphone developed by DPA from the best technology previously only used in hearing aids and measurement microphones. All of the mics in the series share important basic features, but each is optimized for particular applications.
The series was developed to withstand the toughest of conditions. They contain a 5.4 mm diameter pre-polarized condenser element with a vertical diaphragm. This unique, Double Vent Protection System makes the mics greatly resistant to humidity and sweat. These mics are also designed with a Kevlar-reinforced cable relief, which is built to withstand the constant twists, bends and pulls that are part of the everyday use in harsh environments.
The acoustic response of the 4060 Series can be modified by selecting the correct grid for the job. Two grids are supplied with each microphone (not the 4071, which includes a fixed grid). The pre-fitted Soft Boost Grid gives a 3 dB soft boost at 8-20 kHz. It should be used when the microphone is mounted on the performer’s head as well as in most other applications where you need a natural-sounding microphone. When fitted, the High Boost Grid introduces a 10 dB soft boost around 12 kHz for applications where the microphones chest-placement is preferred. Both of these grids are made of anodized stainless steel, giving a tough and scratch resistant surface. They can be detached from the microphone and cleaned of sweat, makeup, etc.

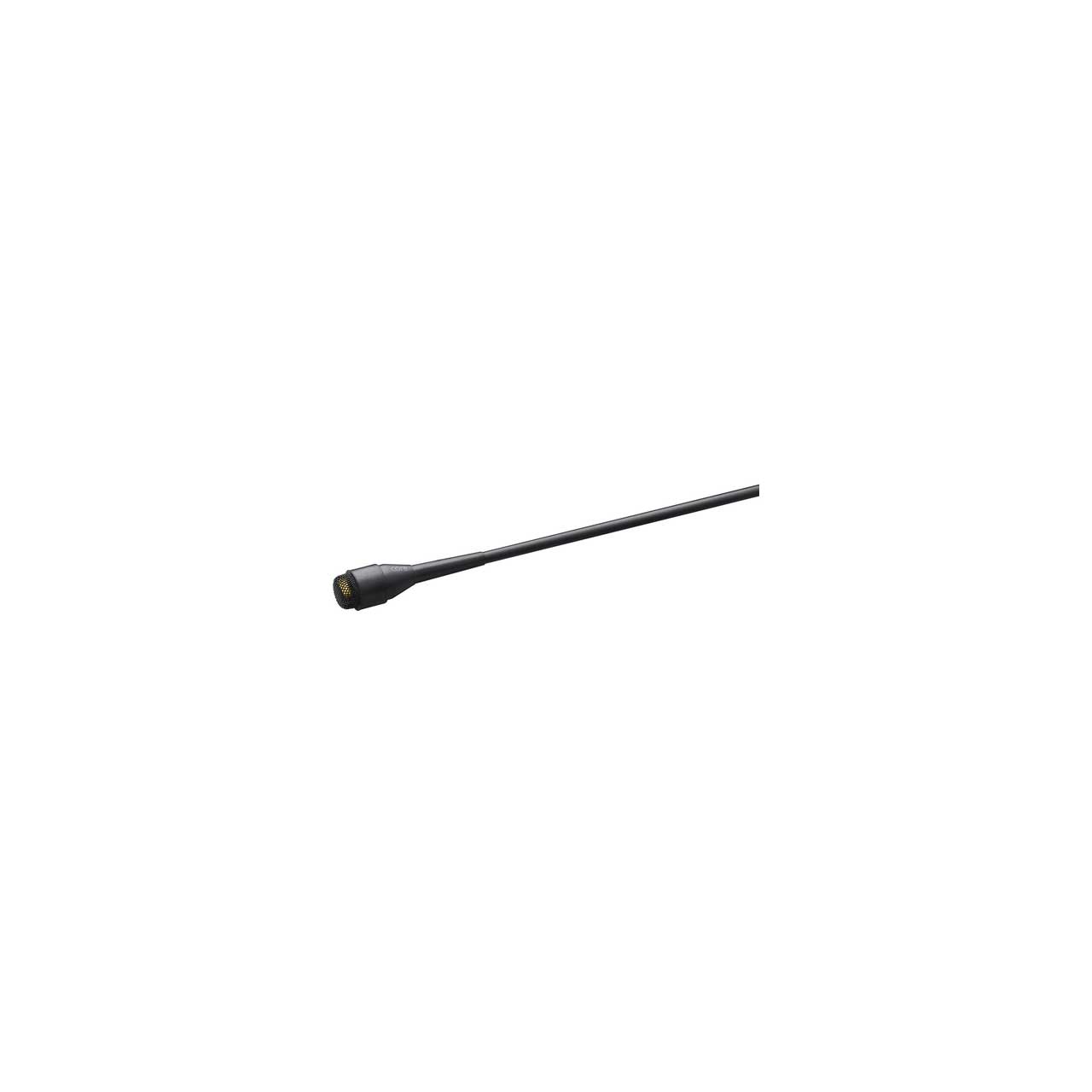

4062 Miniature Omnidirectional Microphone, Extreme SPL
This mic is similar to the others in this series, but is sensitivity adjusted to match extremely loud sound pressure levels. With the correct power source, the microphone will be able to handle sound pressure levels up to 154 dB before clipping occurs, making it ideal for close-miking drums and brass. The microphone is also the perfect choice for miking in the engine compartment of cars or directly in the exhaust pipes.
The 4062 Miniature Omnidirectional Microphone, Extreme SPL; is available in two colors: black and beige.
