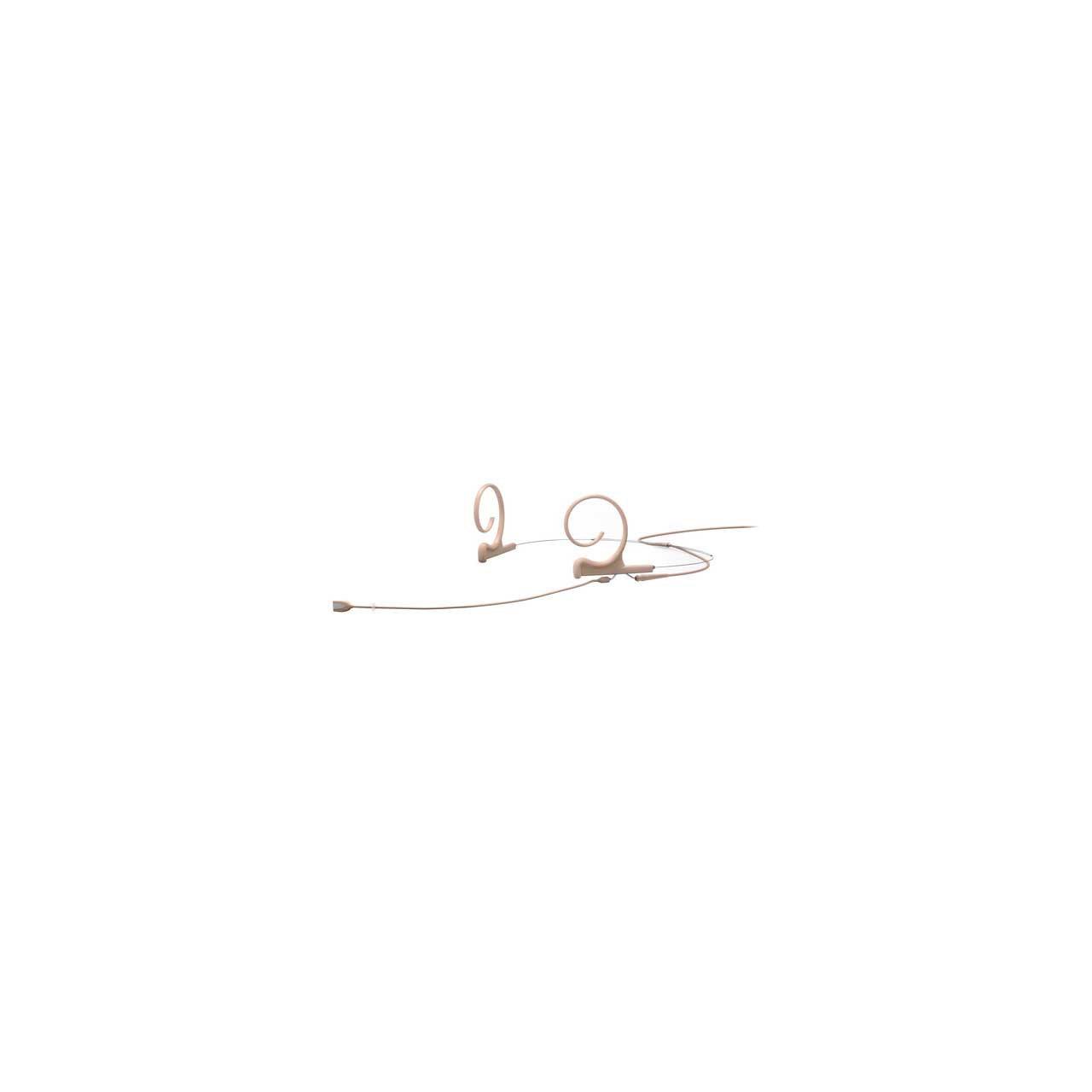

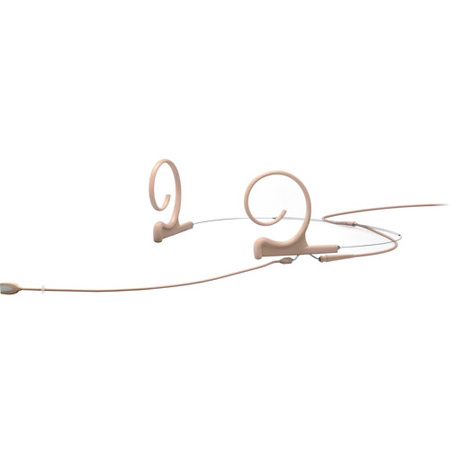

DPA 4166-OC-F-F34-LH CORE Slim Omni Flex Headset Microphone - 110mm Boom - Beige - Mini-Jack

ITEM #: DPA-4166OCFF34LH MFG #: 4166-OC-F-F34-LH

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$1,000.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    4166-OC-F-F34-LH - Overview

    The beige d:fine Core 4166 Slim Omni Flex Headset Mic 110mm Boom with 1/8" Mini Jack from DPA combines the sound of the d:fine 4066 omnidirectional capsule and Core amplifier in a lightweight and flexible two-ear headset. It can be used when miking needs to be fast, easy, and where the person wearing the microphone won't feel the presence of it such as in conference, speech, and active live performance applications.

    The Core 4166 gets a 14 dB increase in dynamic range than the Legacy version and is ergonomically designed to fit comfortably. It easily adjusts to fit any ear size and head shape while at the same time, it mounts securely and is hardly visible. By rotating the boom and the ear hook, the microphone can be used on either the left or the right ear. In addition, the connector splits the cable from the microphone boom allowing you to swap broken cables and/or wireless connectors quickly. Finally, it includes three windscreens, a clothing clip, ID rings, and a cover.

    • Features:

      • Pristine audio quality
      • Lightweight and flexible
      • Easy mounting to the left or right
      • Minimal visual impact
      • Resistant to humidity
      • Flexible adapter system fits most professional wireless systems

    • Specifications:

      • Directional pattern: Omnidirectional
      • Principle of operation: Pressure
      • Cartridge type: Pre-polarized condenser
      • Frequency response: 20 Hz - 20 kHz
      • Effective frequency range: ±2 dB40 Hz - 20 kHz with 3 dB soft boost at 8 - 15 kHz
      • Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
      • Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
      • Distortion, THD < 1% - Legacy: 120 dB SPL RMS, 123 dB SPL peak
      • Distortion, THD < 1% - CORE: 134 dB SPL RMS, 137 dB SPL peak
      • Dynamic range - Legacy: Typ. 97 dB
      • Dynamic range - CORE: Typ. 111 dB
      • Max. SPL, THD 10%: 144 dB SPL peak
      • Rated output impedance: 30 - 40 ?
      • Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
      • Output balance principle: Signal balanced with DAD6001-BC XLR Adapter
      • Power supply (for full performance)For wireless systems: Min. 5 V - max. 10 V through DPA adapter
      • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
      • Connector: MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
      • Color: Black, beige or brown
      • Weight: Microphone boom: 0.8 g (0.03 oz). Earhook: 1.1 g (0.04 oz). Cable: 6.6 g (0.23 oz). Total: 8.5 g (0.30 oz)
      • Microphone diameter: 5.4 mm (0.21 in)
      • Microphone length: Boom length: Normal: 120 mm (4.7 in), Medium: 100 mm (3.9 in)
      • Cable length: 1.3 m (4.3 ft)
      • Cable color: Beige
      • Cable diameter: 1.6 mm (0.06 in)
      • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
      • Electromagnetic compatibility: (EMC)Fully compatible
      • Temperature range: -40°C to 45°C (-40°F to 113°F)
      • Relative humidity (RH): Up to 90%

    • Item Includes:

      • 1x DPA Microphones d:fine Core 4166 Slim Omni Flex Headset Mic, 110mm Boom with 1/8" Mini Jack (Beige)
      • 3x Foam Windscreens
      • 1x ID Rings and Cover
      • 1x Clothing Clip

    • Warranty:

      • Limited 2 Year Warranty

    • GTIN:

      5713055016654
