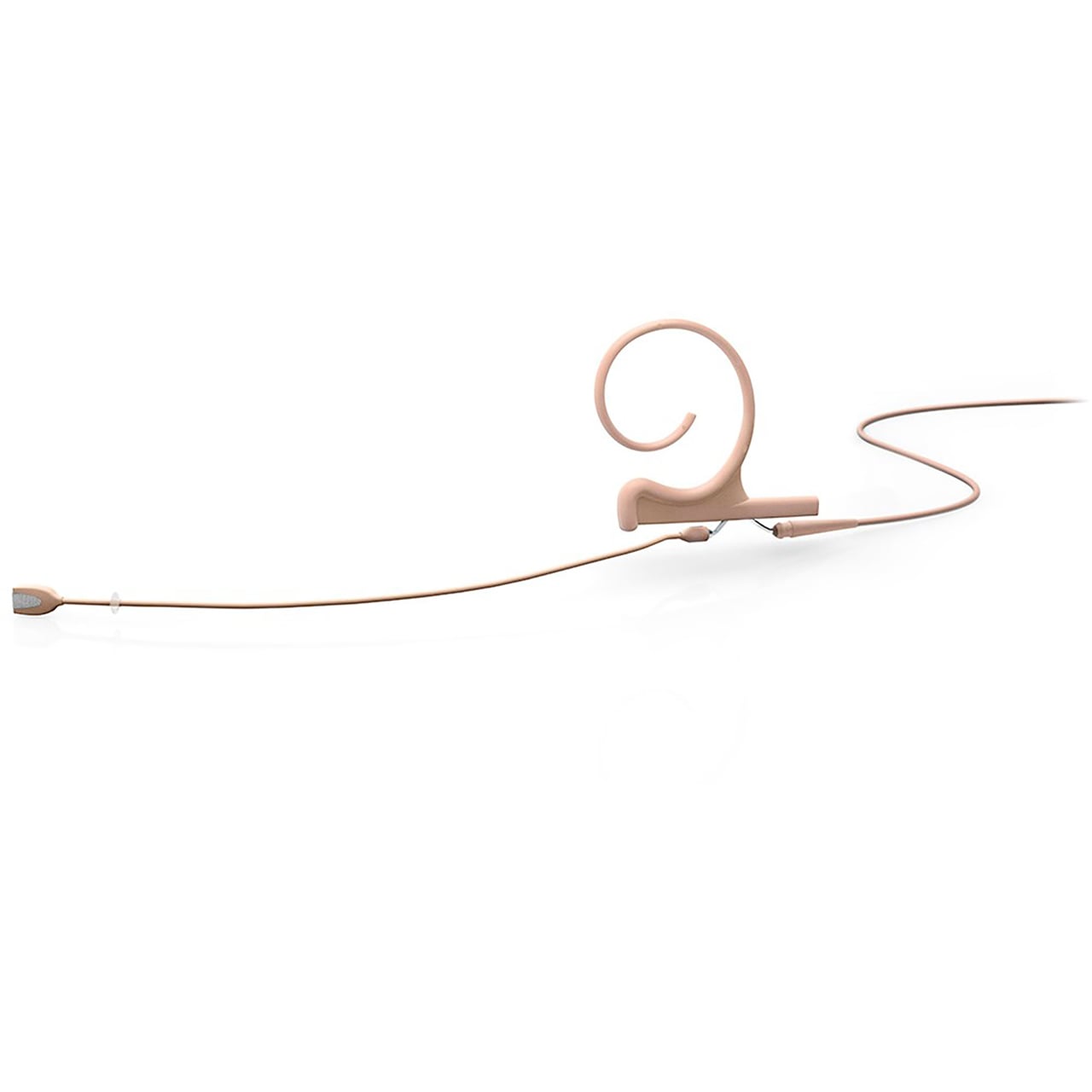

DPA 4188 CORE+ IP58 Directional Flex Cardioid Earset Mic with 120mm Boom and Mini-Jack - Beige

ITEM #: DPA-4188DPFF34LE MFG #: 4188-DP-F-F34-LE

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$1,120.00

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup


4188-DP-F-F34-LE - Overview

The DPA 4188 CORE+ Earset Mic combines the sound of the 4088 directional capsule and a lightweight and flexible one-ear earset. CORE+ is a revolutionary leap ahead in microphone design, blurring the lines between what is and isn't acoustically possible. This technology neutralizes distortion across the entire dynamic range of the microphone making any residual distortion imperceptible to the naked ear and virtually unmeasurable. It can be used when miking needs to be fast, easy, and where the person wearing the microphone won't feel the presence of it such as in conference, speech and active live performance applications.

Features of CORE+:
• Effectively negates microphone distortion across the entire dynamic range
• Captures the purest, clearest sound at the source
• Lets sound engineers focus on shaping an extraordinary experience for the audience
• Reduces hassle from unpredictable challenges in the live show environment

Audio Will Never Be The Same
Removing these remnants of distortion allows sound engineers to capture a new level of audio clarity easily and efficiently, so they can shape an extraordinary listening experience for the audience.

Distortion Free
Microphones with CORE+ deliver crystal clear, distortion-free sound across the entire dynamic range of the microphone. Anyone seeking the highest possible sound quality will appreciate CORE+.

Whether recording or amplifying content, the sound will remain clear and completely undistorted by the microphone, even when the talent speaks or sings at louder volumes.

  • Features:

    • CORE+ technology
    • Pristine audio quality
    • Lightweight and flexible
    • Easy mounting to the left or right
    • Minimal visual impact
    • Resistant to humidity
    • Flexible adapter system fits most professional wireless systems
    • Effectively negates microphone distortion across the entire dynamic range
    • Captures the purest, clearest sound at the source
    • Lets sound engineers focus on shaping an extraordinary experience for the audience
    • Reduces hassle from unpredictable challenges in the live show environment

  • Specifications:

    • Directional Pattern: Cardioid
    • Principle of Operation: Pressure gradient
    • Cartridge Type: Pre-polarized condenser
    • Frequency Response: 20Hz - 20kHz
    • Sensitivity, Nominal, ±3dB at 1kHz: 6mV/Pa; -44dB re. 1V/Pa
    • Equivalent Noise Level, A-weighted: Typ. 26dB(A) re. 20µPa (max. 28dB(A))
    • Equivalent Noise Level, ITU-R BS.468-4: Typ. 38dB (max. 40dB)
    • Distortion, THD < 0.5%: 137dB SPL RMS, 140dB SPL peak
    • Distortion, THD < 1%: 139dB SPL RMS, 142dB SPL peak
    • Dynamic Range:
      - Typ. 116dB
      - Max. SPL, THD 10%
      - 146dB SPL peak
    • Rated Output Impedance:
      - From MicroLock: 30Ω - 40Ω
      - From DAD9001: 100Ω
    • Cable Drive Capability: Up to 984ft (300m) with DAD9001 XLR Adapter
    • Output Balance Principle: Signal balanced with DAD9001 XLR Adapter
    • Common Mode Rejection Ratio (CMRR): > 60dB from 50Hz - 15kHz with DAD9001 XLR Adapter
    • Power Supply (for full performance):
      - For wireless systems min. 5V - max. 10V through DPA adapter
      - With DAD9001: P48 (Phantom Power). Will work from 12V.
    • Current Consumption:
      - Typ. 1.5mA (microphone)
      - 3.5mA with DAD9001 XLR Adapter
    • Connector: Mini-Jack
    • Weight:
      - Microphone Boom: 0.03oz (0.8g)
      - Earhook: 0.04oz (1.1g)
      - Cable: 0.23oz (6.6g)
      - Total: 0.30oz (8.5g)
    • Microphone Diameter: 0.21" (5.4mm)
    • Cable Length: 4.3ft (1.3m)
    • Cable Diameter: 0.06" (1.6mm)
    • Polarity: +V at MicroLock pin for positive sound pressure (and pin 2 on DAD9001 XLR adapter)
    • Electromagnetic Compatibility (EMC): Fully compatible
    • Temperature Range: -40°F - 113°F (-40°C - 45°C)
    • Relative Humidity (RH): Up to 90%

  • Item Includes:

    • 1x DPA 4188 CORE+ IP58 Directional Flex Cardioid
    • Earset Mic with 120mm Boom and Mini-Jack

  • Warranty:

    • 2 Year Warranty
