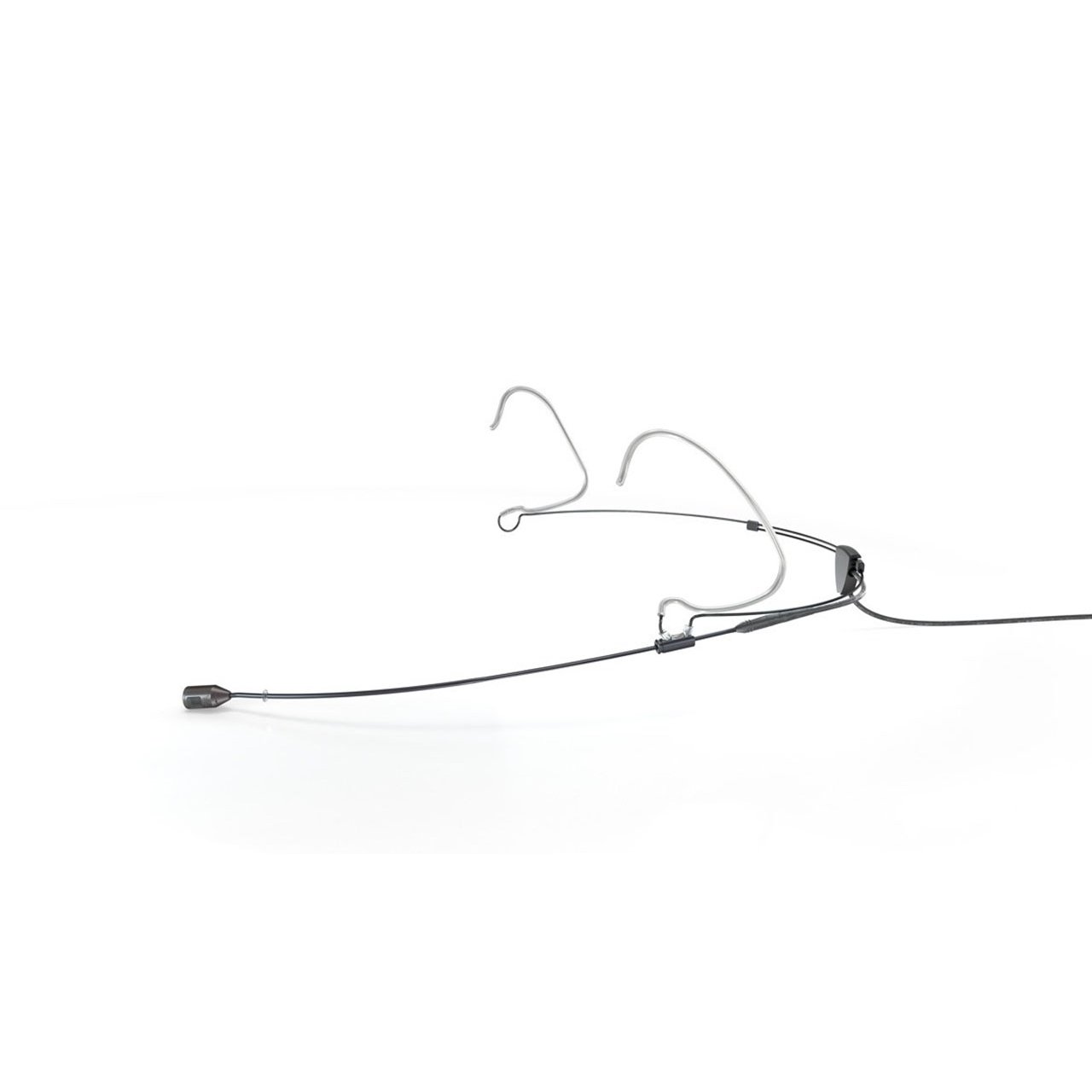

DPA 4488 CORE+ IP58 Directional Cardioid Headset Mic with TA4F Mini-XLR - Black

ITEM #: DPA-4488-DP-RB10 MFG #: 4488-DP-R-B10

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$1,160.00

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup


4488-DP-R-B10 - Overview

The DPA 4488 CORE+ Directional Headset Microphone combines DPA's renowned 5 mm capsules with CORE+. CORE+ is a revolutionary leap ahead in microphone design, blurring the lines between what is and isn’t acoustically possible. This technology neutralizes distortion across the entire dynamic range of the microphone making any residual distortion imperceptible to the naked ear and virtually unmeasurable. These are the most advanced headsets - secure, durable and flexible - for segments including: Theatre, Broadcast, House of Worship and Conferencing.

Audio Will Never Be The Same
Removing these remnants of distortion allows sound engineers to capture a new level of audio clarity easily and efficiently, so they can shape an extraordinary listening experience for the audience.

Features of CORE+:
• Effectively negates microphone distortion across the entire dynamic range
• Captures the purest, clearest sound at the source
• Lets sound engineers focus on shaping an extraordinary experience for the audience
• Reduces hassle from unpredictable challenges in the live show environment

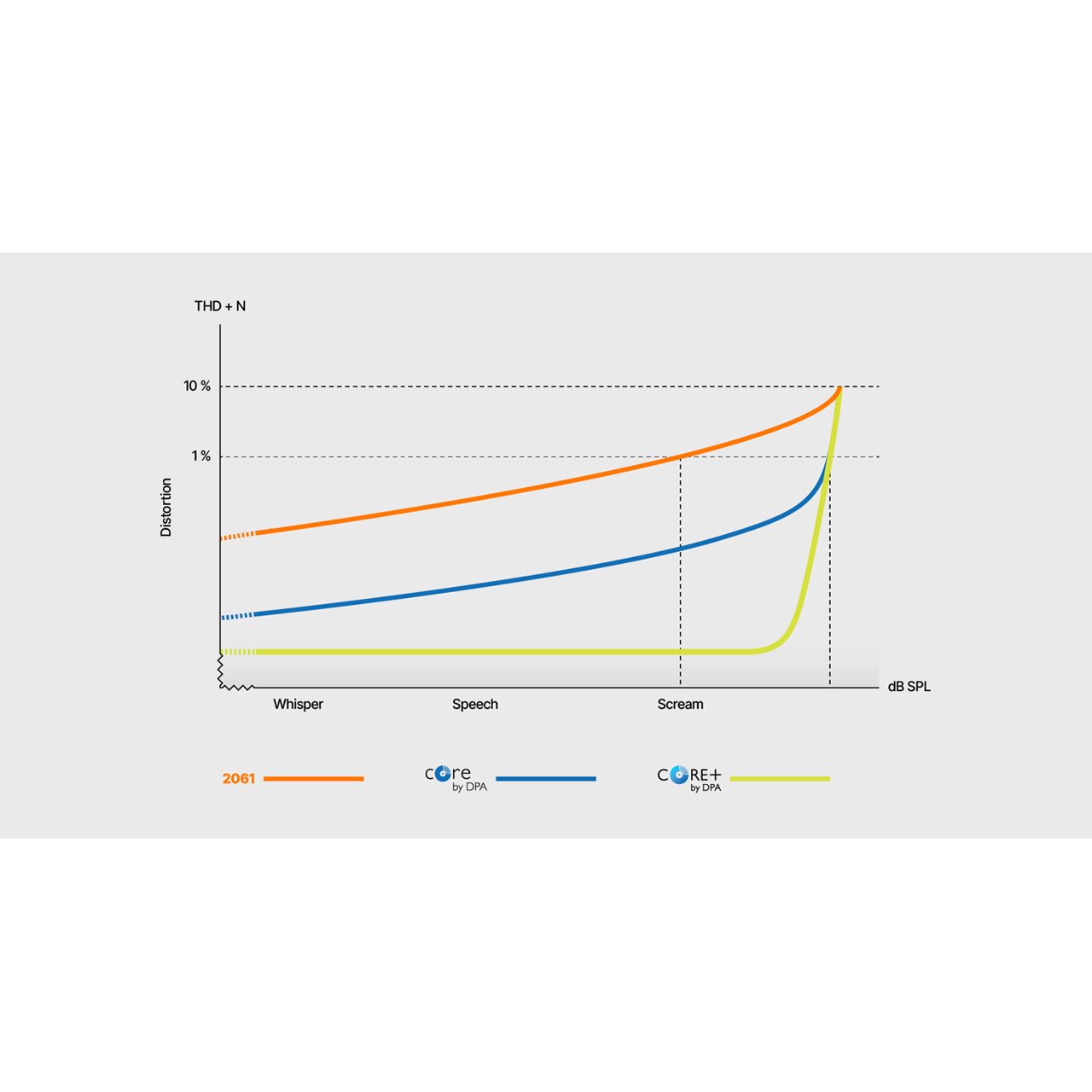

Distortion Free..
Microphones with CORE+ deliver crystal clear, distortion-free sound across the entire dynamic range of the microphone. Anyone seeking the highest possible sound quality will appreciate CORE+.

Whether recording or amplifying content, the sound will remain clear and completely undistorted by the microphone, even when the talent speaks or sings at louder volumes.

  • Features:

    • CORE+ technology
    • One-size-fits-all - head sizes and shapes
    • Comfortable 3-point grip - above, below, behind the ear
    • Easily adjustable - frame size, boom length, placement
    • 90° adjustable cable guide - keeps cable out of sight
    • Non-reflective PVD surface on headset frame, boom, capsule

  • Specifications:

    • Directional Pattern: Cardioid
    • Principle of Operation: Pressure gradient
    • Cartridge Type: Pre-polarized condenser
    • Frequency Response: 20 Hz - 20 kHz
    • Sensitivity, Nominal, &plsumn;3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
    • Equivalent Noise Level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
    • Equivalent Noise Level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
    • Distortion, THD < 0.5%: 137 dB SPL RMS, 140 dB SPL peak
    • Distortion, THD < 1%: 139 dB SPL RMS, 142 dB SPL peak
    • Dynamic Range: Typ. 116 dB
    • Max. SPL, THD 10%: 147 dB SPL peak
    • Rated Output Impedance: 30 - 40 Ω
    • Cable Drive Capability: Up to 984 ft (300 m) with DAD9001 XLR Adapter
    • Power Supply (for full performance):
      - For wireless systems Min. 5 V - max. 10 V through DPA adapter
      - With DAD9001: P48 (Phantom Power). Will work from 12 V
    • Current Consumption:
      - Typ. 1.5 mA (microphone)
      - 3.5 mA with DAD9001 XLR Adapter
    • Connector: TA4F Mini-XLR
    • Weight: 0.4 oz (18 g) incl. Cable and MicroLock connector
    • Microphone Diameter: 0.21" (5.4 mm)
    • Cable Length: 4.3 ft (1.3 m)
    • Cable Diameter: 0.06" (1.6 mm)
    • Polarity: Positively increasing sound pressure produces positive going voltage on MicroLock pin
    • Temperature Range: -40°F to 113°F (-40°C to 45°C)
    • Relative hUmidity (RH): Up to 90%

  • Item Includes:

    • 1x DPA 4488 CORE+ IP58 Directional Cardioid Headset Mic with TA4F Mini-XLR - Black
    • 1x MicroLock to TA4F Mini-XLR Adapter

  • GTIN:

    5713055030513
