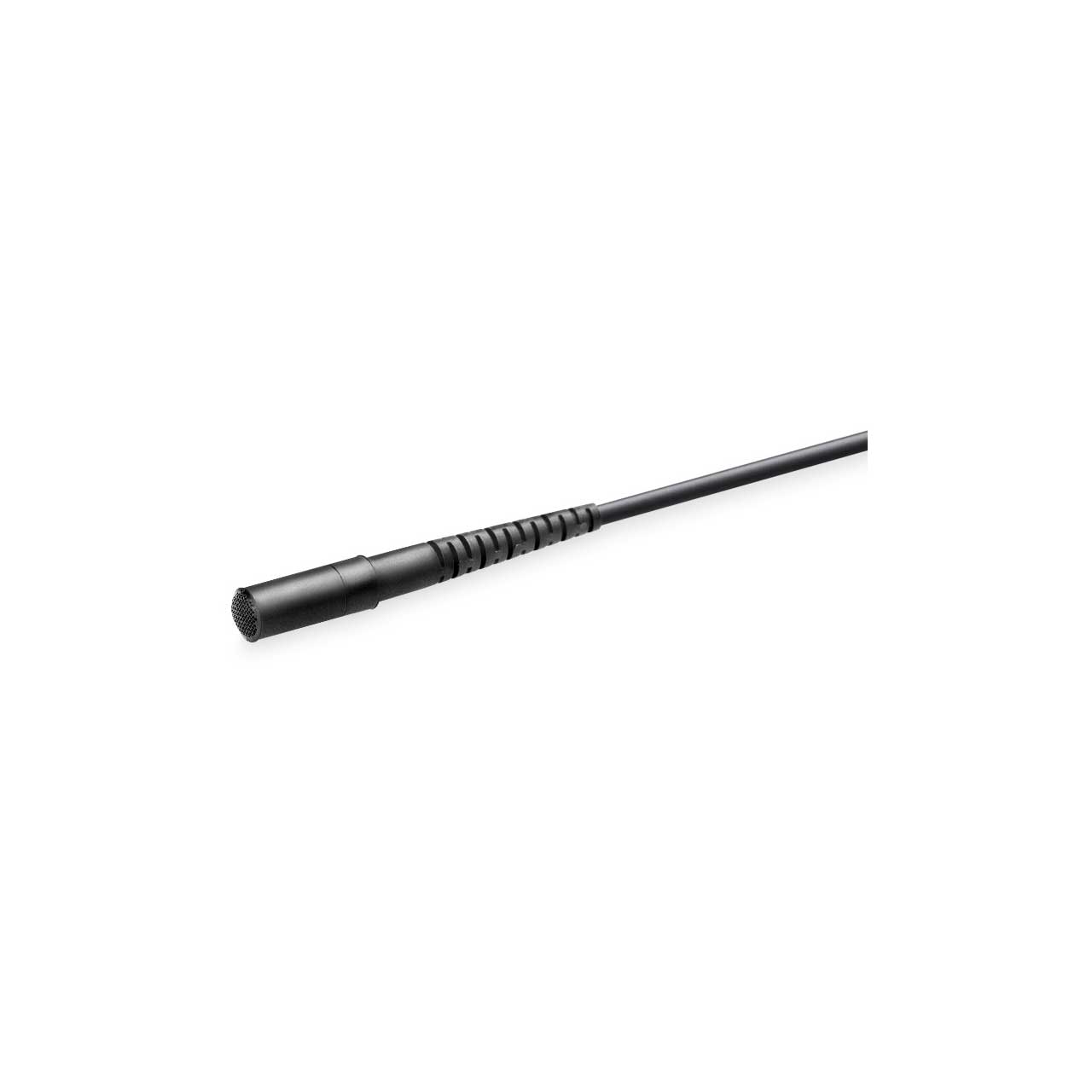

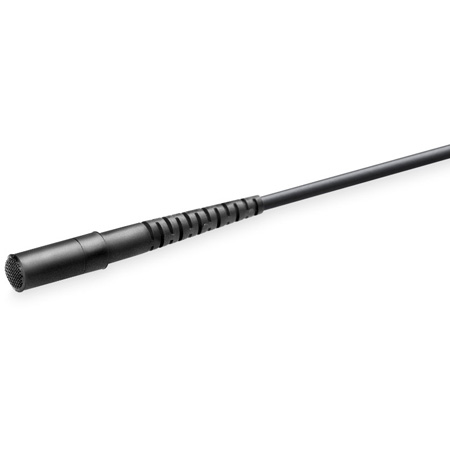

DPA 4660-OC-H-B00 CORE Heavy Duty Omni Microphone - Normal SPL - Black - MicroDot Only

ITEM #: DPA-4660-OC-HB00 MFG #: 4660-OC-H-B00

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$575.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    4660-OC-H-B00 - Overview

    Made for situations where you require maximum security and where the visual size of the mic is less important. The Heavy Duty Mic Series features a stainless steel housing, a heavy-duty cable relief and a thick 2.2 mm (0.09 in) cable. Our Heavy Duty microphones are a more robust version of the original mics they are based upon.

    These microphones withstand the toughest of conditions. They are designed with an extra-robust, Kevlar-reinforced cable and a strain relief, which is built to withstand the constant twists, bends and pulls that are part of the everyday use in harsh environments. A 5.4 mm diameter pre-polarized condenser element with a contained within a vertical diaphragm called the Double Vent Protection System, which makes the mics extremely resistant to humidity and sweat.

    4660 Heavy Duty Miniature Omnidirectional Microphone, Normal SPL
    A very flexible and durable miniature microphone, the 4660 Heavy Duty exhibits an exceptionally accurate omnidirectional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup. It is especially suited for capturing speech in all of its nuances and can be used for very high-end ambient recordings where space is limited or the microphone needs to be hidden.. This microphone handles sound pressure levels up to 134 dB before clipping occurs.

    This mic is available in two colors: black and beige.

    • Features:

      • The most rugged and reliable version of DPA miniatures
      • Stainless steel housing, heavy-duty strain relief and thick cable
      • Exceptional audio quality
      • Uniform, consistent sound between DPA mics
      • Sturdy but small for flexible and easy concealment
      • Modular adapter system fits most professional wireless systems

    • Specifications:

      • Directional pattern: Omnidirectional
      • Principle of operation: Pressure
      • Cartridge type: Pre-polarized condenser
      • Frequency response: 20 Hz - 20 kHz
      • Effective frequency range, ±2 dB, Near field 2-3 cm (0.8 - 1.2 in): 100 Hz - 20 kHz (4 - 6 dB soft boost at 15 kHz)
      • Sensitivity, nominal, ±3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa
      • Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
      • Equivalent noise level, ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)
      • Distortion, THD < 1% - Legacy: 120 dB SPL RMS, 123 dB SPL peak
      • Distortion, THD < 1% - CORE: 126 dB SPL RMS, 129 dB SPL peak
      • Dynamic range: Typ. 100 dB
      • Max. SPL, THD 10%: 134 dB SPL peak
      • Rated output impedance: 30 - 40 Ω
      • Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
      • Output balance principle: Signal balanced with DAD6001-BC XLR Adapter
      • Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter
      • Power supply (for full performance): For wireless systems: Min. 5 V - max. 10 V through DPA adapter
      • With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
      • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
      • Connector: MicroDot
      • Color: Black
      • Weight: 13 g (0.46 oz) incl. Cable and MicroDot connector
      • Microphone diameter: 5.4 mm (0.21 in)
      • Microphone length: 17.6 mm (0.7 in)
      • Cable length: 1.8 m (5.9 ft)
      • Cable color: Black or beige
      • Cable diameter: 2.2 mm (0.09 in)
      • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
      • Temperature range: -40°C to 45°C (-40°F to 113°F)
      • Relative humidity (RH): Up to 90%

    • Item Includes:

      • 1x DPA Microphones 4660 CORE Heavy-Duty Normal Sensitivity Omni Lavalier Microphone (Black)
      • 1x High-Boost Protection Grid
      • 1x Soft-Boost Protection Grid

    • Warranty:

      • Limited 2 Year Warranty

    • GTIN:

      5713055019198
