DPA N-Series N-BP1-03-B Bodypack Transmitter with 3-Pin LEMO - 470MHz to 870MHz

ITEM #: DPA-N-BP1-03-B MFG #: N-BP1-03-B

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$695.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


N-BP1-03-B - Overview

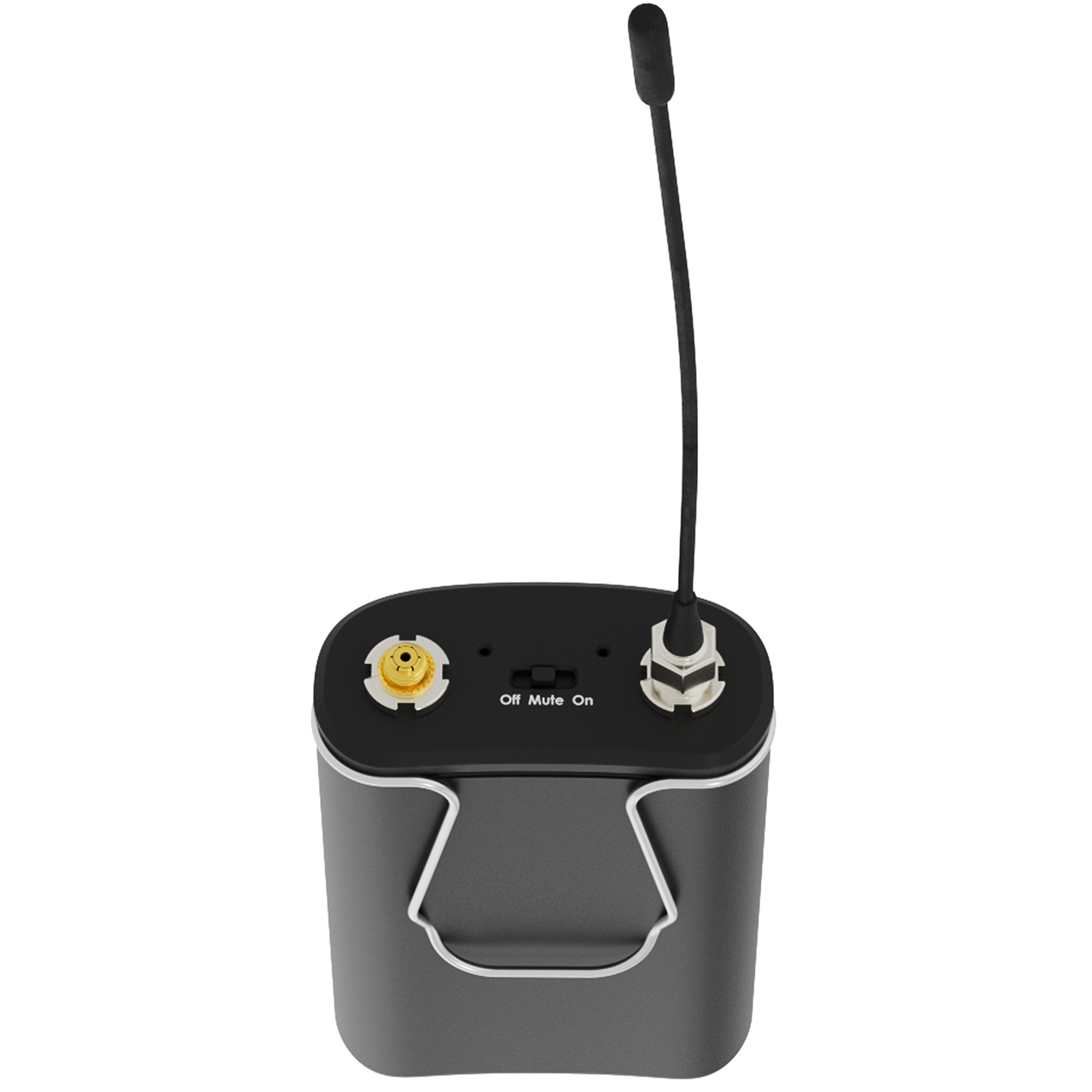

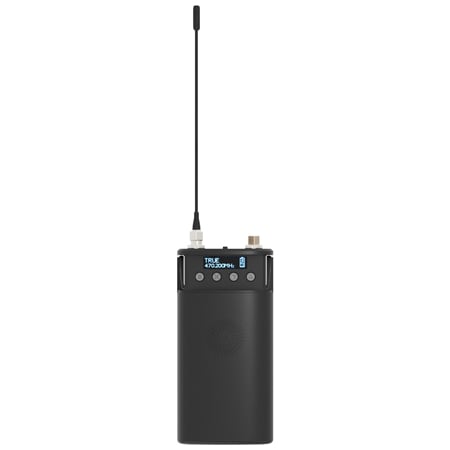

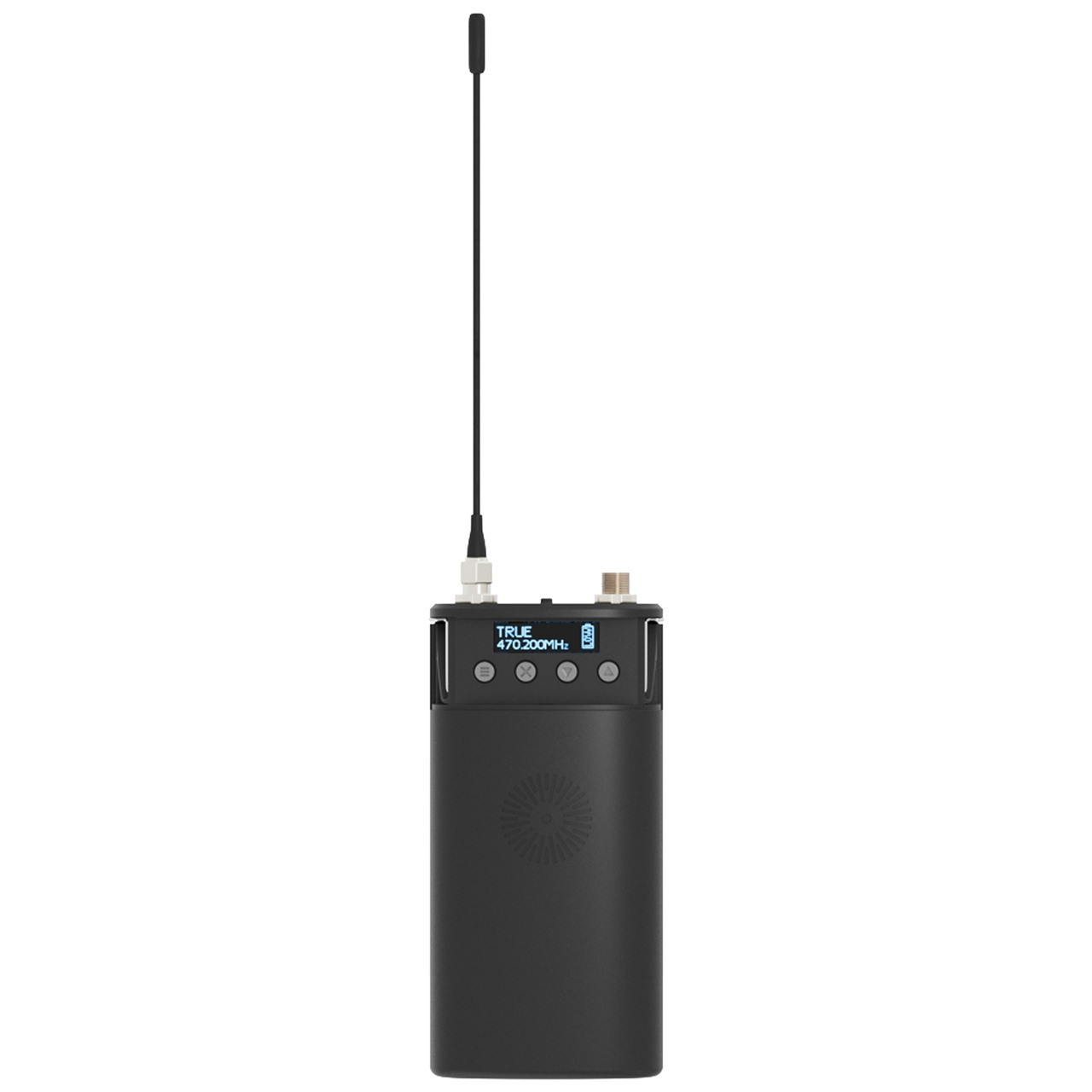

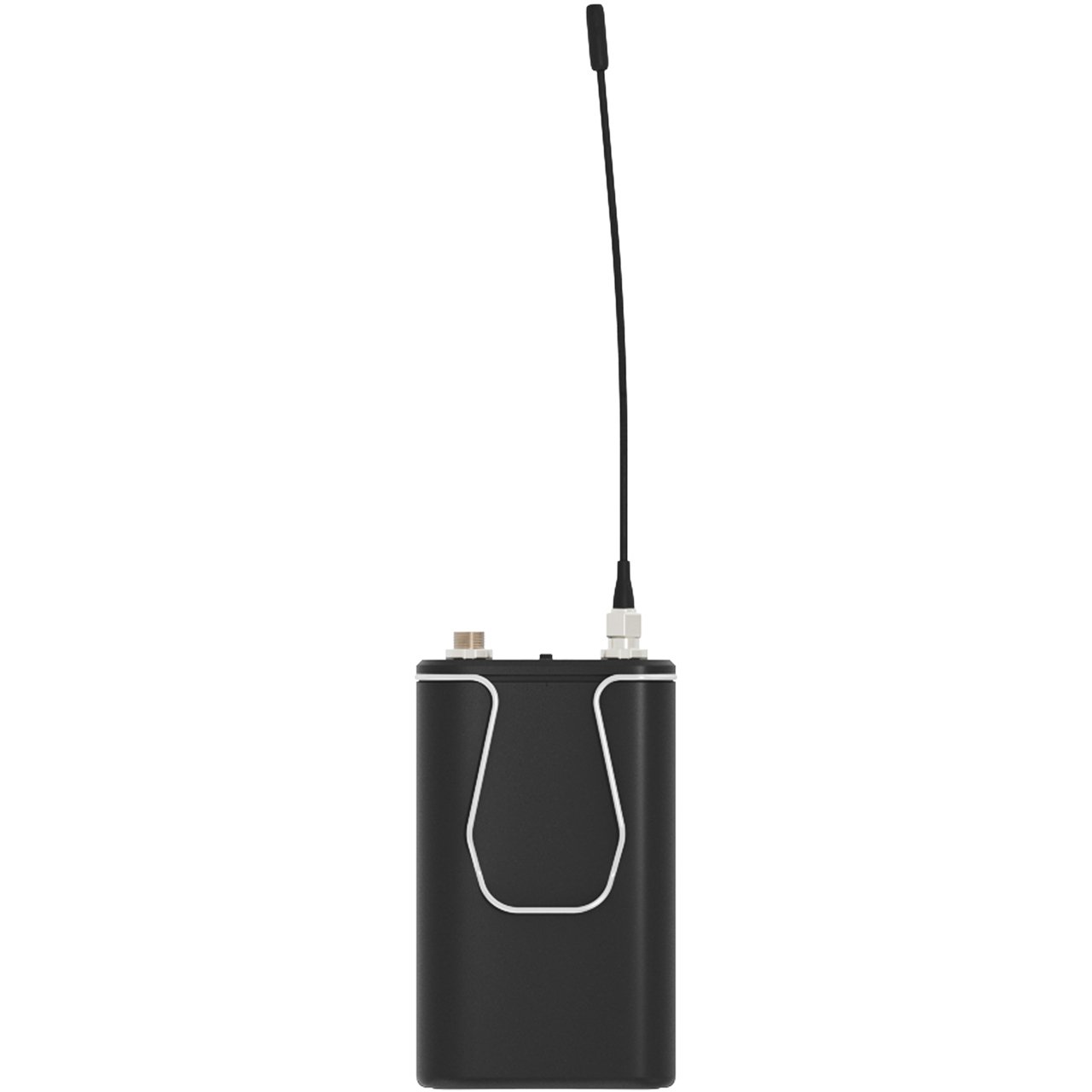

N-Series Bodypack Transmitter with 3-Pin LEMO

The DPA N-Series uniquely designed N-BP1-03-B bodypack transmitters are lightweight and formed to match the contours of the human body for comfortable long-term use.

High Dynamic Range
To get the highest possible dynamic range the N-Series uses stacked converter technology and optimized circuitry around the input stage and A/D conversion. This is how the system offers the best audio performance.

Having a higher dynamic range means that you do not have to dial in a gain or amplification on the transmitter. Therefore, there is no need to set the gain on the transmitter. In addition, as the system is digital, optimum RF signal is obtained without having to secure maximum modulation. The original signal is preserved throughout the system.

It is possible to adjust the level coming out of the receiver per channel, but this is done in the digital domain, i.e., it is an offset of the incoming signal and thus referred to as digital TRIM.

Audio Levels and Headroom
The bodypack transmitters have plenty of headroom, so there is no need to adjust input gain or the like. For this reason, you cannot adjust the audio levels on the transmitters. It is, however, possible to change the level via an offset of the signal to balance sources with each other, but this is all done in the digital domain and thus referred to as digital TRIM via a knob on the receiver.

The analog outputs (if installed) allow users to adjust the analog reference to suit the system that the signal is being fed into. This is all done via the Receiver Menu.

Transmission Power
Bodypacks can broadcast with a range of effects: 1mW, 5mW, 10mW, 20mW, 50mW

Applications:
The main applications for the N-Series system are:
• Live
• Corporate, Government and Education (Install)
• HoW (Church market)

An easy-to-use, affordable system that provides superior sound quality and allows users to find a free spot for their wireless mics with ease via the huge supported bandwidth from 470MHz to 870MHz.

These features lean into the above-mentioned segments, which also include rental companies who will greatly benefit from the qualities of the N-Series.

  • Features:

    • Wide frequency range: from 470MHz to 870MHz
    • 330ft (100m) Range depends on the RF enviroment
    • Contoured shape that fits the body comfortably
    • 8+ hours of operation with standard AA batteries
    • DPA Rechargeable Battery Pack (optional)

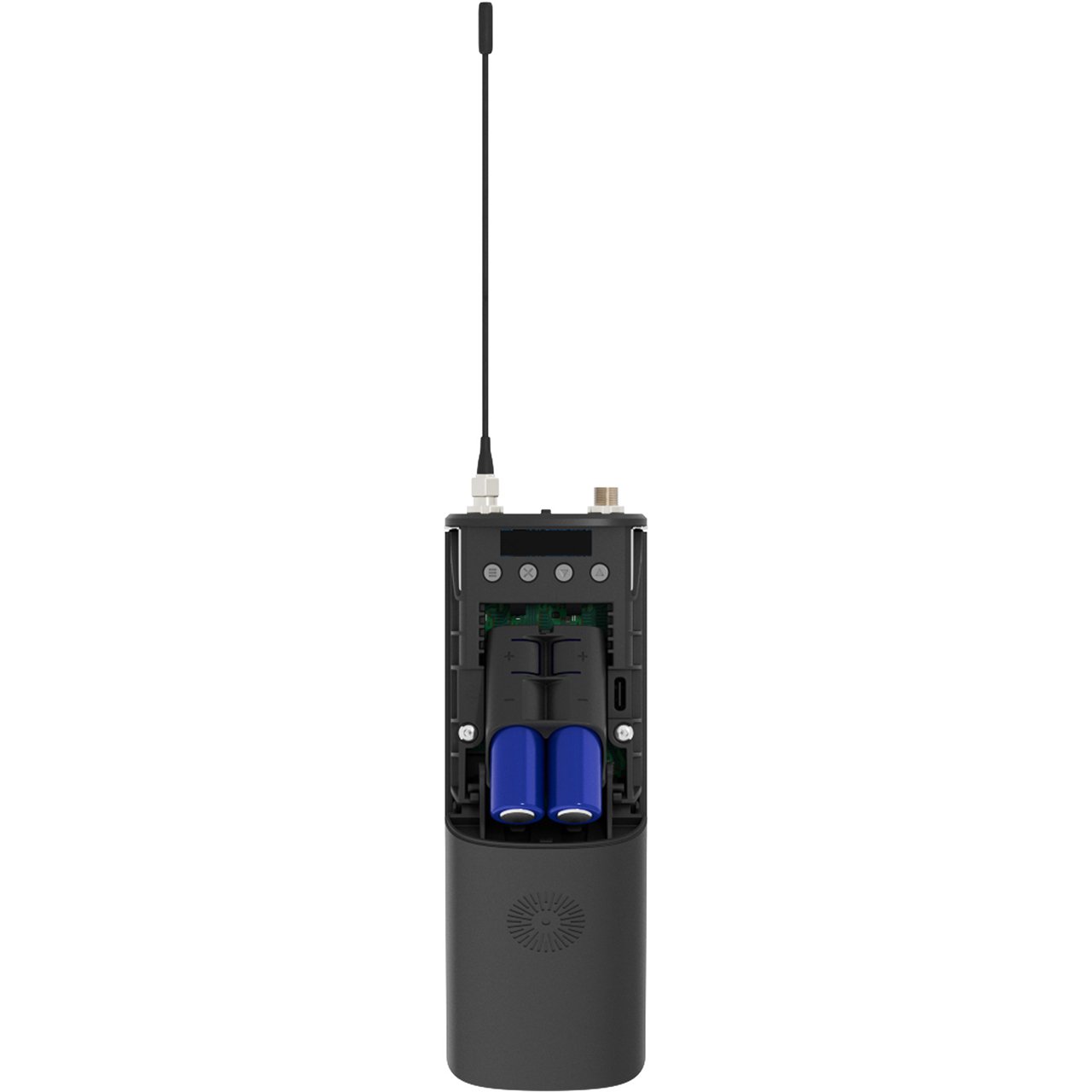

    • Easy battery loading

  • Specifications:

    • Frequency Response: 20Hz - 20kHz (±1dB)
    • RF Frequency Range: 470MHz - 870MHz (Varies by region)
    • RF Tuning Steps: 25kHz
    • Battery Runtime at 10mW: >8 hours
    • Audio Input Impedance: LEMO 3-pin, N-BP1-03 - 5kΩ
    • RF Sensitivity: -96dBm at 10^-5 BER
    • Audio Polarity: Positively increasing sound pressure produces positive going voltage on relevant audio outputs
    • Radio Frequency Power: 1mW, 5mW, 10mW, 20mW, 50mW (follows region)
    • Working Range: 330ft (100m) Range depends on the RF enviroment, i.e. absorption, reflection and interference
    • Audio Dynamic Range (system) Analog: 126dB
    • Audio Dynamic Range (system) Digital: 126dB
    • Audio Frequency Response: 20Hz - 20kHz (±1dB)
    • Audio Bias Voltage: 5V DC
    • Latency: <2.9ms
    • Radio Frequency Bandwidth: 470MHz - 870MHz (follows region)
    • Max Input Level < 1% THD @ 1 kHz: 1.8Vrms
    • Housing Type: Zink alloy
    • Operating Temperature: 14°F - 122°F (-10°C - 50°C)
    • Storage Temperature: 4°F - 122°F (-20°C - 50°C) Without batteries installed
    • Digital Audio Trim: -20dB - +40dB on the receiver side, selectable increments of 1dB
    • Audio Input Connector: LEMO 3-pin, N-BP1-03 - 2 and 3-wire input
    • Antenna Connector Type: SMA
    • Antenna Type: ¼" wave
    • Occupied Bandwidth: < 200kHz
    • Battery Type: LR6 AA batteries
    • Dimensions (HxWxD): 3.4" x 2.1" x 0.9" (87mm x 53mm x 24mm)
    • Weight: 0.38lbs (5.4oz)

  • Item Includes:

    • 1x Important Warranty and Safety Instructions
    • 1x Quick Start Guide
    • 2x Alkaline batteries
    • 1x Passive omnidirectional antenna
    • 1x Storage pouch

  • Warranty:

    • 2 Year Warranty

  • GTIN:

    0571305503297
