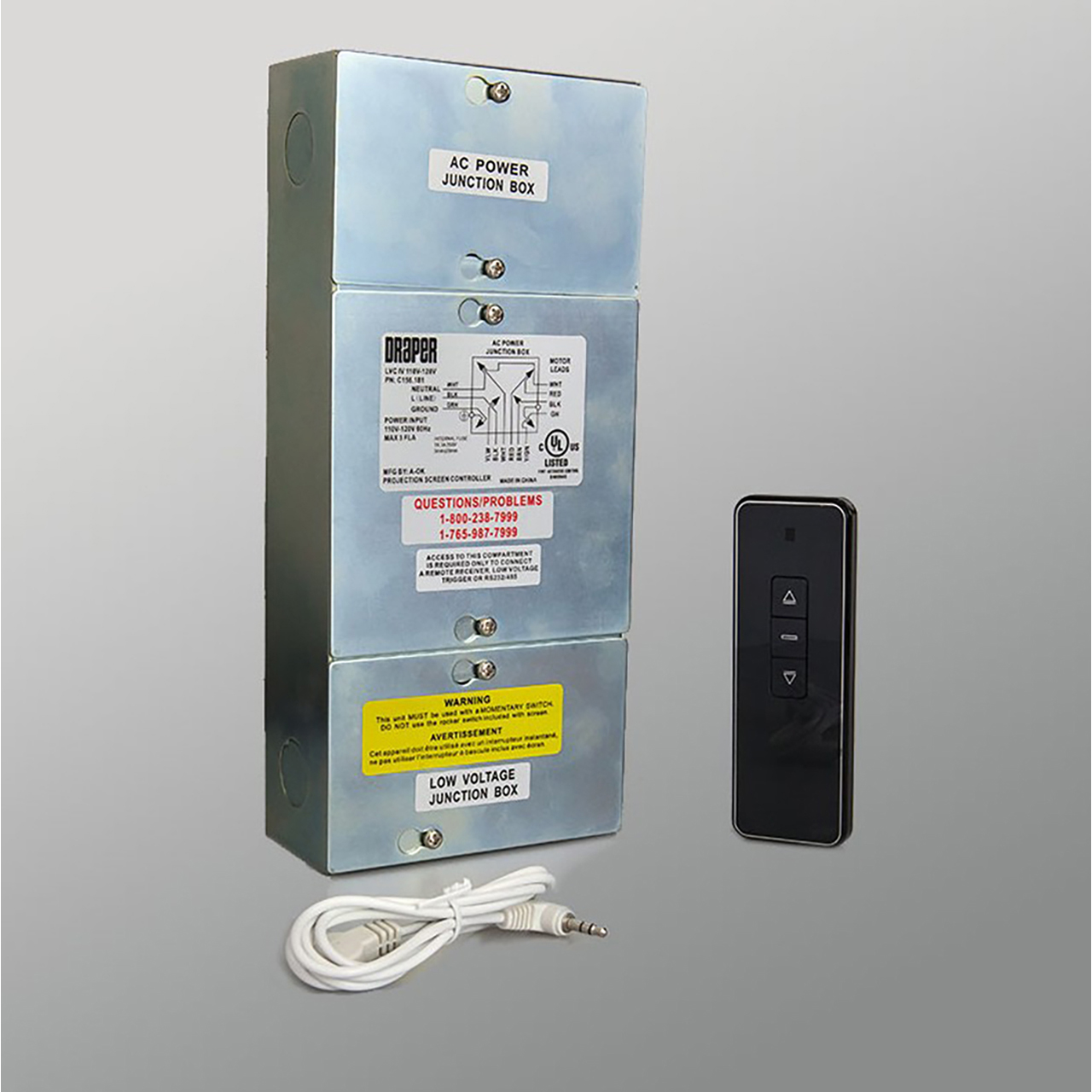

Draper 121234 LVC-IV/IRT 110V Low-voltage IR Screen Control Kit with Module / Remote & Receiver

ITEM #: DR-121234 MFG #: 121234

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$450.00

Our Price:

$360.00

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup


121234 - Overview

The Draper 121234 LVC-IV/IRT 110V is a low-voltage IR Screen Control Kit with Module, Remote and Receiver. Low-voltage wireless control for electric screens, the LVC-IV features infrared technology. The LVC-IV low-voltage control module provides single 110V/220V motor control through a variety of low-voltage options. The control module includes: 3-screw terminal block for a low-voltage "dry" contact wall switch, IR receiver jack, built-in RF receiver, two RJ25 ports for RS232/RS485, low-voltage relay port with cable, and user-serviceable 3.5 A fuse. The (IR) remote control transmitter features 3-button operation with up, stop, and down directional functions. The IR remote control transmitter does not need to be "learned" by the LVC-IV. Simply point and operate.

  • Features:

    • Low-voltage options include: low-voltage wall switch, "dry" contact closure, radio frequency (RF), infrared (IR), serial communication, or low-voltage relay (4V-28V)
    • Built-in LVC-IV modules must be preordered.
    • Module can be built into Access (Access Fit, Standard Access and Access XL) V & E, Ultimate Access V & E, Ultimate Access XL V & E, Silhouette V & E, Premier, Targa, or Envoy
    • Factory-installed controls will increase the length of the case in the Premier and Targa.
    • Control module is UL listed and housed in a 3-compartment, single box

  • Specifications:

    • Compatibility: LVC-S, WRT, IRT/R, SP-KSM, Auxillary Control, KS-1
    • Product Color: Black, Grey, White
    • Product Type: Control module

  • Item Includes:

    • 1x LVC-IV low-voltage control module
    • 1x Infrared (IR) 3-button remote-control transmitter
    • 1x Infrared (IR) receiver

  • GTIN:

    0641092213918
