Draper 140039U Access V Projection Screen - 137 Inch - 16:10 - 110 V with Low Voltage Controller - Matte White XT1000VB

140039U - Overview

• Features:

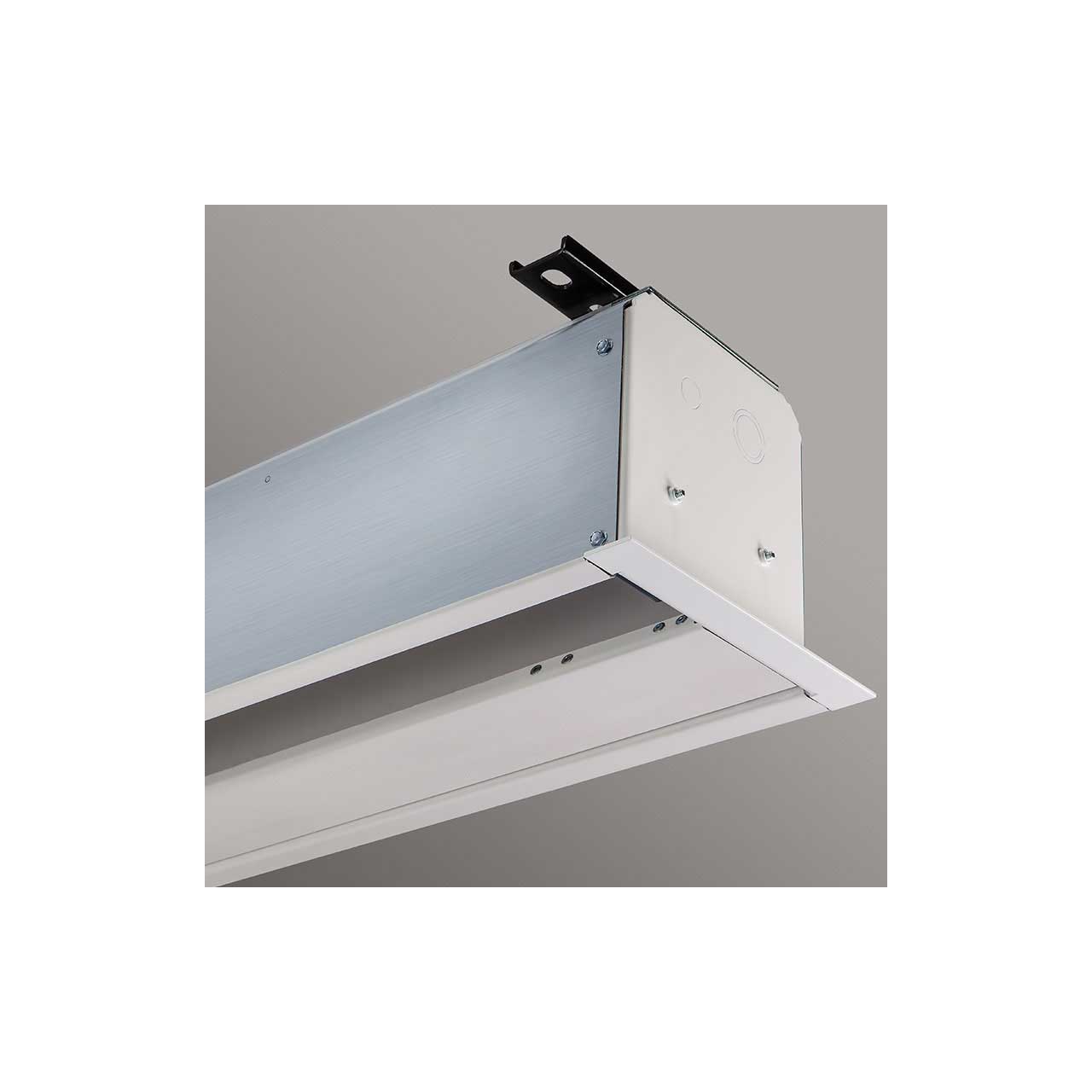

  • Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
  • Maximum image width up to 16' (488 cm) wide, depending on surface selection.
  • The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.
  • Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
  • Adjustable or removable hoisting brackets included for easy lifting during installation.
  • Sliding brackets on top of the case allow for adjustments for mounting.
  • Sliding brackets inside case accommodate different size screens.
  • Bottom closure panel detachable or hangs in place with "T" bracket to provide accessibility for service or maintenance.
  • Quick-connect wiring allows for early installation of the case with the addition of the screen later.
  • Low voltage, video interface or other controls can be built into housing for below ceiling access.
  • Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.
  • White case standard, black available upon request.
  • Custom sizes available.
  • UL Listed.


• Specifications:

  • Surface material: Matte White XT1000VB
  • Image Format: 16:10
  • Diagonal size: 137"
  • Image/Viewable area: 72 1/2" x 116"
  • Case length: 141 1/2"
  • Product weight: 95 pounds
  • Shipping weight: 148 pounds


• Item Includes:

  • 1x Draper 140039U Access V Projection Screen - 137 Inch - 16:10 - 110 V with Low Voltage Controller - Matte White XT1000VB


• GTIN:

  0641092195429
