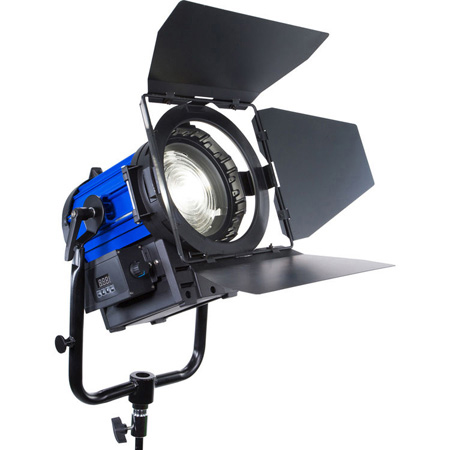

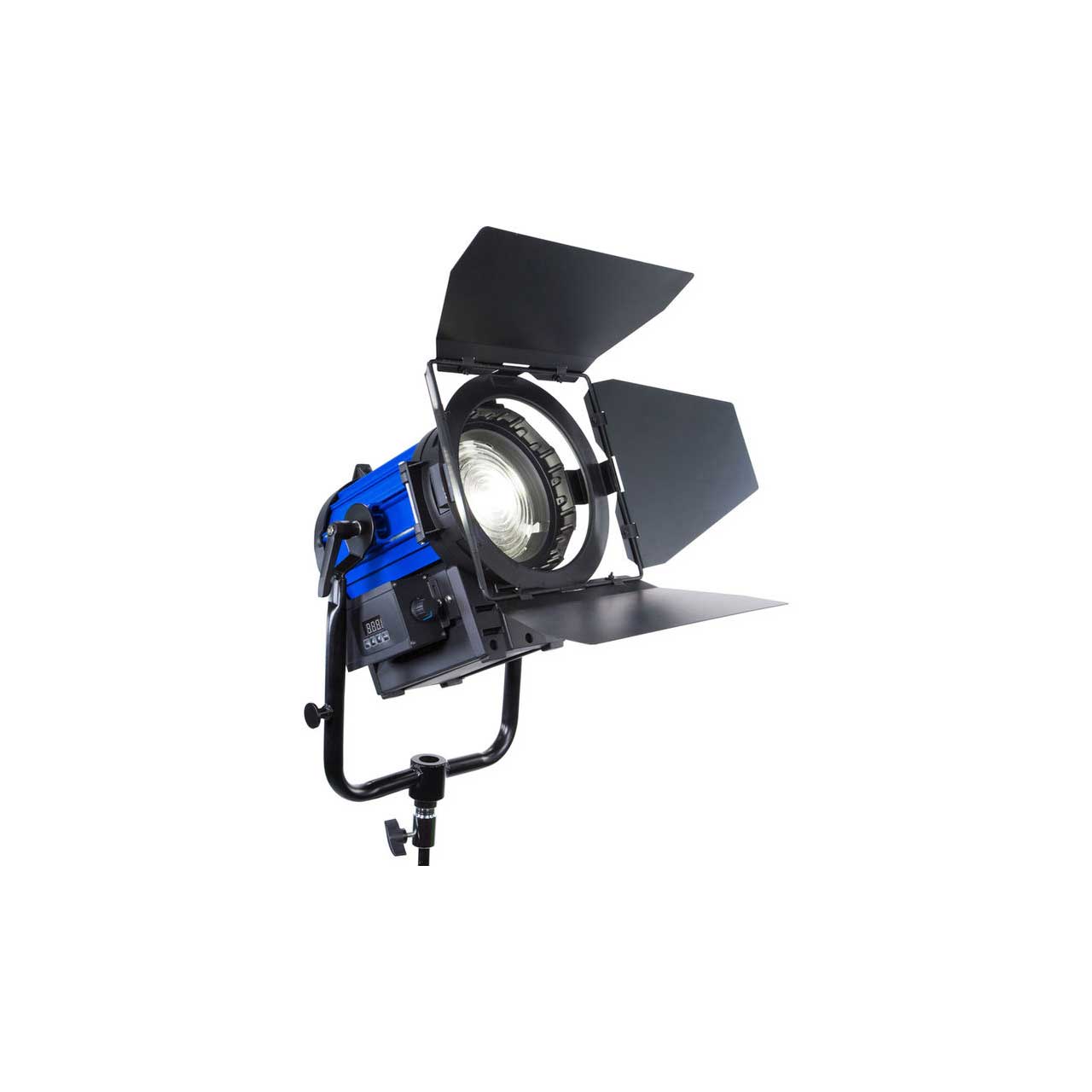

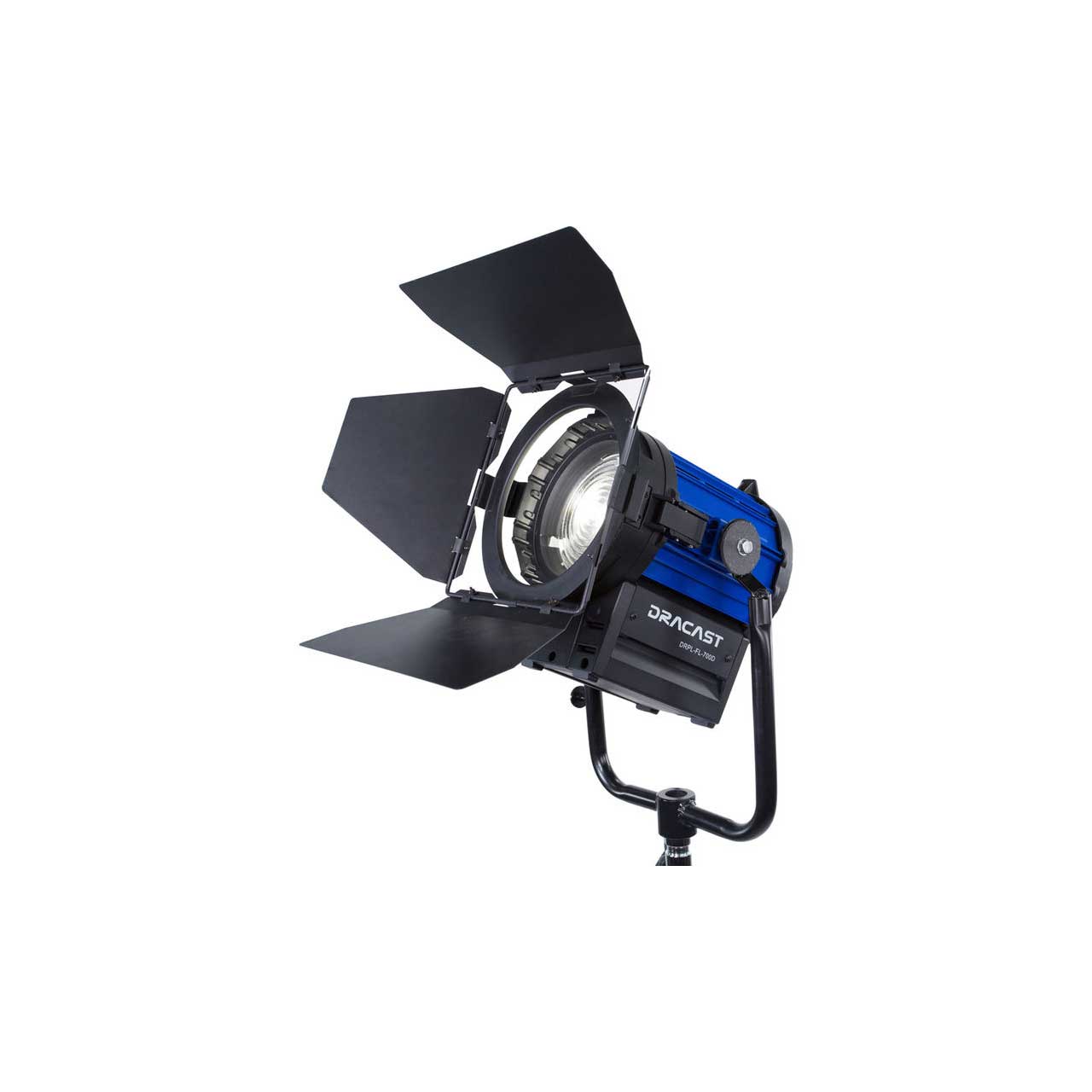

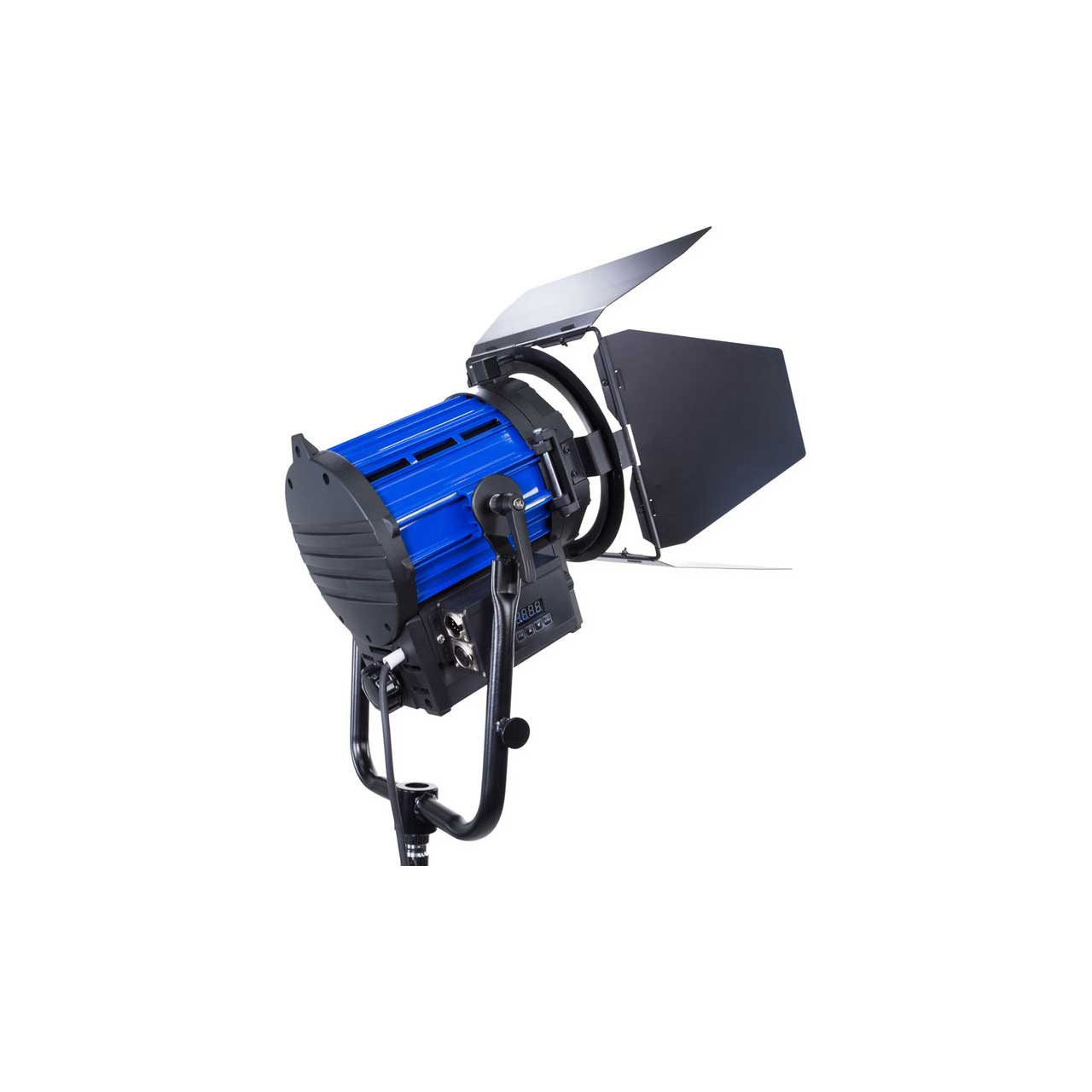

Dracast DRPL-FL700-T LED Fresnel 700 - Tungsten 3200K 700 (70 W LED)

ITEM #: DR-DRPL-FL700-T MFG #: DRPL-FL700-T

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$689.00

Our Price:

$599.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    DRPL-FL700-T - Overview

    Part of the new, expanded series of Dracast LED Fresnels, the Fresnel700 provides the same focused, high output light as it's larger siblings, but in a more compact package. The Dracast Fresnel700 has the same build quality and interface as the Fresnel1000 and Fresnel2000, and includes many of the same features including barn doors, mounting yoke, and easy-to-use onboard controls. Experience the performance of a fresnel fixture combined with the technological advantages of LED with the expanded lineup of Dracast LED Fresnels.

    Each Dracast Fresnel features a newly designed LED array system that specs at 95 CRI with absolutely incredible color temperature accuracy, and exceptionally high light output. All this adds up to a light fixture that delivers tremendous light output while using just 70 watts in operation. Add to this a completely silent, passive, heat-sink cooling system, and the Dracast Fresnel series is an extremely versatile fixture, perfectly suited for any major studio or field application. FRESNEL Series LEDs are available in several sizes: the Fresnel 200, 500, 700, 1000 and the Fresnel 2000. Each delivers high output, with minimal heat and a fraction of the power usage of traditional lighting options. Like other fixtures from Dracast, the FRESNEL 1000 and 2000 are available in three color temperature models: 3200K (Tungsten), 5600K (Daylight) and 3200K - 5600K (Variable CCT). The smaller models are available in 3200K and 5600K. All versions deliver continuous 0 - 100% dimming and excellent color rendition across the color spectrum with 95 CRI Surface Mount LEDs. Additionally, FRESNEL Series lights (excluding Fresnel 200) can be controlled remotely via 5-pin DMX in/out ports or locally with on-board controls. Each FRESNEL Series light includes 4-way barndoors and mounting yoke, making it an all-inclusive fixture. FRESNEL Series lights are also built to the same exacting standards as the rest of the Dracast line and are built entirely on an aluminum alloy frame and chassis, ensuring that they're built to last.

    • Specifications:

      • Optical System: Surface Mounted LED with fresnel lens.
      • Light Aperture: 4.75" / 120.65mm.
      • Beam Angle: 15 - 60 deg. Adjustable Beam Angle.
      • Handling: Single-Side Clutch Plate Tilt Adjustment Handle.
      • Mounting: 5/8" Baby Pin Aluminum Mounting Yoke .
      • Tilt Angle: 90 deg.
      • Voltage Input: 36 V DC .
      • Power Consumption: 70W.
      • Power Connection: 110 - 240 VAC, 50 - 60 Hz, 2.0 A .
      • Heat Management: Passive Heat Sink Cooling System.
      • Photometric (lux): 3': 10115 lux at 15 deg. , 5236 lux at 60 deg. , 6': 2882 lux at 15 deg. , 1283 lux at 60 deg. , 9': 1341 lux at 15 deg. , 621 lux at 60 deg. , 12': 796 lux at 15 deg. , 361 lux at 60 deg.
      • Photometric (fc): 3': 940 fc at 15 deg. , 486 fc at 60 deg. , 6': 268 fc at 15 deg. , 119 fc at 60 deg. , 9': 125 fc at 15 deg. , 58 fc at 60 deg. , 12': 74 fc at 15 deg. , 34 fc at 60 deg.
      • Color Temperature: 3200K.
      • Color Rendition: CRI > 95 .
      • Dimming: 0 - 100% Continuous .
      • Controls: Local On-Board Manual Controls / 5-Pin DMX In/Out.
      • Housing Build: Aluminum Alloy .
      • Est. LED Lifetime: 50000 hours .
      • Weight: 13.25lbs / 6.01kg .

    • Item Includes:

      • Dracast LED Fresnel 700 Tungsten LED Light
      • 5/8" Baby Pin Aluminum Mounting Yoke
      • 4-Way Barn Doors
      • AC Power Cable
      • Dracast 1 Year Warranty

    • GTIN:

      0712324583212
