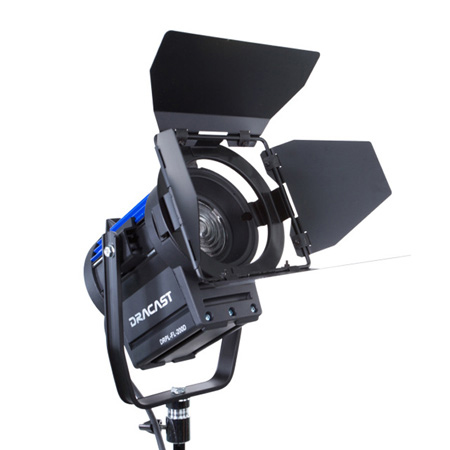

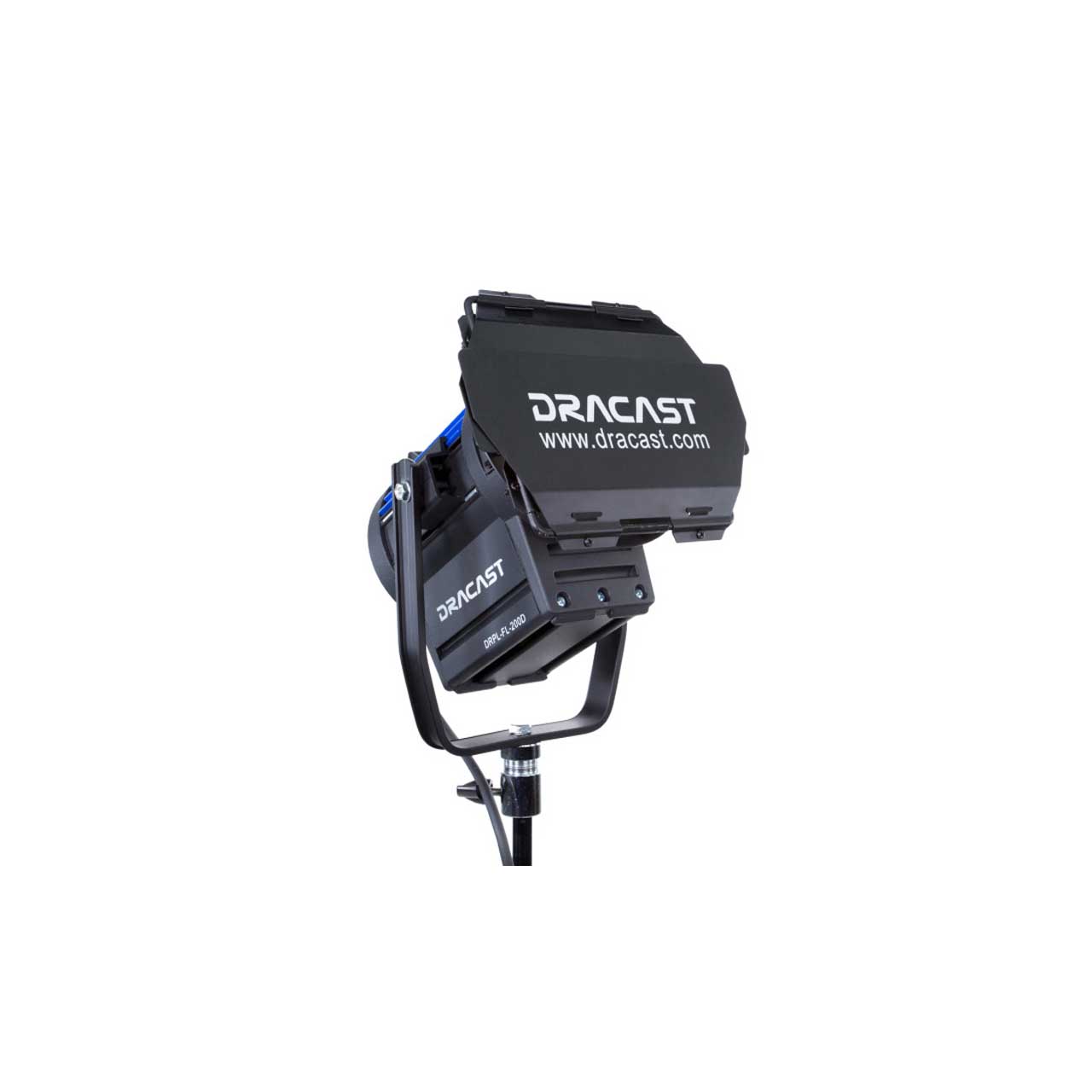

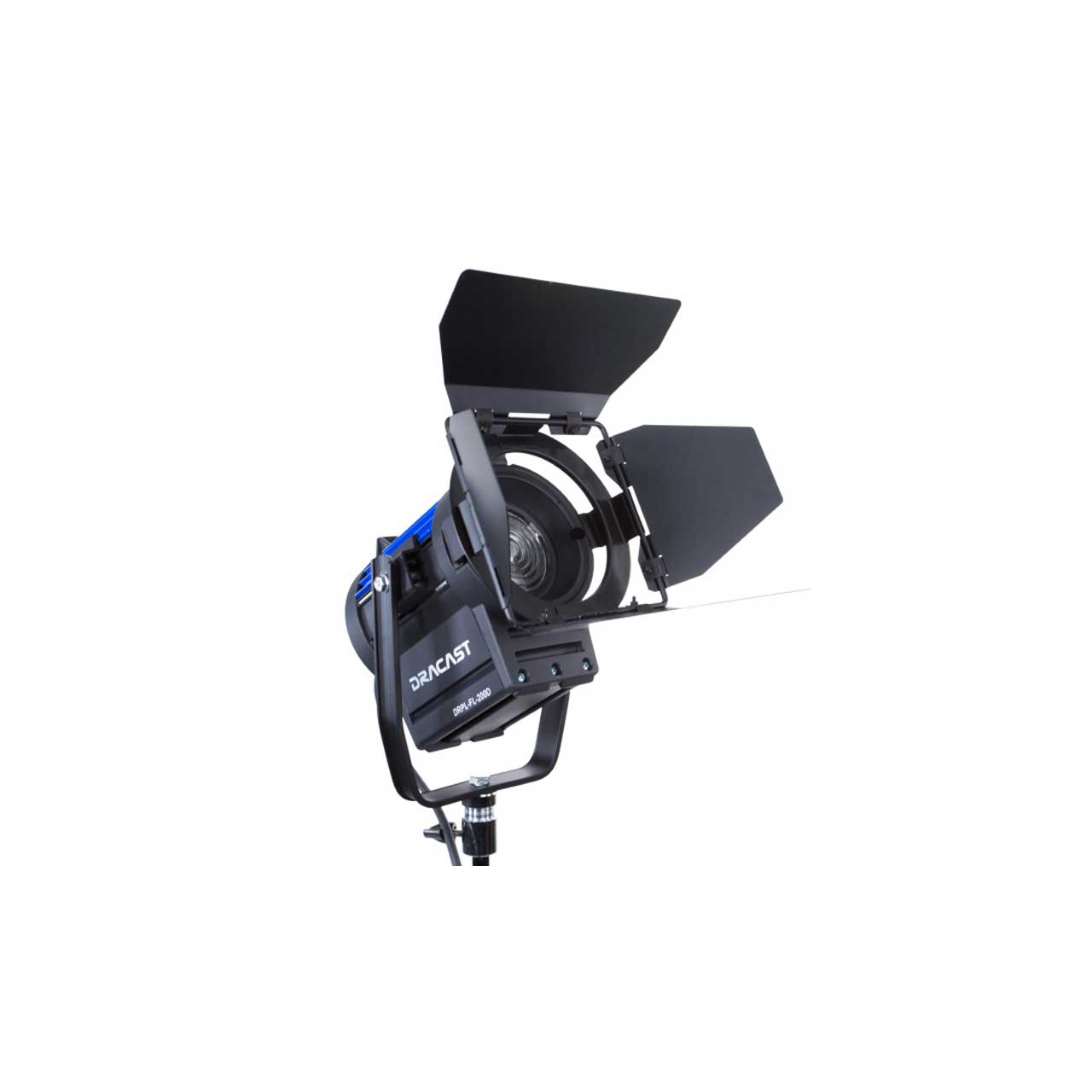

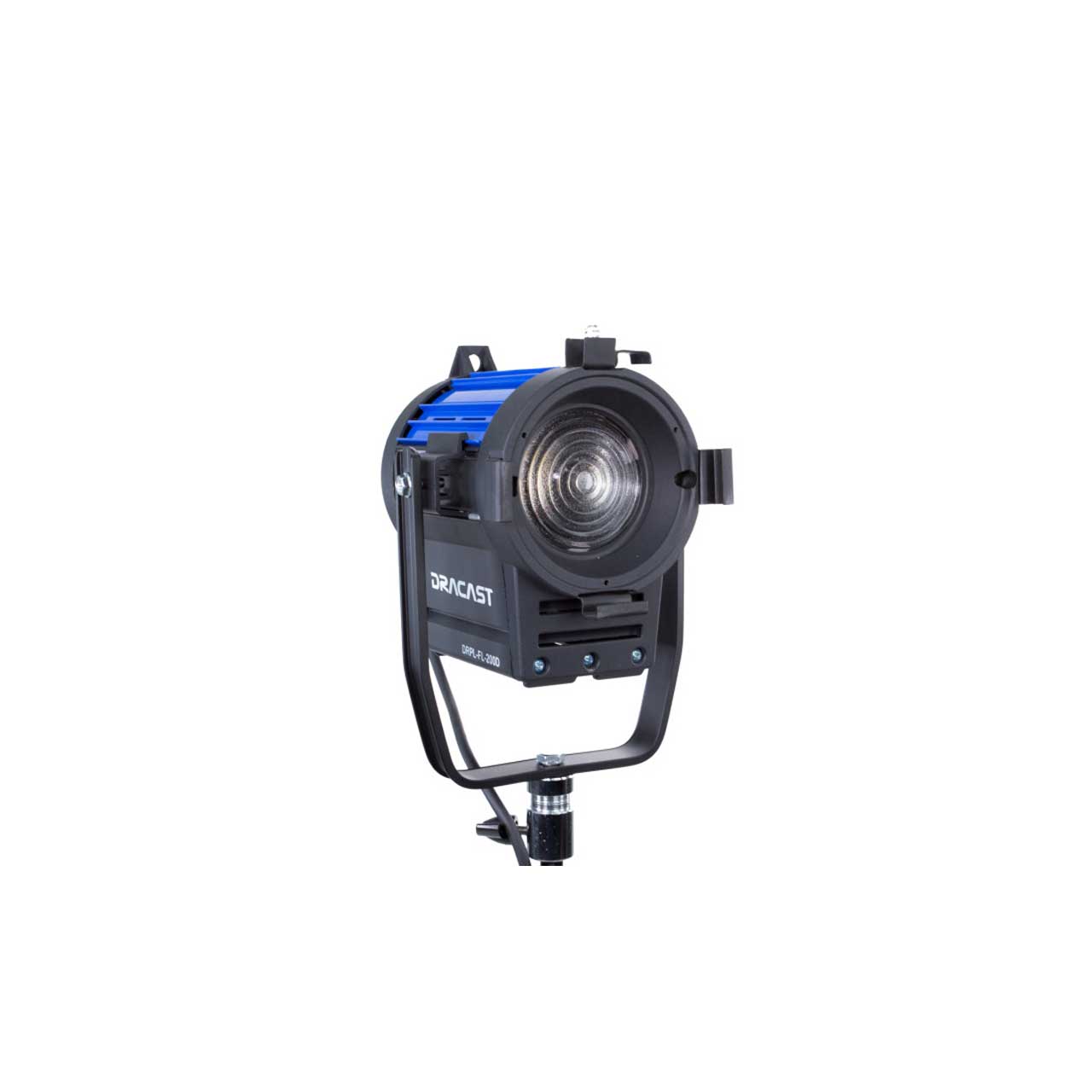

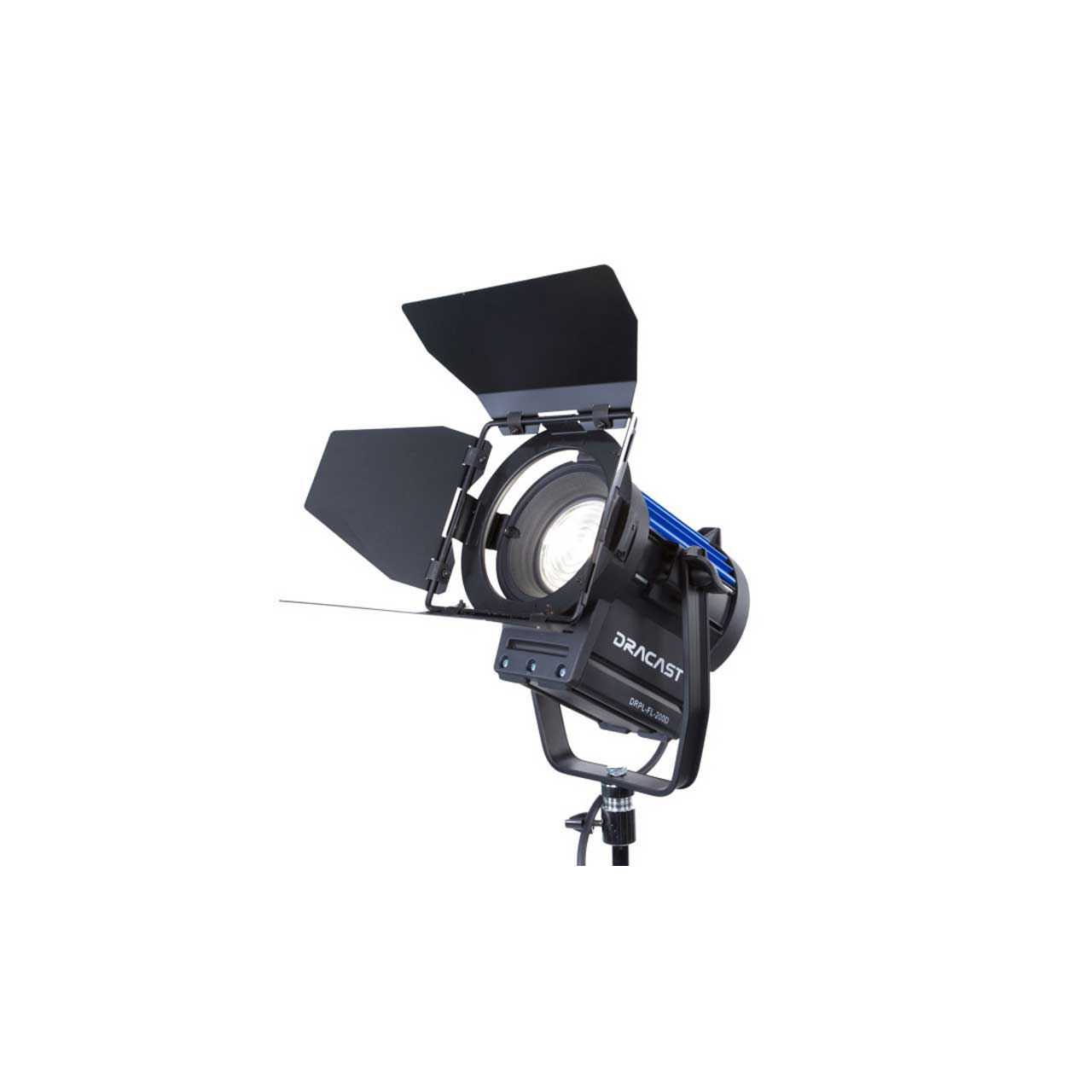

Dracast DRPL-FL200-T LED Fresnel - Tungsten 3200K 200 (20W)

ITEM #: DR-DRPL-FL200-T MFG #: DRPL-FL200-T

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$399.00

Our Price:

$349.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    DRPL-FL200-T - Overview

    The performance of a high-output tungsten or hmi fresnel comes together with the advantages of LED technology in the Dracast LED FRESNEL Series. The Dracast Fresnel200 is a powerful, yet compact
    fixture that incorporates cutting-edge technology to provide all the benefits of LED lighting in the classic Fresnel design. This means that our fresnel series provides tremendous light output while using very little power and releasing very little heat. Add to this a completely silent, passive, heat-sink cooling system, and the Dracast Fresnel series is perfectly suited for most applications.

    FRESNEL Series LEDs are available in several sizes: the Fresnel 200, 500, 700, 1000 and the Fresnel 2000. Each delivers high output, with minimal heat and a fraction of the power usage of traditional lighting
    options.

    Like other fixtures from Dracast, the FRESNEL 1000 and 2000 are available in three color temperature models: 3200K (Tungsten), 5600K (Daylight), and 3200K - 5600K (Variable CCT). The smaller models are
    available in 3200K and 5600K. All versions deliver continuous 0 - 100% dimming and excellent color rendition across the color spectrum with 95 CRI Surface Mount LEDs.

    Additionally, FRESNEL Series lights (excluding Fresnel 200) can be controlled remotely via 5-pin DMX in/out ports or locally with on-board controls. Each FRESNEL Series light includes 4-way barndoors and mounting yoke, making it an all-inclusive fixture. FRESNEL Series lights are also built to the same exacting standards as the rest of the Dracast line, and are built entirely on an aluminum alloy frame and chassis, ensuring that they're built to last.

    • Features:

      • Daylight Color Balance: 3,200K
      • 3" Fresnel Lens
      • 15-60 Degree Adjustable Beam Angle
      • Yoke with 5/8" Receiver
      • 0-100% Dimming
      • On-board dimmer knob
      • 100-0% Dimming, CRI: 95
      • Low Power Draw: 20W
      • 150w Tungsten Halogen Equivalent
      • Includes 4-Way Barndoors

    • Specifications:

      • Photometric Data
      • 3 Feet:
      • 297 fc @ 15°
      • 173 fc @ 60°
      • 3201 lux @ 15°
      • 1866 lux @ 60°

      • 6 Feet:
      • 85 fc @ 15°
      • 49 fc @ 60°
      • 918 lux @ 15°
      • 532 lux @ 60°

      • 12 Feet:
      • 40 fc @ 15°
      • 24 fc @ 60°
      • 427 lux @ 15°
      • 259 lux @ 60°

      • Optical System: Surface Mounted LED with fresnel lens
      • Light Aperture: 3 inches (76.2 mm)
      • Beam Angle: 15° - 60° Adjustable Beam Angle
      • Weight: 4.85 lbs (2.2 kg)
      • Handling: Single-Side Clutch Plate Tilt Adjustment Handle.
      • Mounting: 5/8" Baby Pin Aluminum Mounting Yoke
      • Tilt Angle: 90°
      • Voltage Input: 36 V DC
      • Power Consumption: 20 W
      • Power Connection: 110 - 240 VAC, 50 - 60 Hz, 2.0 A
      • Heat Management: Passive Heat Sink Cooling System
      • On Board Fan: No
      • Battery Powered: No
      • Color Temperature: 3200K or 5600K (Fixed color temperature)
      • Color Rendition: CRI > 95
      • Dimming: 0 - 100% Continuous
      • Controls: Local On-Board Manual Controls
      • Housing Color: Blue / Black
      • Housing Build: Aluminum Alloy
      • Est. LED Lifetime: 50,000 hours

    • Item Includes:

      • LED200 Fresnel Series 3200K Tungsten
      • 5/8" Baby Pin Aluminum Mounting Yoke
      • 4-Way Barn Doors
      • A/C Power Cable

    • GTIN:

      0712324583199
