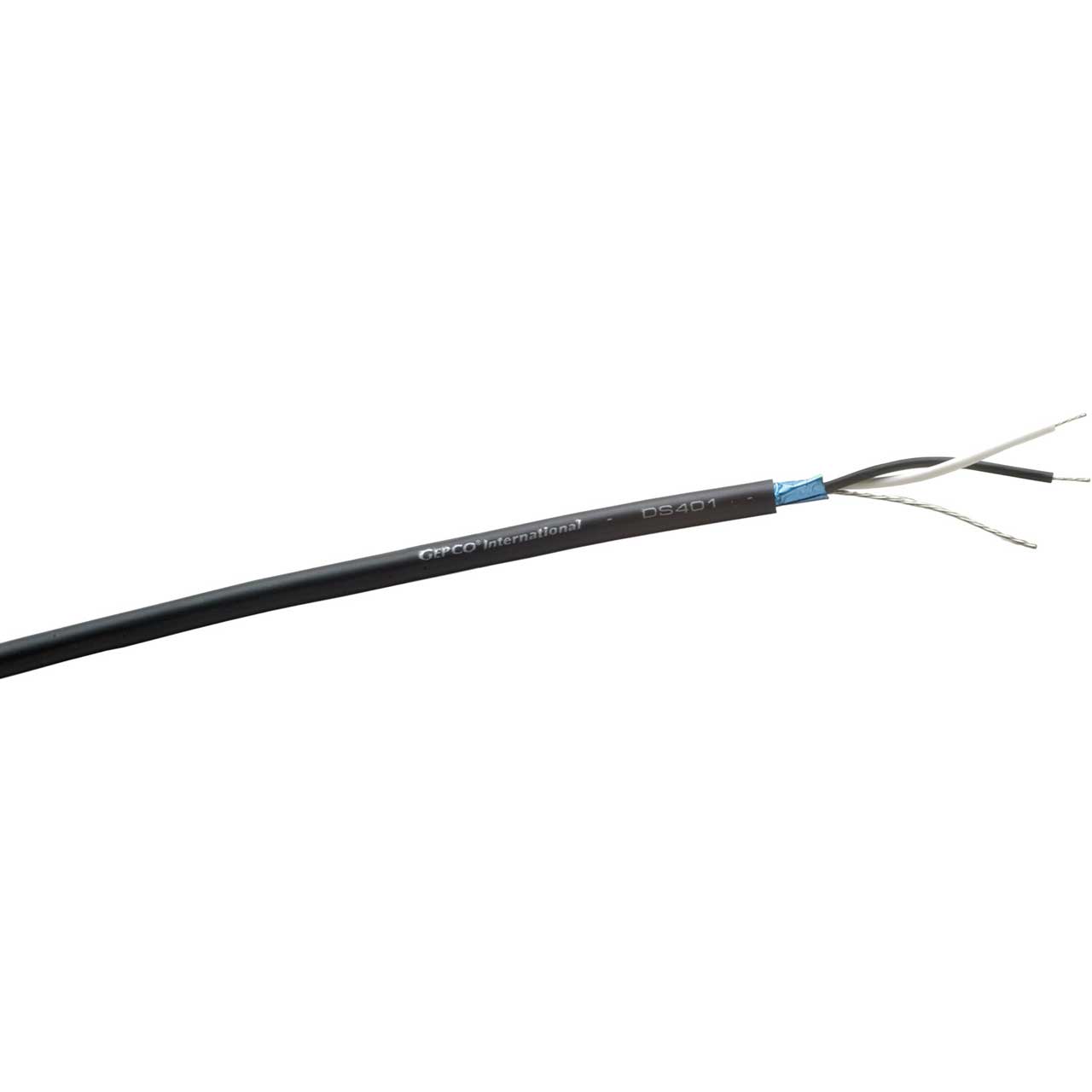

DS401TS 24AWG 110 Ohm Single Pair Digital Audio Cable - Plenum - Per ft.

ITEM #: DS401TS-FT MFG #: DS401TS PER FOOT

Primary Image

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the DS401TS-FT

DS401TS PER FOOT - Overview

Extra-low loss 110 Ohm AES/EBU wide bandwidth, digital audio twisted-pair cable. The DS4 series features an extended 25MHz bandwidth, ultra-low attenuation, mechanical stability, and a precision 110 Ohm impedance. With the lowest available attenuation and precision impedance specifications, the DS4 series allows for longer runs of AES3 format digital audio over twisted-pair cable. The extended 25MHz bandwidth is compliant with the AES3 standard for transmission of digital audio at sampling rates up to 192kHz. Available in easy-to-terminate versions for permanent installation and an extra-flexible version for rack patching or portable cables.

  • Features:

    • Precision 110 Ohm Impedance
    • 25MHz Bandwidth for 192kHz Sampling Rates
    • Flexible
    • Gas-injected Foam Polyethylene or Foam Teflon Dielectric
    • Stabilizing Polyethylene Rod
    • Extra-flexible & UL Rated Versions


DS401TS PER FOOT - Required Accessories
