DSan PC-SYS-AS4 Cue Light with 4-pin XLR Jacks for Belt-Pack Intercom Integration

ITEM #: DSA-PC-SYS-AS4 MFG #: PC-SYS-AS4

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$985.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    PC-SYS-AS4 - Overview

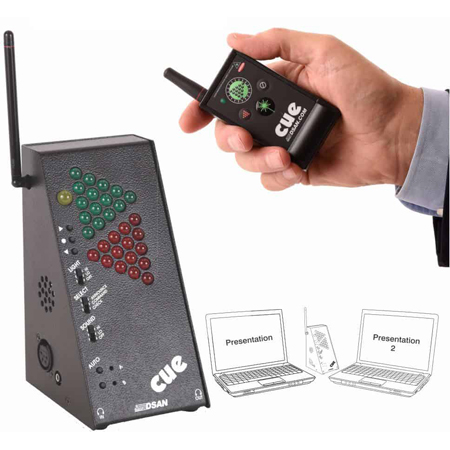

    DSan PerfectCue PC-SYS-AS4 is a wireless audio and visual cueing system that can remotely control presentations on either one or two computers. The communication between the transmitter and cue light is solid at 300'.

    PerfectCue enables a speaker to send cues to a projectionist using a wireless hand-held transmitter or to remotely control presentation software via dual programmable USB ports. The relationship between transmitter and receiver are hardcoded via dipswitch settings. This enables the user to establish any relationship between the transmitter(s) and receiver(s).

    The PerfectCue is designed to facilitate integration with belt-pack headsets. 4-pin IN-OUT XLR jacks allow the cue light to be interposed between belt-pack and headset. Two-way intercom communications pass through unchanged except cue light sounds are added to reception. The PerfectCue has audio output for use with headphone or earpiece monitoring. The device is volume controllable.

    • Features:

      • PerfectCue Systems can work in Proximity without Interfering with one Another
        One transmitter can control multiple cue lights
        One cue light can be controlled by multiple transmitters
        One cue light can control two computers in sync
        One cue light can control additional cue lights (by wiring together the cue lights)
      • Range of transmitter to cue light: 300' (100 meters)
      • Light behavior, sounds and keystrokes are programmable with free app

    • Specifications:

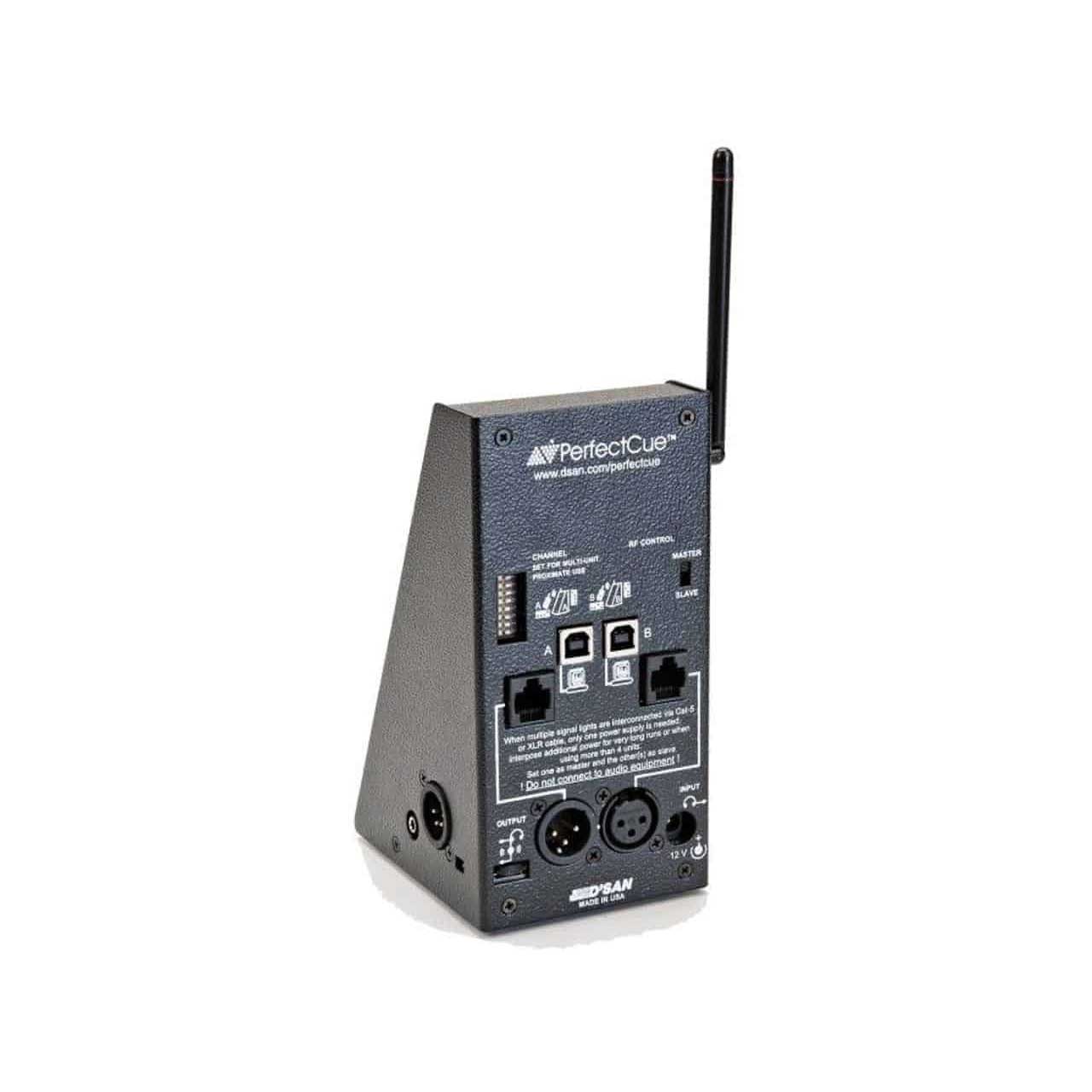

      • Ports: Serial-XLR (2), Serial-RJ45 (2), 4-pin XLR4-Female, 4-pin XLR4-Male, Stereo Phono Jack (2)
      • Three Selectable Cue Sounds: Command, Announce, Check
      • Sound Volume Control: High, Low, Off
      • Lights Control: High, Low, Off
      • Power: 5V USB bus or external (12V / 110-220V) power supply
      • RF Communication: 433.92MHz on 256 possible channels
      • Local Switch Control: Forward (Green), Back (Red), Blank (Amber), USB engaged/disengaged
      • Transmitter Batteries: CR 2032 and CR123
      • Cue Light: 7 x 4 x 3¼"
      • Transmitter: 5 x 2 x ¾" (including antenna)

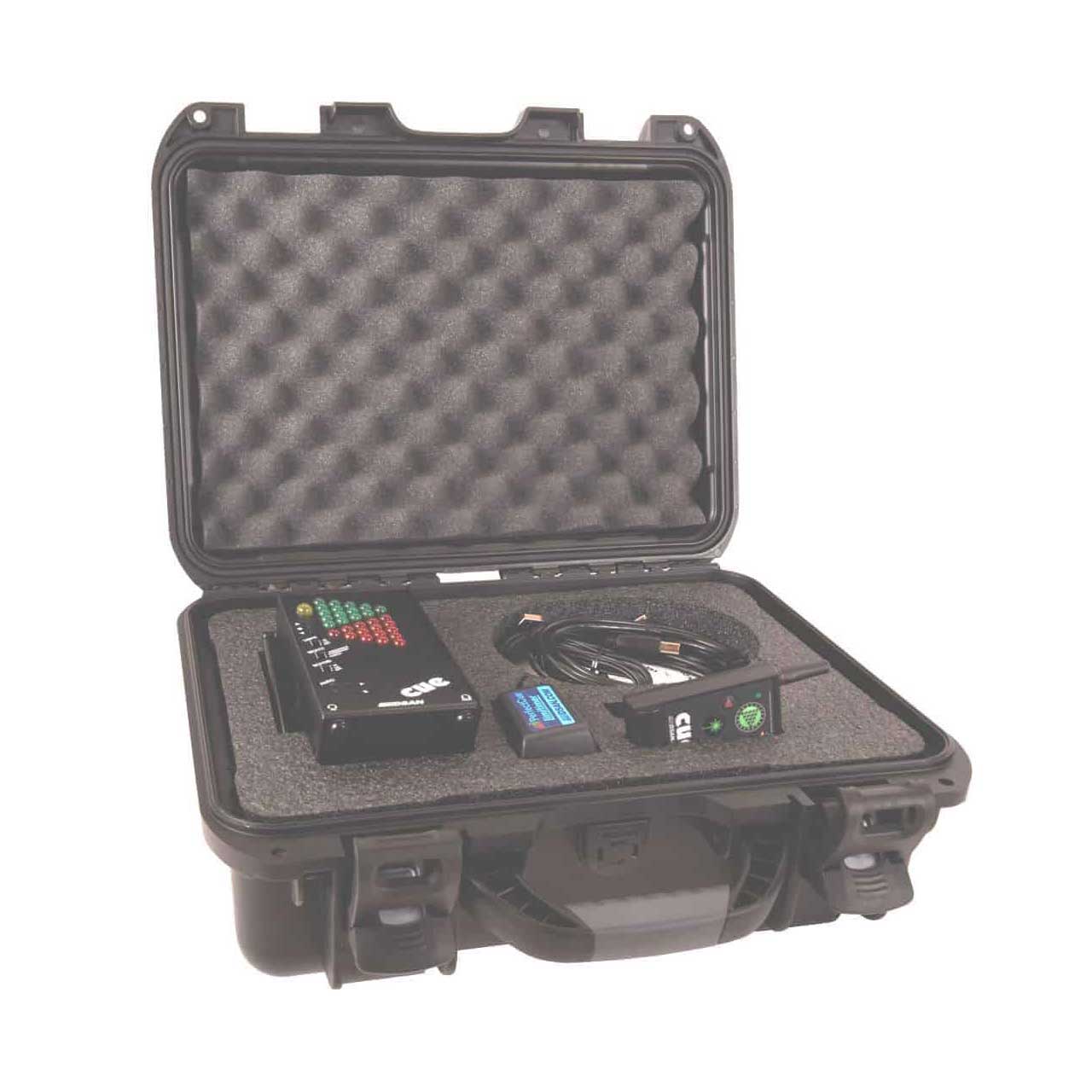

      • Case: 17 x 14 x 7"
      • Weight: 10Lbs with case
