Dalcomm Tech J7 Pro AV Headset with SBG-1 Motorola 2 Pin Radio Plug

ITEM #: DT-J7-SBG-1 MFG #: MODEL J7 SBG-1

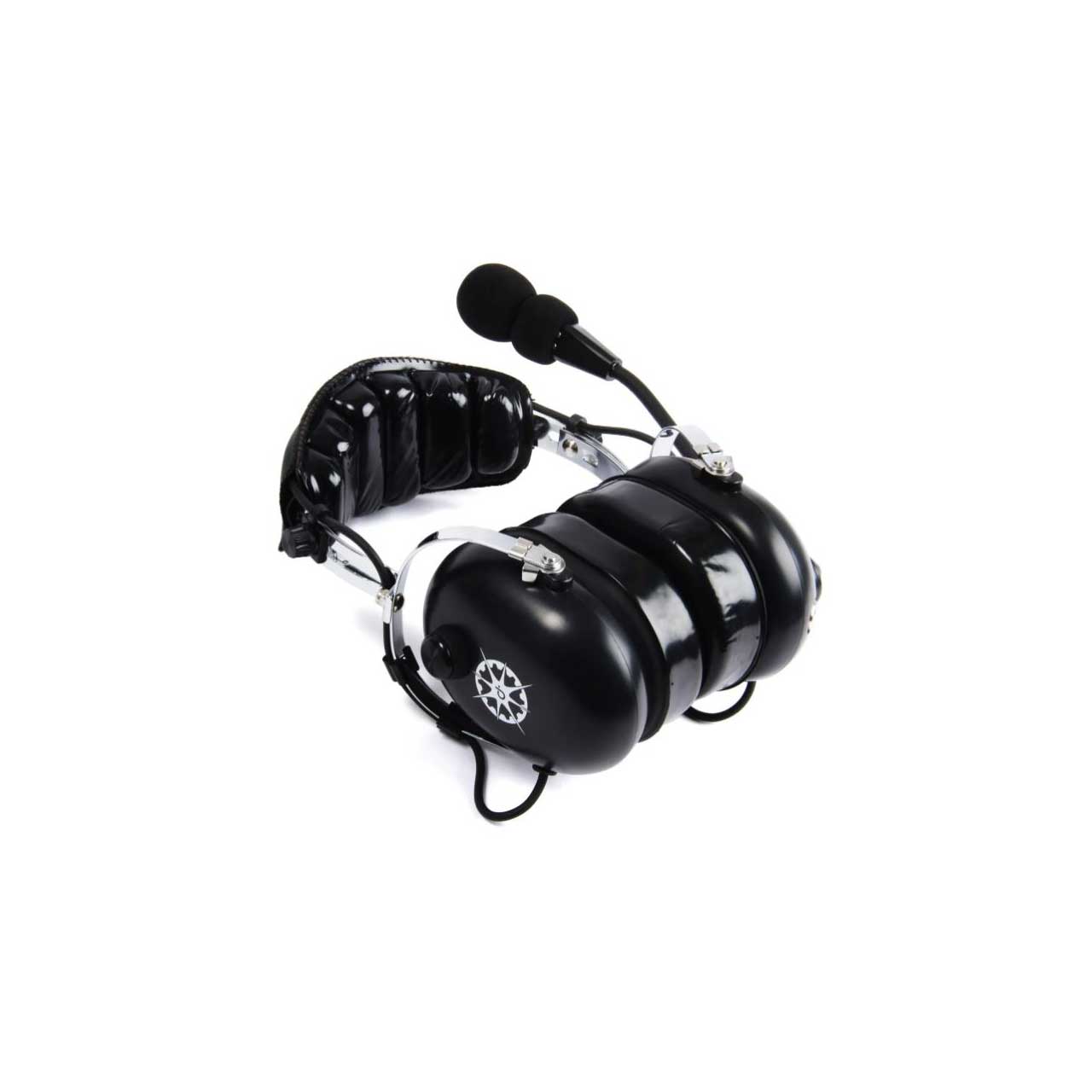

Primary Image

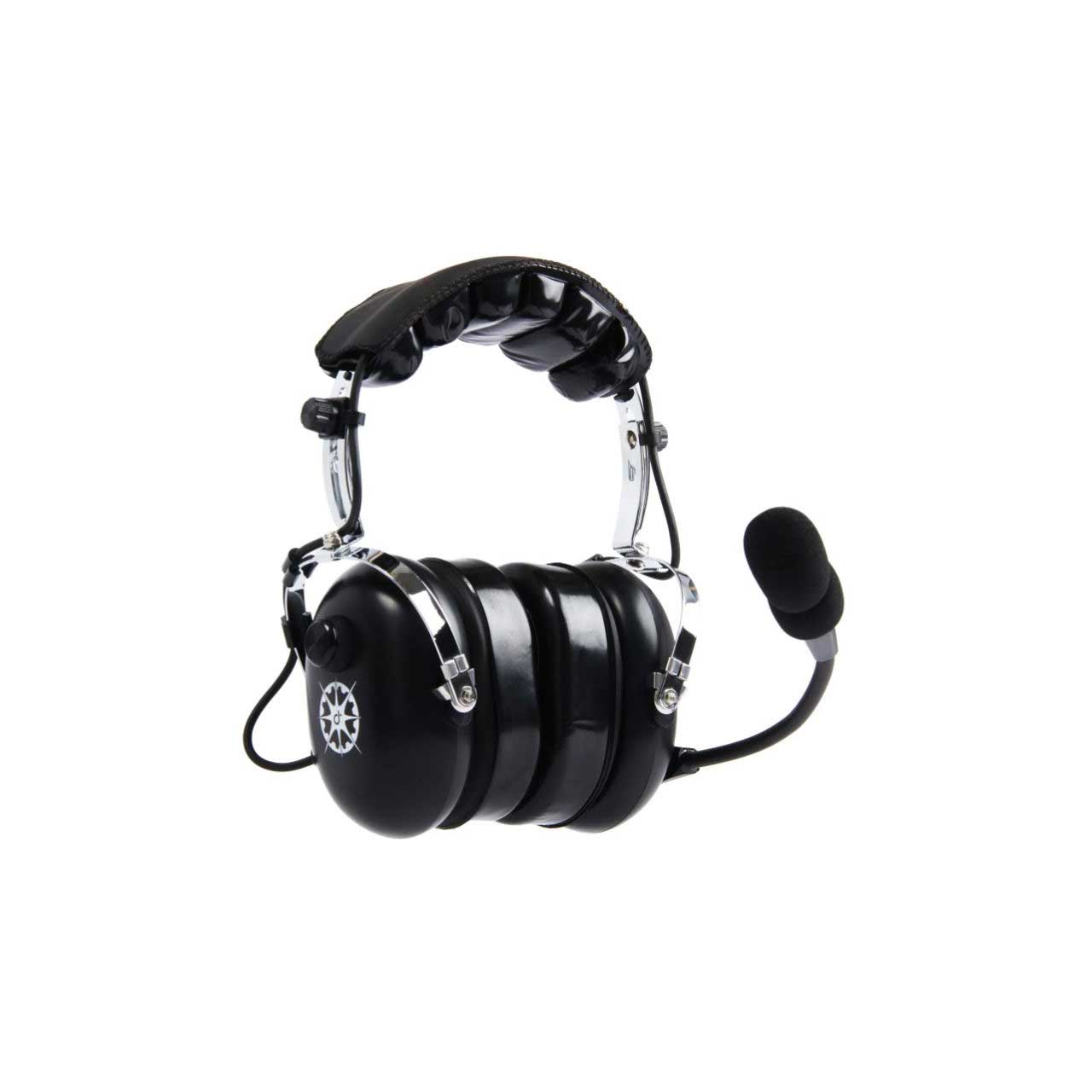

  • Product Image Thumbnail 1 of 3

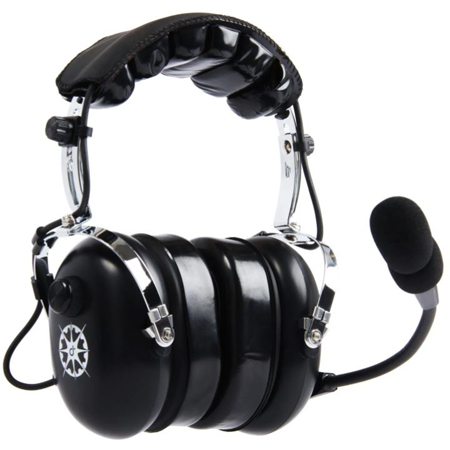

  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$295.00

Our Price:

$280.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    MODEL J7 SBG-1 - Overview

    The Dalcomm Tech J7 Professional Camera operator Headset Features selected and field tested by V1's and A1's, these professional communications headsets set a new standard in communications headsets! Compatible with RTS, Clear-Com, Riedel, HME, Telex, Studio Technology, 100's of portable radios, smartphones, tablets, laptops and more. Comes standard with XLR 5 pin male adapter for camera use. 3, 4 and 5 pin XLR cable ready, use SBJ Series Cords.Portable radio, smartphone and computer adapters, use SBG Series Cords.Faux leather ear cushions, foam, gel and gel + foam options available.Low-profile volume control knob. Noise-canceling Dynamic microphone.

    • Features:

      • Fully flexible, 270° Rotatable Microphone Boom
      • Faux leather ear pads, additional types available
      • Dual GA Plugs, Helicopter version is Model J7-H
      • Available in carbon fiber as Model J1
      • Headset travel bag and cord clip included

    • Specifications:

      • Microphone and Amplifier
      • Element Type: Noise-canceling electret
      • Frequency Response: 100Hz to 5kHz
      • Operating Voltage (supplied by aircraft): 8-32 Volts DC
      • Matching Impedance: 150-1000 ohms
      • Sensitivity: -33+/-4 dB (ref: 0dB SPL=20.0uPa at 1kHz with 10 Vdc 150 ohms AC load)
      • Microphone Plug: PJ-068 (.206"F5.2 phone plug)
      • Boom: Flexible boom

        Earphone Elements
      • Type: Dynamic
      • Frequency Response: 100Hz to 8kHz
      • Sensitivity: 95+/-5 dB SPL, (1kHz, 1 mW input per earcup side)
      • Full volume on ear simulator
      • Impedance: 150 ohms (300 ohms each, wired in parallel)
      • Rate Input: 100mW
      • Max. Input: 250mW
      • Earphone Plug: PJ-055 (.25"F6.3 phone plug)

        General
      • Operating Temperature: -4° to 131° F (-20° to 55° C)
      • Storage Temperature: -30° to 158° F (-22° to 70° C)
      • Cord: Straight cord from headset to molded plug, 130cm
      • Total weight: 18 oz (530 g)

    • Item Includes:

      • 1x Headset

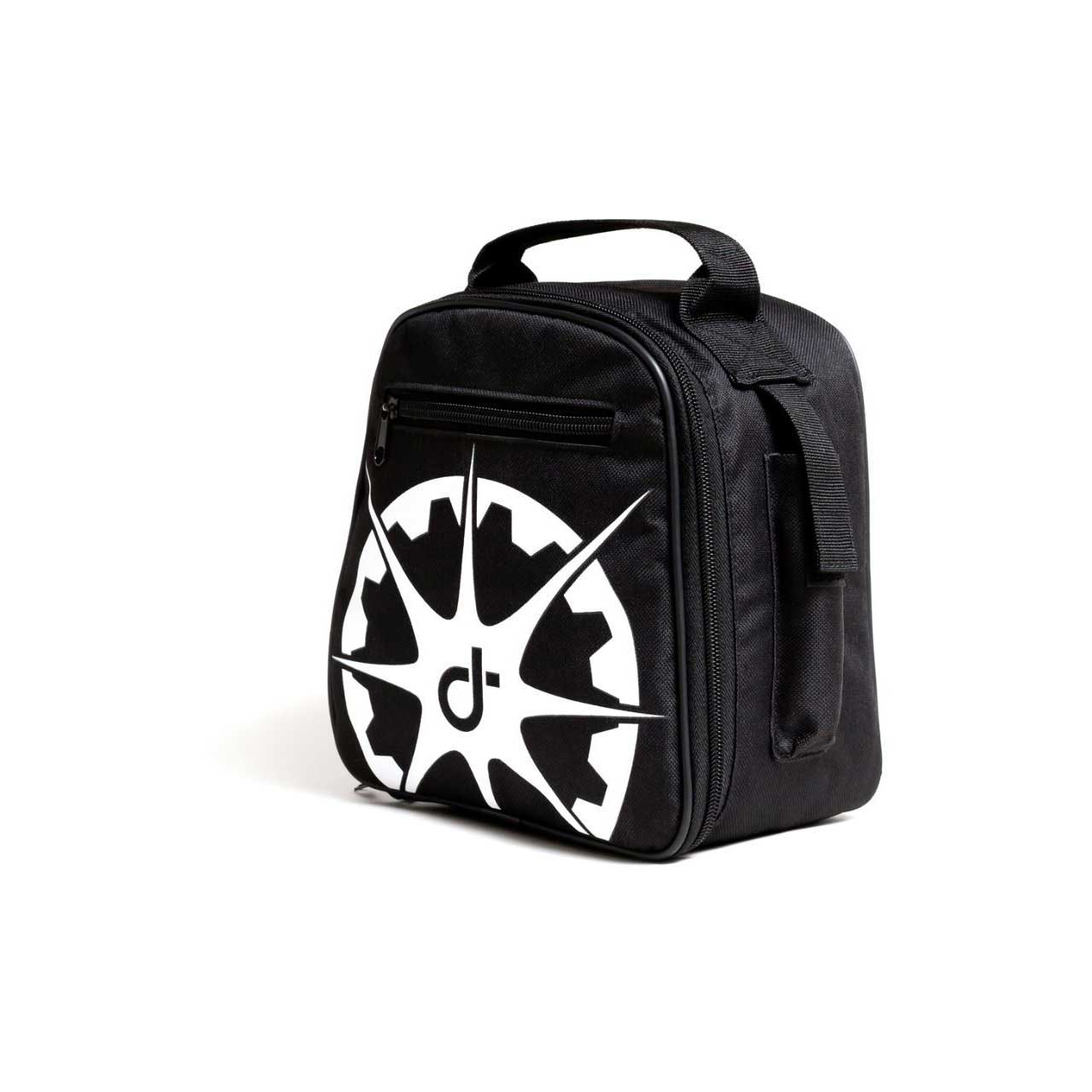

      • 1x Carry bag
      • 1x Adapter cable
      • 1x Cord clip

    • Warranty:

      • 65 Months
